Description
White 3 LED Front End Outline Marker with Inbuilt Reflector No Tools, 3M Tape, ADR/ECE, IP67.
Product Overview

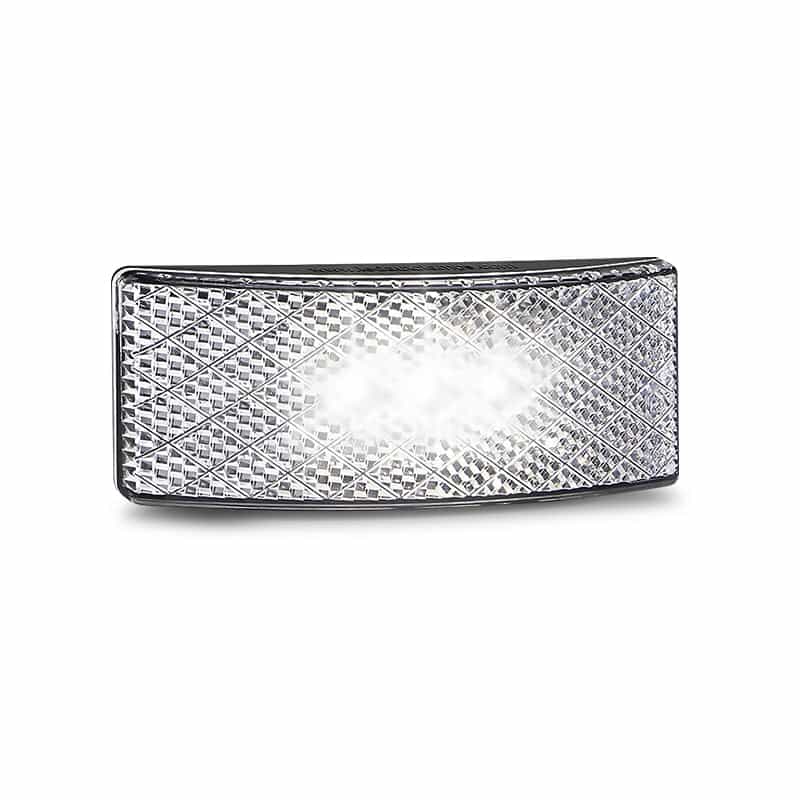

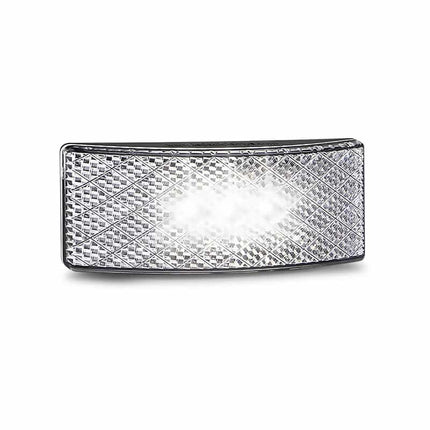

The LED Autolamps EU38BWMHDB is a white LED front end outline (FEO) marker lamp with an integrated reflex reflector from the EU38 series one of the most widely used low-profile marker lamp designs on Australian trailers and commercial vehicles. At just 100mm x 38mm x 13mm with an ultra-slim 13mm profile depth, the EU38BWMHDB fits neatly onto trailer frames, cab corners, and body panels without protruding.
Installation requires no tools drill one 8mm hole for the cable, remove the protective film from the 3M adhesive backing, and simply push the lamp into place using the two serrated plug locators on 60mm centres. The curved diamond pattern polycarbonate lens houses 3 LEDs for white output with an integrated reflex reflector for combined active and passive compliance. ADR and ECE approved, IP67 rated, and backed by a 5-year warranty.
Note: The EU38BWMHDB shares all specifications with the EU38WMHDB. The "B" prefix in the SKU is believed to denote a bulk/bare pack variant confirm packaging format with your retailer or supplier before ordering if blister packaging is required.
Key Specifications
- Function: White front end outline (FEO) marker with integrated reflex reflector
- LED count: 3 LEDs
- LED colour: White
- Lens: Polycarbonate curved diamond pattern
- Dimensions: 100mm x 38mm x 13mm
- Locator spacing: 60mm centres (2x serrated plugs)
- Cable: Approx. 35cm
- Mount: 3M adhesive tape no tools required
- Mounting hole: 1x 8mm hole for cable
- IP rating: IP67
- Input voltage: 12–24V DC (multivolt)
- Compliance: ADR and ECE approved
- Warranty: 5 years
- Packaging: Single unit
- Brand: LED Autolamps
- SKU: EU38BWMHDB
Features & Benefits
-
No tools required: The 3M adhesive tape and serrated plug locator system allows installation without screws, drills, or brackets
-
Ultra-slim 13mm profile: One of the most low-profile FEO markers available, maintaining clean lines on modern trailers and caravans
-
Integrated reflex reflector: Combines active LED output and passive reflector compliance in a single compact unit
-
3 white LEDs: Bright white LED output for front end outline marking on 12V and 24V vehicles and trailers
-
Curved diamond pattern polycarbonate lens: Durable UV-resistant lens in the signature EU38 series style
-
ADR and ECE approved: Fully compliant with Australian Design Rules and ECE standards
-
IP67 waterproof: Completely sealed against dust and temporary water immersion
-
12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial truck applications
-
5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty
Technical Specs
| Specification |
Detail |
| SKU |
EU38BWMHDB |
| Brand |
LED Autolamps |
| Series |
EU38 Series |
| Function |
White Front End Outline Marker + Inbuilt Reflector |
| LED Count |
3 |
| LED Colour |
White |
| Lens |
Polycarbonate curved diamond pattern |
| Dimensions |
100mm x 38mm x 13mm |
| Locator Spacing |
60mm centres (2x serrated plugs) |
| Cable Length |
Approx. 35cm |
| Mount Type |
3M adhesive tape no tools required |
| Mounting Hole |
1x 8mm for cable |
| IP Rating |
IP67 |
| Input Voltage |
12–24V DC (multivolt) |
| Compliance |
ADR and ECE approved |
| Warranty |
5 Years |
| Packaging |
Single unit |
Compatible With
Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring white ADR-compliant front end outline markers including:
- Box trailers, car trailers, and boat trailers
- Caravans and camper trailers
- Light and heavy commercial trucks
- Agricultural and construction trailers
Frequently Asked Questions
How does this lamp differ from the EU38WMHDB?
The EU38BWMHDB and EU38WMHDB share identical specifications same function, dimensions, LEDs, and compliance. The "B" in the EU38BWMHDB SKU is believed to denote a bulk or bare pack variant. Confirm packaging format with your retailer if blister packaging is required for your application.
Does this marker require drilling to install?
Only one 8mm hole is required for the cable. The lamp body is secured entirely by the 3M adhesive tape and two serrated plug locators no screws, brackets, or additional holes are needed.
Is this lamp ADR approved for Australian road use?
Yes the EU38BWMHDB is ADR and ECE approved, confirming it meets Australian legal requirements for white front end outline marker use on trailers and road vehicles.
Does this lamp include a reflex reflector?
Yes an integrated reflex reflector is built into the lamp body, providing both active LED output and passive reflective compliance in a single unit.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always confirm mounting requirements and quantity needed before purchasing. Contact the seller if you're unsure prior to purchase.
