Description
ADR Approved Jumbo Stop/Tail/Indicator/Reverse Assembly 595mm, Full CRN Certification, IP67
Product Overview

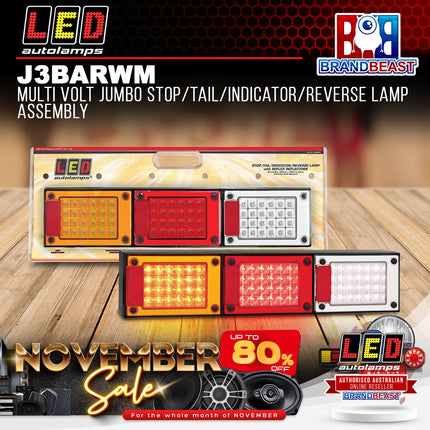

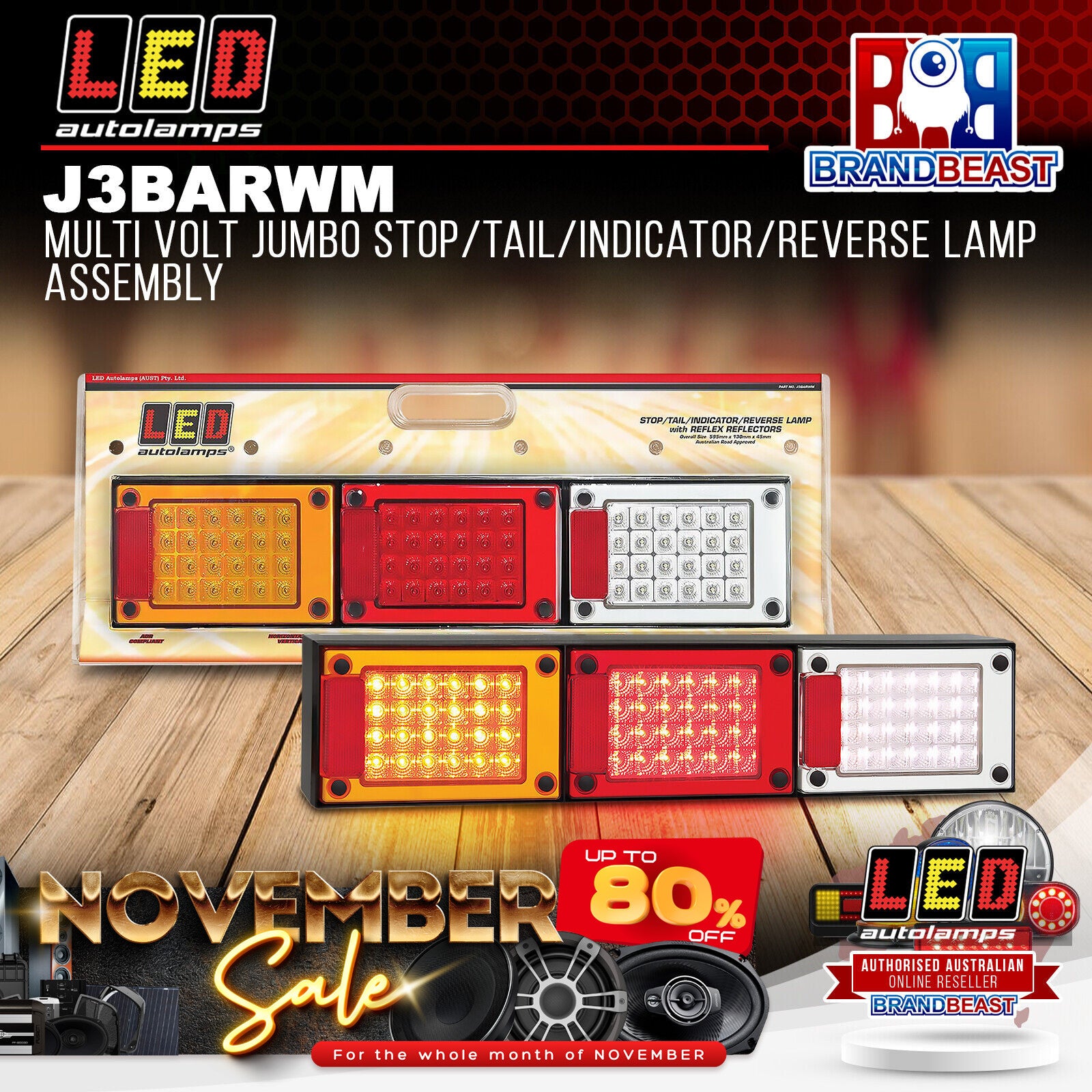

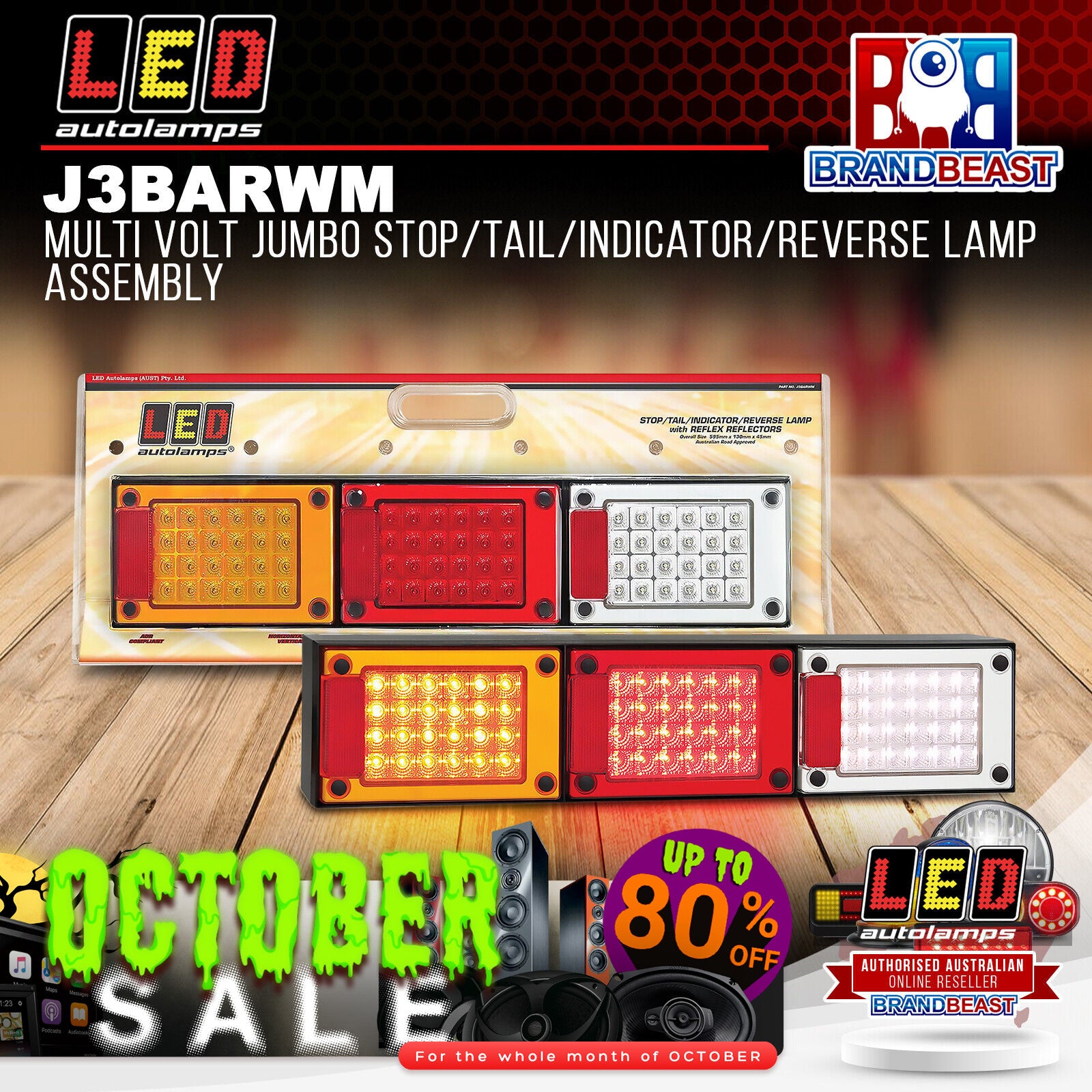

The LED Autolamps J3BARWM is the four-function flagship of the J3 Jumbo series a 12/24V rear combination lamp covering stop, tail, indicator, reverse, and inbuilt reflex reflectors across the same 595mm x 130mm x 45mm Jumbo housing as the J3BARRM, with the addition of a reverse function carrying its own CRN42967 certification.
All five functions carry individual CRN approvals: stop/tail CRN42965, indicator CRN42964, reverse CRN42967, and reflector CRN42966. Drawing 0.47A stop, 0.04A tail, 0.42A indicator, and 0.18A reverse at 13.8V. Rated IP67 and backed by a 5-year warranty.
Features & Benefits
-
Five functions in one Jumbo assembly — stop, tail, indicator, reverse, and inbuilt reflex reflectors with individual CRN certifications
-
Full CRN certification — stop/tail CRN42965, indicator CRN42964, reverse CRN42967, reflector CRN42966
-
595mm Jumbo form factor — suited to wide-body trucks, semi-trailers, and heavy commercial vehicles
-
Inbuilt reflex reflectors — integrated passive reflective elements for additional rear visibility and compliance
-
All four current draws confirmed — stop 0.47A, tail 0.04A, indicator 0.42A, reverse 0.18A at 13.8V
-
500mm centre-to-centre mount — confirm against your panel before installation
-
Pre-wired surface mount — ready to connect out of the pack
-
ADR road approved — meets Australian Design Rules for legal on-road use across all functions
-
IP67 rated — fully sealed against dust and water immersion
-
12/24V dual voltage — compatible with 12V and 24V vehicle electrical systems
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
J3BARWM |
| Series |
Jumbo |
| Lamp Type |
Stop / Tail / Indicator / Reverse / Reflector |
| Voltage Range |
12V / 24V |
| Dimensions |
595mm x 130mm x 45mm |
| Mount Centre-to-Centre |
500mm |
| Stop Current Draw |
0.47A @ 13.8V |
| Tail Current Draw |
0.04A @ 13.8V |
| Indicator Current Draw |
0.42A @ 13.8V |
| Reverse Current Draw |
0.18A @ 13.8V |
| Reflector |
Inbuilt reflex |
| Mounting |
Surface mount |
| Connector |
Pre-wired |
| Protection Rating |
IP67 |
| Stop/Tail Compliance |
ADR — CRN42965 |
| Indicator Compliance |
ADR — CRN42964 |
| Reverse Compliance |
ADR — CRN42967 |
| Reflector Compliance |
ADR — CRN42966 |
| Warranty |
5 years |
Compatible With / Goes Well With
- Wide-body trucks, semi-trailers, and heavy commercial vehicles requiring full-function Jumbo rear combination lighting
- 12V and 24V vehicle electrical systems
- LED Autolamps J3BARRM (same 595mm Jumbo form factor, without reverse)
- LED Autolamps J3AM and J3RM inserts (same J3 Jumbo series)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the J3BARWM approved for road use in Australia?
Yes. The J3BARWM holds individual ADR CRN certifications for all five functions — stop/tail (CRN42965), indicator (CRN42964), reverse (CRN42967), and reflector (CRN42966) — meeting Australian Design Rules for full legal on-road use.
How does the J3BARWM differ from the J3BARRM?
The J3BARWM adds reverse function with its own CRN42967 certification to the same 595mm x 130mm Jumbo form factor as the J3BARRM. Choose the J3BARWM for a complete five-function assembly; choose the J3BARRM where a separate reverse lamp is preferred.
What are all four current draws?
Stop draws 0.47A, tail 0.04A, indicator 0.42A, and reverse 0.18A — all at 13.8V.
What is the IP rating on the J3BARWM?
The J3BARWM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed truck body and trailer mounting.
What warranty does the J3BARWM carry?
The J3BARWM is backed by a 5-year warranty from LED Autolamps.
