Description
White LED Reverse Lamp Insert for Jumbo J3 Series Individually Mountable, ADR Approved, IP67.
Product Overview

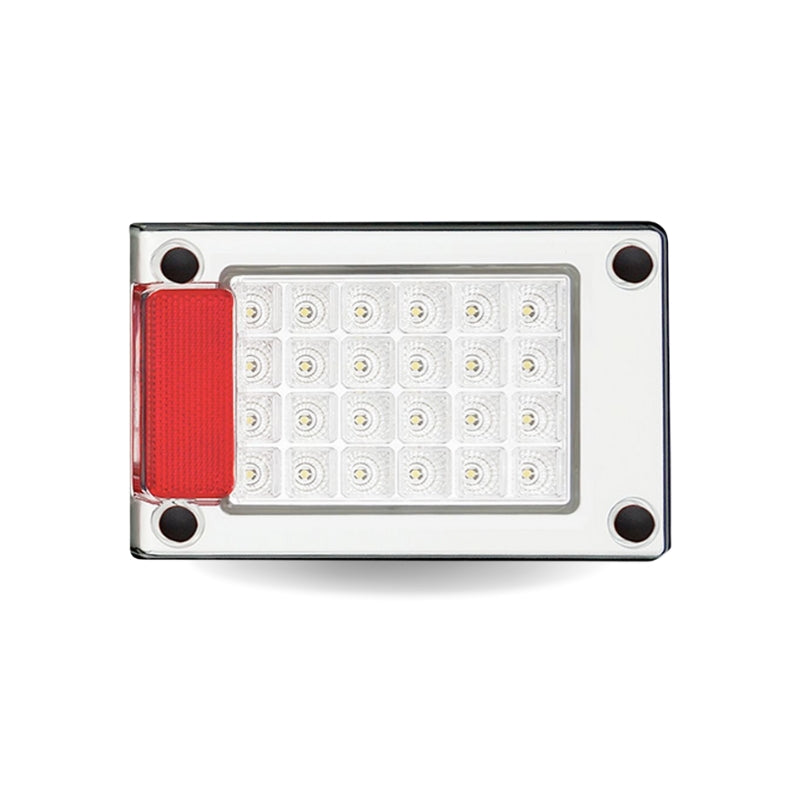

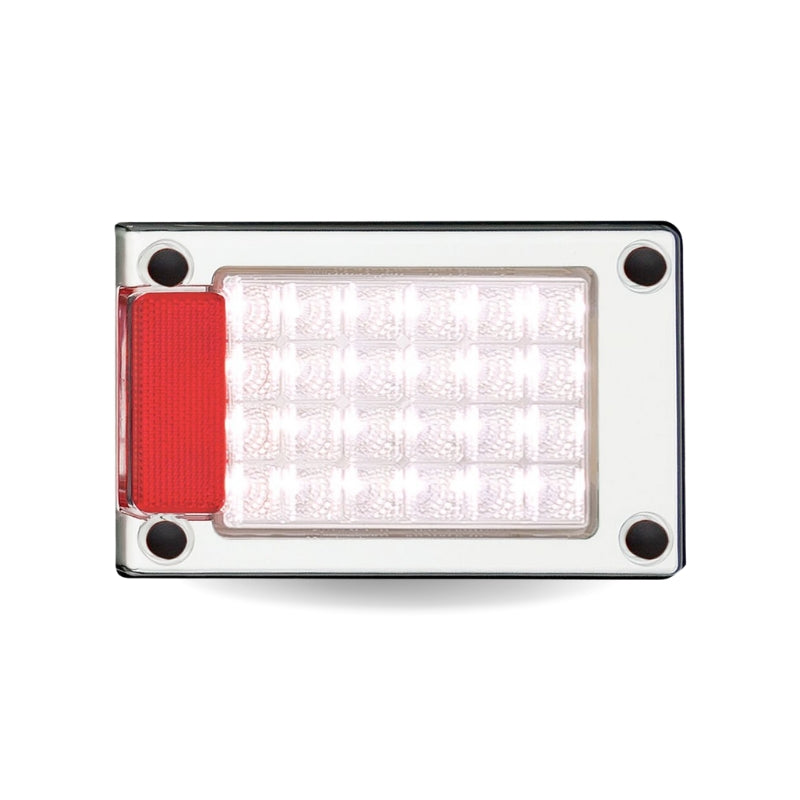

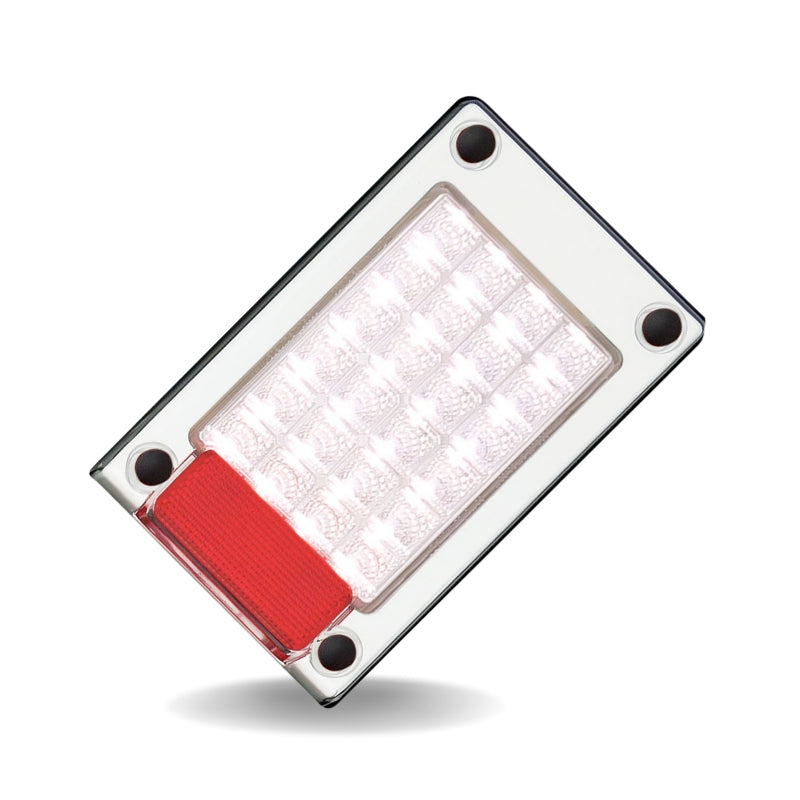

The LED Autolamps J3WM is a white LED reverse lamp insert designed as an individual replacement module for the popular Jumbo J3 series rear lamp assembly. The Jumbo series is a common large-format lamp assembly used across many caravan, trailer, and truck applications, with the full assembly mounted horizontally using bolts through the rear and wire routed through the mounting surface. Rather than replacing the entire jumbo lamp assembly when one module fails, the J3WM allows the white reverse function module to be individually mounted with its own bracket and replaced separately a significant cost and time saving for fleet operators and trailer owners.
Featuring an inbuilt reflex reflector, the J3WM measures 190mm x 122mm x 30mm and is ADR approved (CTA042964). IP67 rated, 12–24V compatible, and backed by LED Autolamps' 5-year warranty.
Key Specifications
- Function: White reverse lamp with inbuilt reflex reflector
- LED colour: White
- Dimensions: 190mm x 122mm x 30mm
- Mount type: Individually mountable with bracket
- Series: Jumbo J3 Series (replacement module)
- IP rating: IP67
- Input voltage: 12–24V DC (multivolt)
- Compliance: ADR approved CTA042964
- Warranty: 5 years
- Weight: 0.5kg

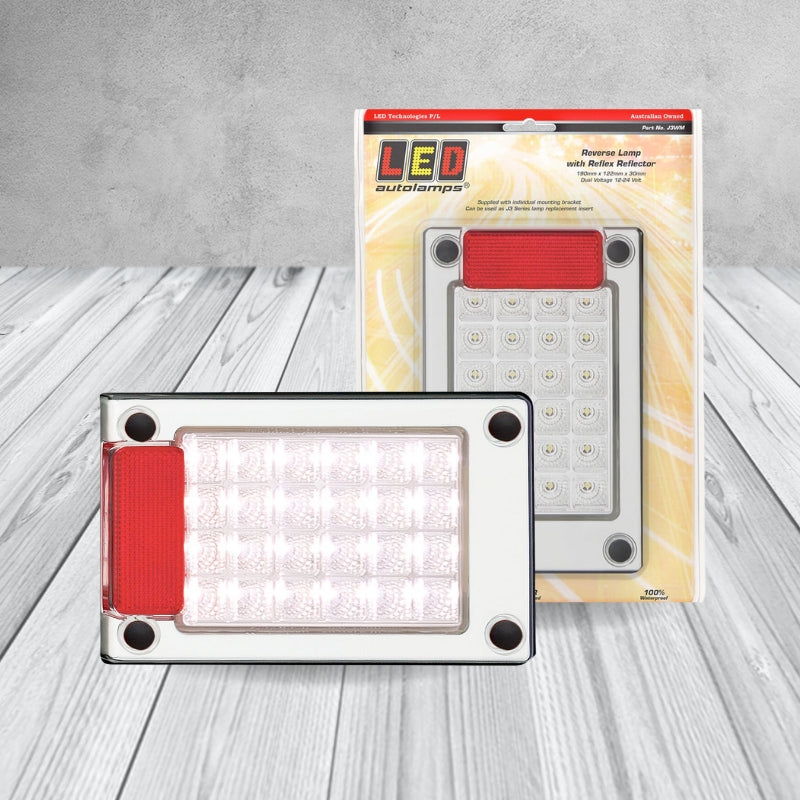

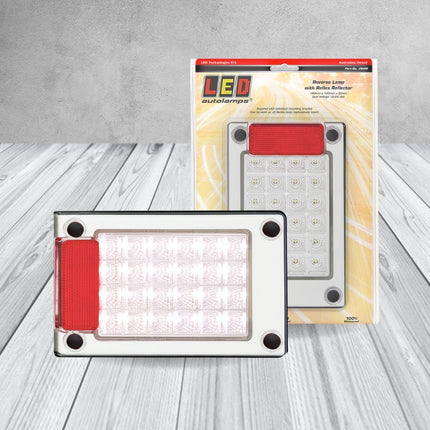

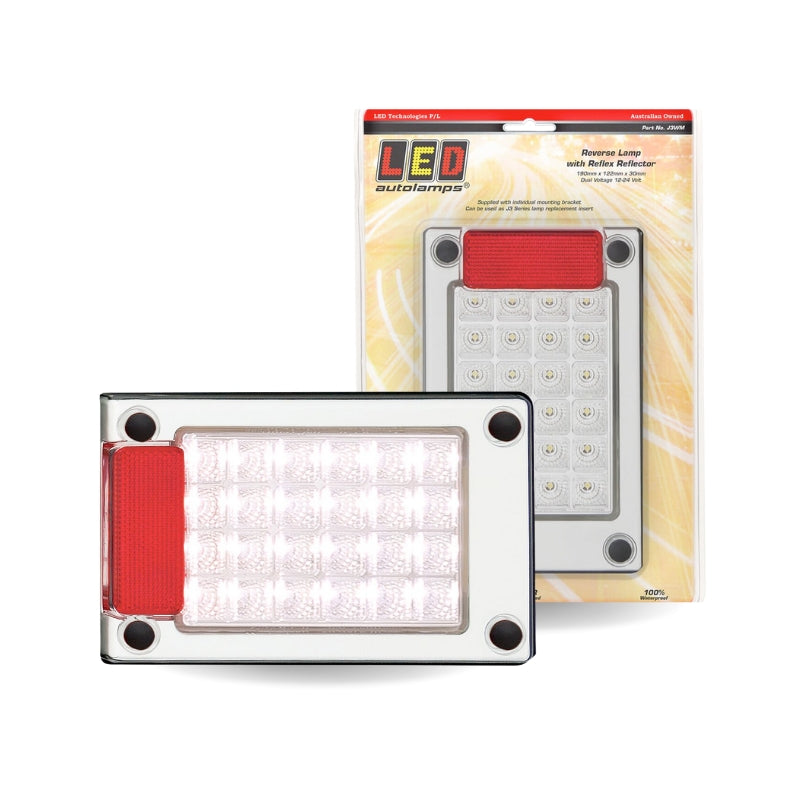

- Packaging: Blister pack single unit
- Brand: LED Autolamps
- SKU: J3WM
Features & Benefits
-
Individually replaceable module: If a single function module in your Jumbo series lamp assembly is accidentally damaged, only that module needs to be replaced not the entire lamp assembly significant savings for fleet operators and trailer owners
-
Inbuilt reflex reflector: Combines active white reverse LED output with passive reflector compliance in a single module
-
ADR approved CTA042964: Fully compliant with Australian Design Rules for reverse lamp use on Australian road vehicles and trailers
-
Individually mountable with bracket: Each module clips into its own bracket within the Jumbo assembly housing, allowing modular servicing
-
IP67 waterproof: Completely sealed against dust and temporary water immersion for reliable year-round outdoor performance
-
12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial trucks
-
5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty
Technical Specs
| Specification |
Detail |
| SKU |
J3WM |
| Brand |
LED Autolamps |
| Series |
Jumbo J3 Series |
| Function |
White Reverse Lamp + Inbuilt Reflex Reflector |
| LED Colour |
White |
| Dimensions |
190mm x 122mm x 30mm |
| Mount Type |
Individually mountable with bracket |
| IP Rating |
IP67 |
| Input Voltage |
12–24V DC (multivolt) |
| ADR Compliance |
CTA042964 |
| Warranty |
5 Years |
| Weight |
0.5kg |
| Packaging |
Blister Pack single unit |
Compatible With
Compatible with:
- LED Autolamps Jumbo J3 Series rear lamp assemblies (full assembly: 595mm x 130mm x 45mm)
- Suits trucks, trailers, and caravans using the J3 series jumbo lamp format
Frequently Asked Questions
What is a Jumbo series replacement module?
The Jumbo series lamp assembly is made up of individual function modules such as stop/tail/indicator, reverse, and amber indicator inserts each individually mountable with its own bracket. If one module is damaged, it can be replaced individually rather than replacing the entire jumbo lamp assembly.
Is this the complete jumbo lamp or just one module?
The J3WM is a single white reverse lamp module one component of the larger Jumbo J3 series lamp assembly. For a complete pre-assembled stop/tail/indicator/reverse jumbo lamp, refer to the LED Autolamps J3BARWM.
Is this lamp ADR approved for Australian road use?
Yes the J3WM is ADR approved under CTA042964, confirming it meets Australian legal requirements for reverse lamp use.
Does this lamp include a reflex reflector?
Yes an integrated reflex reflector is built into the module, providing both active white LED output and passive reflective compliance.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Confirm your existing lamp assembly uses the J3 series format before purchasing this replacement module. Contact the seller if you're unsure prior to purchase.
