SAE Class 1 & ECE R65 Approved Amber Emergency Mini Light Bar with 18 Flash Patterns
Product Overview

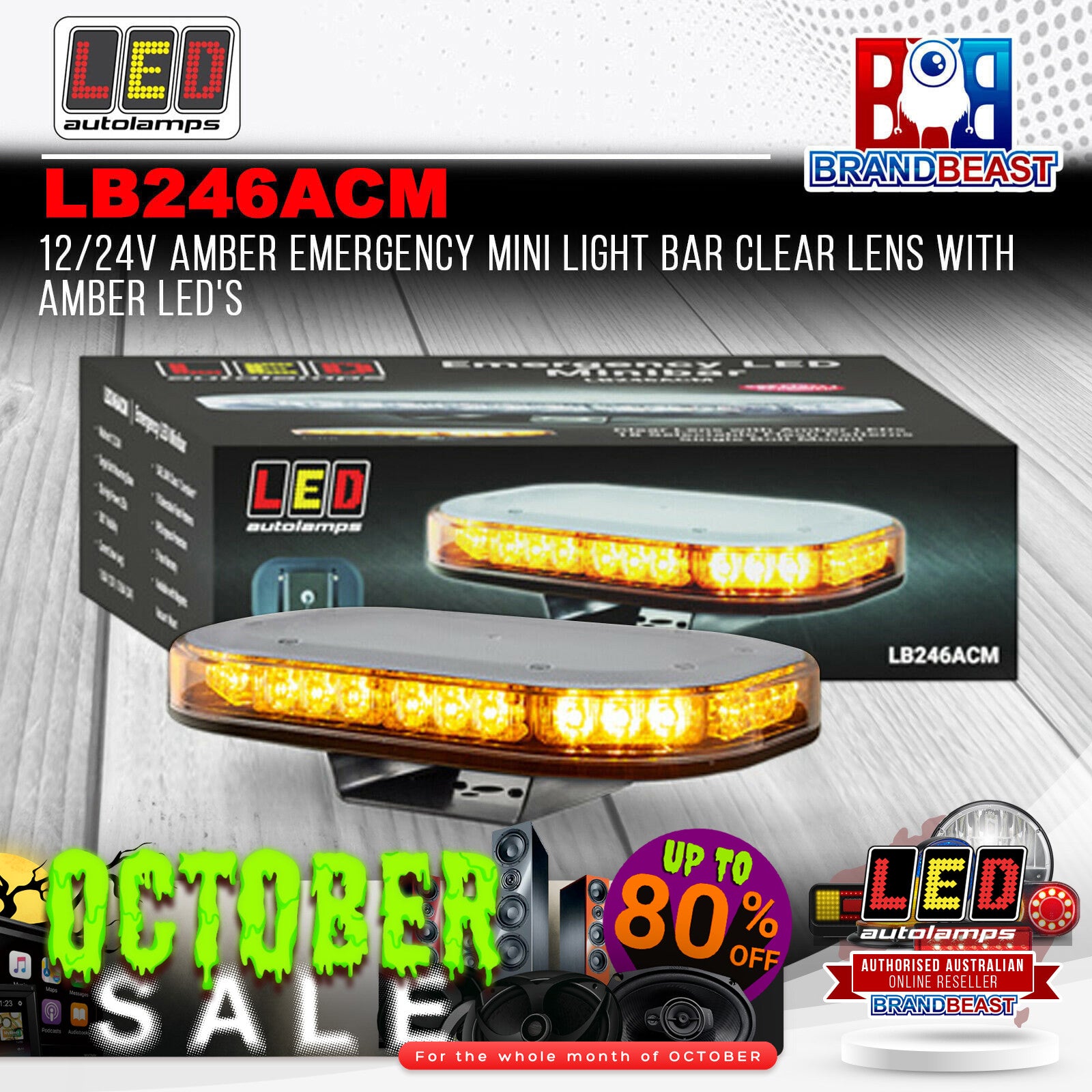

The LED Autolamps LB246ACM is a heavy-duty amber emergency mini light bar designed for 10–30V applications across light and heavy transport. Fitted with 30 x 1W high-brightness LEDs behind a clear lens, it delivers powerful amber output with 18 selectable flash patterns giving operators the flexibility to match flash mode to their specific application or regulatory requirement.
Carrying both SAE/J845 Class 1 and ECE R65/ECE R10 approvals, the LB246ACM meets the certification standards demanded by emergency, warning, and service vehicle operators. Rated IP65 and tested across a temperature range of -40°C to +60°C, it's built to perform reliably in the harsh conditions found across Australian roads, job sites, and long-haul routes.
Features & Benefits
-
30 x 1W high-brightness LEDs — delivers strong, consistent amber output for maximum visibility in emergency and warning applications
-
18 selectable flash patterns — operators can choose the flash mode best suited to their application or local compliance requirements
-
SAE/J845 Class 1 compliant — meets the highest SAE warning light classification for emergency and hazard warning use
-
ECE R65 & ECE R10 approved — internationally recognised certifications for warning lamps, accepted across Australian and export markets
-
10–30V multi-voltage — compatible with 12V light vehicles through to 24/28V heavy transport without modification
-
IP65 rated — protected against dust ingress and low-pressure water jets, suited to exposed vehicle-mounted applications
-
-40°C to +60°C operating range — engineered to handle extreme cold and heat, including the temperature swings common in Australian outback and alpine environments
-
Heavy-duty emergency minibar construction — compact form factor with robust build quality trusted by manufacturers and auto electricians alike
Technical Specs
| Specification |
Detail |
| SKU |
LB246ACM |
| LED Quantity |
30 x 1W |
| Voltage Range |
10V – 30V |
| Current Draw |
1.63A @ 13.8V / 0.56A @ 28V |
| Cable Length |
450mm |
| Flash Patterns |
18 selectable |
| LED Colour |
Amber |
| Lens Colour |
Clear |
| Protection Rating |
IP65 |
| Operating Temperature |
-40°C to +60°C |
| Compliance |
SAE/J845 Class 1, ECE R65, ECE R10 |
| Weight |
2.00 kg |
Compatible With / Goes Well With
- Emergency, warning, and service vehicles requiring SAE Class 1 or ECE R65 compliant lighting
- 12V light commercial and passenger vehicles
- 24V heavy transport, trucks, and plant equipment
- Road maintenance, tow trucks, escort vehicles, and utility fleets
- LED Autolamps wiring harnesses and emergency lighting accessories
Frequently Asked Questions
What compliance certifications does the LB246ACM carry?
It is SAE/J845 Class 1 compliant and holds ECE R65 and ECE R10 approvals, covering the major international and Australian standards for emergency warning lamps.
How many flash patterns does the LB246ACM offer?
The LB246ACM features 18 selectable flash patterns, allowing operators to choose the most appropriate mode for their application or local regulatory requirements.
What voltage range does the LB246ACM support?
It operates across 10V to 30V, making it compatible with both 12V light vehicles and 24V/28V heavy transport applications without any modification.
What is the IP rating and operating temperature range?
The LB246ACM is rated IP65 and is designed to operate between -40°C and +60°C, making it suitable for extreme Australian conditions including outback heat and alpine cold.
What colour are the LEDs and lens?
The LB246ACM features amber LEDs behind a clear lens, delivering high-visibility amber output suitable for emergency and hazard warning applications.
Weight
2.00 kg
