Description
SAE J845 Class 1 Amber Emergency Mini Light Bar 18 Flash Patterns, Magnetic Mount, 12/24V.
Product Overview

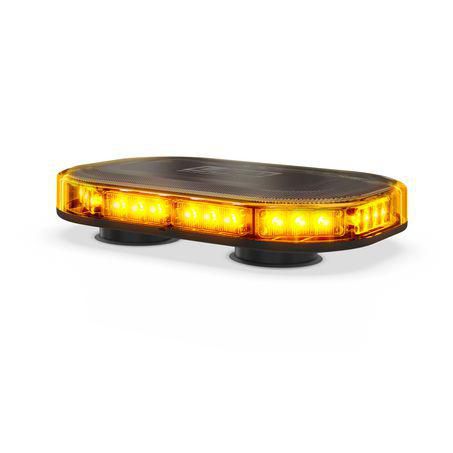

The LED Autolamps LB246ATMM is a heavy-duty amber LED emergency mini light bar designed for use on emergency, construction, roadside assistance, and safety vehicles requiring high-visibility amber warning lighting. Measuring 246mm x 171mm x 64mm with a magnetic mount base, the LB246ATMM installs quickly and securely on any metal vehicle roof or surface ideal for both permanent and temporary emergency lighting applications.
Powered by high-brightness 1-watt LEDs behind a tinted amber lens in a black housing, the LB246ATMM offers 18 selectable flash patterns to suit a wide range of operational requirements. Certified to SAE/J845 Class 1 and ECE R65/ECE R10 standards, it meets international compliance benchmarks for emergency warning lighting. With a broad 12–24V input range, IP65 weatherproof rating, and an operating temperature range of -40°C to +60°C, this light bar is engineered for demanding Australian conditions year-round. Backed by LED Autolamps' 5-year warranty and supplied individually in box packaging.
Key Specifications
- LED colour: Amber
- Lens: Tinted amber
- Housing colour: Black
- Dimensions: 246mm x 171mm x 64mm
- Mount type: Magnetic
- Flash patterns: 18 selectable
- LED type: 1-watt high brightness LEDs
- Compliance: SAE/J845 Class 1, ECE R65, ECE R10
- IP rating: IP65
- Input voltage: 12–24V DC
- Operating temperature: -40°C to +60°C
- Warranty: 5 years
- Weight: 1.8kg
- Packaging: Box single unit
- Brand: LED Autolamps
- SKU: LB246ATMM
Features & Benefits
-
SAE/J845 Class 1 and ECE R65/R10 certified: Meets internationally recognised standards for emergency warning light output, ensuring legal compliance and operational credibility for emergency, safety, and commercial applications
-
18 selectable flash patterns: Extensive pattern selection allows operators to choose the most appropriate warning signal for their specific application and local compliance requirements
-
High-brightness 1-watt LEDs: Premium 1W LEDs deliver superior light output compared to standard LED arrays for maximum visibility in daylight conditions
-
Tinted amber lens: Amber tinted lens combined with amber LEDs produces a strong, consistent amber warning output across all 18 flash patterns
-
Magnetic mount: Fast, tool-free installation on any metal surface ideal for emergency vehicles, service vehicles, and temporary deployment scenarios
-
IP65 weatherproof: Protected against dust ingress and low-pressure water spray for reliable outdoor operation in rain, dust, and general outdoor conditions
-
-40°C to +60°C operating range: Built to perform in Australia's extreme temperature environments from alpine cold to outback summer heat
-
12V and 24V compatible: Multivolt operation suits both passenger vehicles and 24V commercial trucks and vans from a single unit
-
5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty for long-term operational confidence
Technical Specs
| Specification |
Detail |
| SKU |
LB246ATMM |
| Brand |
LED Autolamps |
| Type |
Emergency Mini Light Bar |
| LED Colour |
Amber |
| Lens |
Tinted Amber |
| Housing Colour |
Black |
| Dimensions |
246mm x 171mm x 64mm |
| Mount Type |
Magnetic |
| Flash Patterns |
18 selectable |
| LED Type |
1-Watt high brightness |
| Compliance |
SAE/J845 Class 1, ECE R65, ECE R10 |
| IP Rating |
IP65 |
| Input Voltage |
12–24V DC |
| Operating Temperature |
-40°C to +60°C |
| Warranty |
5 Years |
| Weight |
1.8kg |
| Packaging |
Box single unit |
Compatible With
Universal suits all 12V and 24V vehicles requiring amber emergency warning lighting including:
- Emergency and first response vehicles
- Roadside assistance and breakdown vehicles
- Construction and earthmoving vehicles
- Pilot and escort vehicles
- Mine site and industrial safety vehicles
- Agricultural and slow-moving vehicles
Frequently Asked Questions
What compliance certifications does this light bar hold?
The LB246ATMM is certified to SAE/J845 Class 1 and ECE R65/ECE R10 standards internationally recognised benchmarks for emergency vehicle warning light output and electromagnetic compatibility.
How many flash patterns are available?
The LB246ATMM offers 18 selectable flash patterns, allowing operators to choose the most appropriate warning signal for their application and local regulatory requirements.
Does this light bar come with a permanent or magnetic mount?
The LB246ATMM uses a magnetic mount, allowing quick tool-free installation and removal on any metal vehicle surface. It is suitable for both temporary and operational deployment.
What is the IP rating of this light bar?
The LB246ATMM is rated IP65, providing protection against dust ingress and low-pressure water spray. Note that IP65 is not fully submersible avoid direct high-pressure water jet exposure.
Is this light bar legal for use on public roads in Australia?
SAE/J845 Class 1 and ECE R65 certification confirms the light bar meets international output standards for emergency warning lighting. However, legal requirements for amber emergency light bar use on public roads vary by Australian state and territory and by vehicle type. Always confirm local regulatory requirements before fitting this light bar to a vehicle for on-road use.
