Description

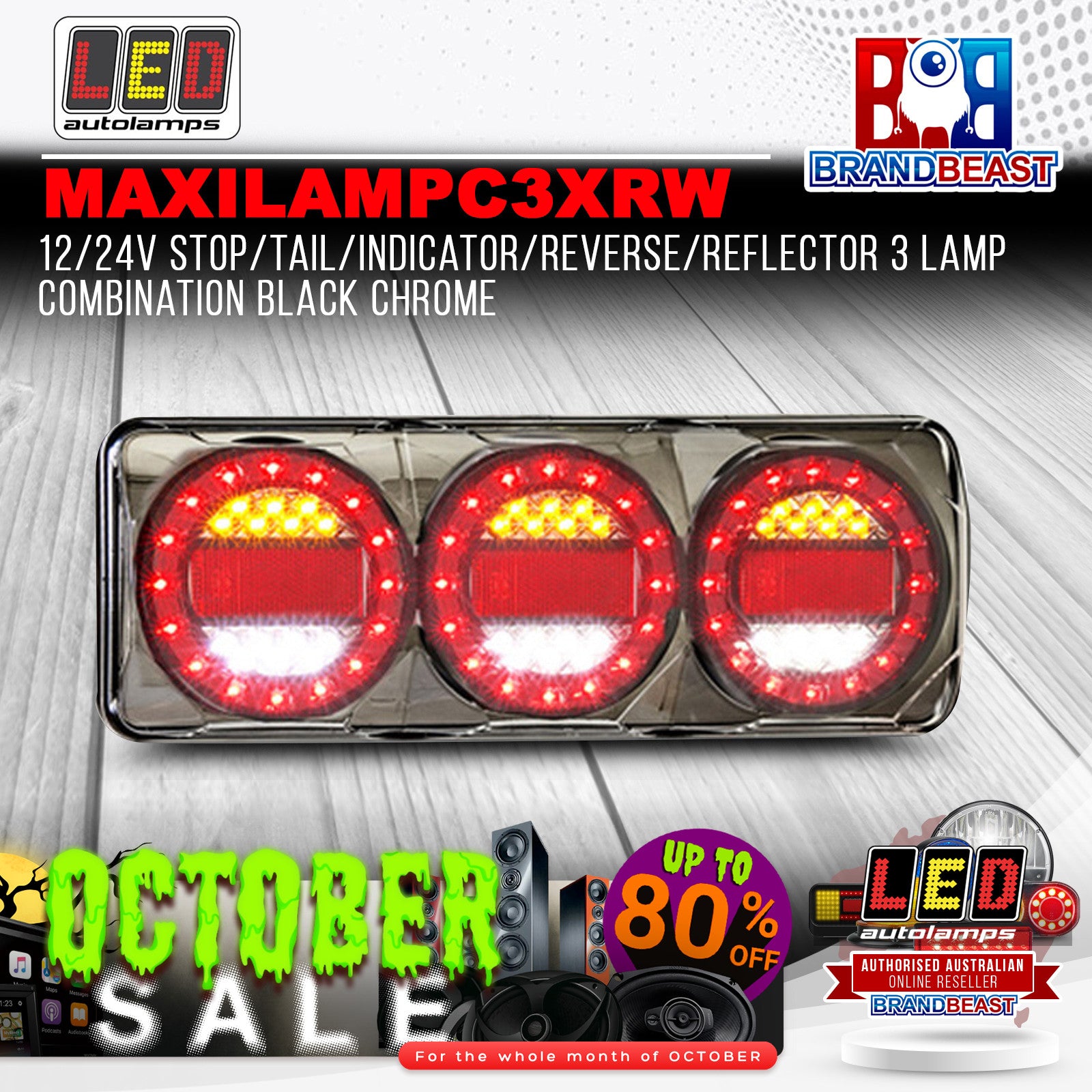

LED Autolamps MAXILAMPC3XRW 12-24V Stop Tail Indicator Reverse and Reflector Combination Lamp Black Chrome 370mm x 135mm x 40mm 269mm Mounting Centres 400mm Pre-Wired Lead ECE Approved CTA040963 ADR Approved IP67 7 Year Warranty
The LED Autolamps MAXILAMPC3XRW is a 12-24V stop, tail, indicator, reverse, and reflector combination lamp with black chrome finish. 370mm x 135mm x 40mm, 269mm mounting centres, 400mm pre-wired lead, surface mount. ECE approved (CTA040963). ADR approved. IP67 waterproof. 7-year warranty. Sold individually.
Product overview
The MAXILAMPC3XRW adds a reverse function to the MAXILAMPC3XR stop, tail, indicator, and reflector assembly, providing a complete five-function combination lamp in the same 370mm x 135mm x 40mm black chrome housing with 269mm mounting centres. Full ADR compliance is confirmed across all functions: stop/tail ADR 49/00, indicator ADR 6/00 Cat 2A, reverse ADR 1/00, and reflector ECE 02 Cat 1A. ECE CTA040963 approval. 400mm pre-wired lead for direct vehicle connection. IP67 waterproof. 12-24V compatible. 7-year warranty.
Features and benefits
Stop, tail, indicator, reverse, and reflector in one unit.
Black chrome design.
370mm x 135mm x 40mm rectangular format.
269mm mounting centres.
400mm pre-wired lead.
Surface mount.
ECE approved (CTA040963) and ADR approved: Stop/tail ADR 49/00, indicator ADR 6/00 Cat 2A, reverse ADR 1/00, reflector ECE 02 Cat 1A.
IP67 fully waterproof and submersible.
12V and 24V compatible.
7-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
MAXILAMPC3XRW |
| Brand |
LED Autolamps |
| Series |
MaxiLamp |
| Type |
Stop/tail/indicator/reverse/reflector combination lamp |
| Shape |
Rectangular |
| Finish |
Black chrome |
| Housing Colour |
Black |
| Operating Voltage |
12V to 24V |
| Current — Stop |
0.54A |
| Current — Tail |
0.08A |
| Current — Indicator |
0.77A |
| Current — Reverse |
0.67A |
| Dimensions |
370mm x 135mm x 40mm |
| Mounting Centres |
269mm |
| Cable Length |
400mm pre-wired lead |
| Mount Type |
Surface mount |
| Waterproof Rating |
IP67 |
| ECE Compliance |
CTA040963 |
| Stop/Tail Compliance |
ADR 49/00 |
| Indicator Compliance |
ADR 6/00 Cat 2A |
| Reverse Compliance |
ADR 1/00 |
| Reflector Compliance |
ECE 02 Cat 1A |
| Weight |
1.1kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
7 years |
Frequently asked questions
Is the MAXILAMPC3XRW ECE and ADR approved?
Yes. The MAXILAMPC3XRW holds ECE approval CTA040963 and is ADR approved across all functions: stop/tail ADR 49/00, indicator ADR 6/00 Cat 2A, reverse ADR 1/00, and reflector ECE 02 Cat 1A.
What is the difference between the MAXILAMPC3XRW and the MAXILAMPC3XR?
The MAXILAMPC3XRW adds a reverse function (ADR 1/00, 0.67A) and a 400mm pre-wired lead to the stop, tail, indicator, and reflector functions of the MAXILAMPC3XR. Both share the same 370mm x 135mm x 40mm black chrome housing, 269mm mounting centres, IP67 rating, and 7-year warranty.
What are the mounting centres on the MAXILAMPC3XRW?
The MAXILAMPC3XRW has 269mm mounting centres.
What voltage does the MAXILAMPC3XRW operate on?
The MAXILAMPC3XRW operates on 12V and 24V systems.
Is the MAXILAMPC3XRW waterproof?
Yes. The MAXILAMPC3XRW has an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 metre of water for up to 30 minutes.
