Description

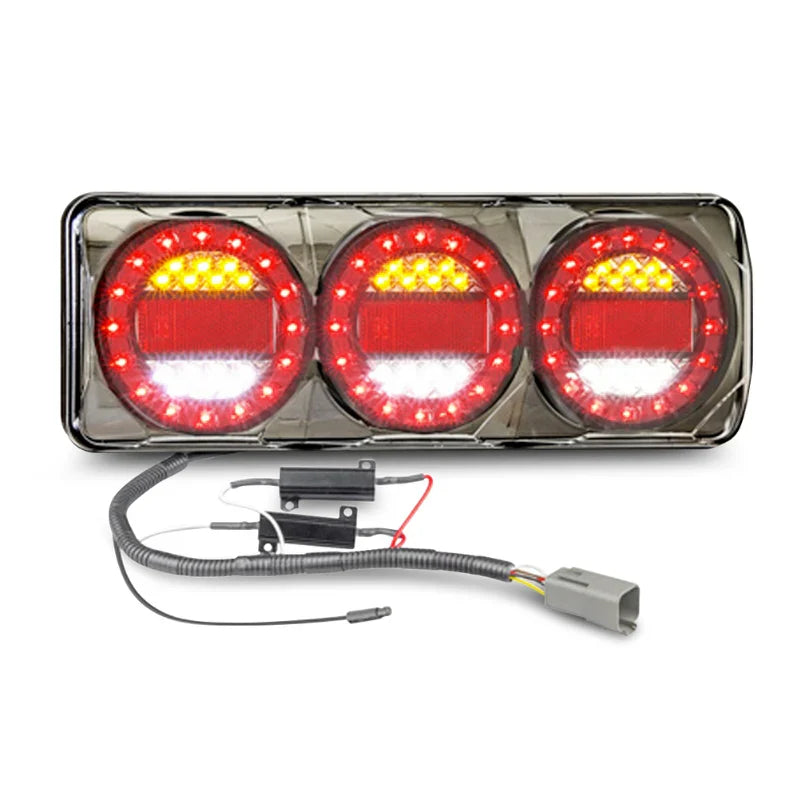

12V Maxi Combination Lamp for Ute Trays Stop, Tail, Indicator, Reverse & Reflector with DT04-6P Connector and Load Resistors.
Product Overview
The LED Autolamps SOMAXI2LR/450B is a five-function 12V LED maxi combination lamp designed specifically to suit most popular brands of vehicle trays making it the go-to lighting solution for aftermarket tray-body ute conversions and tray-mounted trailer connections. Delivering stop, tail, indicator, reverse, and reflector functions in a single 370mm x 135mm x 40mm surface-mount unit, the SOMAXI2LR/450B combines ADR and ECE compliant lighting with practical plug-and-play installation.
What distinguishes this lamp from standard combination lamps is the inclusion of two pre-wired load resistors and a DT04-6P male connector purpose-built to address the LED flash rate issues common on modern vehicles with CAN bus or LED-specific indicator circuits. Combined with the applicable patch lead (sold separately), installation is straightforward: surface mount the lamp horizontally using the rear bolts through a 10mm hole in the fixing surface, and connect via the DT04-6P plug. Note this lamp is 12V only not suitable for 24V applications. Backed by a 5-year warranty and supplied individually.
Key Specifications
-
Functions: Stop, tail, indicator, reverse, reflector
-
Voltage: 12V only (not 24V compatible)
-
Housing colour: Black
-
Dimensions: 370mm x 135mm x 40mm
-
Mount type: Horizontal surface mount rear bolts through 10mm hole
-
Connector: DT04-6P male
-
Includes: 2x load resistors (pre-wired)
-
IP rating: IP67
-
Current draw: Stop 0.23A / Tail 0.04A / Indicator 0.22A / Reverse 0.16A @ 13.8V
-
Compliance: ADR and ECE approved CTA040963
-
Warranty: 5 years
-
Weight: 1.25kg
-
Packaging: Polybag single unit
-
Brand: LED Autolamps
-
SKU: SOMAXI2LR/450B
Features & Benefits
-
Adapted for popular vehicle tray brands: Engineered to suit most popular brands of aftermarket ute tray bodies, providing a known-fit lighting solution for tray conversions without the need for custom wiring adaptors
-
Five-function combination lamp: Stop, tail, indicator, reverse, and reflector in a single lamp unit, simplifying the wiring and lamp count for tray body rear lighting installations
-
Pre-wired load resistors included: Two load resistors are pre-wired into the harness to prevent hyper-flashing and indicator fault warnings caused by LED low current draw on modern CAN bus and LED-compatible vehicles a critical inclusion for contemporary ute conversions
-
DT04-6P male connector: Industry-standard Deutsch DT connector for secure, weather-sealed plug-and-play connectivity with compatible patch leads
-
IP67 weatherproof: Fully protected against dust ingress and temporary water immersion for reliable outdoor performance in working ute and tray body environments
-
ADR and ECE approved CTA040963: Certified for all five functions across Australian and international compliance standards
-
Compact current draw: Stop 0.23A / Tail 0.04A / Indicator 0.22A / Reverse 0.16A at 13.8V low electrical load across all functions
-
Horizontal surface mount: Mounts directly to tray body surfaces using rear bolts through a 10mm hole per ADR 13/00 mounting instructions
-
5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty
Technical Specs
|
Specification
|
Detail
|
|
SKU
|
SOMAXI2LR/450B
|
|
Brand
|
LED Autolamps
|
|
Functions
|
Stop, Tail, Indicator, Reverse, Reflector
|
|
Light Type
|
LED
|
|
Voltage
|
12V only
|
|
Housing Colour
|
Black
|
|
Dimensions
|
370mm x 135mm x 40mm
|
|
Mount Type
|
Horizontal surface mount rear bolts, 10mm hole
|
|
Connector
|
DT04-6P male
|
|
Included
|
2x pre-wired load resistors
|
|
IP Rating
|
IP67
|
|
Current Stop
|
0.23A @ 13.8V
|
|
Current Tail
|
0.04A @ 13.8V
|
|
Current Indicator
|
0.22A @ 13.8V
|
|
Current Reverse
|
0.16A @ 13.8V
|
|
ADR/ECE Compliance
|
CTA040963
|
|
Warranty
|
5 Years
|
|
Weight
|
1.25kg
|
|
Packaging
|
Polybag single unit
|
Compatible With
Designed to suit most popular aftermarket vehicle tray brands for ute tray body rear lighting installations.
Pairs well with:
-
LED Autolamps compatible patch leads for DT04-6P connector
-
LED Autolamps MAXILAMPC3XR (4-function version without reverse, for non-tray applications)
-
LED Autolamps MAXILAMPC3XRWB (5-function standard version)
-
LED Autolamps 35CARM red/amber side marker
-
LED Autolamps 42AM amber side direction indicator
Frequently Asked Questions
Why does this lamp include load resistors?
The two pre-wired load resistors prevent hyper-flashing and indicator fault warnings on modern vehicles with CAN bus systems or LED-specific indicator detection circuits. When an LED lamp replaces an incandescent globe, the low current draw can trigger the vehicle's flash rate monitoring system the load resistors replicate the electrical load of an incandescent globe to prevent this.
What patch lead do I need to complete the installation?
A compatible DT04-6P patch lead is required to connect this lamp to your vehicle's wiring and is sold separately. Contact your retailer or LED Autolamps to confirm the correct patch lead for your specific tray brand and vehicle combination.
Is this lamp compatible with 24V vehicles?
No the SOMAXI2LR/450B is 12V only. Do not install on 24V vehicles or systems. For 12V/24V dual-voltage combination lamps, refer to the MAXILAMPC3XR or MAXILAMPC3XRWB.
How is this lamp mounted?
The SOMAXI2LR/450B is mounted horizontally on the tray body surface using bolts through the rear of the lamp, with the wire and plug routed through a 10mm hole in the fixing surface. Refer to ADR 13/00 for full mounting position and height requirements.
What is covered under the 5-year warranty?
The 5-year warranty is provided by LED Autolamps and covers manufacturing defects. Contact your retailer or LED Autolamps directly for warranty claim procedures and terms.
