Description
Heavy Duty 7" AHD Quad Monitor Reverse Camera Kit 4 Camera Inputs, DVR, 1080P Camera, Screw-Lock Cable, 9–32V. Suits Trucks, 4WDs, Caravans & Work Vehicles.
Product Overview

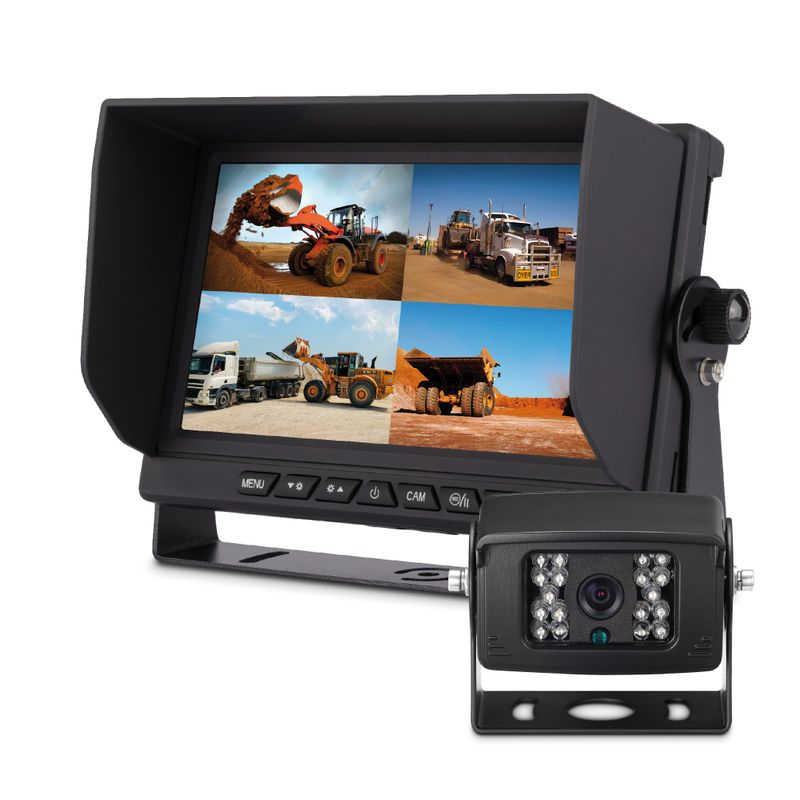

The LV7149 is a heavy duty reverse camera kit built for real-world work conditions not a consumer-grade reversing aid. At its core is a 7" IPS quad monitor with four camera inputs, 1024x600 resolution, DVR capability, and 9–32V DC support for both 12V and 24V vehicle systems. The included LV7152 camera delivers a 1080P AHD feed with a wide viewing angle. The 10m screw-lock 4-pin cable keeps the connection secure on corrugations, worksites, and rough tracks. A monitor sunshade is also included.
The quad monitor supports single and split-screen display modes and is expandable to four cameras so you can start with one rear camera and build out a full multi-camera setup over time without changing the monitor. DVR recording is supported; an SD card is required (sold separately).
Kit Inclusions
- 1 × LV7149 7" IPS Quad Monitor
- 1 × LV7152 Heavy Duty Reverse Camera
- 1 × 10m Heavy Duty 4-Pin Screw-Lock Cable
- Monitor Sunshade
Key Specifications
Monitor (LV7149)
- Screen size: 7" IPS
- Resolution: 1024 x 600
- Aspect ratio: 16:9
- Camera inputs: 4
- Display modes: Single view / split view / quad view
- Input voltage: 9–32V DC
- DVR: Yes (SD card required sold separately)
- Built-in speaker: Yes
- Signal compatibility: PAL and NTSC
Camera (LV7152)
- Camera feed: 1080P AHD
- Viewing angle: Wide
- Build: Heavy duty for harsh conditions
- Connection: 4-pin screw-lock
Cable
- Length: 10m
- Type: Heavy duty 4-pin screw-lock
Features & Benefits
-
Four camera inputs expandable:Â Start with one rear camera and add side and front cameras over time without replacing the monitor
-
9–32V DC input: Suits 12V and 24V vehicle electrical systems trucks, heavy equipment, campervans, caravans, and fleets
-
7" IPS display: Wide viewing angles and sharp 1024x600 resolution clearly visible even when the monitor is mounted off-centre
-
DVR recording: Built-in DVR capability for incident recording and site proof SD card required (sold separately)
-
Screw-lock 4-pin connector:Â Positive-lock screw connector resists vibration and accidental disconnection on corrugated roads and worksites
-
Split and single view modes:Â Switch between single full-screen view and split/quad view to monitor multiple cameras simultaneously
-
1080P AHD heavy duty camera:Â Wide-angle 1080P AHD feed for clear reversing visibility in harsh conditions
-
Built-in speaker:Â Monitor includes a built-in speaker for audio-capable setups
-
PAL and NTSC compatible:Â Works with common camera signal formats
-
Monitor sunshade included:Â Reduces glare for better screen visibility in bright conditions
Technical Specs
| Specification |
Detail |
| SKU |
LV7149 |
| Monitor Model |
LV7149 |
| Camera Model |
LV7152 |
| Screen Size |
7" IPS |
| Resolution |
1024 x 600 |
| Aspect Ratio |
16:9 |
| Camera Inputs |
4 |
| Input Voltage |
9–32V DC |
| Camera Feed |
1080P AHD |
| Cable Length |
10m |
| Cable Type |
4-pin screw-lock |
| DVR |
Yes (SD card required) |
| Built-in Speaker |
Yes |
| Signal Compatibility |
PAL & NTSC |
| Display Modes |
Single / Split / Quad |
| Inclusions |
Monitor, camera, 10m cable, sunshade |
Expandable Camera Setup
| Input |
Suggested Use |
| Input 1 |
Rear / reverse camera |
| Input 2 |
Left side blind spot camera |
| Input 3 |
Right side blind spot camera |
| Input 4 |
Front / parking approach camera |
Â
Add cameras as needed the LV7149 monitor supports up to four simultaneous camera feeds.
Installation Notes
- Mount the camera high enough for a clear rear view
- Avoid sharp edges and moving parts when routing cable
- Use split conduit and grommets through panels
- Tighten screw-lock connectors fully do not leave partially threaded
- Use a fused power feed for the monitor
- For reverse-trigger activation, connect monitor power to the reverse light circuit
- For always-on use, connect to ignition-switched power
- Extension cables available separately for trailers, long wheelbase vans, and trucks
Suitable Applications
- Trucks and heavy commercial vehicles (12V and 24V)
- 4WDs, touring rigs, and canopy builds
- Caravans and trailers
- Work vehicles and site machinery
- Fleets requiring DVR capability
Frequently Asked Questions
Does this kit suit 24V truck systems?
Yes the LV7149 monitor operates on 9–32V DC, covering both 12V and 24V vehicle electrical systems.
Can I add more cameras later?
Yes the monitor supports four camera inputs. You can start with one and add side and front cameras over time.
Does it record video?
Yes the monitor includes DVR capability. You will need an SD card to record (sold separately).
What connector does the cable use?
The kit uses a 4-pin screw-lock connector for a secure, vibration-resistant connection.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
