Description

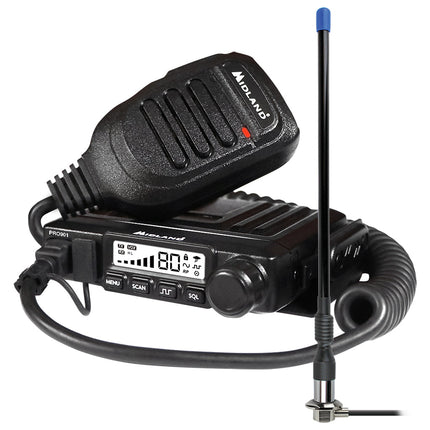

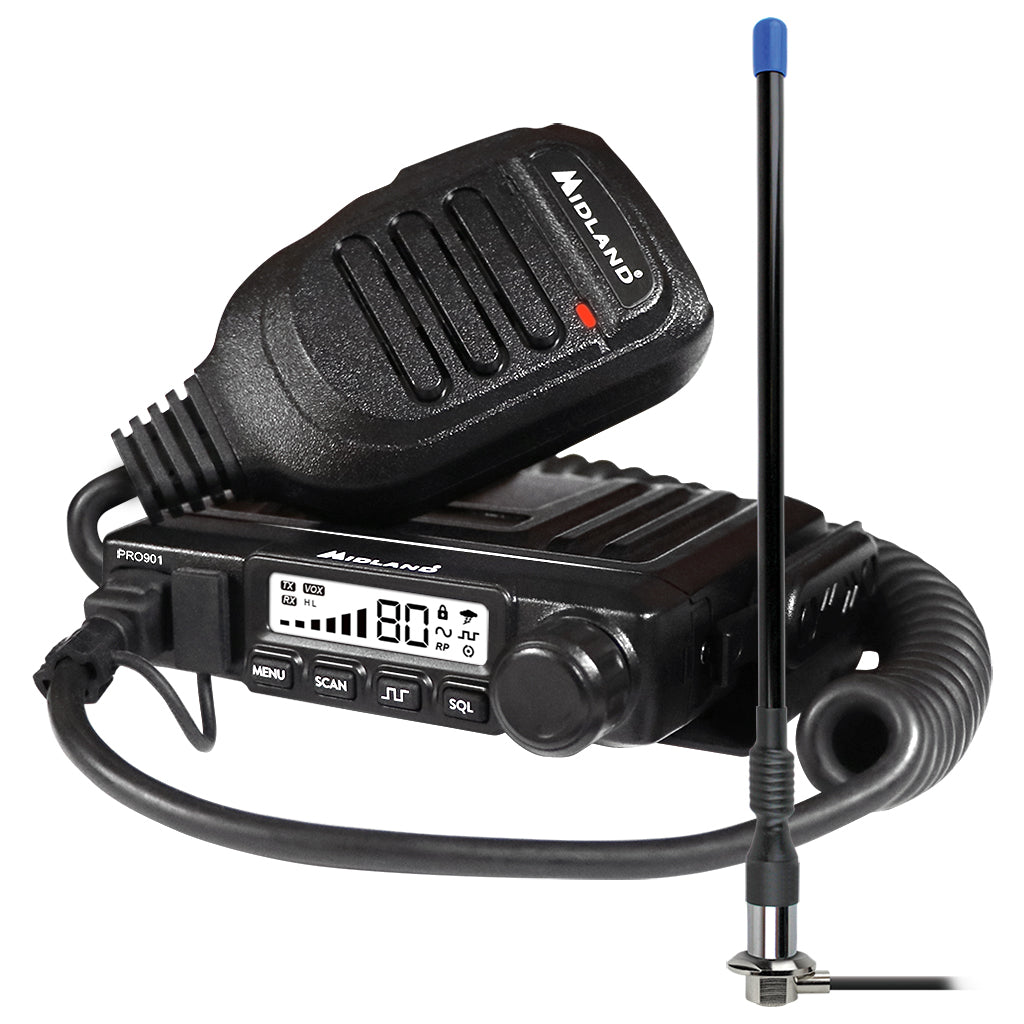

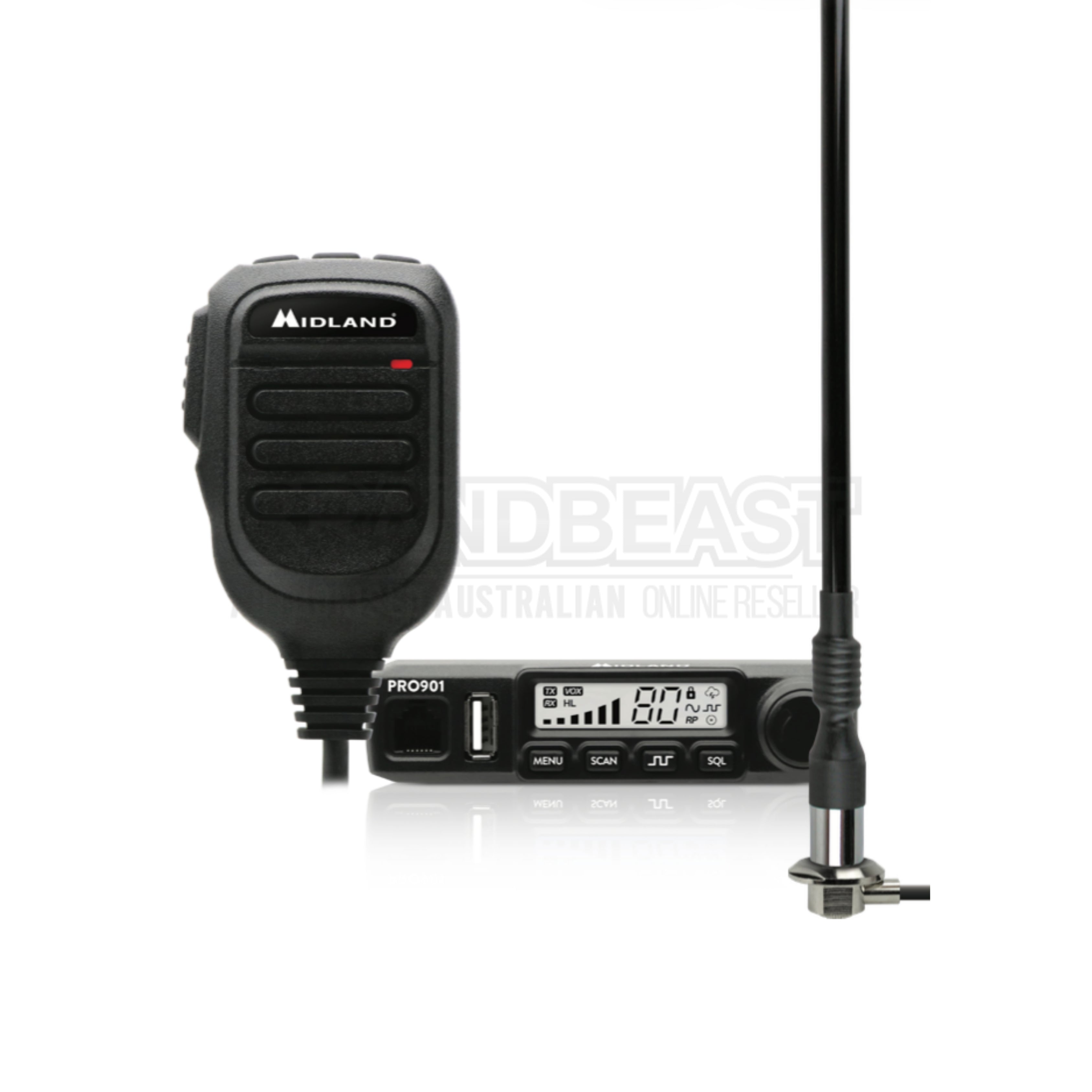

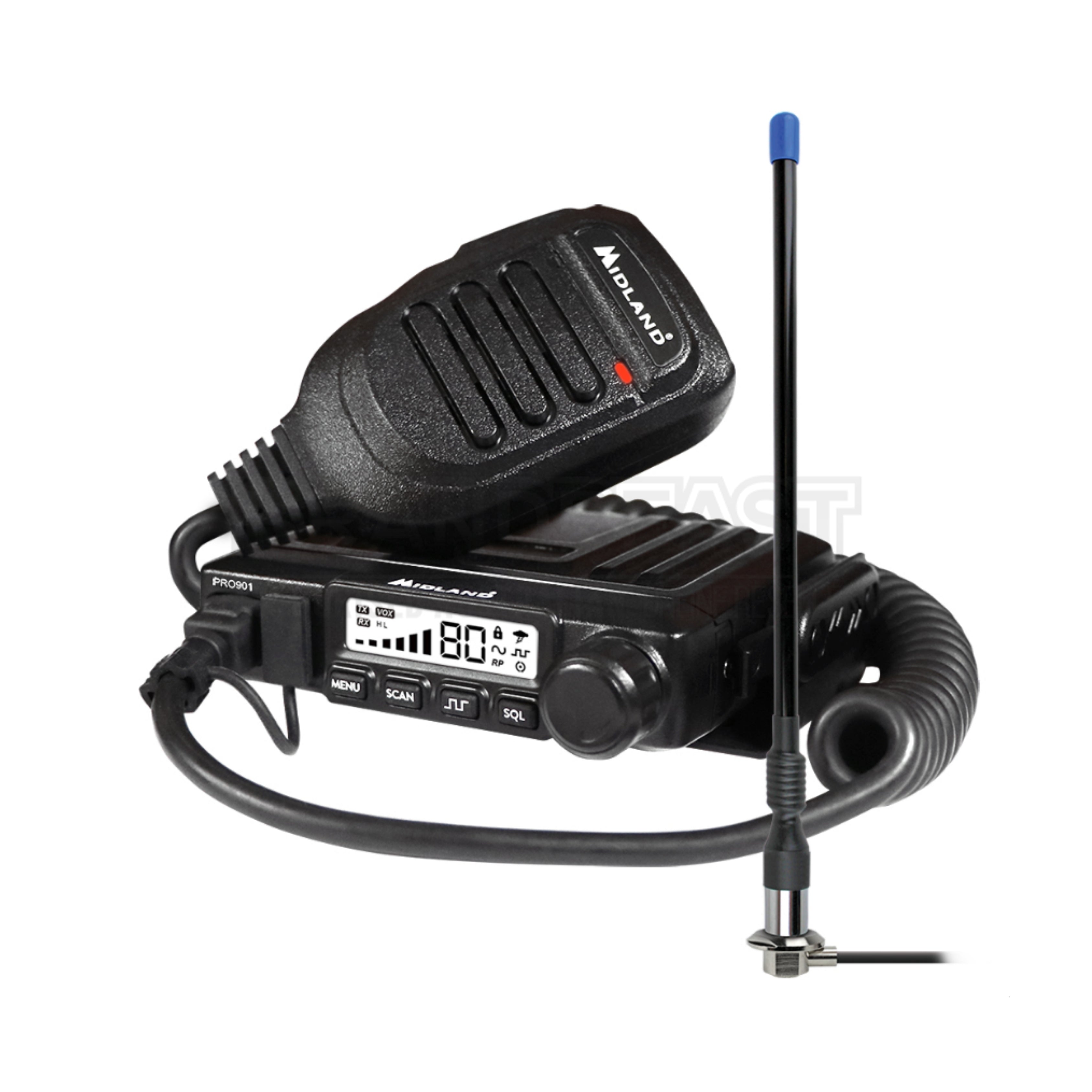

Midland MACHINERY PACK Compact UHF Radio with Antenna
The Midland MACHINERY PACK delivers durable resilient communication specifically designed for versatile machinery installations. This compact robust unit combines space-saving 5-watt UHF CB radio with 3dB flexi antenna providing complete communication solution for farm equipment forklifts construction machinery and tight-space vehicle installations.
Built for unwavering reliability over extended periods, the PRO901 radio features ultra-compact 120x25x110mm dimensions enabling mounting in confined spaces where traditional radios won't fit. Operating across 80 UHF CB channels plus 19 dealer-programmable LMR channels delivers commercial-grade versatility. The MK901 microphone with RJ45 connector provides full controls while the slide-in mounting cradle simplifies installation and removal for equipment sharing across multiple vehicles.
Advanced features include 104 DCS codes 50 CTCSS tones duplex capability channel memory scanning USB charging port and backlit LCD display. The included 335mm 3dB flexi antenna with SO239 cable kit and FME(F) connector ensures reliable 18km line-of-sight range. Operating from 9.5-16.5V accommodates both 12V and 24V systems perfect for agricultural machinery construction equipment and commercial vehicles requiring robust communications.
Key Features
-
Ultra-Compact Design – 120x25x110mm dimensions fit tight spaces in machinery and vehicles
-
5-Watt Output Power – Delivers 18km line-of-sight range at 13.8V
-
80 CB + 19 LMR Channels – UHF CB channels plus dealer-programmable commercial frequencies
-

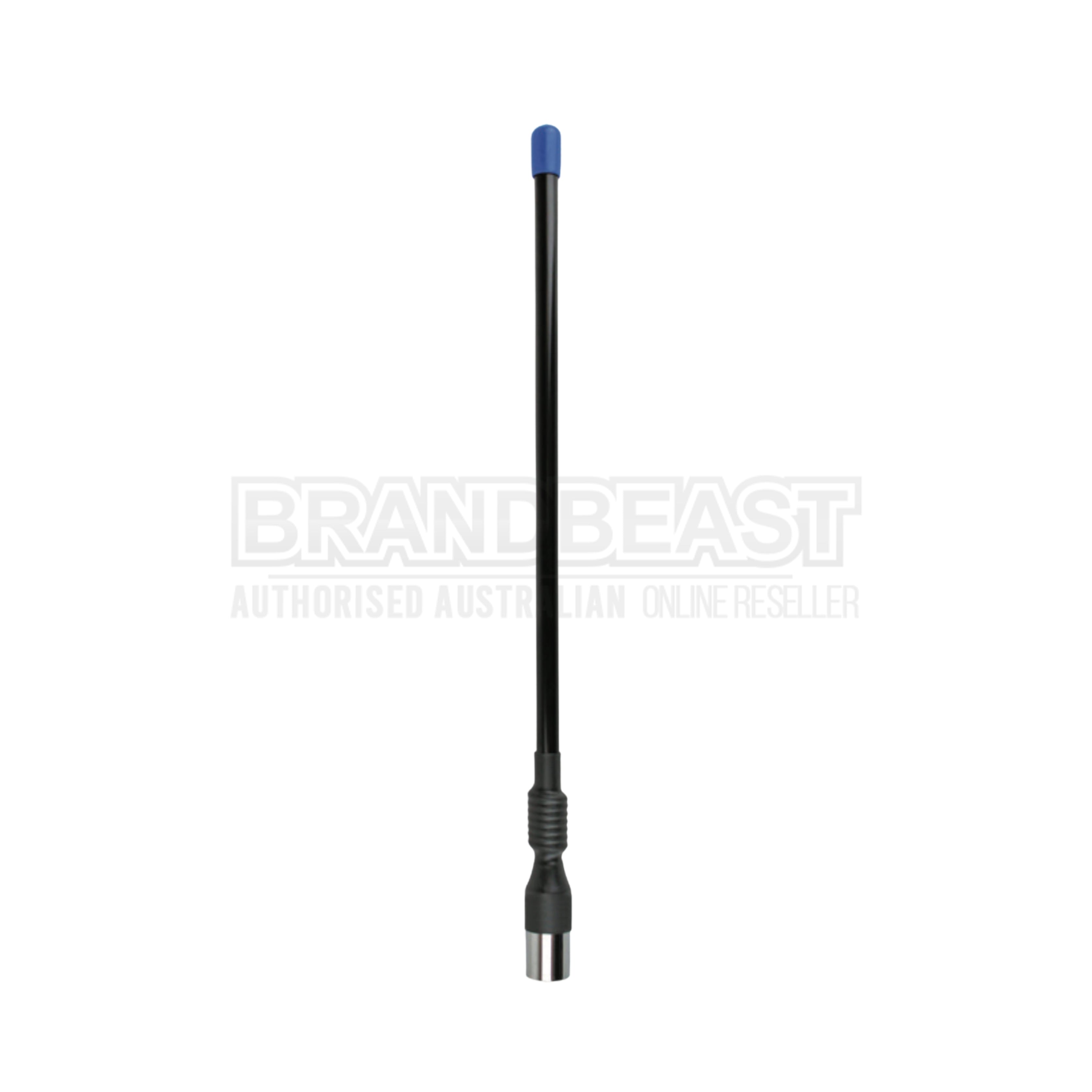

Complete Antenna Kit – Includes 3dB 335mm flexi antenna with cable kit
-
Slide-In Mounting Cradle – Quick installation and removal for equipment sharing
-
MK901 RJ45 Microphone – Full-function controls with secure connector
-
USB Charging Port – Charge devices directly from radio
-
Duplex Capability – Simultaneous transmit and receive on different frequencies
-
12V/24V Compatible – Operates from 9.5-16.5V for machinery applications
-
104 DCS + 50 CTCSS – Interference elimination for clear communications
-
Backlit LCD Display – Segment display with keypad illumination
-
External Speaker Jack – Connect optional speaker for louder audio
-
Channel Memory Scan – Automatically monitors programmed channels
-
3.7W Base Speaker – Built-in speaker for clear audio output
-
Machinery Optimized – Purpose-built for forklifts tractors construction equipment
Technical Specifications
-
Output Power: 5 Watts at 13.8V
-
CB Channels: RX/TX 80
-
LMR Channels: 19 (Dealer Programmable)
-
CB Frequency Range: 476.425 ~ 477.4125MHz
-
Channel Width: 12.5kHz (narrowband)
-
Power Source: 9.5 – 16.5V (12V/24V compatible)
-
Microphone: MK901 with RJ45 Connector
-
Base Speaker Power: 3.7W Max at 1KHz
-
Digital Coded Squelch (DCS): 104
-
Interference Eliminator (CTCSS): 50
-
USB Charging Port: Yes
-
Duplex Capability: Yes
-
Channel Memory Scan: Yes
-
LCD Display: Segment type
-
Backlit LCD & Keypad: Yes
-
Flip LCD: No
-
Mounting: Slide-In Mounting Cradle
-
External Speaker Jack: Yes
-
TX/RX Indicator: Yes
-
Scanning Functions: Yes
-
Key Lock: Yes
-
Key Beep On/Off: Yes
-
Auto Squelch: Yes
-
Typical Range: 18km Line of Sight
-
Max Absorption Current in TX: 1.3A
-
Radio Dimensions (excl. Bracket): 120W x 25H x 110D mm
-
Antenna Type: 3dB flexi antenna
-
Antenna Length: 335mm
-
Antenna Connector: SO239 Cable Kit with FME (F)
Frequently Asked Questions
What makes this MACHINERY PACK ideal for equipment installations?
The ultra-compact 120x25x110mm radio dimensions enable mounting in confined spaces typical of machinery cabins forklifts and construction equipment. The slide-in mounting cradle allows quick installation and removal for sharing radios across multiple vehicles. The 9.5-16.5V operating range accommodates both 12V and 24V systems common in agricultural and industrial machinery. The included 3dB flexi antenna withstands vibration and impact typical of machinery environments.
Can I program commercial frequencies on this radio?
Yes, the MACHINERY PACK includes 19 dealer-programmable LMR channels beyond the 80 standard UHF CB channels. Commercial frequency programming requires appropriate ACMA licensing and must be performed by qualified radio technicians. Standard UHF CB channels operate license-free out-of-the-box while LMR capability provides commercial-grade communications for business operations requiring private frequencies.
How does the USB charging port work?
The integrated USB charging port enables charging mobile devices smartphones tablets and other USB-powered equipment directly from the radio during vehicle operation. This eliminates need for separate charging adapters in machinery cabins where power outlets are limited. The charging port operates when the radio is powered providing convenient device charging for operators during long shifts.
What's included with the 3dB flexi antenna?
The MACHINERY PACK includes complete 335mm 3dB flexi antenna with SO239 cable kit and FME(F) connector providing everything needed for installation. The flexible antenna design withstands impacts from branches equipment and low clearances common in agricultural and construction environments. The medium-duty construction balances durability with performance delivering reliable 18km line-of-sight range for worksite communications.
Can I use this radio in both 12V and 24V vehicles?
Yes, the MACHINERY PACK operates from 9.5-16.5V making it compatible with both 12V passenger vehicles and 24V commercial trucks agricultural equipment and heavy machinery. The wide voltage range accommodates voltage fluctuations during engine starting and charging ensuring reliable operation across different vehicle electrical systems without requiring voltage converters or additional power equipment.
