Description

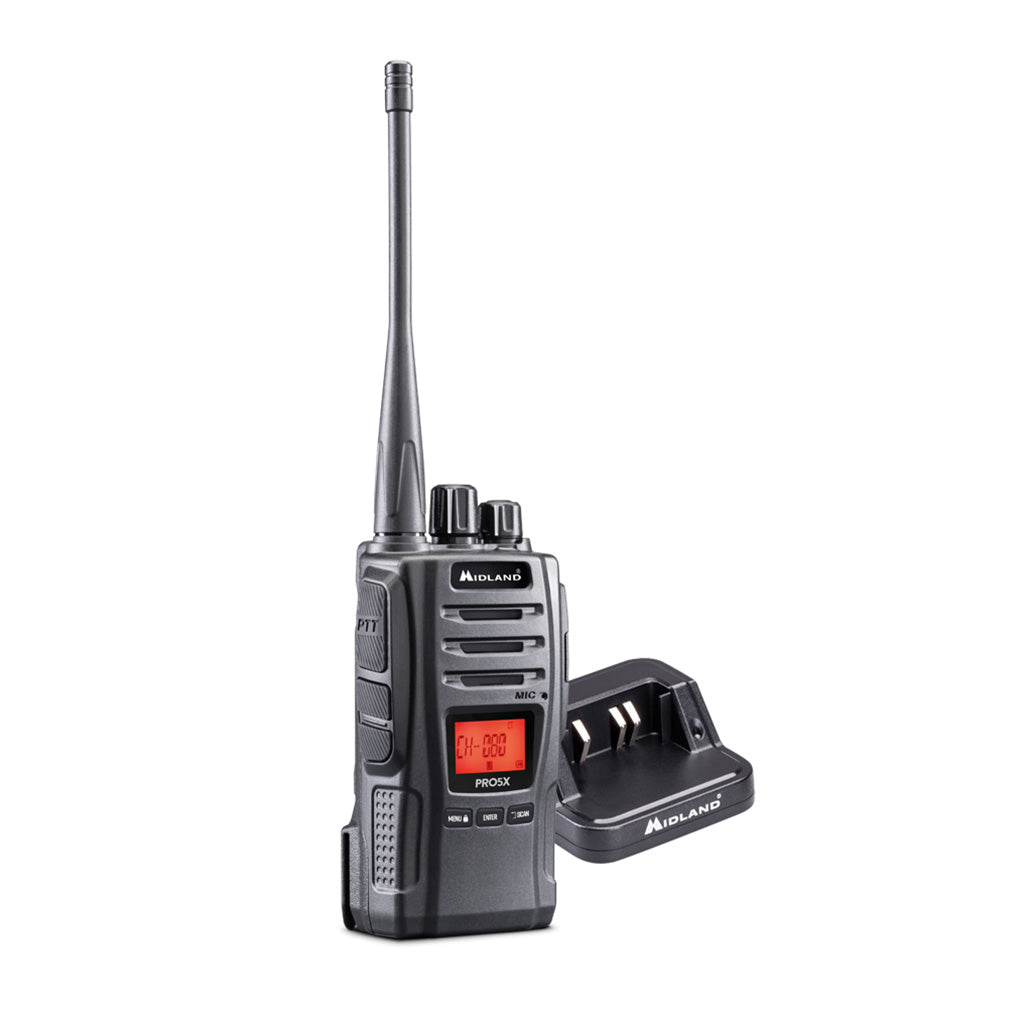

Midland PRO5X - 5W Dual-Band UHF CB/LMR Handheld Radio with IP54 Protection
Product Overview
The Midland PRO5X is a professional-grade dual-band handheld UHF radio combining 80-channel CB and 128-channel LMR capability in a rugged die-cast aluminum chassis with IP54 dust and water splash protection. This hybrid radio features switchable 1/2/5-watt output power, 2600mAh lithium-ion battery, and intuitive control interface with backlit LCD display. The PRO5X delivers exceptional audio quality through advanced digital signal processing while offering comprehensive communication features including dual watch, channel scan, VOX operation, and programmable function keys. Built to withstand harsh Australian conditions with operating temperature range from -20°C to +55°C, this handheld radio provides reliable communication for agricultural, construction, mining, security, and recreational applications. The included desktop charger, belt clip, and 2-pin Kenwood-type accessory port enable seamless integration into professional communication workflows.
Key Features
Dual-Band CB/LMR Hybrid - Combines 80 Australian UHF CB channels (476.425-477.4125MHz) with 128 programmable LMR channels (450-520MHz) in single handheld unit, providing versatile communication capability for both recreational CB users and commercial LMR license holders.
Switchable Power Output - Selectable 1/2/5-watt transmission power enables battery conservation during short-range communication or maximum 5-watt output for extended range applications, with typical 15km line-of-sight coverage at full power.
IP54 Environmental Protection - Die-cast aluminum chassis with IP54 ingress protection resists dust contamination and water splashes, ensuring reliable operation in agricultural fields, construction sites, mining environments, and adverse weather conditions.
2600mAh Lithium-Ion Battery - High-capacity rechargeable battery with integrated battery save function delivers extended operational runtime for full-day field use, reducing downtime for battery changes during critical communication periods.
Comprehensive Communication Features - Advanced functionality includes dual watch for monitoring two channels simultaneously, channel scanning for locating active frequencies, VOX hands-free operation, 50 CTCSS tones and 108 DCS codes for privacy, plus monitor mode and Roger beep.
Intuitive Control Interface - Backlit LCD display with simple keypad design and two programmable function keys enables quick access to essential features without complex menu navigation, streamlining operation during demanding work situations.
Kenwood-Type Accessory Port - Standard 2-pin Kenwood-type connector provides compatibility with extensive range of aftermarket speaker microphones, earpiece mics, and surveillance kits for specialized professional applications.
Desktop Charger Included - Complete charging solution with desktop cradle and 240V AC adaptor ensures convenient overnight charging, while optional 12V cigarette lighter cable enables mobile charging in vehicles.
Technical Specifications
Power and Channels:
-
Output Power: Switchable 1W / 2W / 5W
-
CB Channels: 80 (476.425-477.4125MHz)
-
LMR Channels: 128 Programmable (450-520MHz)
-
Channel Width: 12.5kHz (Narrowband + Wideband)
-
Operation Mode: Simplex / Duplex
-
Typical Range: 15km Line of Sight (@5W)
Construction:
-
Chassis Material: Die-Cast Aluminum
-
Ingress Protection: IP54 (Dust/Water Splash Resistant)
-
Operating Temperature: -20°C to +55°C
-
Dimensions (with Antenna): 234mm (H) x 60.5mm (W) x 43mm (D)
-
Weight (with Belt Clip): 261g
Battery and Power:
-
Battery Type: 2600mAh Lithium-Ion
-
Operating Voltage: 7.4V DC
-
Battery Save: Yes
Features:
-
Display: Backlit LCD
-
Keypad: Simple with 2 Function Keys
-
CTCSS Tones: 50
-
DCS Codes: 108
-
Dual Watch: Yes
-
Channel Scan: Yes
-
Monitor Mode: Yes
-
Key Lock: Yes
-
Roger Beep: Yes
-
Squelch: Yes
-
VOX: Yes
Connectivity:
-
Antenna Impedance: 50Ω
-
Accessory Port: 2-Pin Kenwood Type
What's Included
- Midland PRO5X Handheld UHF Radio
- 2600mAh Lithium-Ion Battery
- Desktop Charger Cradle
- 240V AC Power Adaptor
- Belt Clip
- Antenna
- User Manual
Installation Notes
Charge the PRO5X battery fully before first use by placing the radio in the desktop charger connected to 240V AC adaptor. The charging LED indicator confirms charging status. To program LMR channels, contact authorized Midland dealers with appropriate commercial licensing documentation. The 2-pin Kenwood-type accessory port accepts compatible speaker mics and earpiece accessories. Adjust squelch level to eliminate background noise while maintaining reception of weak signals. Enable battery save mode for extended runtime during low-activity periods. The IP54 rating protects against dust and water splashes but the radio should not be submerged. Clean the charging contacts periodically to maintain reliable charging performance.
Frequently Asked Questions
What is the difference between CB and LMR channels?
CB (Citizen Band) channels are the 80 license-free UHF frequencies (476.425-477.4125MHz) available to all Australian users without licensing requirements. LMR (Land Mobile Radio) channels are programmable commercial frequencies (450-520MHz) requiring ACMA commercial radio licenses. LMR channels must be programmed by authorized dealers for licensed commercial users only.
How long does the 2600mAh battery last?
Battery runtime varies based on transmit/receive ratio and power setting. At 5-watt output with typical 10% transmit duty cycle, expect 8-12 hours operation. Reducing power to 1-2 watts or enabling battery save mode extends runtime significantly. Heavy transmission workloads drain batteries faster than primarily receiving operations.
Is the PRO5X compatible with other UHF CB radios?
Yes, the PRO5X communicates with any UHF CB radio on the same channel using the 80 Australian UHF CB frequencies. The radio works seamlessly with GME, Uniden, and other brands on CB channels. LMR channels require compatible programming and appropriate licensing for commercial users.
What accessories are compatible with the 2-pin connector?
The PRO5X uses standard 2-pin Kenwood-type connector compatible with extensive aftermarket speaker microphones, earpiece mics, air tube earpieces, and surveillance kits. Midland offers MA25LK waterproof speaker mic, MA31LK air tube earpiece, and MA21LK standard earpiece specifically designed for PRO5X applications.
Can I use the PRO5X in wet conditions?
The IP54 rating provides protection against dust and water splashes from any direction, making the PRO5X suitable for use in rain or dusty environments. However, the radio is not waterproof and should not be submerged in water. Dry the radio thoroughly if exposed to heavy moisture before charging.
