Description

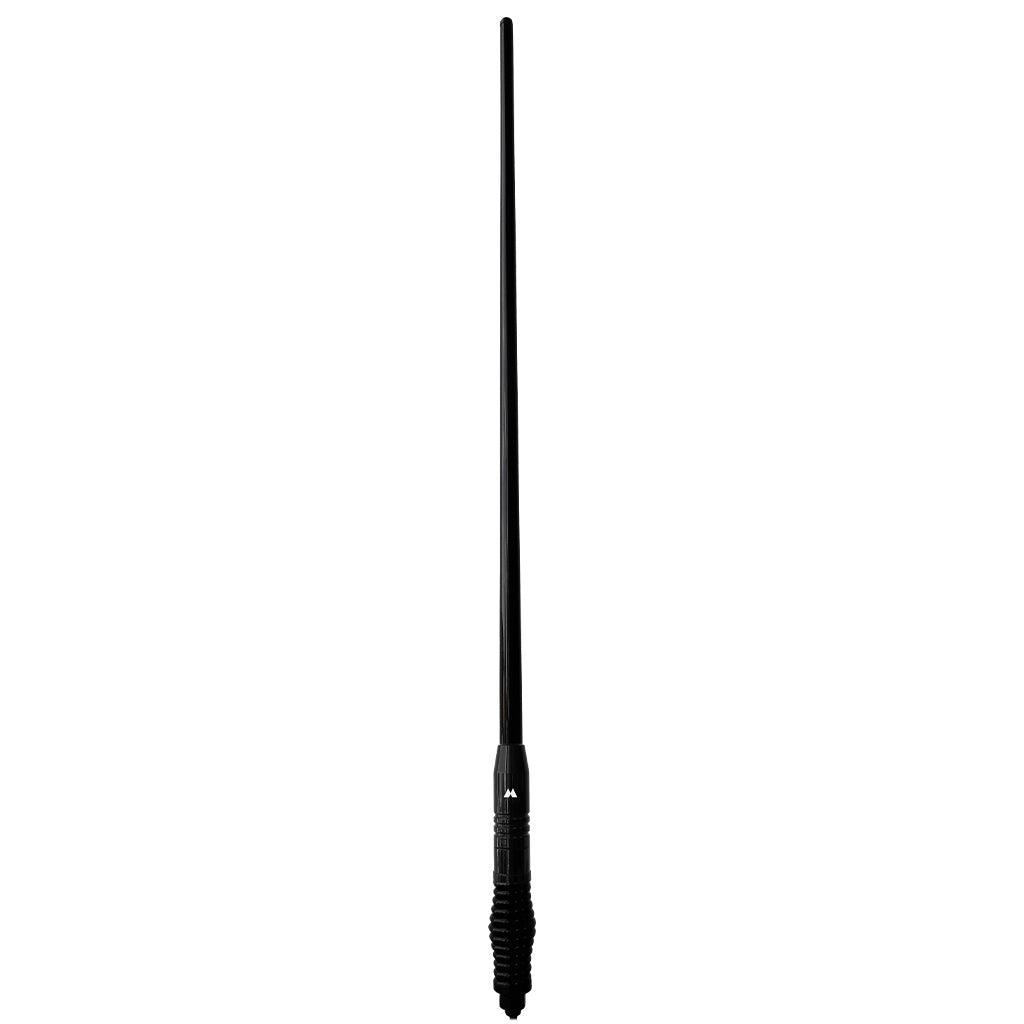

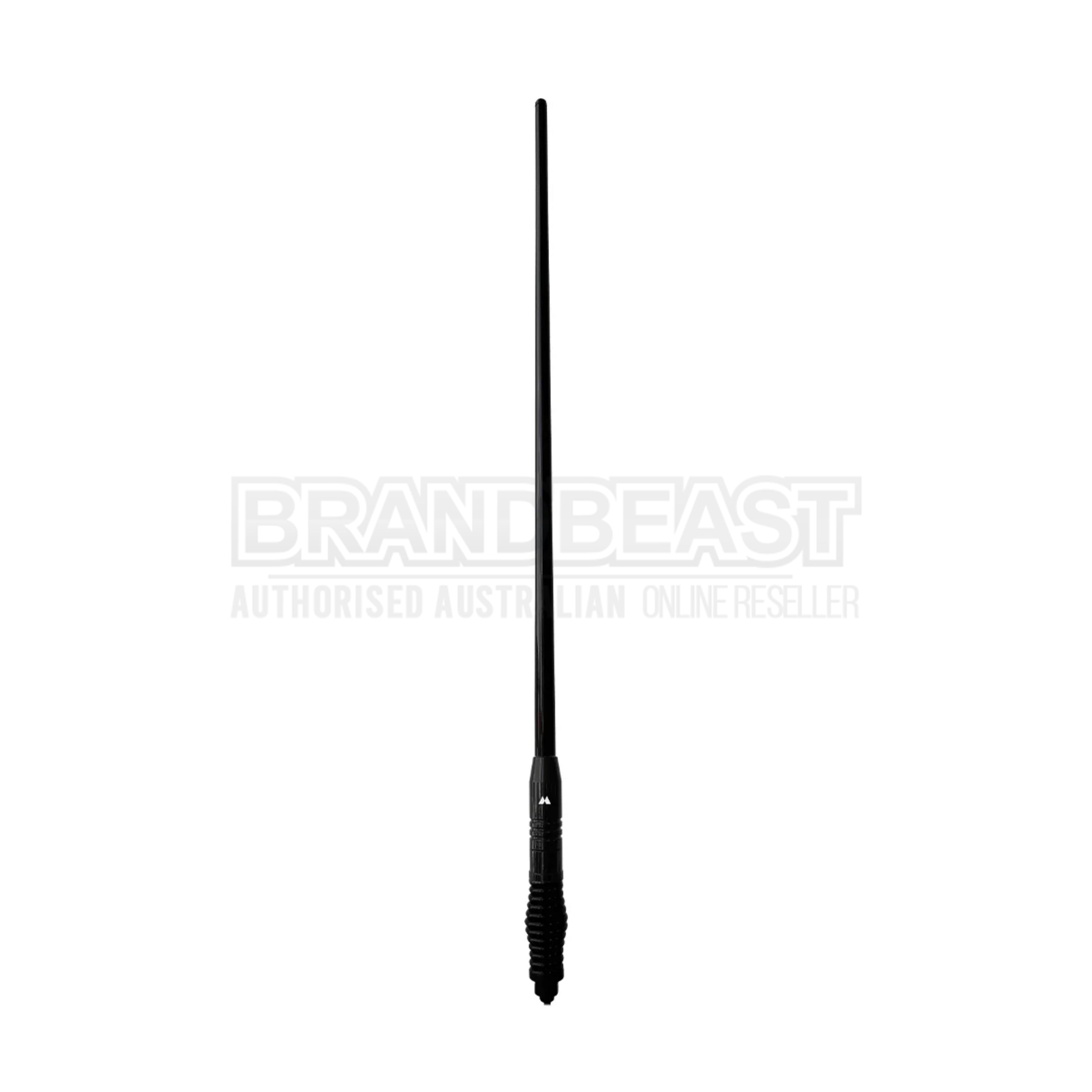

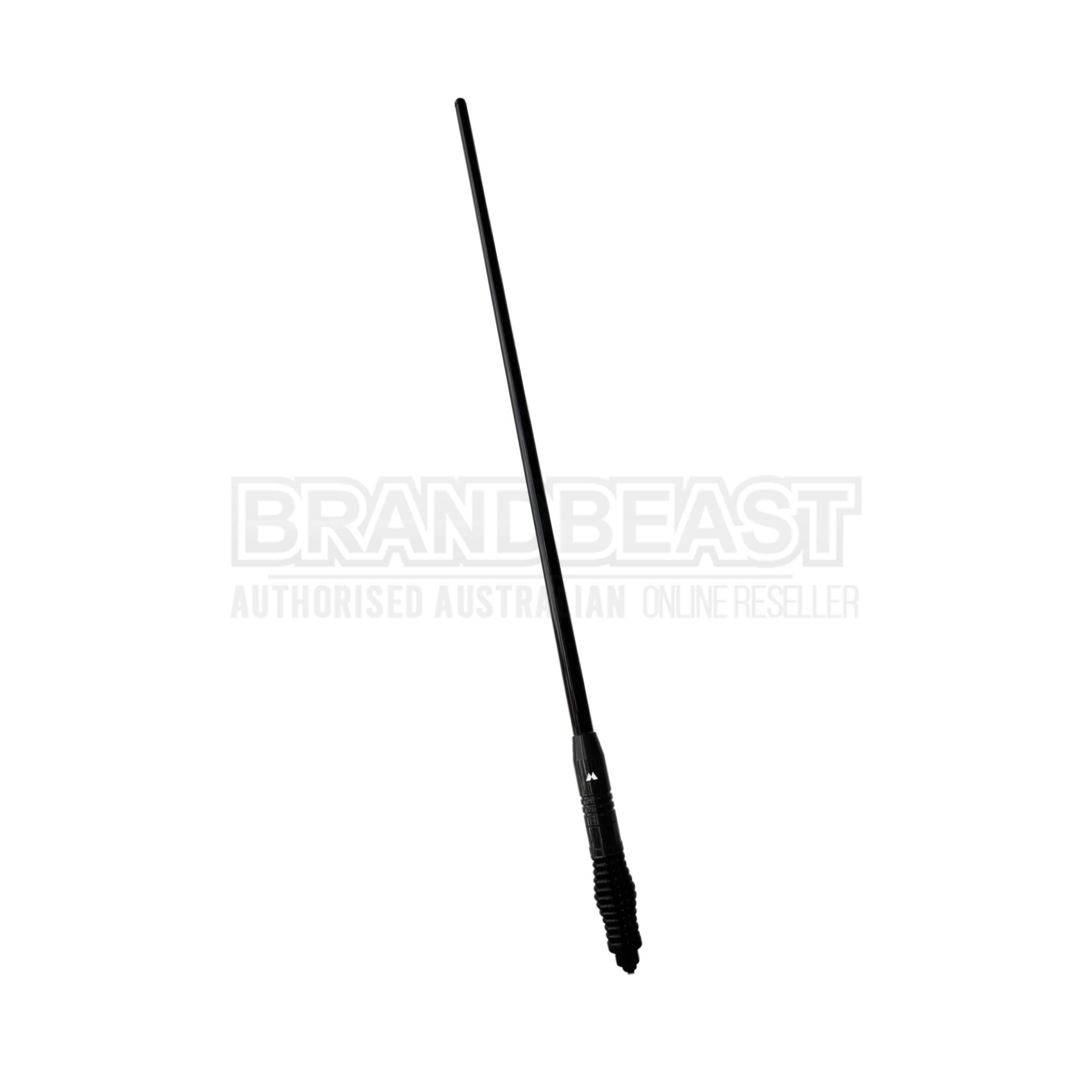

Midland PRO6000 - 6.6dBi Heavy-Duty UHF Radome Antenna 1.0m with LMR240 Cable
Product Overview
The Midland PRO6000 is a high-performance 6.6dBi UHF radome antenna engineered specifically for demanding Australian outback conditions and harsh commercial applications. This professional-grade antenna features 1.026-meter tapered 20mm heavy-duty radome mast with 45mm heavy-duty barrel spring, delivering exceptional signal gain and reception range for 4x4, recreational, and commercial vehicles. The PRO6000 includes 4.5 meters of professional-grade LMR240 low-loss coaxial cable with FME female connector, reducing signal resistance by half compared to standard RG58 cable for superior performance. Pre-tuned for 477MHz Australian UHF CB frequency with ground-independent design, this antenna installs on any vehicle surface without requiring metal ground plane. The 16-degree vertical beamwidth and 200-watt power handling capability make the PRO6000 ideal for extended-range communication in remote locations, mining operations, agricultural applications, and commercial fleet vehicles requiring reliable long-distance UHF connectivity.
Key Features
High-Gain 6.6dBi Performance - Advanced 6.6dBi gain significantly extends communication range beyond standard antennas, enabling reliable contact across greater distances in remote outback locations, mining sites, and agricultural properties requiring extended coverage areas.
Professional-Grade LMR240 Cable - 4.5-meter LMR240 low-loss coaxial cable reduces signal resistance by half compared to standard RG58 cable, maximizing power transfer from radio to antenna while minimizing signal degradation for superior transmission and reception performance.
Heavy-Duty Radome Construction - 20mm tapered fiberglass radome mast with UV-stable construction withstands extreme Australian sun exposure, impacts from branches, and harsh environmental conditions without signal degradation or structural failure common in standard antennas.

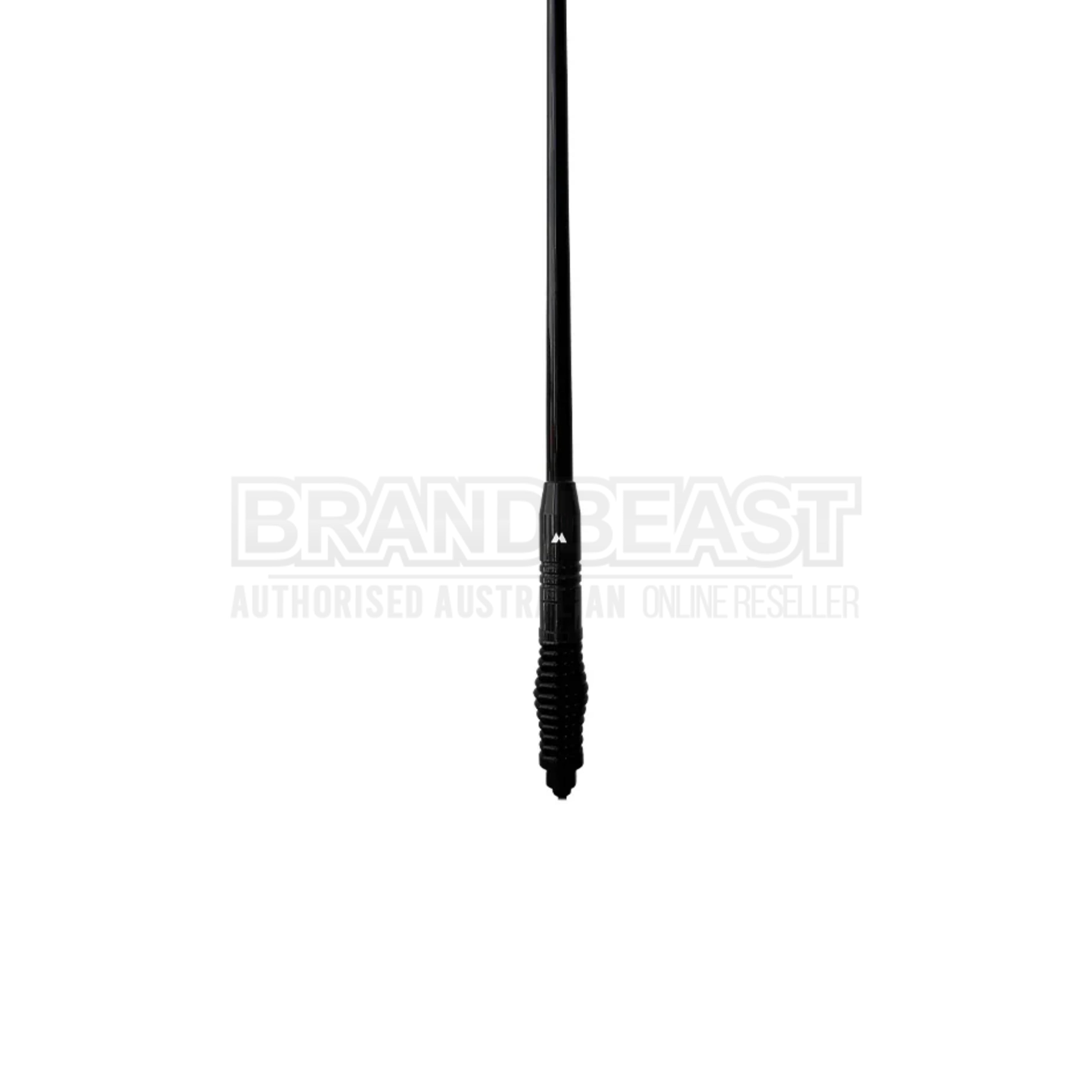

45mm Heavy-Duty Barrel Spring - Robust 45mm diameter barrel spring absorbs impacts and vibration from rough terrain, preventing antenna damage during off-road 4x4 adventures, corrugated roads, and demanding commercial operations.
Ground Independent Design - No ground plane requirement enables installation on fiberglass canopies, aluminum trays, composite body panels, or any vehicle surface without performance degradation, providing flexible mounting options for modern vehicles.
Pre-Tuned 477MHz - Factory-tuned for Australian UHF CB frequency band eliminates complex antenna tuning procedures, ensuring optimal performance across all 80 UHF CB channels immediately upon installation without additional adjustments.
16° Vertical Beamwidth - Narrow 16-degree vertical beamwidth concentrates signal energy toward horizon for maximum long-distance communication range, ideal for flat terrain, highways, and remote locations requiring extended reach.
200W Power Handling - Robust construction handles up to 200 watts power capacity, providing compatibility with high-output UHF CB radios and future system upgrades without antenna replacement requirements.
Technical Specifications
Physical Specifications:
-
Antenna Height: 1.026m (1026mm)
-
Gain: 6.6dBi
-
Radome Mast: 20mm Diameter Tapered Heavy-Duty
-
Barrel Spring: 45mm Diameter Heavy-Duty
-
Cable Length: 4.5 meters
-
Coaxial Cable Type: Professional-Grade LMR240 Low-Loss
-
Cable Connector: FME (Female)
-
Included Adaptor: FME to PL259
Electrical Specifications:
-
Frequency: Pre-tuned 477MHz
-
VSWR: Maximum 1.5:1
-
Impedance: 50 Ohm
-
Vertical Beamwidth: 16°
-
Maximum Power: 200W
-
Ground Plane: Independent (No Ground Plane Required)
Application:
- 4x4 Touring and Off-Road Vehicles
- Commercial Fleet Vehicles
- Mining and Industrial Applications
- Agricultural Operations
- Recreational 4WD Adventures
- Remote Area Communications
What's Included
- Midland PRO6000 UHF Radome Antenna (1.026m)
- 4.5m Professional-Grade LMR240 Low-Loss Coaxial Cable with FME (F) Connector
- FME to PL259 Adaptor
- Mounting Hardware
Installation Notes
The Midland PRO6000 installs on any UHF antenna base or bracket with standard thread mounting. Thread the antenna with spring assembly onto the mounting base, tightening firmly by hand without over-torquing the barrel spring connection. Route the 4.5-meter LMR240 cable to the radio location, avoiding sharp bends that could damage the cable. Connect the FME female connector directly to compatible radios, or use the included FME to PL259 adaptor for standard PL259 radio connections. The ground-independent design allows mounting on non-metallic surfaces without performance loss. Ensure the antenna remains clear of overhead obstacles and other antennas to prevent interference. Test VSWR after installation to verify proper connection and tuning. The heavy-duty barrel spring absorbs impacts during off-road driving while maintaining vertical antenna orientation for optimal signal propagation.
Frequently Asked Questions
What is the advantage of LMR240 cable over standard RG58?
LMR240 professional-grade coaxial cable reduces signal resistance by approximately 50% compared to standard RG58 cable used in most antennas. This significantly lower loss means more transmit power reaches the antenna and weaker received signals maintain better quality, directly translating to extended communication range and improved clarity.
How much range improvement does 6.6dBi gain provide?
The 6.6dBi gain antenna provides approximately 4 times the effective radiated power compared to standard 3dBi antennas. In practical terms, expect 30-50% range increase in typical conditions. The 16-degree vertical beamwidth focuses signal energy toward the horizon, maximizing long-distance communication on flat terrain and highways.
Can I install this antenna on a fiberglass canopy?
Yes, the PRO6000 features ground-independent design requiring no metal ground plane beneath the antenna. This enables installation on fiberglass canopies, aluminum trays, composite tonneau covers, or any vehicle surface without performance degradation, unlike traditional antennas requiring large metal ground planes.
Will the 1-meter height fit in standard parking garages?
The PRO6000 stands 1.026 meters tall. When mounted on typical 4x4 roof racks or bullbars, total vehicle height may exceed 2.1-2.2 meters. Consider spring-loaded or removable antenna mounts for vehicles requiring frequent parking garage access. The heavy-duty spring provides some flexibility but permanent bending should be avoided.
Is the radome mast UV-resistant for Australian conditions?
Yes, the 20mm tapered fiberglass radome mast features UV-stable construction specifically engineered for harsh Australian sun exposure. The radome protects the internal radiating element from UV degradation, moisture, and impacts while maintaining signal performance throughout years of outback exposure without structural failure or discoloration.
