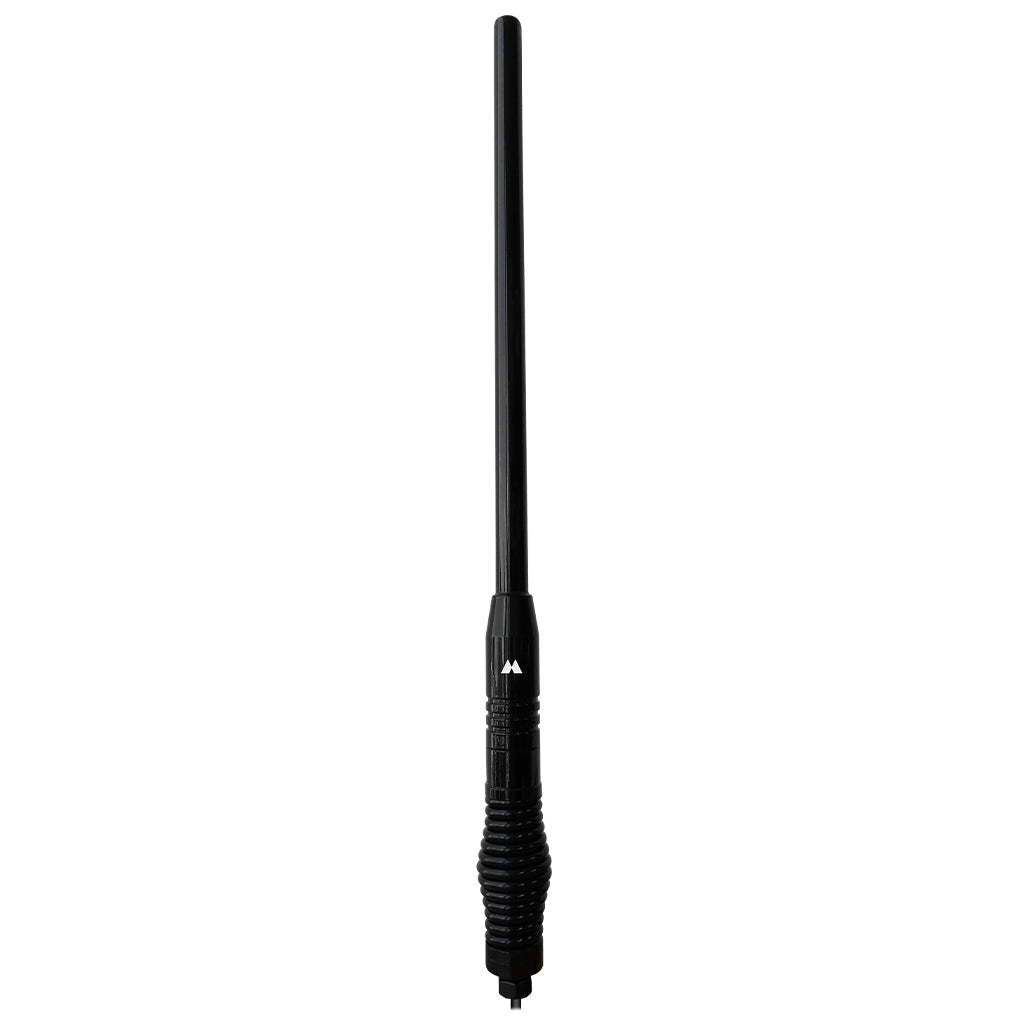

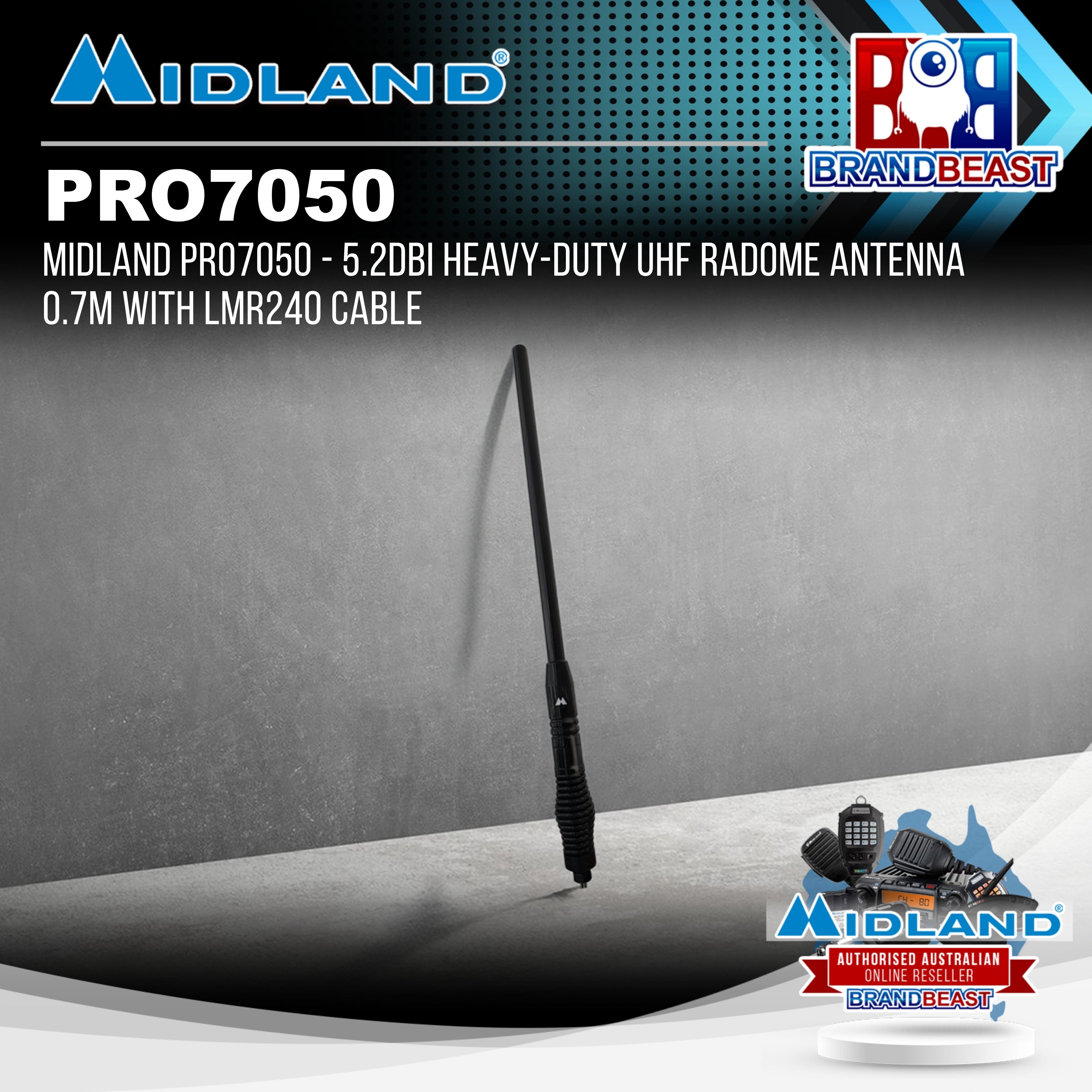

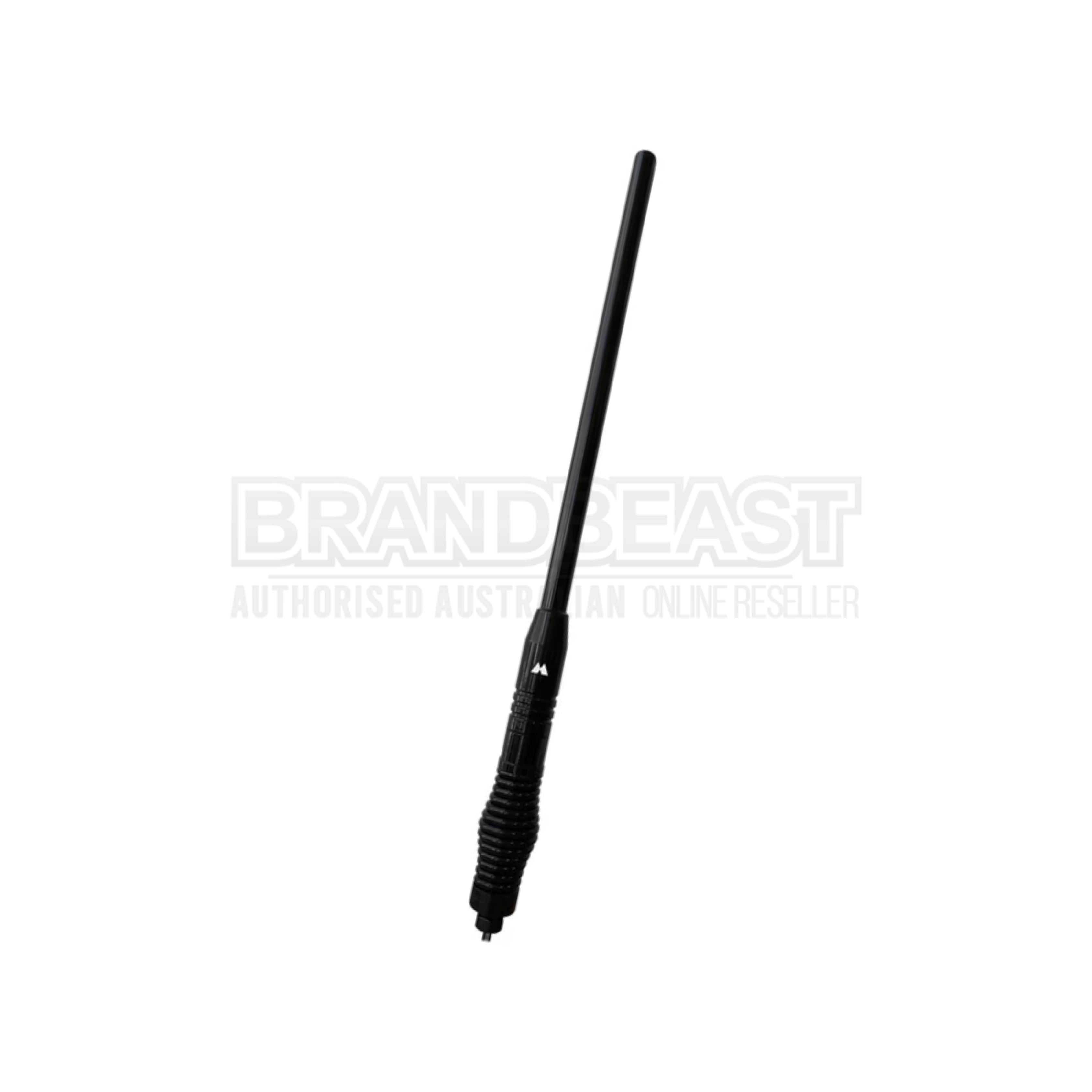

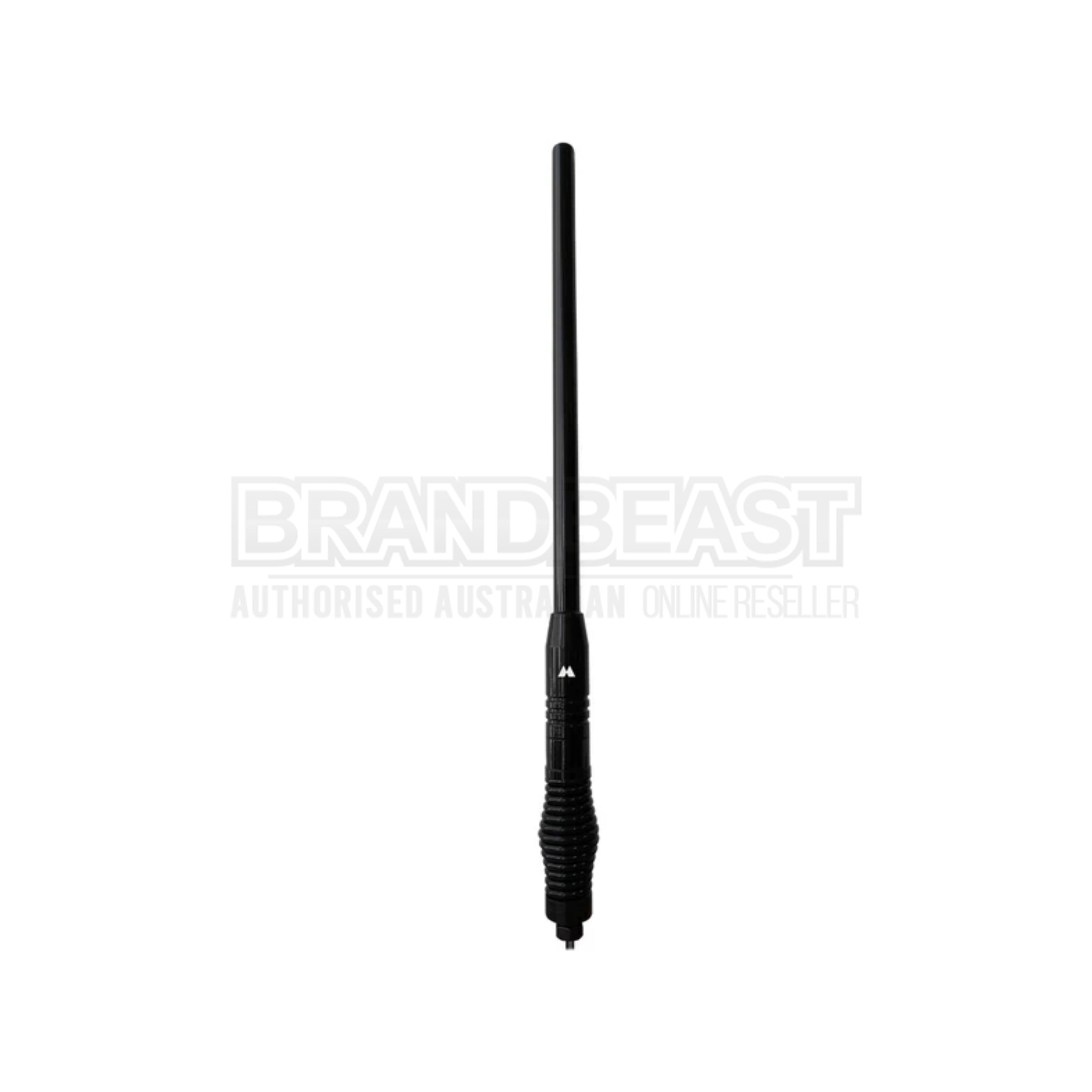

Midland PRO7050 - 5.2dBi Heavy-Duty UHF Radome Antenna 0.7m with LMR240 Cable
Product Overviewnpl
The Midland PRO7050 is a high-performance 5.2dBi UHF radome antenna engineered for operators requiring professional-grade communication capability with height-restricted urban compatibility. This compact professional antenna features 697mm tapered 25mm heavy-duty radome mast with robust 55mm heavy-duty barrel spring, delivering excellent signal gain and superior durability in a more compact package suitable for parking garages and height-restricted areas. The PRO7050 includes 4.5 meters of professional-grade LMR240 low-loss coaxial cable with FME female connector, providing outstanding performance compared to standard cable alternatives through significantly reduced signal resistance. Pre-tuned for 477MHz Australian UHF CB frequency with ground-independent design, this antenna installs on any vehicle surface without requiring metal ground plane. The 28-degree vertical beamwidth and 200-watt power handling capability make the PRO7050 ideal for serious 4x4 enthusiasts, recreational tourers, and commercial fleet operators requiring reliable communication without extreme height limitations.
Key Features
Compact High-Performance Design - 5.2dBi gain in compact 697mm height package delivers excellent communication range while fitting parking garages and height-restricted urban areas, balancing professional performance with practical height considerations for daily-driver vehicles.

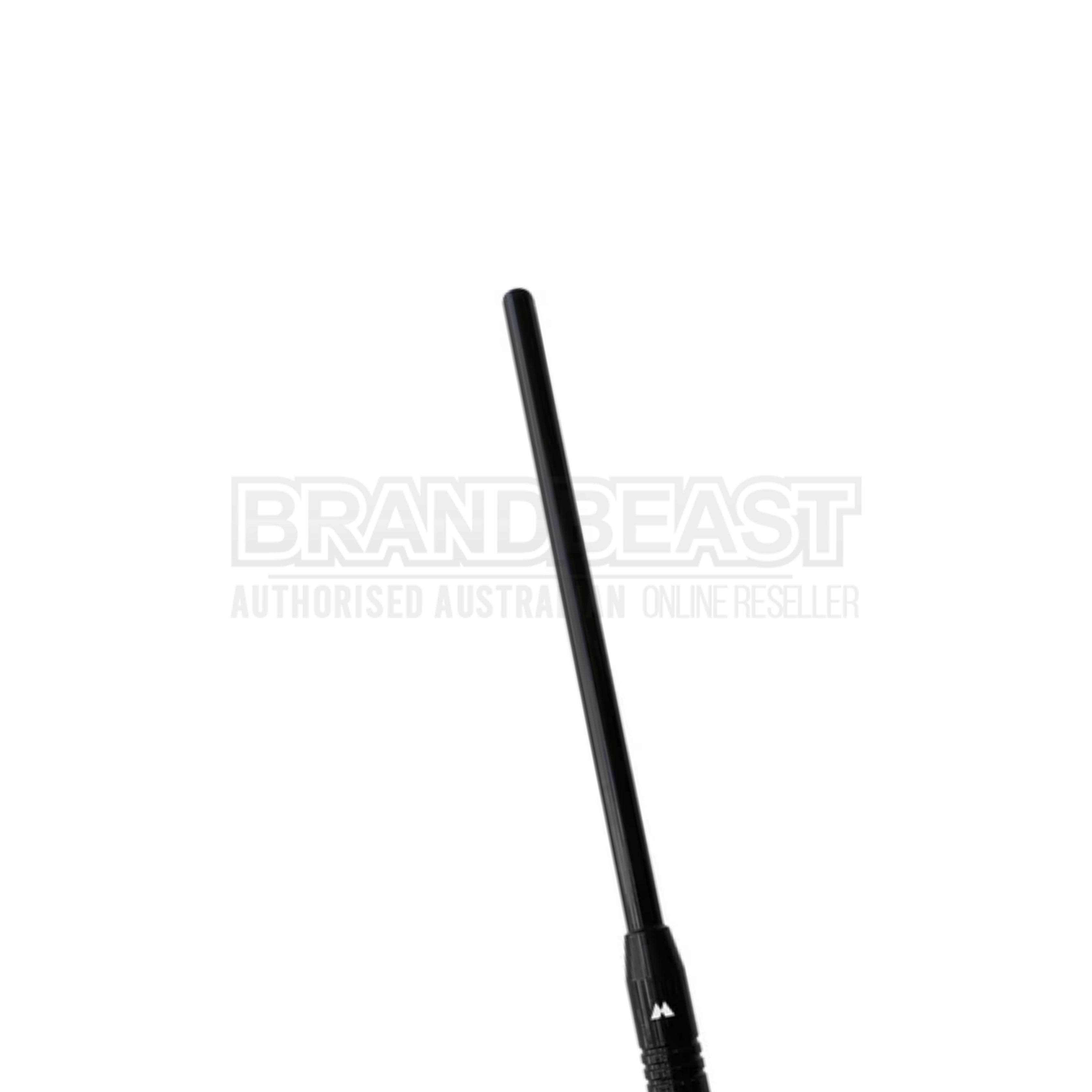

Heavy-Duty 25mm Radome Construction - Robust 25mm tapered fiberglass radome mast with UV-stable construction provides superior durability compared to standard antennas, withstanding extreme Australian sun exposure, branch impacts, and harsh environmental conditions without signal degradation.
Professional-Grade LMR240 Cable - 4.5-meter LMR240 low-loss coaxial cable delivers exceptional performance compared to standard RG58 cable, maximizing power transfer from radio to antenna while minimizing signal degradation for superior transmission and reception quality.

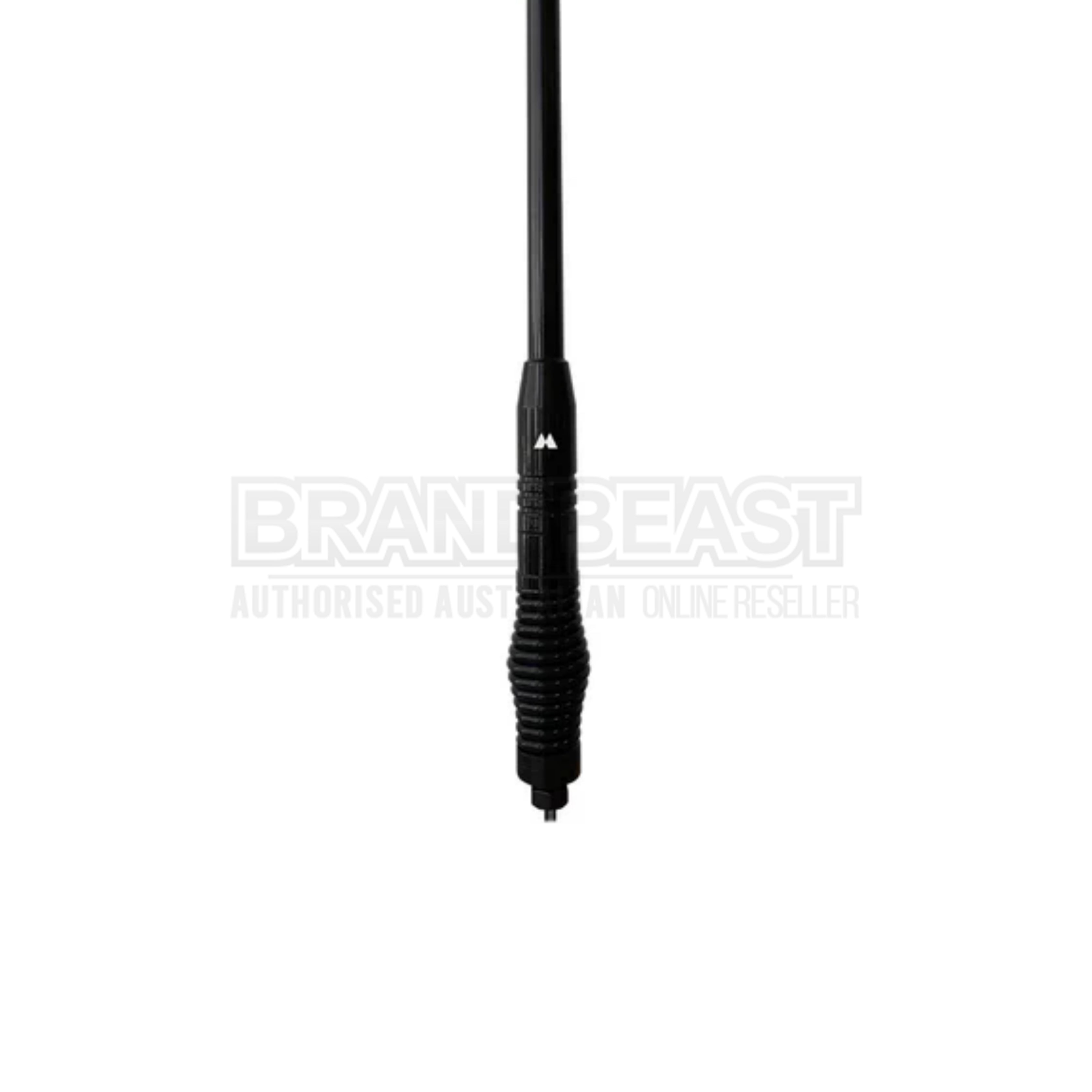

55mm Heavy-Duty Barrel Spring - Extra-robust 55mm diameter barrel spring provides superior impact absorption compared to standard springs, protecting antenna investment during rough terrain, corrugated roads, and demanding off-road conditions.
Ground Independent Design - No ground plane requirement enables installation on fiberglass canopies, aluminum trays, composite body panels, or any vehicle surface without performance degradation, providing maximum flexibility for modern vehicle mounting configurations.
Pre-Tuned 477MHz - Factory-tuned for Australian UHF CB frequency band eliminates complex antenna tuning procedures, ensuring optimal performance across all 80 UHF CB channels immediately upon installation without additional adjustments.
28° Vertical Beamwidth - Wider 28-degree vertical beamwidth provides balanced coverage for varied terrain applications, suitable for mixed urban-rural driving, regional touring, and moderate-distance communication requirements.
200W Power Handling - Robust construction handles up to 200 watts power capacity, providing compatibility with high-output UHF CB radios and future system upgrades without requiring antenna replacement.
Technical Specifications
Physical Specifications:
-
Antenna Height: 697mm
-
Gain: 5.2dBi
-
Radome Mast: 25mm Diameter Tapered Heavy-Duty
-
Barrel Spring: 55mm Diameter Heavy-Duty
-
Cable Length: 4.5 meters
-
Coaxial Cable Type: Professional-Grade LMR240 Low-Loss
-
Cable Connector: FME (Female)
-
Included Adaptor: FME to PL259
Electrical Specifications:
-
Frequency: Pre-tuned 477MHz
-
VSWR: Maximum 1.5:1
-
Impedance: 50 Ohm
-
Vertical Beamwidth: 28°
-
Maximum Power: 200W
-
Ground Plane: Independent (No Ground Plane Required)
Application:
- Daily-Driver 4x4 Vehicles
- Urban-Rural Mixed Driving
- Height-Restricted Parking Requirements
- Commercial Fleet Urban Operations
- Recreational Regional Touring
- Compact High-Performance Applications
Installation Notes
The Midland PRO7050 installs on any UHF antenna base or bracket with standard thread mounting. Thread the antenna with spring assembly onto the mounting base, tightening firmly by hand without over-torquing the barrel spring connection. Route the 4.5-meter LMR240 cable to the radio location, avoiding sharp bends that could damage the cable. Connect the FME female connector directly to compatible radios, or use the included FME to PL259 adaptor for standard PL259 radio connections. The ground-independent design allows mounting on non-metallic surfaces without performance loss. Ensure the antenna remains clear of overhead obstacles and other antennas to prevent interference. Test VSWR after installation to verify proper connection and tuning. The heavy-duty 55mm barrel spring absorbs impacts during off-road driving while maintaining vertical antenna orientation. The compact 697mm height provides excellent range performance while accommodating height-restricted parking facilities.
Frequently Asked Questions
What makes the PRO7050 suitable for daily-driver vehicles?
The PRO7050's compact 697mm height allows access to most parking garages and height-restricted areas while maintaining professional-grade 5.2dBi gain performance. The combination of LMR240 cable, heavy-duty construction, and ground-independent design delivers reliable communication without height-related parking limitations common with taller antennas.
How does the PRO7050 compare to taller PRO7000 and PRO6000 models?
The PRO7050 offers 5.2dBi gain in compact 697mm height versus PRO7000 (6.9dBi, 1.19m) and PRO6000 (6.6dBi, 1.026m). While taller antennas provide marginally better range, the PRO7050 delivers excellent performance without height restrictions, making it ideal for vehicles requiring frequent urban parking access.
Does the shorter height significantly reduce communication range?
The PRO7050's 5.2dBi gain still provides excellent communication range for most applications. The professional-grade LMR240 cable and optimized 28-degree beamwidth partially offset the reduced gain from shorter height. Expect reliable communication across typical 4x4 touring, regional travel, and commercial fleet operations without extreme long-distance requirements.
Can I install this antenna on a fiberglass canopy?
Yes, the PRO7050 features ground-independent design requiring no metal ground plane beneath the antenna. This enables installation on fiberglass canopies, aluminum trays, composite tonneau covers, or any vehicle surface without performance degradation. The ground-independent design provides flexibility for modern vehicle mounting configurations.
Is the PRO7050 as durable as taller models?
Yes, the PRO7050 shares the same heavy-duty construction as taller PRO-series antennas including 25mm radome mast and 55mm barrel spring. The shorter height actually reduces leverage forces during branch impacts, potentially improving durability in heavily timbered areas while maintaining professional-grade construction quality.
