Description

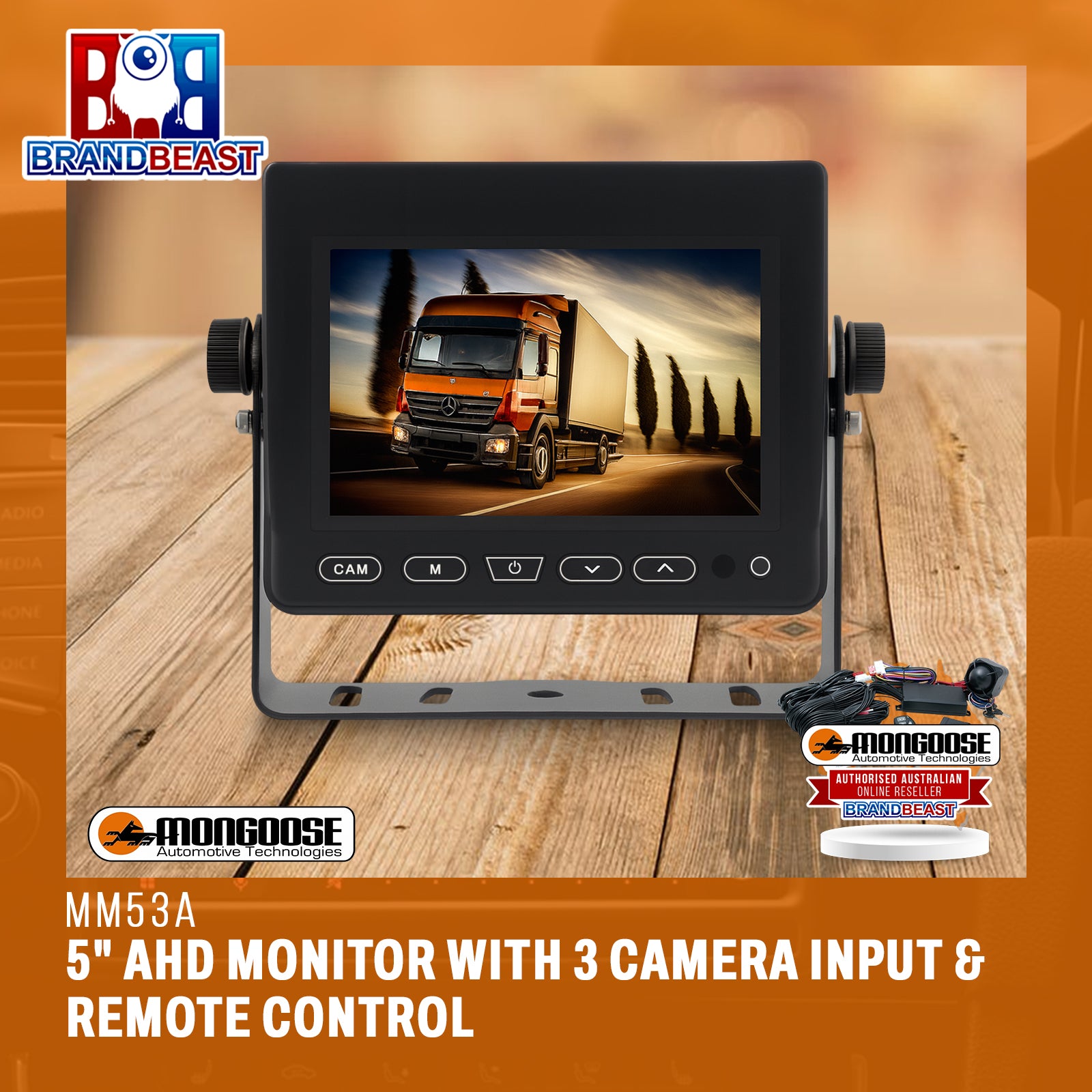

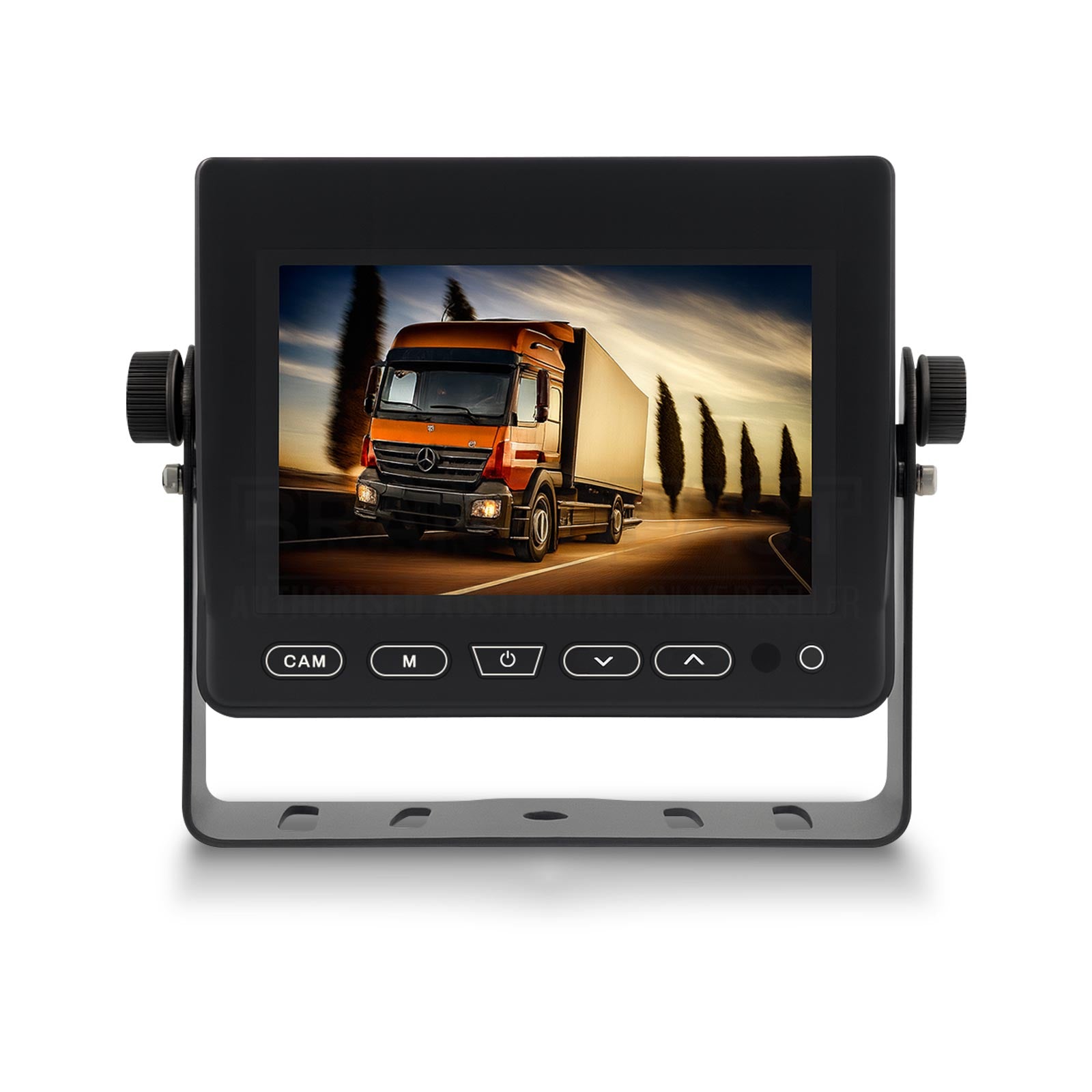

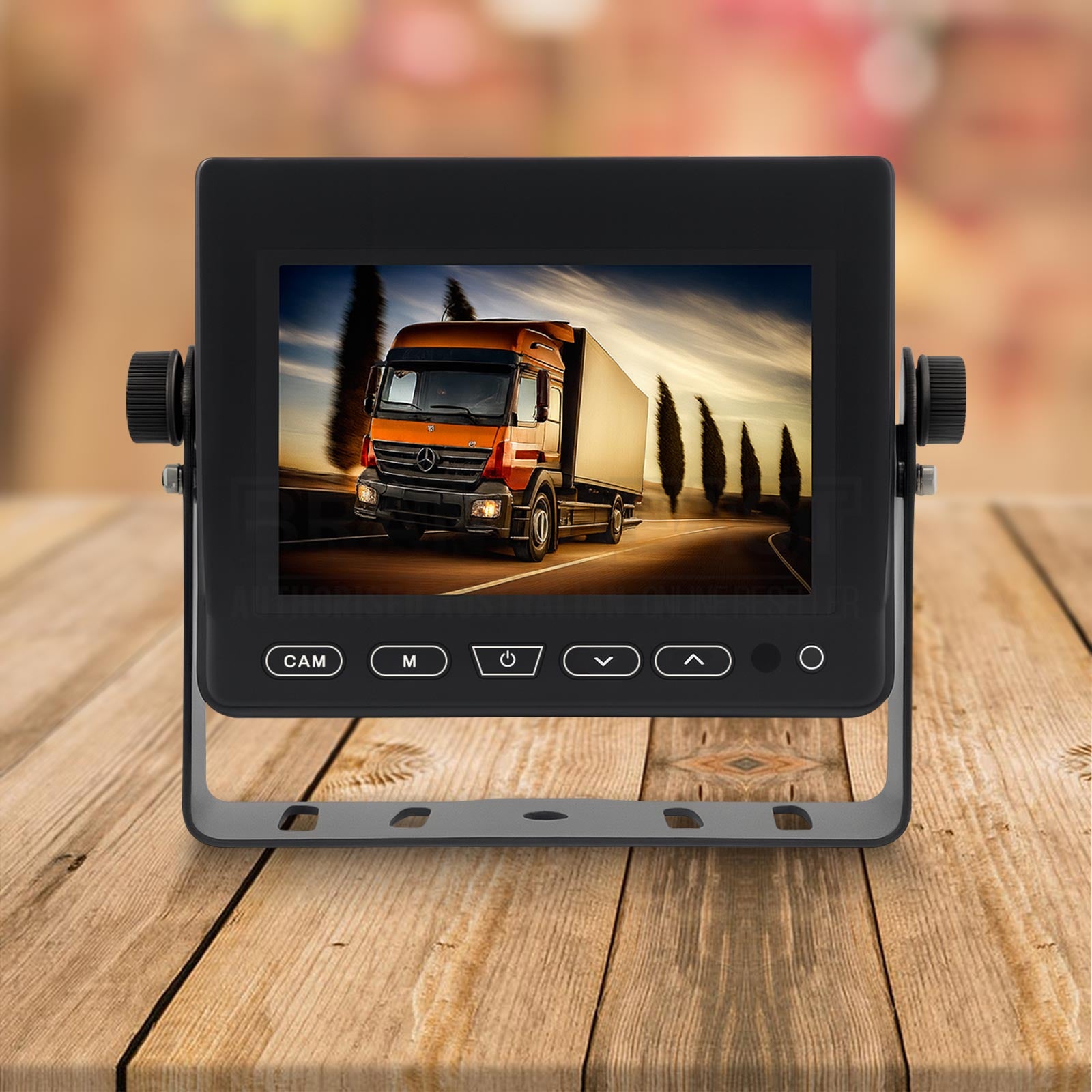

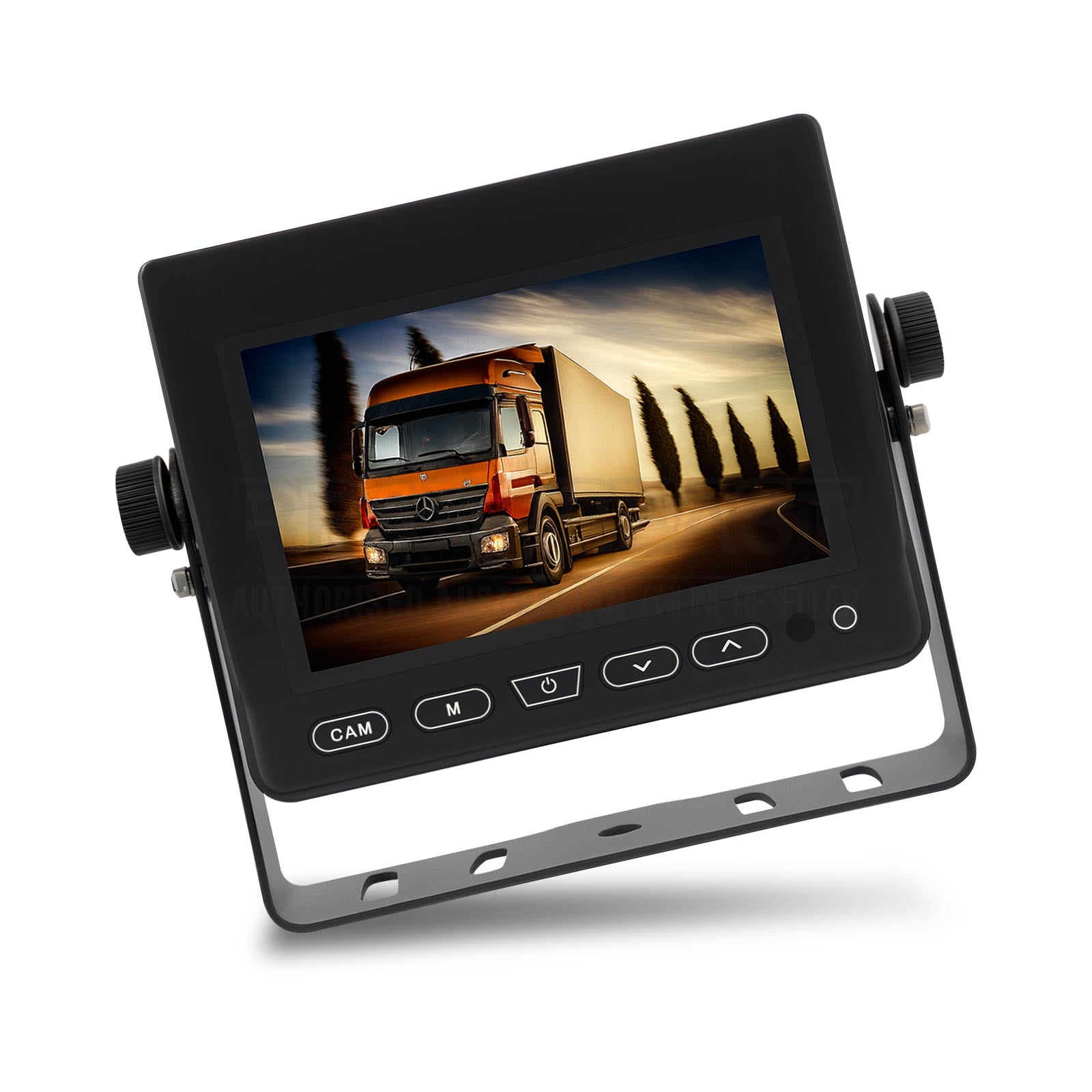

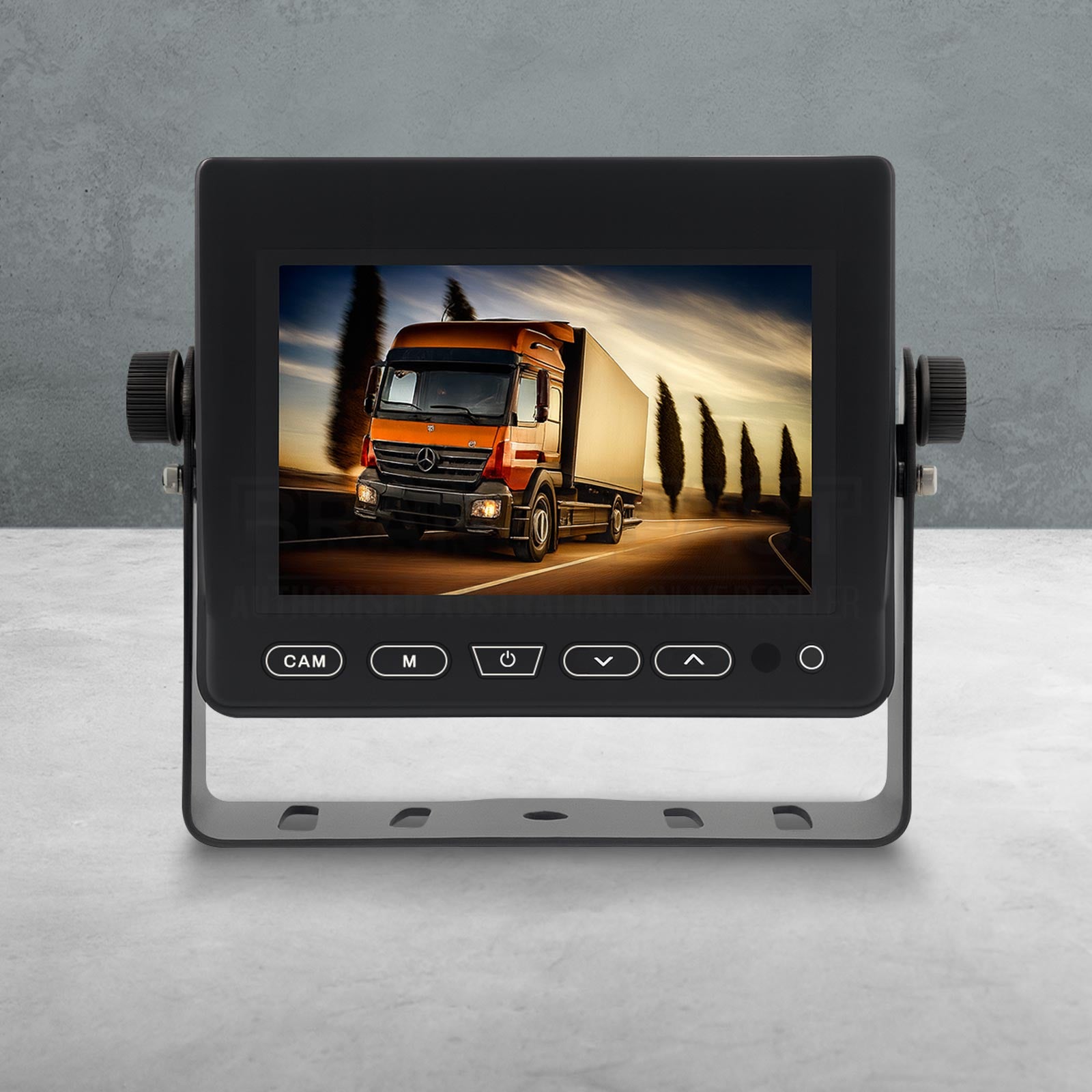

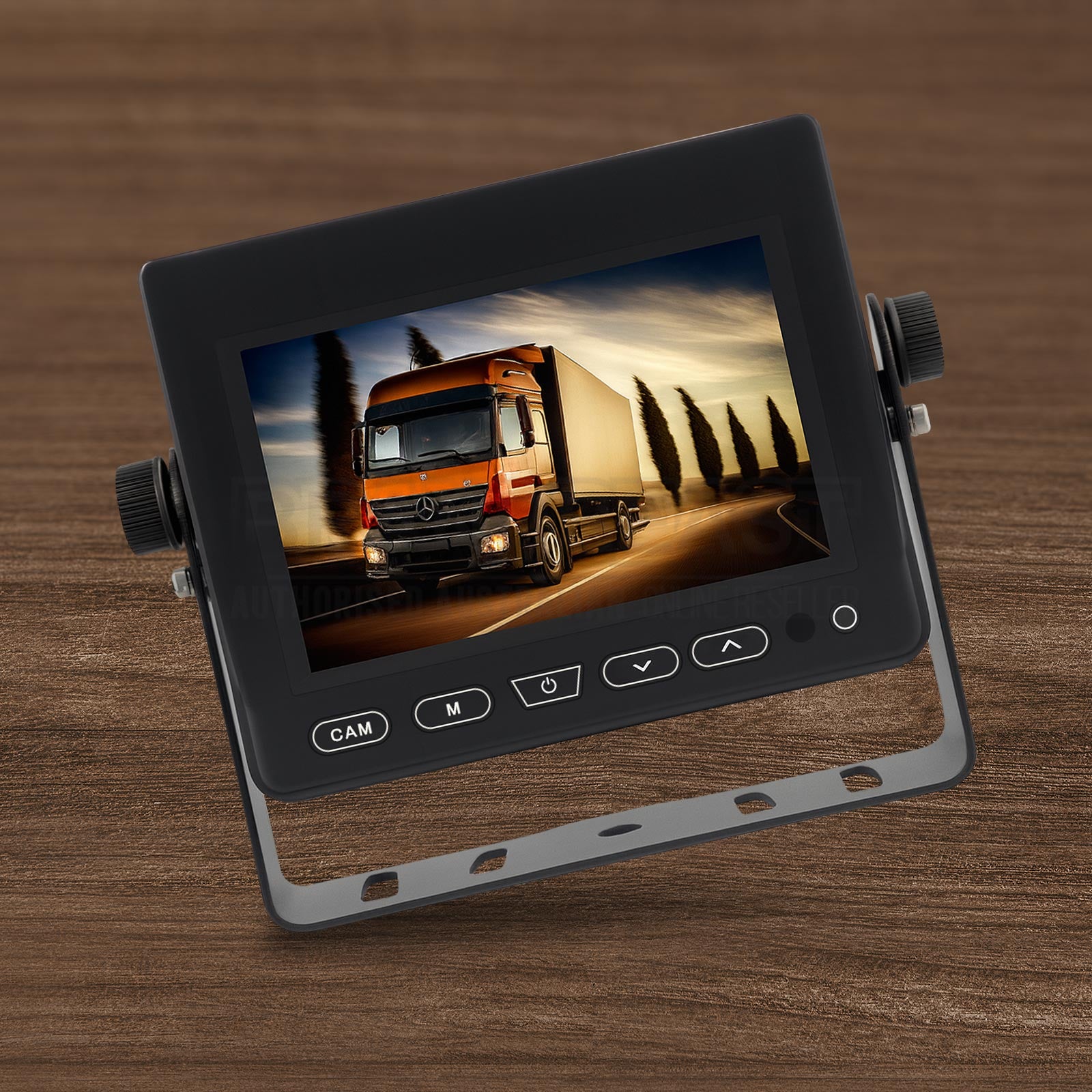

Compact 5" AHD monitor with triple camera input and convenient remote control
The Mongoose MM53A is a compact yet feature-rich 5" AHD (Analog High Definition) monitor designed for vehicles where space is at a premium but multiple camera coverage is essential. This LCD digital colour monitor supports up to 3 camera inputs plus audio, with the convenience of remote control operation, making it perfect for smaller commercial vehicles, delivery vans, and applications where dashboard space is limited.
Operating on both 12V and 24V systems, the MM53A automatically regulates power to supply 12V to connected cameras while providing clear AHD video quality. The included remote control allows easy switching between camera views, while the built-in speaker delivers audio from compatible cameras.
Features & Benefits
-
Compact 5" AHD Display: Space-saving LCD digital panel perfect for vehicles with limited dashboard space
-
Triple Camera Support: 3 AV inputs allow simultaneous connection of multiple cameras plus 1 audio input
-
Remote Control Operation: Convenient wireless remote for easy camera switching and menu control
-
Automatic Reverse Switching: Auto reverse trigger switches to backup camera when reversing
-
Dual Voltage Operation: 12V~24V input with automatic 12V output regulation for cameras
-
Built-in Audio: Integrated speaker provides audio from compatible cameras with audio capability
-
Professional Installation: Heavy-duty U-shaped mount bracket for secure vehicle mounting
-
Built-in Sun Visor: Integrated hood reduces glare and improves visibility in bright conditions
-
Manual Controls: Brightness, contrast, and colour adjustments for optimal viewing conditions
-
Heavy Duty Connections: 4-pin camera connections compatible with MC6 camera range
-
Commercial Grade: Built to withstand commercial vehicle conditions while maintaining compact size
-
User-Friendly: Remote control makes operation convenient for drivers
Technical Specs
- Monitor Size: 5.0" LCD digital colour display
- Video Standard: AHD (Analog High Definition)
- Operating Voltage: 12V~24V DC input
- Camera Power Output: 12V DC regulated output
- Video Inputs: 3 AV inputs + 1 audio input
- Audio: Built-in speaker
- Remote Control: Included
- Auto Switching: Reverse trigger wire for automatic camera switching
- Controls: Brightness, contrast, colour adjustment
- Sun Visor: Built-in hood
- Mounting: Heavy duty U-shaped bracket included
- Camera Connections: 4-pin heavy duty (cameras not included)
- Compatible Cameras: MC6 camera range
- Brand: Mongoose
- Model Number: MM53A
Compatible With
- MC6 camera range (AHD compatible)
- PEC cable range (1m, 5m, 10m, 15m, 20m lengths available separately)
- 4-pin heavy duty extension cables
- Smaller commercial vehicles and delivery vans
- Compact car and light truck applications
- Agricultural vehicles and machinery
- Marine and recreational vehicle installations
Installation Notes:
- Cameras and cables sold separately (4-pin heavy duty cable NOT INCLUDED)
- Choose appropriate PEC cable length (1m, 5m, 10m, 15m, 20m) for your installation
- Professional installation recommended for optimal performance
- Requires reverse trigger wire connection for automatic switching
- Remote control included for convenient operation
