Description
Mongoose MPFSWB-D Wireless Front Parking Sensor Kit with Colourful LCD Display - Black
A complete wireless front parking sensor kit with colourful LCD display, delivering accurate 0.30 to 2.60 metre front obstacle detection for cars, 4WDs, utes, and commercial vehicles with no cabin cable runs required.
Product Overview
The Mongoose MPFSWB-D is a wireless front parking sensor kit designed for drivers who want accurate front obstacle detection without the complexity of a fully wired installation. The key advantage of the MPFSWB-D is its 2.4GHz wireless connection between the front sensor module and the in-cabin LCD display, eliminating the need to run cables from the front bumper through the firewall and into the cabin. This significantly reduces installation time and complexity while delivering a clean, professional result.

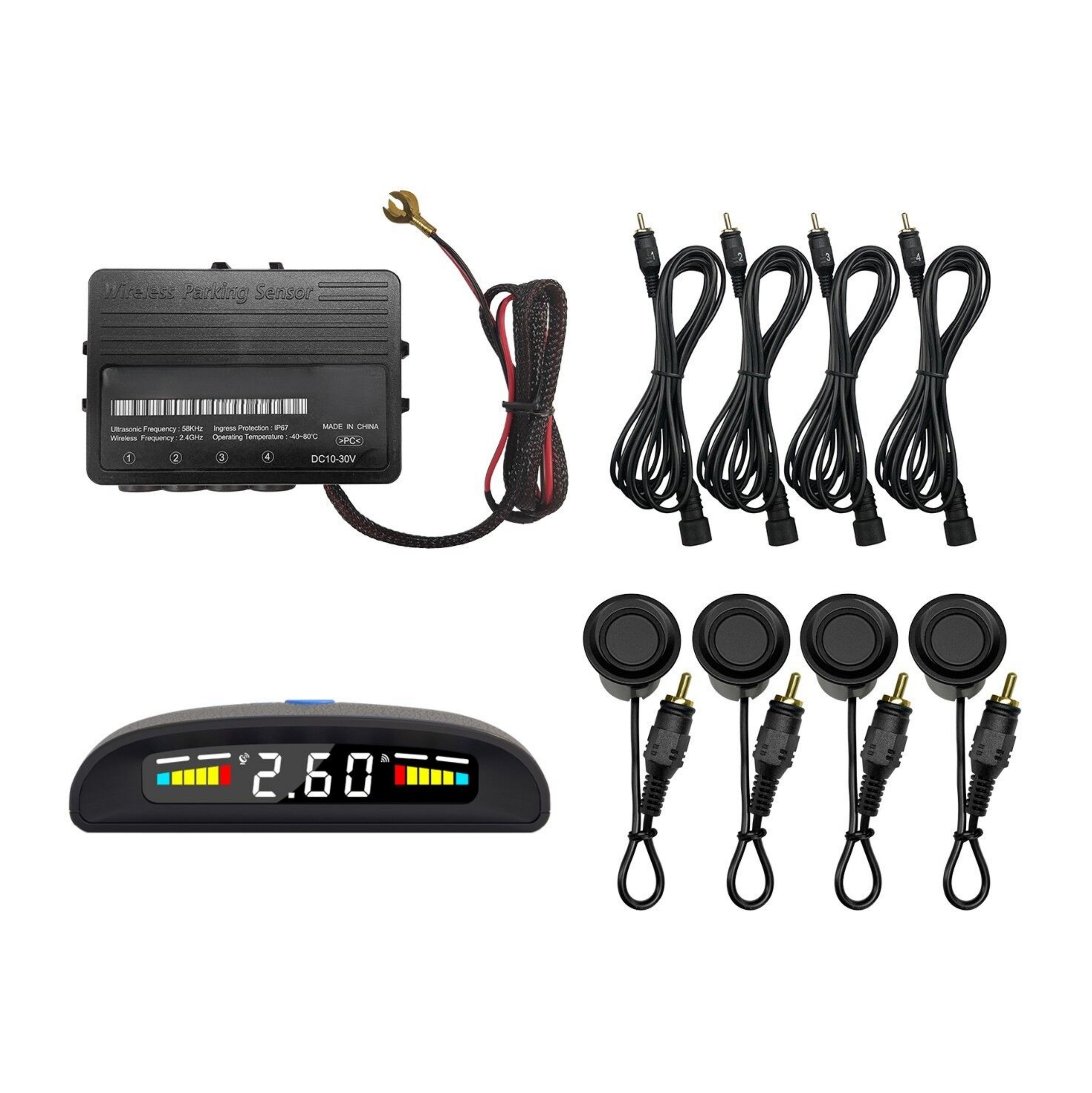

The kit includes four 22mm matt black ultrasonic sensors with IP67 rated waterproof cables and connectors, a waterproof and high temperature resistant front main module suitable for external mounting, and a colourful LCD display with built-in GPS module. Sensors detect obstacles from 0.30 metres to 2.60 metres with both visible and audible alarms. The wide 10-30V DC operating voltage makes the MPFSWB-D suitable for both 12V passenger vehicles and 24V commercial vehicles and trucks. Sensors are paintable to match your bumper colour and can be installed in plastic bumpers. For metal bumpers, the optional rubber sleeve accessories SRS-01 or SRS-02 are available separately.
Features & Benefits
2.4GHz Wireless Display Connection: The wireless connection between the front sensor ECU module and the in-cabin LCD display eliminates the need to run cables from the front of the vehicle through the engine firewall to the cabin, simplifying installation significantly and reducing labour time and cost.

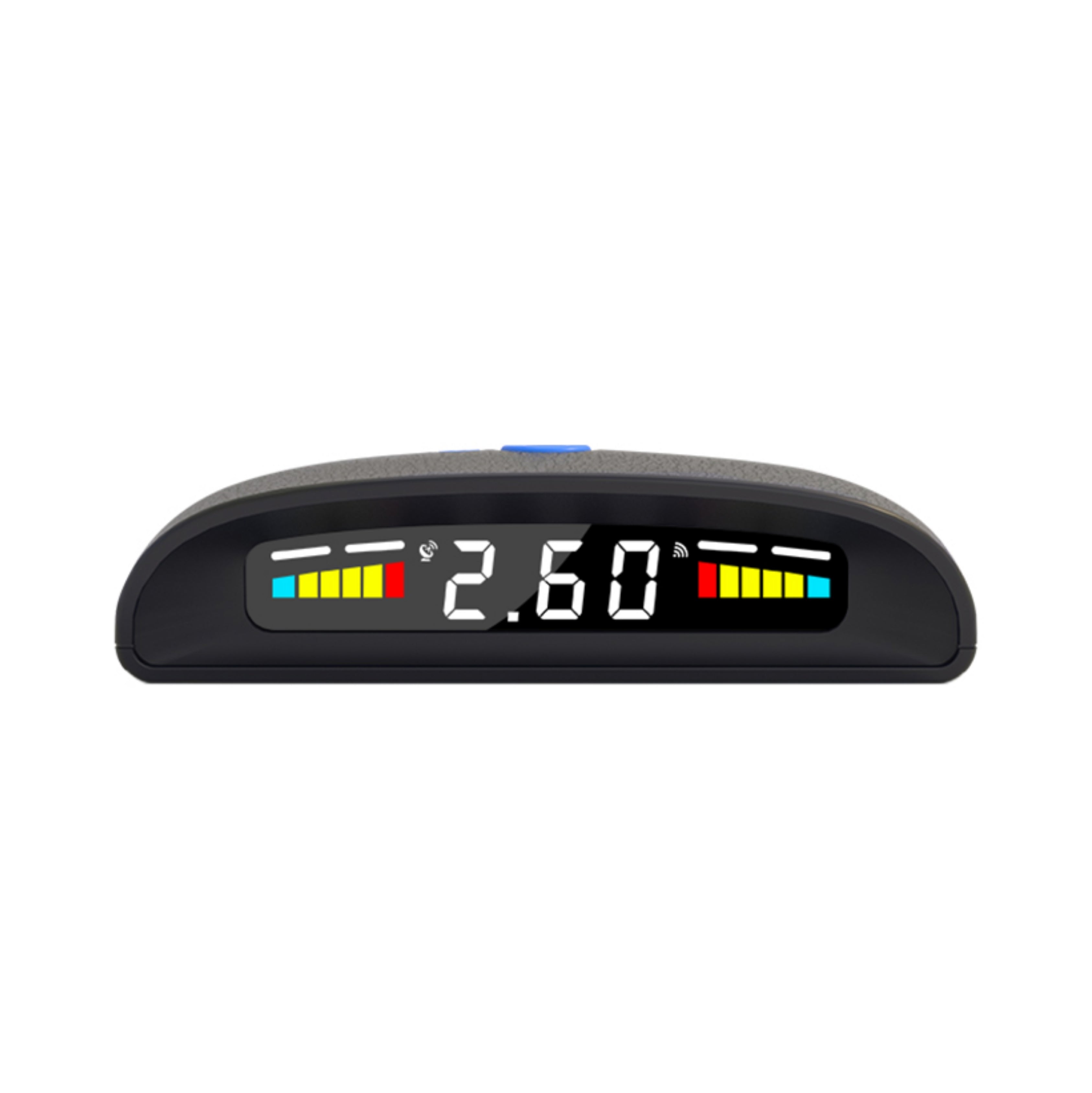

Colourful LCD Display with GPS Module: The well-designed colourful LCD display provides clear visual and audible parking alerts, and includes a built-in GPS module for enhanced functionality. The display's minimum and maximum detection distances can be customised directly from the unit.

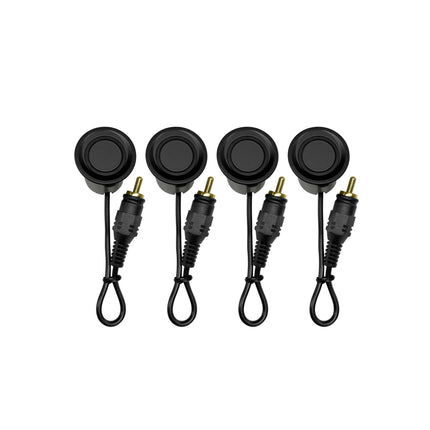

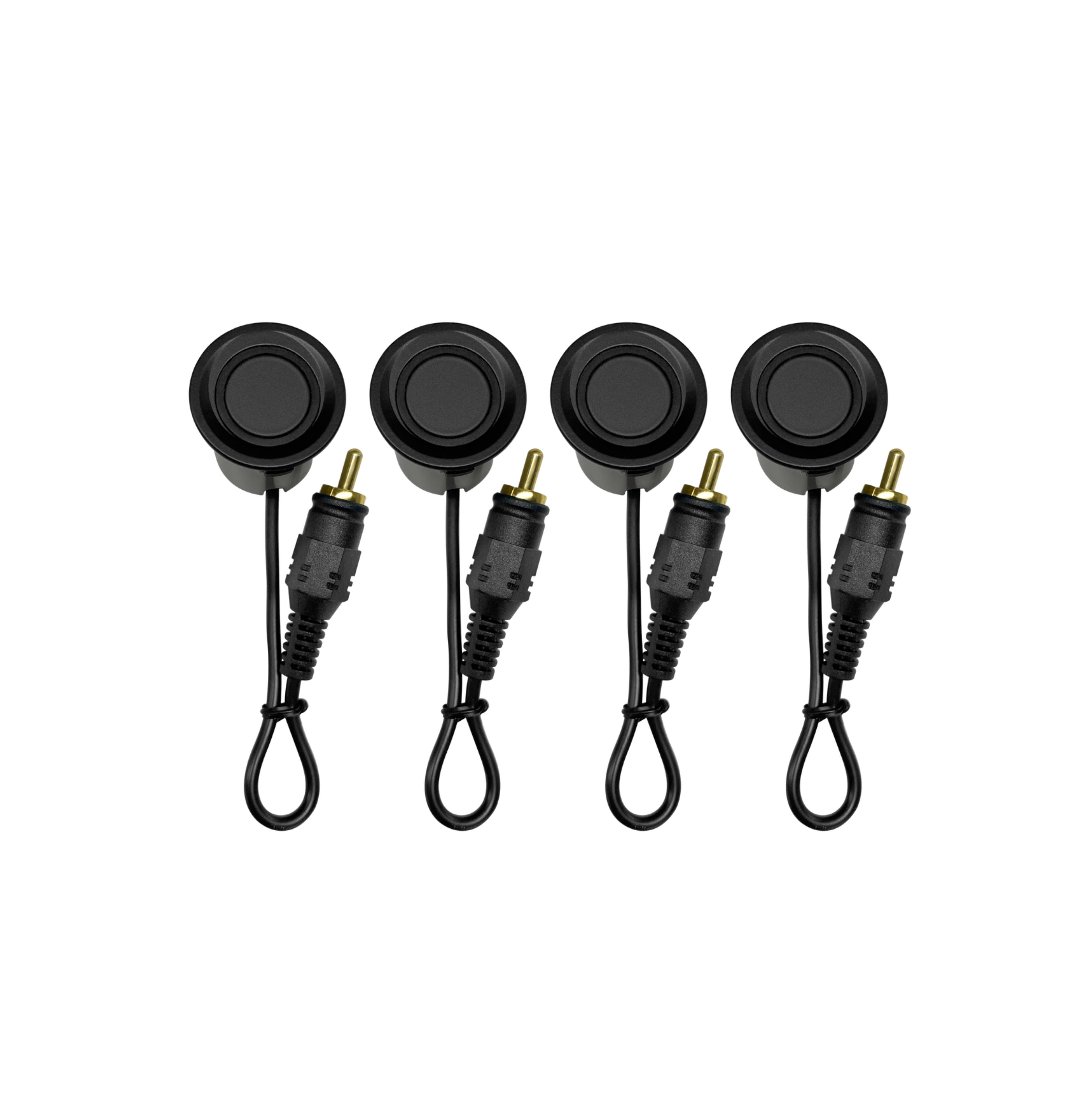

4 x IP67 Waterproof Ultrasonic Sensors: The four 22mm 58KHz ultrasonic sensors feature IP67 rated waterproof cables and connectors, and are water and heat resistant for long-term reliability when installed in external bumper positions exposed to the elements.
Paintable Matt Black Sensors: The 22mm matt black sensors can be painted to match the colour of your vehicle's bumper, allowing for a discreet and factory-style integration into the front bumper without visible contrast.
Wide Voltage Compatibility - 12V and 24V: The 10-30V DC operating voltage range makes the MPFSWB-D suitable for standard 12V passenger vehicles, 4WDs, and utes as well as 24V commercial vehicles, trucks, and heavy equipment.

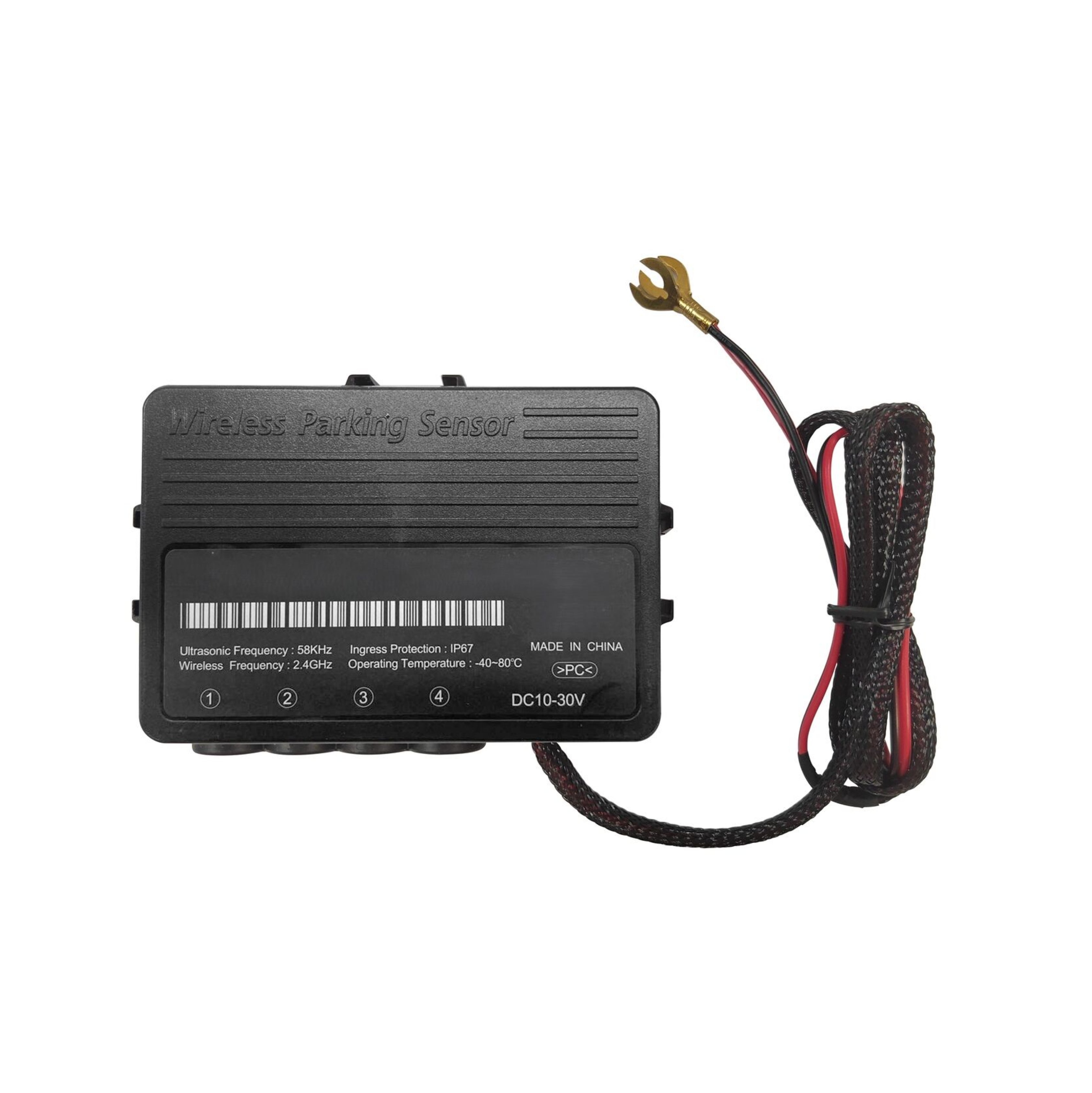

Waterproof and High Temperature Resistant ECU: The front main module is designed for external mounting with waterproof and high temperature resistant construction, rated for operating temperatures from -40 degrees C to +80 degrees C.
Adjustable Detection Range: The minimum and maximum detection distance for each sensor can be individually set on the display, allowing fine-tuning of the detection zone to suit different vehicle types and bumper configurations.
Technical Specs
| Specification |
Detail |
| Brand |
Mongoose |
| SKU |
MPFSWB-D |
| Type |
Wireless Front Parking Sensor Kit with Display |
| Sensor Quantity |
4 |
| Sensor Diameter |
22mm |
| Sensor Colour |
Matt Black (Paintable) |
| Ultrasonic Frequency |
58KHz |
| Detecting Distance |
0.30m to 2.60m |
| Wireless Frequency |
2.4GHz |
| Operating Voltage |
DC 10-30V (12V and 24V compatible) |
| Maximum Power Consumption |
1.5W |
| Sensor Waterproof Rating |
IP67 |
| ECU |
Waterproof and High Temperature Resistant |

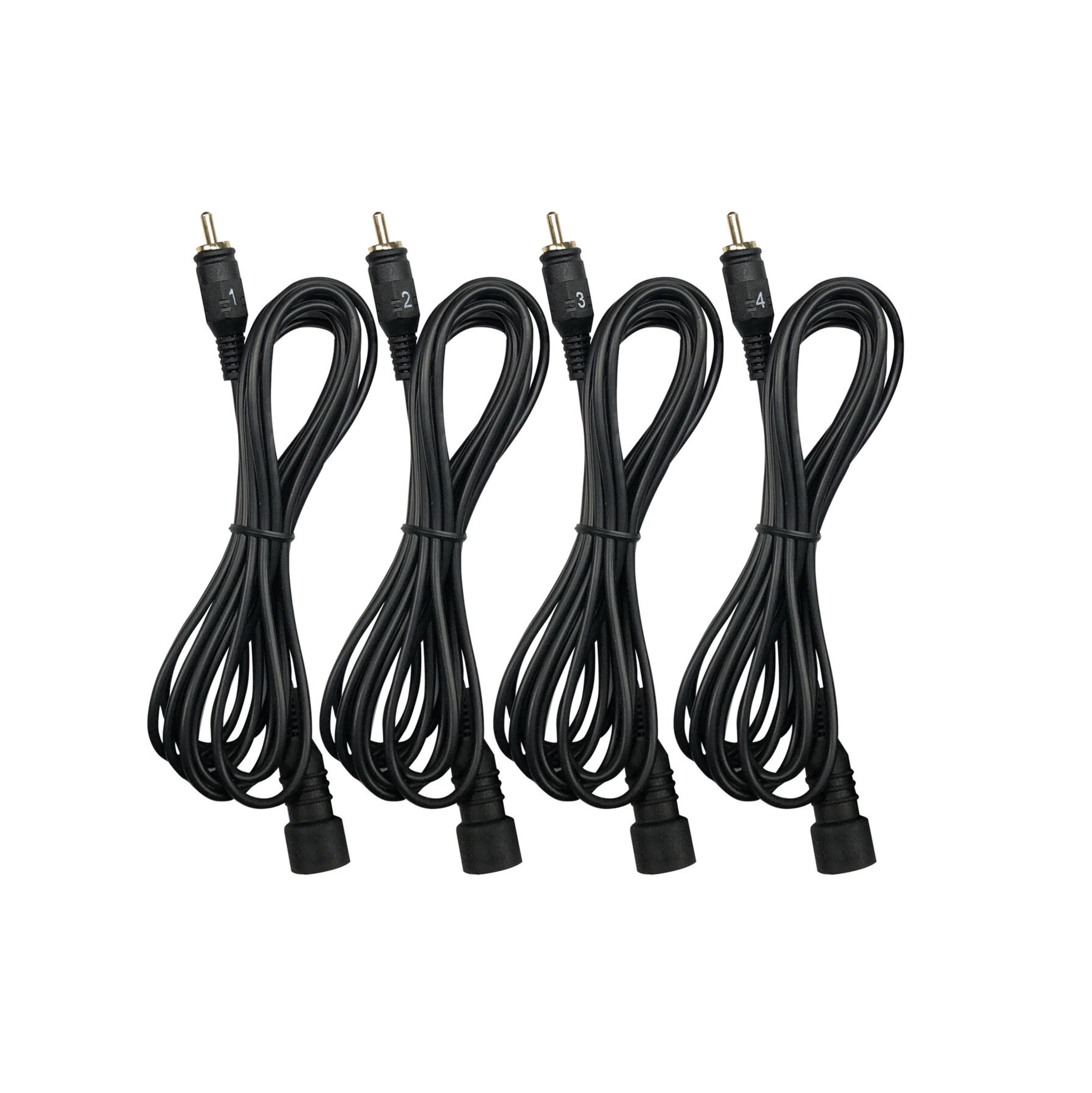

| Sensor Cable Length |
0.15m + 2.4m |
| Operating Temperature |
-40 degrees C to +80 degrees C |
| Display |
Colourful LCD with Built-In GPS Module |
| Bumper Compatibility |
Plastic (metal with optional SRS-01 or SRS-02 rubber sleeves) |
| Warranty |
2 Years |
Compatible With / Goes Well With
The MPFSWB-D is a universal fit parking sensor kit compatible with cars, 4WDs, utes, and 12V or 24V commercial vehicles where the front bumper can accommodate four 22mm sensor holes.
Goes Well With:
- Mongoose SRS-01 rubber sleeve rings (for metal bumpers, sold separately)
- Mongoose SRS-02 rubber sleeve rings (for metal bumpers, sold separately)
- SBT-01 sensor and ECU bracket (for trucks or flat metal bumpers, sold separately)
- Reverse cameras and parking sensor display monitors
- Aftermarket head units with parking sensor input
Frequently Asked Questions
Does the MPFSWB-D work with metal bumpers?
The MPFSWB-D is designed for installation in plastic bumpers as standard. For metal bumpers, the optional Mongoose SRS-01 or SRS-02 rubber sleeve rings are required and must be purchased separately. For trucks or vehicles with flat metal bumpers, the optional SBT-01 sensor and ECU bracket is also available separately. Contact us to add these accessories to your order.
How does the wireless connection work with this kit?
The MPFSWB-D uses a 2.4GHz wireless connection between the front sensor ECU module and the in-cabin LCD display. This means the ECU mounts externally at the front of the vehicle near the sensors, and the display inside the cabin receives all sensor data wirelessly, with no need to route cables through the firewall or dashboard. This is the key installation advantage of the MPFSWB-D over wired parking sensor kits.
Is the MPFSWB-D compatible with 24V commercial vehicles?
Yes. The MPFSWB-D operates on a wide voltage range of 10-30V DC, making it fully compatible with both 12V passenger vehicles and 24V commercial vehicles, trucks, and heavy equipment without any voltage conversion required.
Can the sensors be painted to match my vehicle?
Yes. The 22mm matt black sensors are paintable and can be colour-matched to your vehicle's bumper for a discreet, integrated appearance. Use a suitable automotive aerosol paint and allow full drying time before installation or sensor activation.
What is the detection range of the MPFSWB-D sensors?
The four ultrasonic sensors detect obstacles from 0.30 metres to 2.60 metres. The minimum and maximum detection distance for each sensor can be individually adjusted directly from the LCD display, allowing you to customise the sensitivity and detection zone to suit your vehicle type and parking environment. Please note that parking sensors are a driving aid and detection distances are approximate.
