Description
Mongoose MPRSWB-D Wireless Rear Parking Sensor Kit with Colourful LCD Display - Black
A complete wireless rear parking sensor kit with colourful LCD display, delivering accurate 0.30 to 2.60 metre reverse obstacle detection for cars, 4WDs, utes, and commercial vehicles with automatic activation on reverse gear and no cabin cable runs required.
Product Overview
The Mongoose MPRSWB-D is a wireless rear parking sensor kit designed for drivers who want accurate reverse obstacle detection without the complexity of a fully wired installation. Using a 2.4GHz wireless connection between the rear sensor ECU module and the in-cabin LCD display, the MPRSWB-D eliminates the need to run cables from the rear bumper through the vehicle's body to the cabin, significantly reducing installation time and labour cost while delivering a clean and professional result.

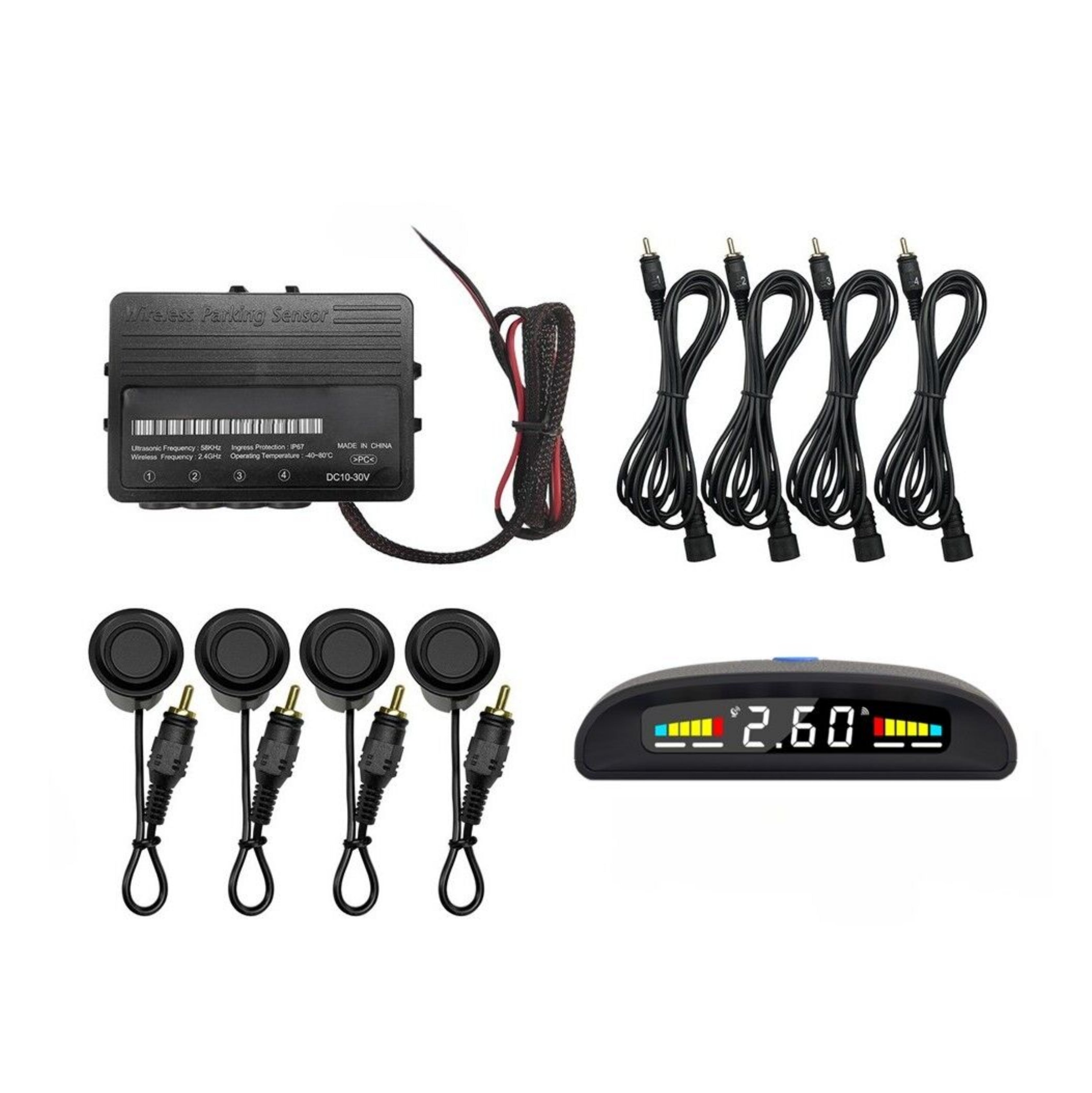

The kit includes four 22mm matt black ultrasonic sensors with IP67 rated waterproof cables and connectors, a waterproof and high temperature resistant rear main module suitable for external mounting, and a colourful LCD display with visible and audible alarms. The system activates automatically when reverse gear is selected and detects obstacles from 0.30 metres to 2.60 metres. The minimum detection distance can be adjusted to avoid false readings from spare tyres, tow bars, pedals, and licence plate holders. The wide 10-30V DC operating voltage makes the MPRSWB-D compatible with both 12V passenger vehicles and 24V commercial vehicles and trucks. For metal bumpers, optional rubber sleeve accessories SRS-01 or SRS-02 are available separately. For undermount installations, the optional SBT-01 bracket is also available separately.
Features & Benefits
2.4GHz Wireless Display Connection: The wireless connection between the rear sensor ECU module and the in-cabin LCD display eliminates the need to run cables from the rear of the vehicle to the cabin, simplifying installation significantly and reducing labour time and cost.
Automatic Reverse Gear Activation: The MPRSWB-D activates automatically when reverse gear is selected, ensuring the parking sensor system is always active when reversing without requiring any manual switching by the driver.
Adjustable Detection to Avoid False Triggers: The minimum detection distance can be individually set on the display to prevent false alerts from spare tyres, tow bars, pedals, and licence plate holders, allowing the system to be fine-tuned for the specific rear configuration of each vehicle.

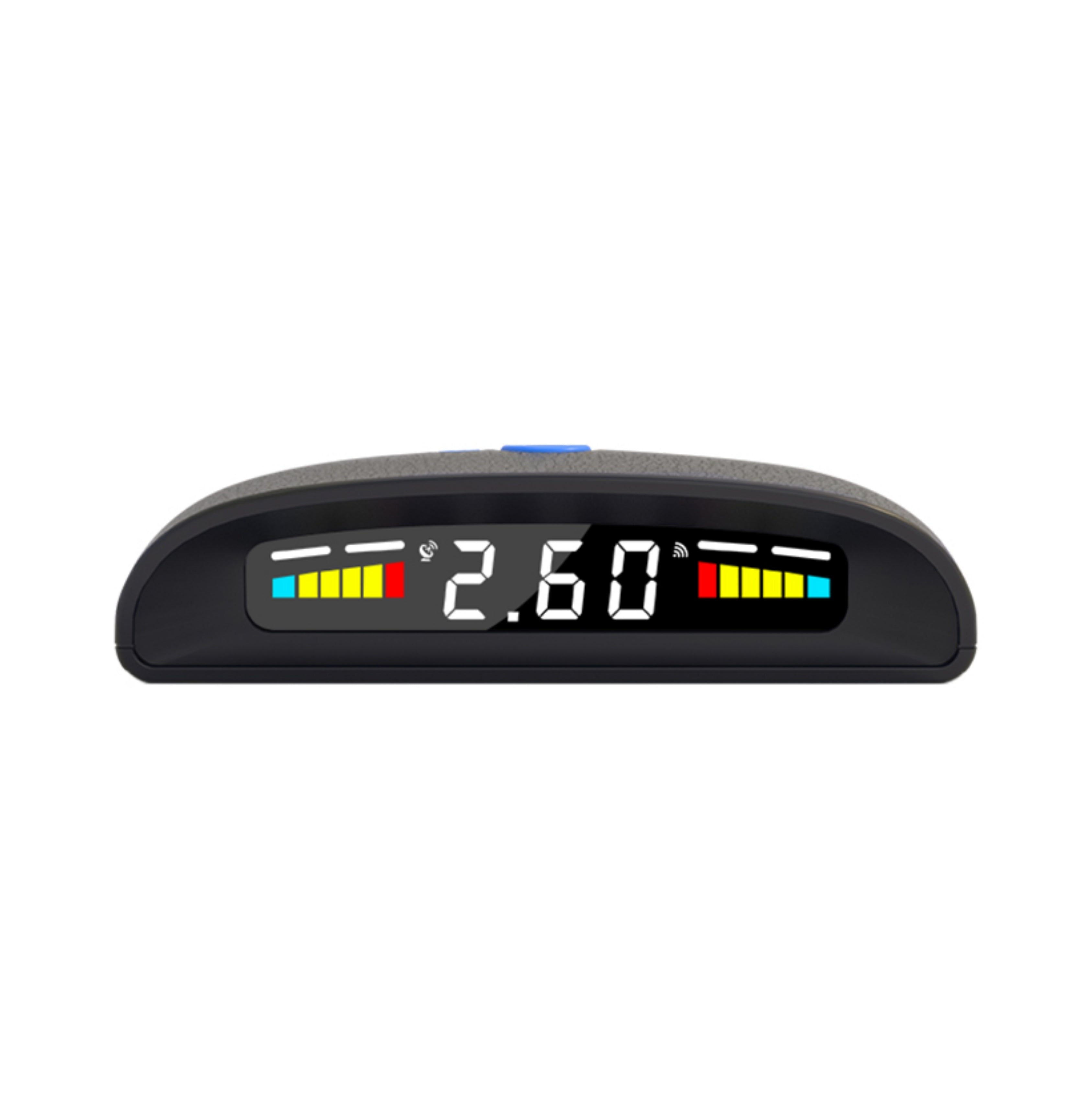

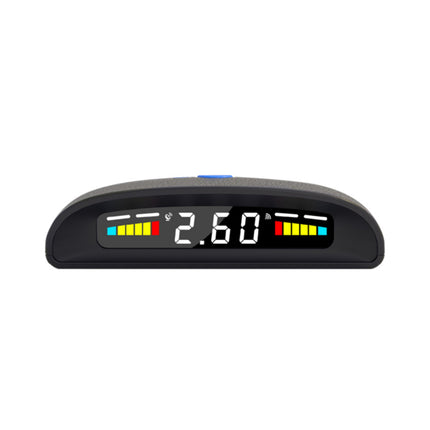

Colourful LCD Display with Visible and Audible Alarms: The well-designed colourful LCD display provides clear visual and audible parking alerts, with the minimum and maximum detection distance adjustable directly from the display unit.

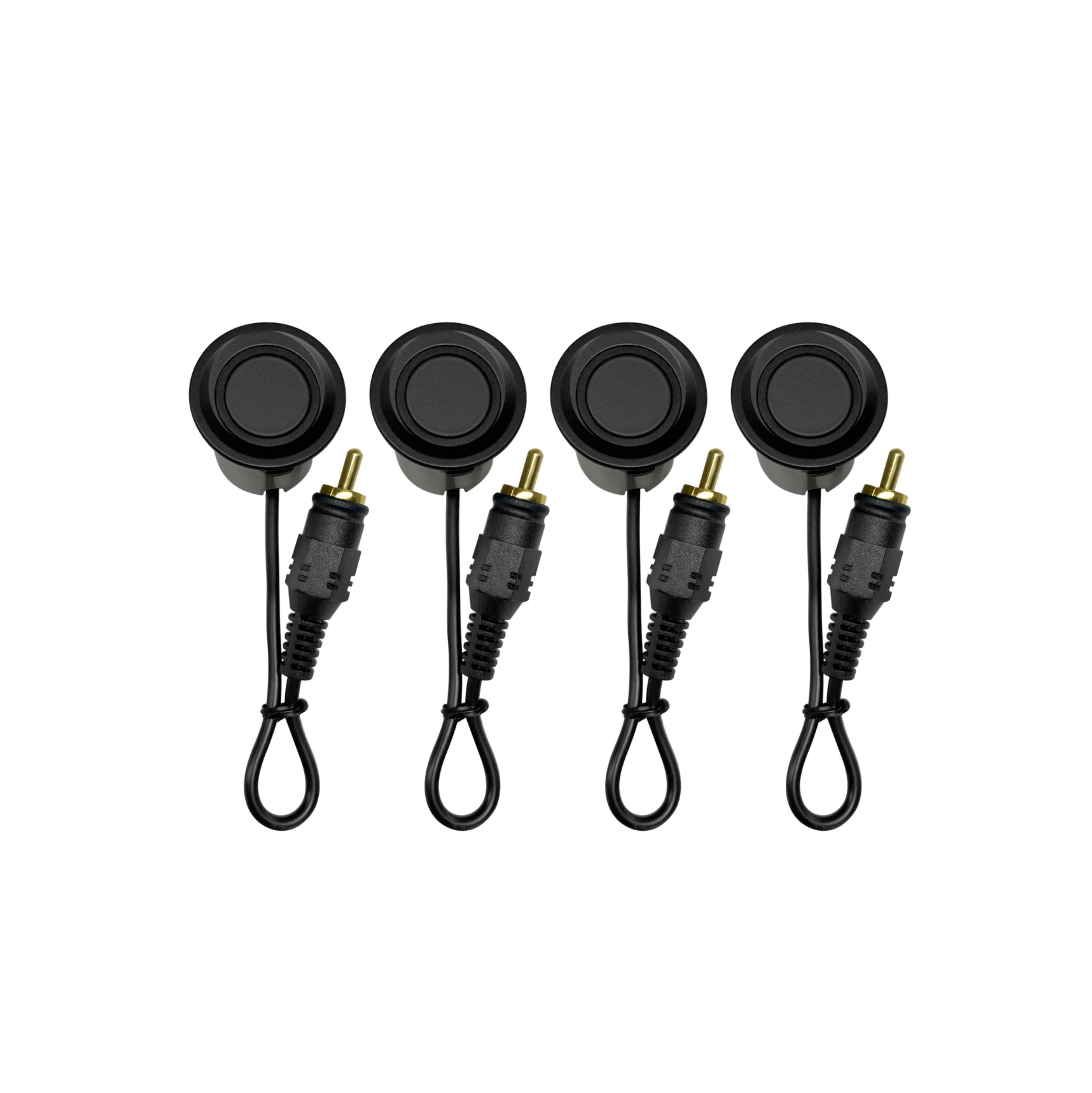

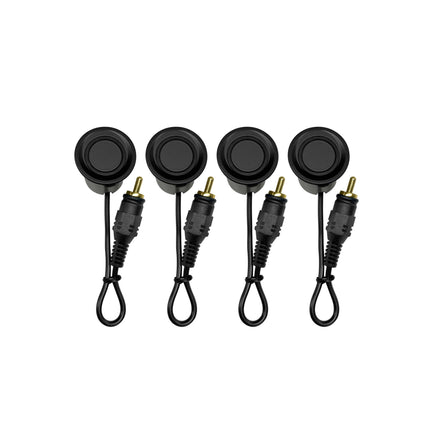

4 x IP67 Waterproof Ultrasonic Sensors: The four 22mm 58KHz ultrasonic sensors feature IP67 rated waterproof cables and connectors, and are water and heat resistant for long-term reliability installed in external rear bumper positions exposed to weather and road conditions.
Paintable Matt Black Sensors: The 22mm matt black sensors can be painted to match the colour of your vehicle's bumper, allowing for a discreet and factory-style integration without visible contrast against the rear bumper.
Wide Voltage Compatibility - 12V and 24V: The 10-30V DC operating voltage makes the MPRSWB-D suitable for standard 12V passenger vehicles, 4WDs, and utes as well as 24V commercial vehicles, trucks, and heavy equipment without any voltage conversion required.

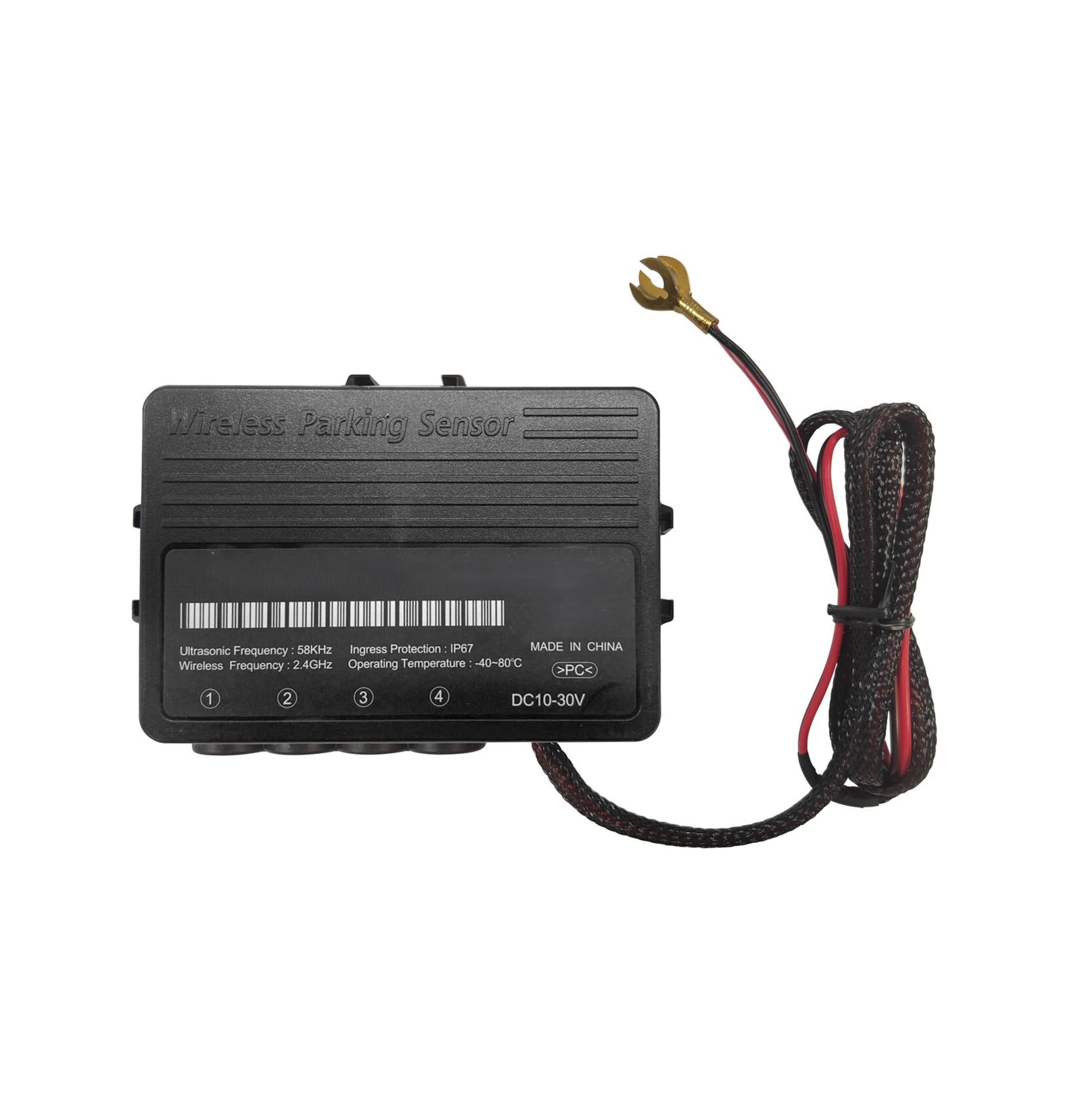

Waterproof and High Temperature Resistant ECU: The rear main module is designed for external mounting with waterproof and high temperature resistant construction, rated for operating temperatures from -40 degrees C to +80 degrees C.
Technical Specs
| Specification |
Detail |
| Brand |
Mongoose |
| SKU |
MPRSWB-D |
| Type |
Wireless Rear Parking Sensor Kit with Display |
| Sensor Quantity |
4 |
| Sensor Diameter |
22mm |
| Sensor Colour |
Matt Black (Paintable) |
| Ultrasonic Frequency |
58KHz |
| Detecting Distance |
0.30m to 2.60m |
| Wireless Frequency |
2.4GHz |
| Operating Voltage |
DC 10-30V (12V and 24V compatible) |
| Maximum Power Consumption |
1.5W |
| Sensor Waterproof Rating |
IP67 |
| ECU |
Waterproof and High Temperature Resistant |

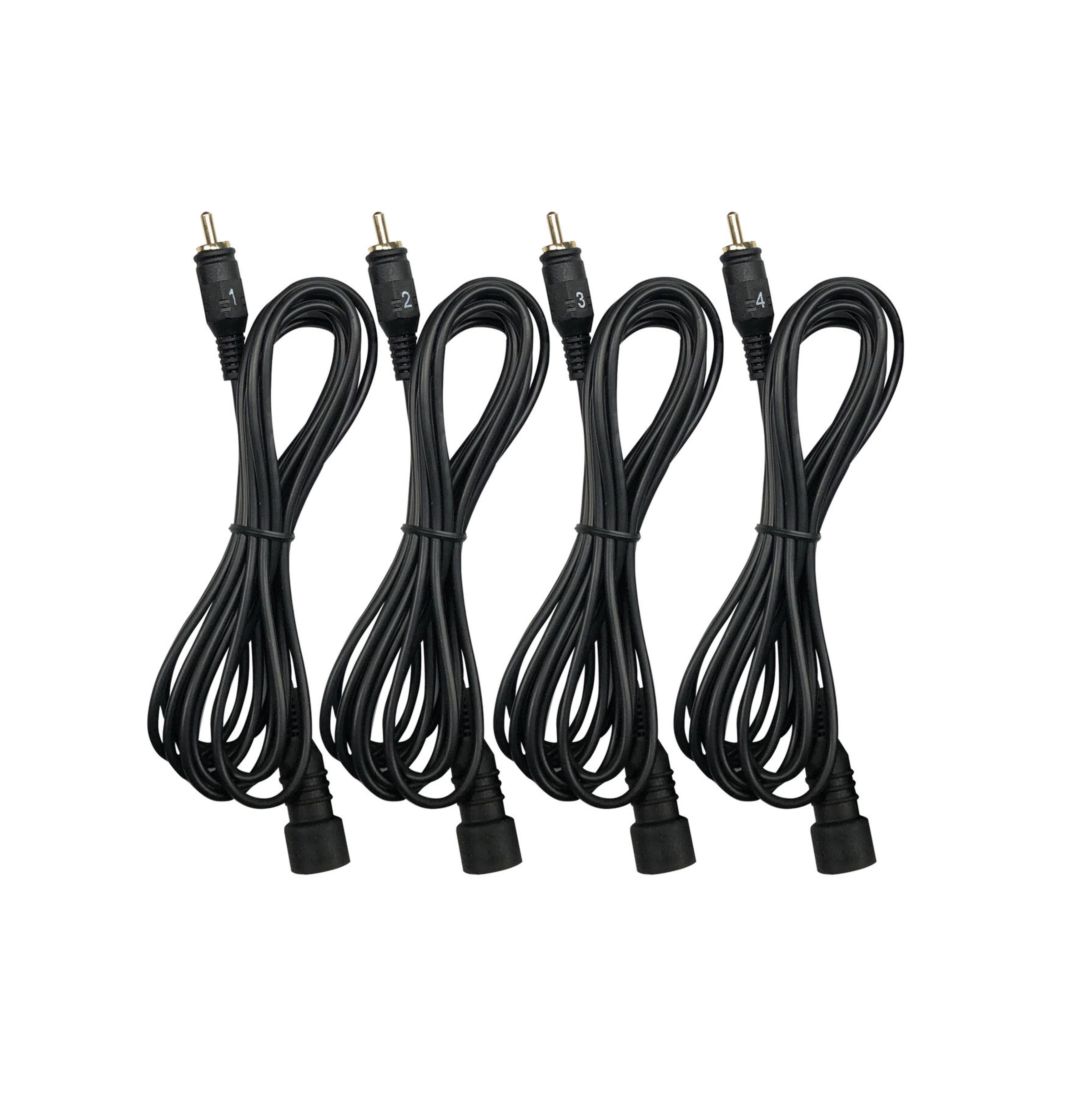

| Sensor Cable Length |
0.15m + 2.4m |
| Operating Temperature |
-40 degrees C to +80 degrees C |
| Activation |
Automatic on Reverse Gear Selection |
| Display |
Colourful LCD with Visible and Audible Alarm |
| Bumper Compatibility |
Plastic (metal with optional SRS-01 or SRS-02 rubber sleeves) |
| Undermount Option |
SBT-01 bracket (sold separately) |
Compatible With / Goes Well With
The MPRSWB-D is a universal fit parking sensor kit compatible with cars, 4WDs, utes, and 12V or 24V commercial vehicles where the rear bumper can accommodate four 22mm sensor holes.
Goes Well With:
- Mongoose SRS-01 rubber sleeve rings (for metal bumpers, sold separately)
- Mongoose SRS-02 rubber sleeve rings (for metal bumpers, sold separately)
- SBT-01 sensor and ECU bracket (for undermount or flat metal bumpers, sold separately)
- Reverse cameras and parking display monitors
- Mongoose MPFSWB-D wireless front parking sensor kit (for full front and rear coverage)
Frequently Asked Questions
Does the MPRSWB-D activate automatically when reversing?
Yes. The MPRSWB-D activates automatically when reverse gear is selected, so the system is always ready when you need it without any manual input. The display will show obstacle proximity and sound audible alerts as soon as a reverse gear is engaged.
How do I prevent false alerts from my tow bar or spare tyre?
The MPRSWB-D allows you to adjust the minimum detection distance for each sensor directly from the LCD display. By setting the minimum distance appropriately for your vehicle's rear configuration, you can prevent the sensors from triggering false alerts from fixed objects such as spare tyres, tow bars, pedals, and licence plate holders that sit within the sensor detection zone.
Does the MPRSWB-D work with metal bumpers?
The MPRSWB-D is designed for installation in plastic bumpers as standard. For metal bumpers, the optional Mongoose SRS-01 or SRS-02 rubber sleeve rings are required and must be purchased separately. For trucks or vehicles requiring an undermount installation, the optional SBT-01 sensor and ECU bracket is also available separately. Contact us to add these accessories to your order.
Is the MPRSWB-D compatible with 24V commercial vehicles?
Yes. The MPRSWB-D operates on a wide voltage range of 10-30V DC, making it fully compatible with both 12V passenger vehicles and 24V commercial vehicles, trucks, and heavy equipment without any voltage conversion required.
Can I use the MPRSWB-D together with the Mongoose MPFSWB-D front sensor kit?
Yes. The Mongoose MPRSWB-D rear kit and MPFSWB-D front kit can be used together to provide complete front and rear parking sensor coverage for your vehicle. Each kit operates independently with its own wireless ECU and display, giving you full 360 degree proximity awareness when parking.
