Description
Transform your Toyota Corolla Sedan with a massive 10-inch display and wireless smartphone integration.
Product Overview

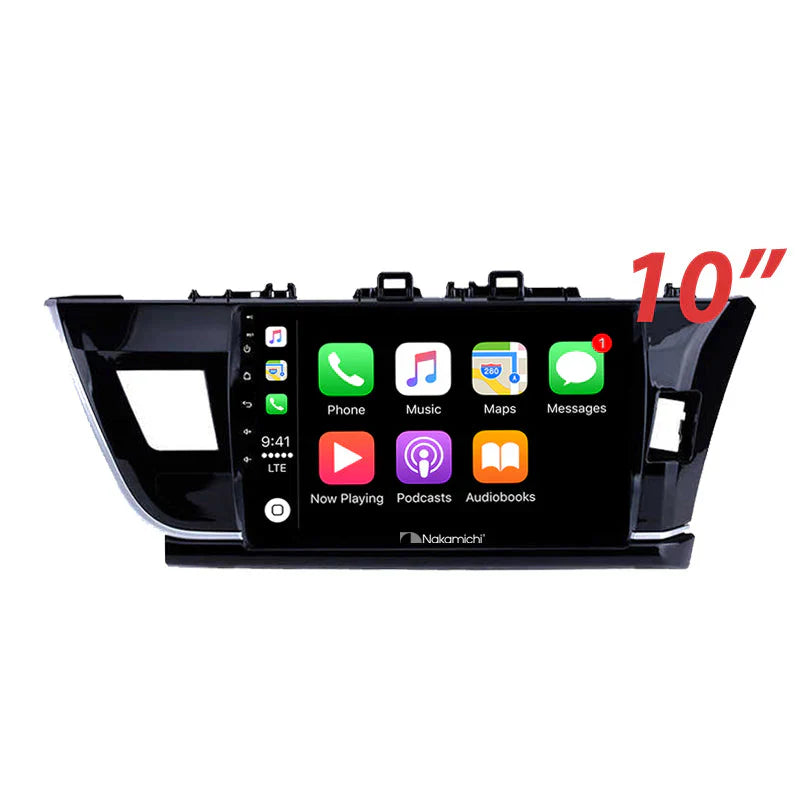

The Nakamichi NAXTOYOTACOROLLA20132016SEDAN transforms your Toyota Corolla Sedan's factory infotainment into a comprehensive Android 13 multimedia system with wireless Apple CarPlay and Android Auto integration. This vehicle-specific 10-inch IPS touchscreen head unit is engineered exclusively for eleventh-generation Toyota Corolla Sedan models from 2013-2016, replacing the factory display with a plug-and-play solution that includes the matching fascia panel for seamless dashboard integration. The expansive 10-inch screen delivers 25% more display area than standard 9-inch units, transforming your Corolla's cabin with tablet-sized visuals for navigation, media, and smartphone interfaces. The system works directly with your factory Corolla reversing camera, eliminating the need for additional adapters or complex wiring modifications. Running Android 13 (NK 13.0) with 4GB RAM and 64GB internal storage, the system handles navigation, media playback, and app multitasking smoothly while providing ample space for offline maps, music libraries, and Android apps from the Google Play Store. Beyond smartphone mirroring, the system includes built-in GPS with preloaded navigation data, WiFi connectivity, comprehensive AM/FM radio with RDS supporting 18 FM and 12 AM presets, and Bluetooth 5.0 for hands-free calling and wireless audio streaming. The 4×50W amplifier drives factory Corolla speakers or upgraded components, while 4V pre-outputs provide clean signal to external amplifiers. Factory steering wheel controls are retained via CAN bus integration, maintaining the convenient control experience Corolla owners expect during daily commuting and family transport.
Key Specifications
- 10-inch IPS touchscreen display with 1280×720 resolution and 500nit brightness
- Android 13 operating system (NK 13.0)
- 4GB RAM with 64GB internal storage
- Wireless Apple CarPlay and Android Auto (wired for some Android devices)
- Built-in GPS with preloaded navigation data, updateable via Google Play Store
- WiFi connectivity for internet access and app functionality
- Bluetooth 5.0+EDR (2.4GHz, 5m range)
- AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz with 18 FM/12 AM presets
- 4×50W maximum amplifier output to 4-8Ω speakers
- 4V/10kΩ pre-outputs with ≤600Ω impedance for external amplifiers
- Factory reversing camera compatibility (plug-and-play)
- Front camera/auxiliary video input
- Dual USB interfaces: 4-pin for PhoneLink, 6-pin for media playback
- Factory steering wheel control compatibility via CAN bus integration
- External microphone included for enhanced hands-free clarity
- Video format support: H264, MP4, AVI, MKV, FLV
- Audio format support: MP3, APE, AAC, FLAC
- 10.5-16V operating voltage range (14.4V nominal)
- Includes Corolla Sedan-specific fascia panel for 2013-2016 models
- Compatible exclusively with Toyota Corolla 2013-2016 Sedan (eleventh-generation)
Features & Benefits

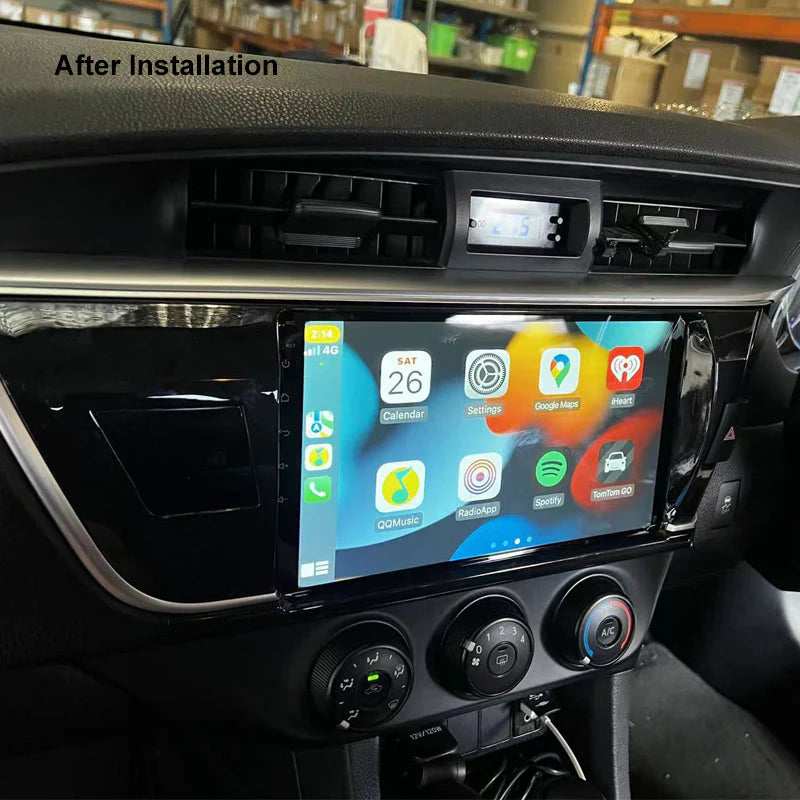

Corolla Sedan-Specific Engineering – Designed exclusively for eleventh-generation Toyota Corolla Sedan models from 2013-2016 with included fascia panel that matches your factory dash perfectly. Plug-and-play harnesses connect to existing wiring without cutting or splicing, maintaining the reliability Toyota engineered into Australia's best-selling passenger car platform.
Expansive 10-Inch Display – The larger screen provides 25% more viewing area than standard 9-inch units, transforming your Corolla's cabin with tablet-like real estate for navigation maps, media controls, and smartphone interfaces. Text remains readable from greater distances, crucial for keeping eyes on the road during urban commuting and highway driving.

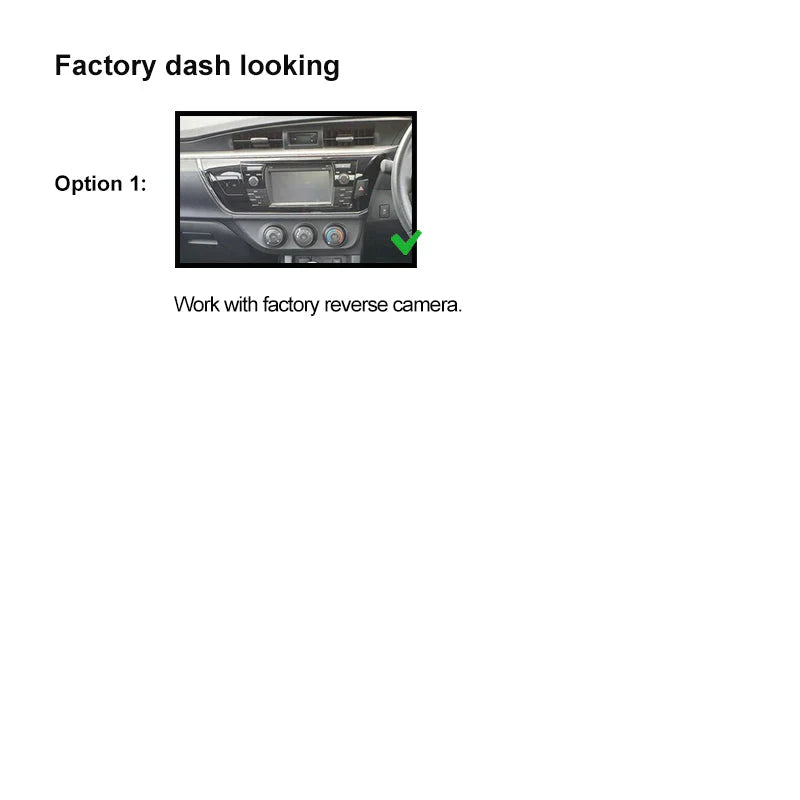

Factory Camera Integration – Works directly with your Toyota Corolla Sedan factory reversing camera without requiring additional adapters or complex hardwiring. The system switches automatically to rear view when you select reverse gear, maintaining the safety feature Toyota designed for parallel parking and tight parking spaces.
Wireless CarPlay Freedom – Connect your iPhone wirelessly and access Apple Maps, Spotify, Messages, and Siri through the expansive 10-inch display without cable clutter. The system remembers your device and connects automatically when you start your Corolla, keeping your charging port available for other devices during daily commutes or family outings.
Android Auto Convenience – Pair compatible Android phones wirelessly (some models require wired connection) to mirror Google Maps, YouTube Music, WhatsApp, and Google Assistant on the large touchscreen. Voice commands handle navigation and messaging while your hands remain on the wheel navigating traffic and commuting routes.
Latest Android 13 System – The upgraded NK 13.0 operating system provides enhanced security protocols, improved app compatibility, and refined performance over previous Android versions. Access Google Play Store to download navigation apps, streaming services, and entertainment options while the system manages updates automatically over WiFi.
Expanded 64GB Storage – Double the internal storage of earlier models accommodates extensive offline map data for commuting routes and family trips, large music libraries with lossless audio files, multiple navigation apps for redundancy, and various Android applications for daily use where Corolla sedans operate.
Built-In GPS Navigation – Preloaded GPS data provides offline navigation capability when mobile coverage drops on regional routes or areas with limited cellular reception. Download alternative navigation apps from Google Play Store, update maps over WiFi, or run multiple navigation solutions for comprehensive coverage.
High-Brightness IPS Display – The 1280×720 resolution IPS panel with 500nit brightness maintains excellent visibility in direct Australian sunlight, essential for Corolla owners navigating sunny conditions during daily commutes and weekend travel. Wide viewing angles ensure passengers can see navigation details, and the capacitive touchscreen responds intuitively.
Enhanced Pre-Output Signal – The 4V pre-output voltage delivers twice the signal strength of standard 2V units, reducing noise interference when driving external amplifiers. This clean signal improves sound quality in upgraded audio systems, ideal for Corolla owners building premium audio configurations for daily driving enjoyment.
Complete Installation Package – Includes Corolla Sedan-specific fascia panel, main wiring harness, RCA cables, camera cable, speaker cables, external microphone, GPS antenna, USB cables, and user manual. Everything required for installation is provided, though professional fitting is recommended for optimal integration with factory systems.
Technical Specs
- Display: 10" IPS touchscreen, 1280×720 resolution, 500nit brightness
- System: Android 13 (NK 13.0)
- Memory: 4GB RAM, 64GB internal storage
- Smartphone Integration: Wireless Apple CarPlay, Android Auto (wireless/wired depending on device)
- GPS: Built-in with preloaded data, updateable via Google Play Store
- Connectivity: WiFi
- Bluetooth: Version 5.0+EDR, 2.4GHz frequency, 5m range
- Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz, RDS support, 18 FM/12 AM presets
- Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
- Pre-Outputs: 4V/10kΩ, ≤600Ω impedance (front left/right, rear left/right, subwoofer)
- Video Inputs: Factory reversing camera (compatible), front camera/auxiliary
- USB Interfaces: 4-pin (PhoneLink), 6-pin (media playback)
- USB Charging: 5V±0.25V/1A
- Video Formats: H264, MP4, AVI, MKV, FLV
- Audio Formats: MP3, APE, AAC, FLAC
- Power: 14.4V nominal (10.5-16V operating range)
- CAN Bus: Factory steering wheel control integration
- Microphone: External microphone included
- Antenna: GPS antenna included
- Fascia: Toyota Corolla 2013-2016 Sedan specific panel included
Compatible Vehicle:
- Toyota Corolla Sedan: 2013-2016 (eleventh-generation, sedan body style only)
- IMPORTANT: NOT compatible with hatchback models
Package Includes:
- 1× Nakamichi head unit with Corolla Sedan-specific fascia panel
- 1× Main wiring harness
- 1× RCA cable
- 1× Camera cable
- 1× Rear left/right speaker cable
- 1× External microphone
- 1× GPS antenna
- 1× User manual
- 2× USB cables
Frequently Asked Questions
Is this only for Corolla Sedan models?
Yes, this unit is specifically designed for Toyota Corolla SEDAN models from 2013-2016 (eleventh-generation). It is NOT compatible with Corolla hatchback variants from the same years. The fascia panel and dash configuration differ between sedan and hatchback body styles. Verify your Corolla is a sedan before purchase.
Will my factory reversing camera work with this unit?
Yes, the system is designed to work directly with Toyota Corolla Sedan 2013-2016 factory reversing cameras without requiring additional adapters or complex wiring. The camera cable connects to your existing camera wiring, and the display switches automatically to rear view when you select reverse gear.
What's the advantage of the 10-inch screen over 9-inch models?
The 10-inch display provides approximately 25% more viewing area than 9-inch units, making navigation maps significantly more readable during commuting, improving visibility of media controls, and displaying more information simultaneously. The larger screen modernizes your Corolla's cabin with a more premium, contemporary appearance.
Is CarPlay and Android Auto wireless or wired?
Apple CarPlay is wireless for all iPhones. Android Auto is wireless for most modern Android devices, but some specific phone brands may require wired USB connection via the included 4-pin PhoneLink cable. Both connection methods are fully supported through the dual USB interface.
Will my steering wheel controls continue to work?
Yes, CAN bus integration maintains factory Toyota Corolla steering wheel control functionality. The system communicates directly with your vehicle's control protocols, allowing continued use of volume, track skip, and call management buttons without requiring additional adapters.
Compatible With / Goes Well With
- Toyota Corolla Sedan 2013-2016 factory reversing cameras (plug-and-play)
- Factory Corolla steering wheel control systems
- External amplifiers via 4V RCA pre-outputs
- Component speakers and coaxial speakers (4Ω to 8Ω)
- Subwoofer systems via dedicated pre-output
- GPS antenna extension cables for optimal signal placement
- Front-facing dash cameras via auxiliary video input
- Android Auto-compatible apps from Google Play Store
- WiFi-enabled streaming services and navigation apps
- Professional installation services for passenger car integration
