Description
Upgrade your vehicle's entertainment with full-featured radio and multimedia in one complete package.
Product Overview

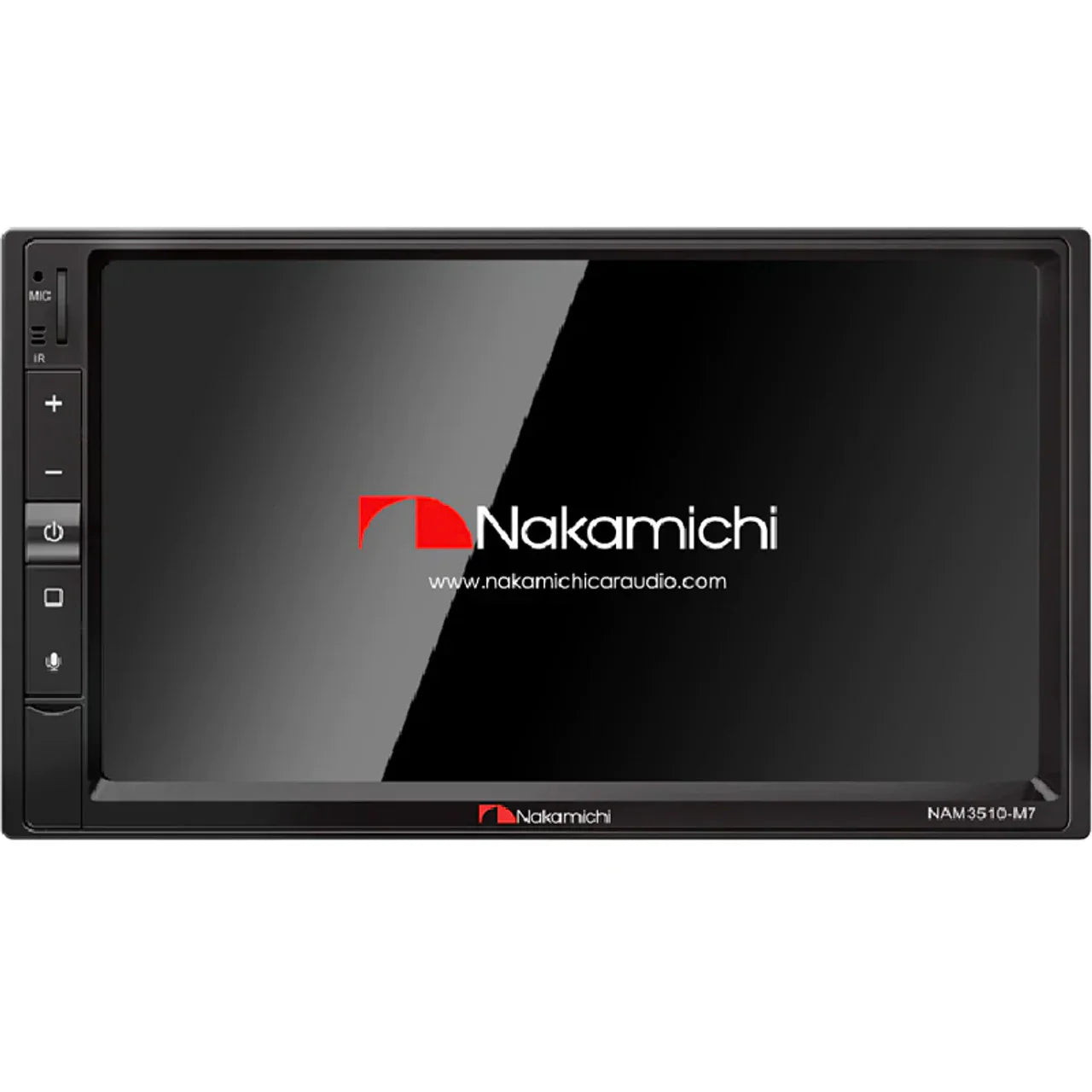

The Nakamichi NAM3510-M7 combines traditional AM/FM radio tuning with modern multimedia capabilities in a feature-rich double DIN receiver. This unit delivers everything you need for daily driving: a bright 7-inch touchscreen display, wireless Bluetooth connectivity, comprehensive radio coverage across FM (87.5-108.0MHz) and AM (522-1620kHz) bands, plus versatile USB media playback supporting multiple video and audio formats. Compatible with standard double DIN dash openings (180×100mm), the NAM3510-M7 outputs 4×50W to drive your speakers while the enhanced 500nit brightness display ensures clear visibility in harsh Australian sunlight. The 4V pre-output voltage provides stronger signal for external amplifiers compared to entry-level units, making this an ideal choice for upgrading factory systems or building a foundation for future audio expansion.
Key Specifications
- 7-inch TFT touchscreen display with 800×480 resolution and 500nit brightness
- AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz
- Bluetooth 4.0+EDR wireless connectivity with 5m range
- 4×50W maximum amplifier output to 4-8Ω speakers
- 4V/10kΩ pre-output for external amplifier connection
- USB interface with 5V/1A charging capability
- Double DIN installation: 178×100mm faceplate, 170×96mm chassis
- 10.5-16V operating voltage range (14.4V nominal)
- Robust 900g construction for secure mounting
Features & Benefits
Complete Radio Coverage – Access your favourite AM talk radio stations and FM music channels across the full Australian broadcast spectrum. Whether you're catching the cricket commentary on AM or your local FM station during the morning commute, the NAM3510-M7 delivers clear reception without needing your phone.
Enhanced Pre-Output Voltage – The 4V pre-output voltage provides twice the signal strength of basic 2V units, resulting in cleaner sound when driving external amplifiers. This higher voltage reduces noise interference and gives your amplifier a stronger, cleaner signal to work with.
Brighter Display for Outback Conditions – The 500nit brightness rating and 500:1 contrast ratio outperform budget units, maintaining excellent visibility when parked in direct sunlight or navigating dusty conditions where screen clarity matters most.
Universal Media Playback – Play your entire digital library through the front USB port. From compressed MP3s for podcasts to lossless FLAC files for music enthusiasts, the NAM3510-M7 handles H264, MP4, AVI, MKV, FLV video formats and MP3, APE, AAC, FLAC audio formats seamlessly.
Hands-Free Connectivity – Bluetooth 4.0 pairs quickly with your smartphone for wireless audio streaming and hands-free calling. Keep your attention on the road while managing calls and music through the responsive touchscreen interface.
Standard Double DIN Installation – Designed to fit the most common aftermarket opening size found in vehicles from the 2000s onwards. The 900g weight provides substantial build quality while remaining manageable for straightforward installation using factory brackets or universal mounting kits.
Technical Specs
- Display: 7" TFT LCD, 800×480 RGB resolution, 500:1 contrast, 500nit brightness
- Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz
- Bluetooth: Version 4.0+EDR, 2.4GHz frequency, 5m maximum range
- Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
- Pre-Output: 4V/10kΩ, ≤600Ω impedance
- Video Input: NTSC/PAL/SECAM, 1Vp-p/75Ω impedance
- Supported Video: H264, MP4, AVI, MKV, FLV
- Supported Audio: MP3, APE, AAC, FLAC
- USB: Readable/chargeable, 5V±0.25V/1A output
- Power: 14.4V nominal (10.5-16V operating range)
- Dimensions: 178×100×128mm (W×H×D)
- Panel Size: 178×100mm faceplate, 170×96mm chassis opening
- Weight: 900g
- Installation: Double DIN (standard 180×100mm opening)
Frequently Asked Questions
Does this include AM/FM radio reception?
Yes, the NAM3510-M7 includes a full AM/FM tuner covering FM 87.5-108.0MHz and AM 522-1620kHz, providing access to all Australian broadcast radio stations without requiring a smartphone connection.
Can I connect an external amplifier?
Yes, the unit provides 4V/10kΩ pre-outputs with impedance ≤600Ω. This higher voltage output (compared to standard 2V units) delivers cleaner signal to external amplifiers for improved sound quality in upgraded systems.
Will this fit my vehicle?
The NAM3510-M7 requires a standard double DIN opening (180×100mm). Most vehicles from 2000 onwards with factory double DIN head units are compatible, though vehicle-specific fascia kits and wiring harnesses are typically required for proper installation.
Does it support Apple CarPlay or Android Auto?
No, the NAM3510-M7 does not include integrated CarPlay or Android Auto functionality. It offers AM/FM radio, Bluetooth wireless connectivity, USB media playback, and external video input for reversing cameras.
What's the difference between this and the NAM1601?
The NAM3510-M7 adds a full AM/FM radio tuner, brighter 500nit display (versus 400nit), higher 4V pre-output voltage (versus standard pre-outs), and more substantial 900g construction compared to the 500g NAM1601.
Compatible With / Goes Well With
- Standard aftermarket double DIN fascia kits and installation harnesses
- ISO wiring harnesses with primary and secondary connectors
- Vehicle-specific antenna adaptors for factory AM/FM antenna connection
- Aftermarket reversing cameras with composite video output
- Steering wheel control retention interfaces (vehicle-specific)
- External 4-channel or monoblock amplifiers via RCA pre-outputs
- 4Ω to 8Ω aftermarket speakers and component systems
- Universal or vehicle-specific mounting brackets
Weight
0.9kg (unit only, excluding installation accessories)
