Description
Bring your 2005-2011 Suzuki Swift into the modern era with a premium 10-inch display, full Android capability, and wireless smartphone integration.
Product Overview

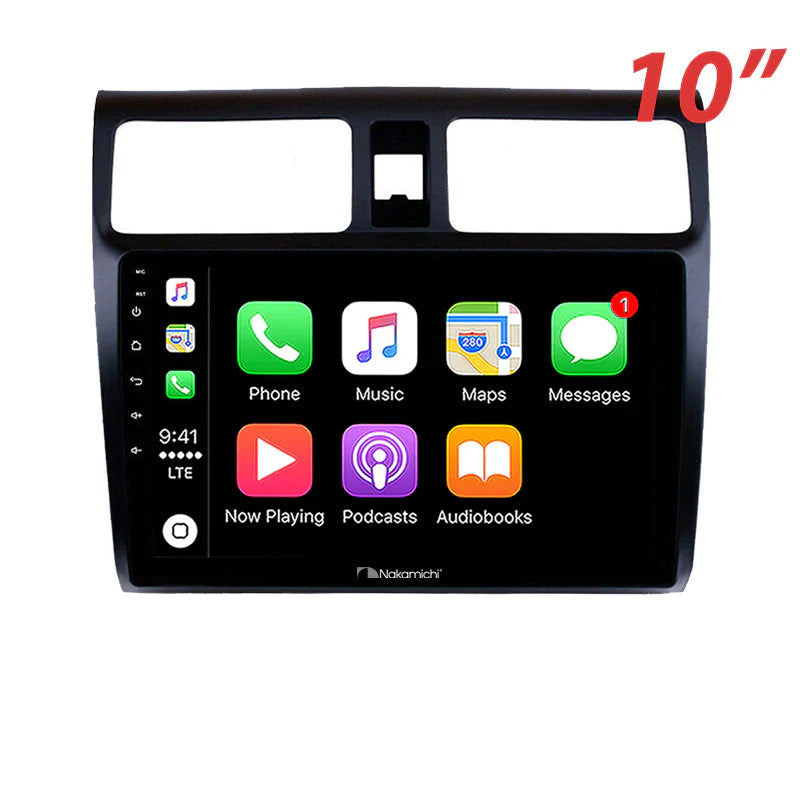

The Nakamichi NAXSUZUKISWIFT20052011 transforms your Suzuki Swift (2005-2011) with a commanding 10-inch multimedia system featuring full Android functionality, wireless CarPlay, Android Auto, and built-in GPS navigation. This vehicle-specific receiver runs a complete NK 13.0 Android system with 4GB RAM and 64GB storage, enabling direct app downloads from Google Play Store, multiple navigation platforms, and extensive customization that revolutionizes your Swift's original basic audio system.
The expansive 10-inch IPS display delivers 1280×720 resolution with 500-nit brightness for exceptional visibility in Australian conditions, representing a dramatic upgrade from the 2005-2011 Swift's modest factory head unit. The Swift-specific design includes colour-matched fascia and pre-configured wiring harness for seamless dashboard integration, while the larger screen size provides significantly improved map visibility and modern smartphone-like touch interface—particularly transformative for Swift owners accustomed to the original generation's basic technology.
Factory steering wheel controls integrate via CANBUS where equipped, maintaining safe operation while accessing volume and track controls. The built-in GPS module comes preloaded with navigation data, with flexibility to update or install alternative mapping apps through the Android platform—essential for breathing new life into older Swift models that predate built-in navigation. Audio capabilities include 4×50W amplification with dedicated subwoofer output and 4V pre-amp connections for external amplifiers, while dual video inputs support reverse cameras and auxiliary video sources. The system maintains full AM/FM radio with 30 station presets and includes GPS antenna, microphone, and all necessary cables.
Key Specifications
- Full Android system (NK 13.0) with 4GB RAM and 64GB internal storage
- Wireless Apple CarPlay and Android Auto (some Android devices require wired connection)
- Built-in GPS navigation with preloaded maps and Google Play Store access
- 10-inch IPS touchscreen with 1280×720 resolution and 500-nit brightness
- Vehicle-specific fit for Suzuki Swift 2005-2011 (RS series)
- Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
- Factory steering wheel control compatibility via CANBUS integration (where equipped)
- 4×50W maximum power output with 4V/10KΩ pre-amp outputs
- Dual USB interface: 4-pin for smartphone, 6-pin for media files
- FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
- Multiple video inputs: reverse camera and front auxiliary camera support
- Operating voltage range: 10.5-16V DC (14.4V nominal)
Features & Benefits
10-inch display transformation provides a dramatic upgrade from the 2005-2011 Swift's original compact head unit, making modern navigation maps readable at a glance, touch targets accurate and intuitive, and the entire interface feel contemporary rather than dated. For Swift owners keeping their reliable compact runabout, this represents the single most impactful modernization upgrade available.
Full Android operating system provides unrestricted access to Google Play Store for downloading Spotify, YouTube Music, Waze, Sygic, offline media players, and thousands of other apps. Unlike basic systems, you gain smartphone-level functionality in a vehicle that originally shipped with CD players and basic radio—perfect for Swift owners who want modern technology without replacing their reliable vehicle.
Built-in GPS with offline capability adds navigation functionality that simply didn't exist in base-model 2005-2011 Swifts. Preloaded maps work immediately, and you can download comprehensive offline navigation from Play Store—essential for urban commuters and weekend drivers who want modern convenience in their trusted compact car.
Wireless smartphone integration connects your iPhone or Android device without cables for instant access to navigation, hands-free calling, messaging, and streaming music through Apple CarPlay or Android Auto. The system brings 2025 smartphone technology to a 2005-2011 vehicle, eliminating the technology gap entirely.

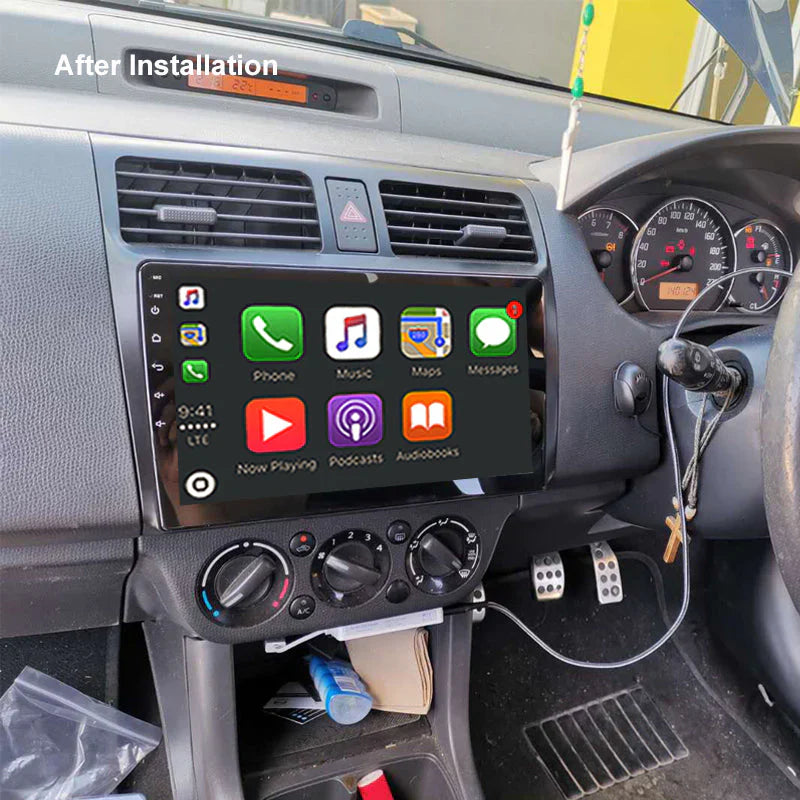

Vehicle-specific engineering ensures the 10-inch display integrates into your Swift's dashboard with included colour-matched fascia and factory-specification wiring harness. While the screen is substantially larger than the original head unit, the proportions are carefully designed to enhance rather than overwhelm the Swift's compact cabin aesthetics.
Premium IPS display technology delivers superior viewing angles and colour accuracy compared to standard TFT screens, with 500-nit brightness that remains clearly visible in direct Australian sunlight. The 1280×720 resolution provides crisp, modern graphics that would have been unimaginable in 2005-2011 Swift factory systems.
Expandable storage and performance with 4GB RAM and 64GB internal storage allows you to store extensive offline music libraries, download high-resolution maps for entire regions, and run multiple apps simultaneously without lag. This level of performance transforms how you interact with your Swift's entertainment system during daily commutes.
Comprehensive audio architecture provides 4×50W amplification for factory speakers plus dedicated subwoofer output and 4V pre-amp connections for adding external amplifiers. Whether maintaining original speakers or upgrading to modern aftermarket audio, the NAX accommodates complete sound system transformation.
Future-proof connectivity means your 2005-2011 Swift gains the same smartphone integration and app ecosystem as brand-new vehicles. As new apps and services launch, your Swift stays current through simple Play Store downloads—extending the practical lifespan of your reliable compact car.
Technical Specs
- Screen size: 10 inches diagonal
- Display type: IPS (In-Plane Switching) LCD
- Display resolution: 1280×720 pixels
- Brightness: 500 nit
- Operating system: NK 13.0 (Android-based)
- RAM: 4GB
- Internal storage: 64GB
- Operating voltage: 14.4V nominal (10.5-16V range)
- Maximum power output: 4×50W
- Pre-amp output voltage: 4V/10KΩ
- Pre-amp output impedance: ≤600Ω
- Speaker impedance compatibility: 4-8Ω
- Bluetooth version: 5.0 + EDR
- Bluetooth frequency: 2.4GHz
- Bluetooth range: up to 5m
- GPS: Built-in with external antenna (included)
- FM frequency range: 87.5-108.0MHz
- AM frequency range: 522-1620KHz
- FM presets: 18 stations
- AM presets: 12 stations
- USB charging output: 5V±0.25V/1A
- Video formats supported: H264, MP4, AVI, MKV, FLV
- Audio formats supported: MP3, APE, AAC, FLAC
- CANBUS integration: CAN RX/TX connector
- WiFi: Integrated (for app downloads and updates)
- Video inputs: Reverse camera + front auxiliary camera
Frequently Asked Questions
Will the 10-inch screen fit my older Swift?
Yes, the NAX is specifically engineered for 2005-2011 Swift dashboards with included vehicle-matched fascia. While significantly larger than your original head unit, the screen is proportioned to integrate cleanly without overwhelming the compact cabin. The dramatic size increase greatly improves usability for navigation and modern touch interfaces.
Will my steering wheel controls work?
If your Swift is equipped with factory steering wheel controls, the NAX maintains compatibility through CANBUS integration for volume and track functions. Many base-model 2005-2011 Swifts lack steering wheel controls—in these cases, all functions are accessed via the responsive 10-inch touchscreen interface.
Can I navigate without using my phone?
Absolutely. The built-in GPS with preloaded maps operates independently of your smartphone—adding navigation capability that most 2005-2011 Swifts never had from factory. Download additional offline apps like Sygic or HERE WeGo from Play Store for comprehensive phone-free navigation across Australia.
How much of an upgrade is this from my original system?
The transformation is substantial. Your Swift gains wireless smartphone integration, 10-inch touchscreen, built-in GPS, Google Play Store access, Bluetooth 5.0, and modern streaming capabilities—none of which existed in 2005-2011 factory systems. It's comparable to replacing a basic flip phone with a modern smartphone.
How much storage is available?
The system includes 64GB of internal storage for apps, offline maps, and media files. After system files, approximately 50-55GB remains available—sufficient for multiple offline map regions, extensive music libraries, podcast downloads, and numerous apps. Far more than you'll need for typical use.
Compatible With / Goes Well With
Confirmed vehicle compatibility:
- Suzuki Swift RS series (2005-2011 Australian market)
- Swift GL, GLX, S variants
- Swift Sport (RS416 chassis)
- Compatible with both manual and automatic transmission models
- Works with and without factory steering wheel controls
Installation accessories (vehicle-specific harness included):
- Compatible with Nakamichi/Aerpro/CAC Suzuki fascia kits
- Works with factory steering wheel control interfaces (where equipped)
- Compatible with factory speaker systems
- Reverse camera harness included for aftermarket camera installation
Recommended upgrades:
- Aftermarket reverse cameras with wide-angle lens and parking guidelines
- Component speakers (6.5" front) for improved audio quality
- Compact 4-channel amplifiers for enhanced sound
- GPS antenna extension cables for optimal satellite reception
- USB extension cables for centre console smartphone mounting
Software compatibility:
- Google Maps (via Android Auto or native Android)
- Waze (via Android Auto or native Android)
- Spotify, Apple Music, YouTube Music (via CarPlay or native apps)
- Sygic GPS Navigation (downloadable from Play Store)
- HERE WeGo offline maps (ideal for regional travel)
- Pocket Casts, TuneIn Radio (for podcasts and streaming)
Popular audio upgrades for 2005-2011 Swift:
- 6.5" coaxial or component speakers for front doors
- Compact under-seat powered subwoofers (8-inch)
- 4-channel amplifiers (45-60W RMS per channel)
- Sound deadening kits for door panels
- Speaker wire upgrades for improved signal quality
Swift Sport specific upgrades:
- Performance-tuned component speaker sets
- Higher-power amplifiers for spirited driving
- Subwoofer systems for enhanced low-frequency response
Note: Most 2005-2011 Swift models did not include factory reverse cameras. Aftermarket camera installation recommended for full functionality. Base models may lack steering wheel controls—all functions accessible via touchscreen. Send dashboard photos with year and trim level to ensure correct harness and fascia compatibility for your specific Swift configuration.
