Description
Power your entire audio system with one amplifier—5-channel design delivers 500W to subwoofer plus 90W to each of four speakers.
Product Overview

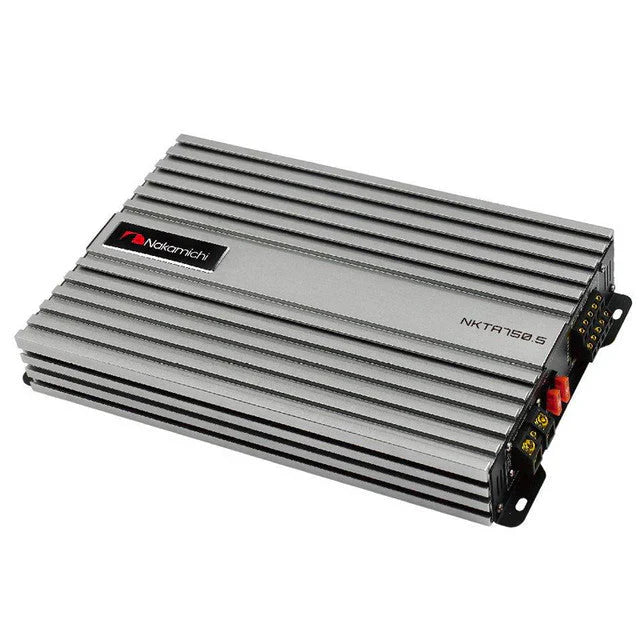

The Nakamichi NKTA750.5 is a professional 5-channel Class A/B amplifier engineered to power complete automotive audio systems from a single compact unit. Delivering 90W x 4 channels for front and rear speakers plus dedicated 500W subwoofer channel at 2-ohm loads, this versatile amplifier eliminates the need for separate speaker and subwoofer amplifiers—simplifying installation, reducing wiring complexity, and saving valuable mounting space. With 3600W maximum power output, adjustable sensitivity (0.15-8V), less than 0.1% THD distortion, and greater than 90dB signal-to-noise ratio, the NKTA750.5 delivers clean, powerful audio across the full 20Hz-20kHz frequency range. The 420 x 267 x 87mm footprint and 2.6kg weight allow installation under seats, in boots, or behind panels where separate amplifier setups won't fit. Featuring dual 40A fuse protection and efficient Class A/B topology balancing performance with thermal management, this comprehensive amplifier represents the ideal solution for Australian drivers seeking professional audio quality across utes, SUVs, sedans, and 4WDs without the complexity and space requirements of multi-amplifier systems.
Key Specifications
- Professional 5-channel Class A/B amplifier
- Channels 1-4: 90W x 4 RMS at 2Ω (65W x 4 at 4Ω)
- Channel 5 (subwoofer): 500W RMS at 2Ω (350W at 4Ω)
- 3600W maximum total power output
- Full-range frequency response: 20Hz - 20kHz
- Greater than 90dB signal-to-noise ratio
- Less than 0.1% total harmonic distortion
- Adjustable input sensitivity: 0.15V - 8V
- Dual 40A fuse protection
- Compact dimensions: 420 x 267 x 87mm
- Lightweight construction: 2.6kg
- Class A/B topology (efficiency + sound quality)
- Complete system amplification from single unit
Features & Benefits
Complete System Solution: Single amplifier powers entire audio system—four speaker channels for front and rear speakers plus dedicated high-power subwoofer channel—eliminates need for separate speaker and subwoofer amplifiers, simplifying installation, reducing wiring complexity, cutting costs, and saving mounting space in vehicles with limited installation areas.
Powerful Subwoofer Channel: Dedicated 500W RMS at 2Ω subwoofer channel delivers serious bass output for single or dual subwoofer configurations—provides enough power for 10-inch or 12-inch active subwoofers, bass packs, or passive subwoofer enclosures without requiring separate monoblock amplifier purchase, installation, and wiring runs.
Quality Speaker Amplification: Four channels delivering 90W RMS each at 2Ω provide ample power for component speakers, coaxial speakers, or full-range systems—significant upgrade from factory headunit power (typically 15-25W), ensuring speakers reach full dynamic potential with improved clarity, bass control, and maximum volume without distortion.
Adjustable Input Sensitivity: Wide 0.15-8V sensitivity range accommodates factory headunits with low voltage outputs and aftermarket headunits with high-voltage pre-outs—allows proper gain matching for balanced system performance preventing distortion from over-driving inputs or weak output from under-utilizing amplifier capability, ensuring optimal sound quality.
Low Distortion Performance: Less than 0.1% THD ensures clean, accurate amplification without audible distortion—maintains audio quality at all volume levels during extended listening sessions on long Australian highway drives, regional touring, or daily commuting without listening fatigue from harmonic artifacts common in cheaper amplifiers.
Excellent Signal-to-Noise Ratio: Greater than 90dB SNR provides quiet operation without background hiss or noise—ensures music, podcasts, audiobooks, and hands-free calls sound clear and professional even during quiet passages or low-volume listening, critical for quality audio systems where noise floor matters.
Space-Efficient Design: Compact 420 x 267 x 87mm footprint and 2.6kg weight allow installation under front seats, behind rear seats, in side panels, or boot corners—fits locations where separate amplifier setups requiring multiple units won't accommodate, preserving cargo space in utes and wagons for touring gear and equipment.
Class A/B Efficiency: Class A/B topology balances sound quality with thermal efficiency—delivers clean power without excessive heat generation common in pure Class A designs while maintaining superior audio performance compared to Class D switching amplifiers, ensuring reliable operation during extended use in Australian heat without thermal protection shutdowns.
Technical Specs
- Type: 5-channel automotive amplifier
- Amplifier Class: Class A/B (high-quality topology)
- Total Channels: 5 (4 full-range + 1 subwoofer)
- Channels 1-4 Power Output: 90W RMS x 4 at 2Ω / 65W RMS x 4 at 4Ω
- Channel 5 Power Output: 500W RMS at 2Ω / 350W RMS at 4Ω
- Maximum Power Output: 3600W peak
- Frequency Response: 20Hz - 20kHz (full audible range)
- Signal-to-Noise Ratio: Greater than 90dB
- Total Harmonic Distortion: Less than 0.1%
- Input Sensitivity: 0.15V - 8V (adjustable)
- Input Impedance: Not specified (verify from documentation)
- Channels 1-4 Load: 2-4Ω per channel
- Channel 5 Load: 2-4Ω (subwoofer)
- Crossover: Built-in (verify specifications)
- Bass Boost: Verify from product documentation
- Remote Level Control: Verify compatibility
- Fuse Rating: 40A x 2 (dual protection)
- Operating Voltage: 12V DC nominal (10.5-16V range typical)
- Dimensions (L x H x W): 420mm x 267mm x 87mm
- Net Weight: Approximately 2.6kg
- Cooling: Heatsink with convection (verify fan presence)
- Connections: RCA inputs (channels 1-5), speaker-level inputs (verify), high-level inputs (verify)
- Protection: Short circuit, thermal, DC offset (typical features)
Frequently Asked Questions
Can this amplifier power my entire car audio system from one unit?
Yes, that's exactly what 5-channel amplifiers do. Connect your front and rear speakers to channels 1-4 (90W each), connect your subwoofer to channel 5 (500W), and you've powered your complete system from a single amplifier. No separate amps needed—simplified wiring, reduced cost, less space required. Ideal for complete system upgrades.
What speaker and subwoofer combinations work best with this amplifier?
Ideal setup: Component or coaxial speakers rated 70-100W RMS on channels 1-4, and single 12-inch subwoofer (500W RMS 2Ω) or dual 10-inch subwoofers (250W each, wired for 2Ω total) on channel 5. Nakamichi NSE1658 6.5" speakers + NBX305A 12" active sub would be excellent pairing.
What power wiring do I need for this amplifier?
Dual 40A fuses mean approximate 80A total draw at maximum output. Use minimum 4-gauge power cable from battery with 80-100A fuse within 450mm of battery connection. Ensure quality ground connection (4-gauge to chassis metal). Verify your vehicle's alternator capacity (100A+ recommended) and battery condition before installation.
Does this amplifier include crossovers and bass boost?
Verify from product documentation. Most 5-channel amplifiers include low-pass crossover for subwoofer channel and high-pass for speaker channels, plus bass boost control. Check specifications for crossover frequencies (typically 50-200Hz adjustable), slopes, and bass boost range (0-12dB typical). External DSP provides more control if needed.
Will this amplifier fit under my front seats?
At 420 x 267 x 87mm (16.5" x 10.5" x 3.4"), it fits under many vehicle seats, but measure carefully. Check height clearance, seat rail positions, and allow airflow space for cooling. Alternative mounting: behind rear seats, side panels, or boot. Secure mounting essential—2.6kg amplifier requires proper brackets preventing movement during driving.
Compatible With / Goes Well With
Ideal Speaker Systems:
- Nakamichi NSE1658 6.5" 3-way coaxials (70W, channels 1-4)
- Nakamichi NSA-CS1721 6.5" components (70W, front channels)
- Nakamichi NSE1648 6.5" coaxials (40W, channels 1-4)
- Nakamichi NSE6958 6x9" speakers (75W, rear channels)
- Most aftermarket 6.5" or 6x9" speakers rated 60-100W RMS
Compatible Subwoofer Systems:
- Nakamichi NBX305A 12" active sub (channel 5: 350-500W)
- Nakamichi NBX251A 10" active sub (channel 5: 150-350W)
- Single 12" passive subwoofer (500W RMS 2Ω)
- Dual 10" passive subwoofers (250W each, wired 2Ω)
- Single 10" passive subwoofer (350W RMS 4Ω)
Essential Installation Accessories:
- 4-gauge amplifier wiring kit (power, ground, remote)
- 80-100A inline fuse holder (main power)
- RCA audio cables (5-channel: 10-16 feet)
- Speaker wire (14-16 gauge, adequate lengths)
- Distribution block (if multiple power consumers)
- Ground wire and ring terminals
- Wire management ties and loom
- Amplifier mounting brackets or board
System Enhancement Products:
- Digital sound processor (advanced tuning)
- Bass remote control (subwoofer level adjustment)
- Voltage meter (electrical system monitoring)
- Capacitor (optional electrical stabilization)
- Sound deadening (improved audio quality)
- Line output converter (if using factory headunit)
Recommended Headunits:
- Aftermarket headunits with 4V+ pre-out voltage
- Digital media receivers with subwoofer control
- Apple CarPlay/Android Auto headunits
- Headunits with time alignment and EQ
- 6-channel pre-out headunits (front, rear, sub)
Caution: Verify your vehicle's electrical system capacity. 5-channel amplifiers draw significant current at full output—ensure alternator rated 100A+, quality battery in good condition, and proper high-current wiring. Secure mounting essential for 2.6kg amplifier. Adequate ventilation required for Class A/B amplifier cooling. Professional installation strongly recommended for proper electrical system integration, gain adjustment, and system tuning.
