Description
Big Performance, Compact Size — Maximum Output For Minimal Space!

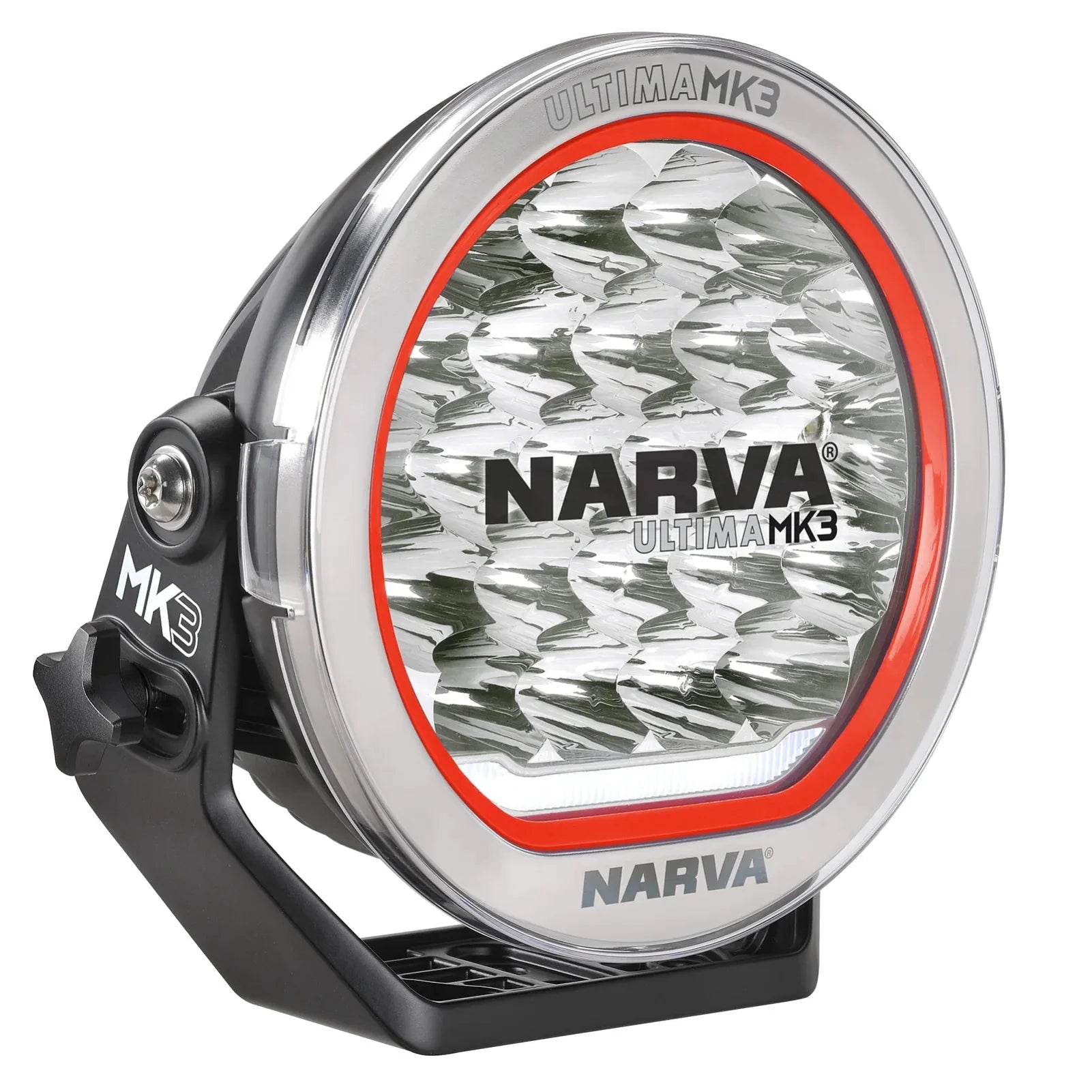

ULTIMA MK3 180 LED Driving Light - Hybrid Beam
Ideal for vehicles with limited bullbar space. Provides as much output as most 9" driving lights. Up to 20% more output than the MK2. Compatible with Ultima Connect+ Controller. 500mm Flying lead with pre-wired 6-pin Deutsch® connector. Redeem the black bezel if required.
The Future of Vision
Up to 20% brighter with 100% more control, the NEW 180 Spot Beam offers increased distance, while the upgraded Hybrid Beam pattern delivers enhanced width.
Engineered For Durability
The pressure die-cast housing is engineered to last no matter the conditions. It is fully sealed with an IP68 + IP69K rating and features an overmolded Deutsch® connector on a flying lead. The UV-resistant hard-coating and virtually unbreakable polycarbonate lenses and lens protectors ensure that the lights maintain their appearance over time, preventing yellowing and resisting damage from stones and other debris.
Engineered For Control
The use of the Ultima Connect+ Controller allows total control over beam shape. Users can select between a greater distance, more spread, or both, depending on their driving conditions. It also enables independent control of the Hybrid and Spot beams, as well as Ultima Light bars, to avoid road sign flare.
Engineered For You
Customize the lamps to suit any vehicle by choosing from Satin or Black bezels and any one of seven color trims—Narva Blue, Yellow, Red, Black, Electric Blue, Hyper Green, and Slate Grey—all at no extra charge via redemption. Additionally, select either the Stealth or the Selective Yellow lens covers.
Features:
- 11,261 Effective Lumens Per Lamp (20% More Than MK2)
- See More Hazards
- 901M Beam With 57M Width (Pair)
- Fully sealed (IP68/IP69K)
- 50cm Flying Lead With 6-Pin DT
- Compatible With Connect+ Controller For ULTIMATE Control
- ADR Position Lights
Specifications:
- Input Voltage Range: 9 - 33V
- Current Draw: 9.45A @ 13.5V
- LED's: 5W OSRAM
- Lumens: 11,261LM / 12,463LM (Boost)
- IP Rating: IP68 + IP69K
- Operating Temperature: -40°C ~ +65°C
- Colour Temperature: 5700°K
- Dimensions: 103mm (D) x 180mm (W) x 199mm (H)
- Weight: 1.00kg
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer Support
If you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment
Buying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
