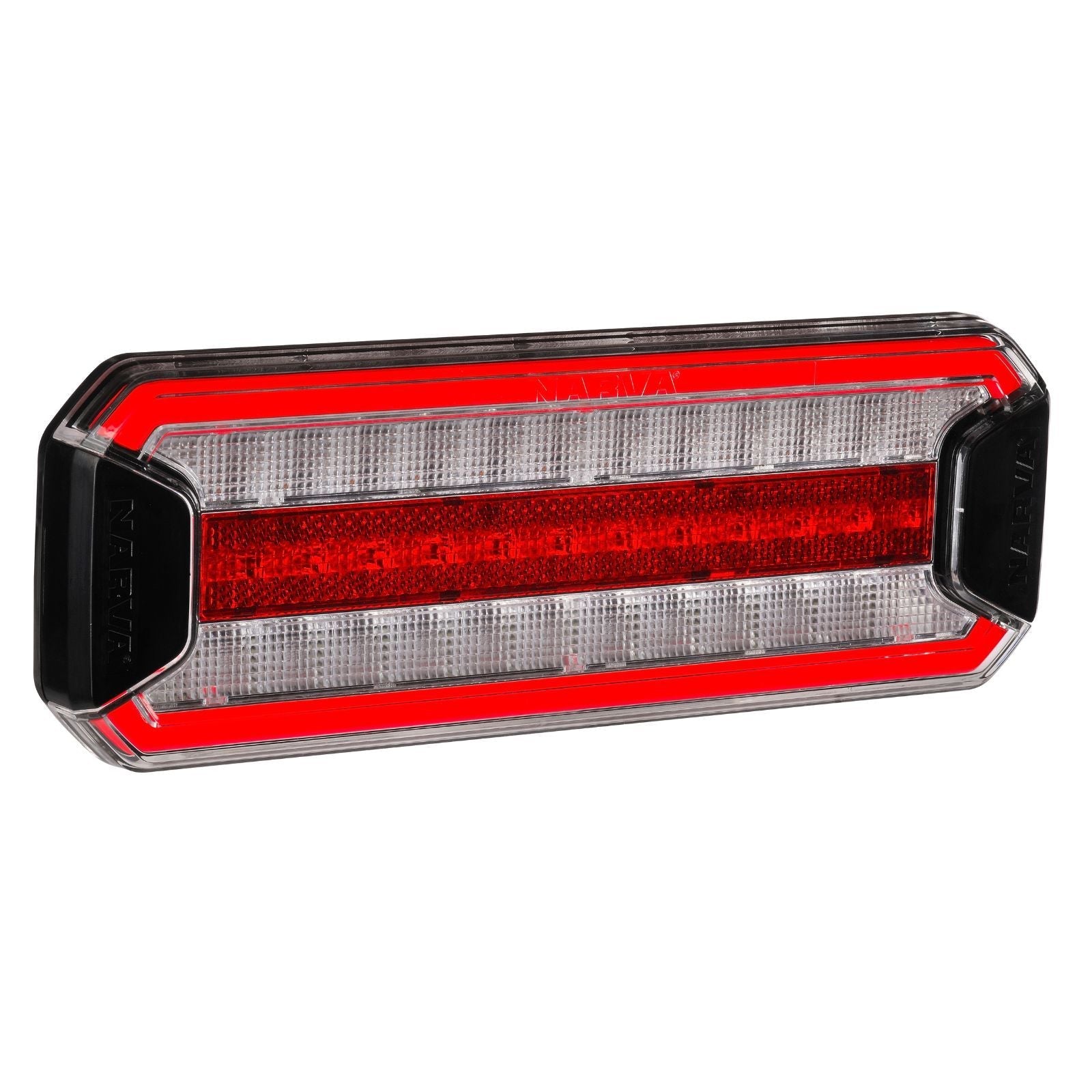

Narva 97210 Model 72 Rear Stop/Tail/Indicator/Reverse Lamp With In-Built Retro Reflector, With 0.5M Of Cable
Upgrade your truck, trailer, or ute tray rear lighting with the Narva 97210 Model 72, a fully sealed four-function combination lamp featuring an in-built retro reflector, hardened acrylic lens, and a versatile dual bolt pattern footprint backed by Narva's industry-leading 7-year warranty.
Product Overview
The Narva 97210 is a Model 72 rear combination lamp designed for truck, trailer, and commercial vehicle applications. Integrating stop, tail, indicator, and reverse lamp functions into a single compact unit with an in-built retro reflector, the 97210 simplifies rear lighting installations while meeting ADR compliance requirements for Australian road use.
The primary mounting footprint of 284 x 100mm suits the common industry standard for truck and trailer lighting locations. Adjustable bolt holes also accommodate the smaller 222 x 96mm footprint for increased installation versatility across a broader range of vehicle and trailer body configurations.
Constructed with a hardened acrylic lens for superior UV and chemical resistance, the Model 72 delivers Narva's signature rear tail light appearance at night with a stylish light pipe design. Full IP68 and IP69K waterproof sealing ensures reliable operation in harsh conditions including pressure washing, submersion, and extreme weather exposure. The 9-33V operating range covers both 12V and 24V vehicle platforms, and the 0.5m cable provides sufficient length for standard installation without extension cables.
Backed by a 7-year warranty, the Narva 97210 is built for the long-term demands of commercial transport, agricultural, and construction fleet applications.
Features & Benefits
-

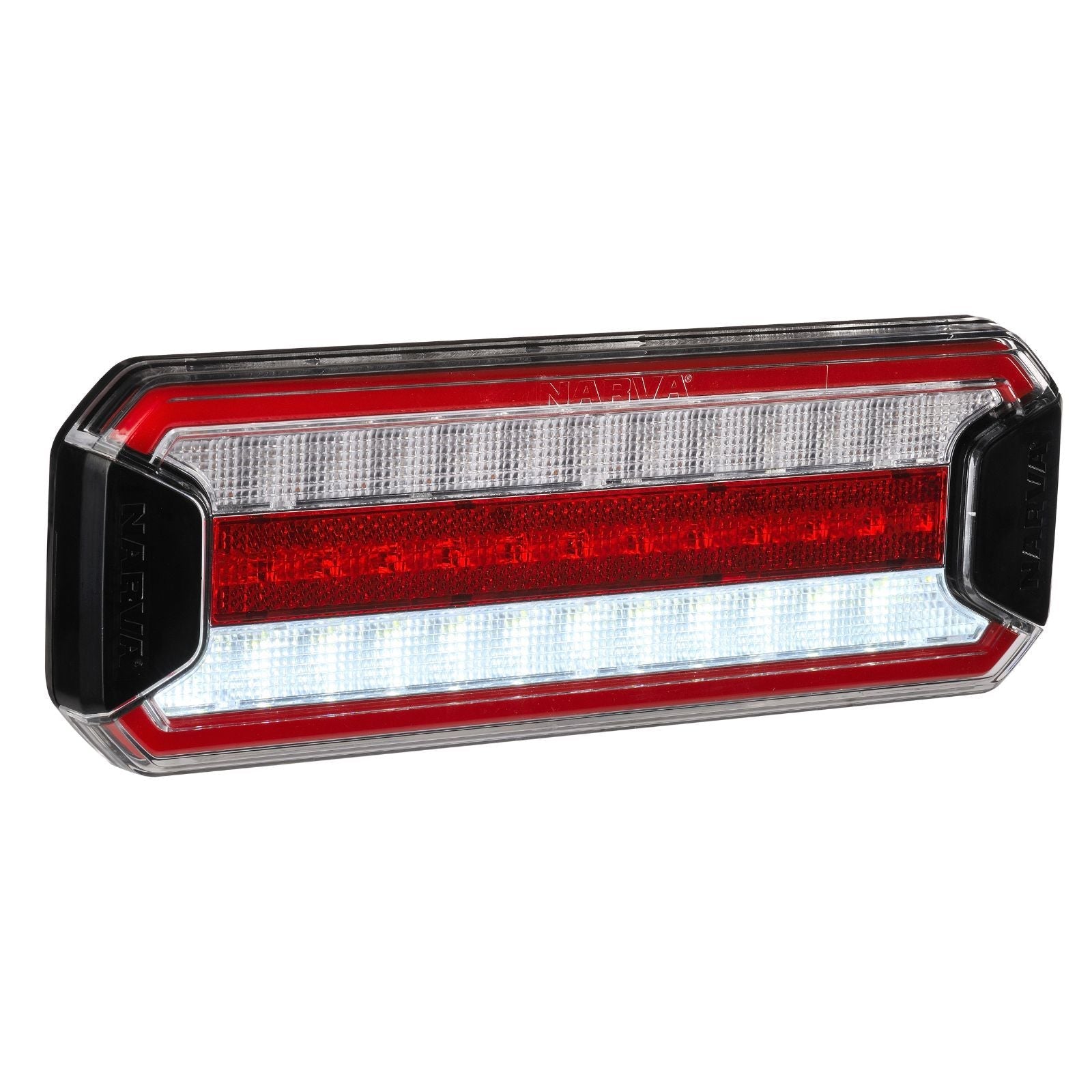

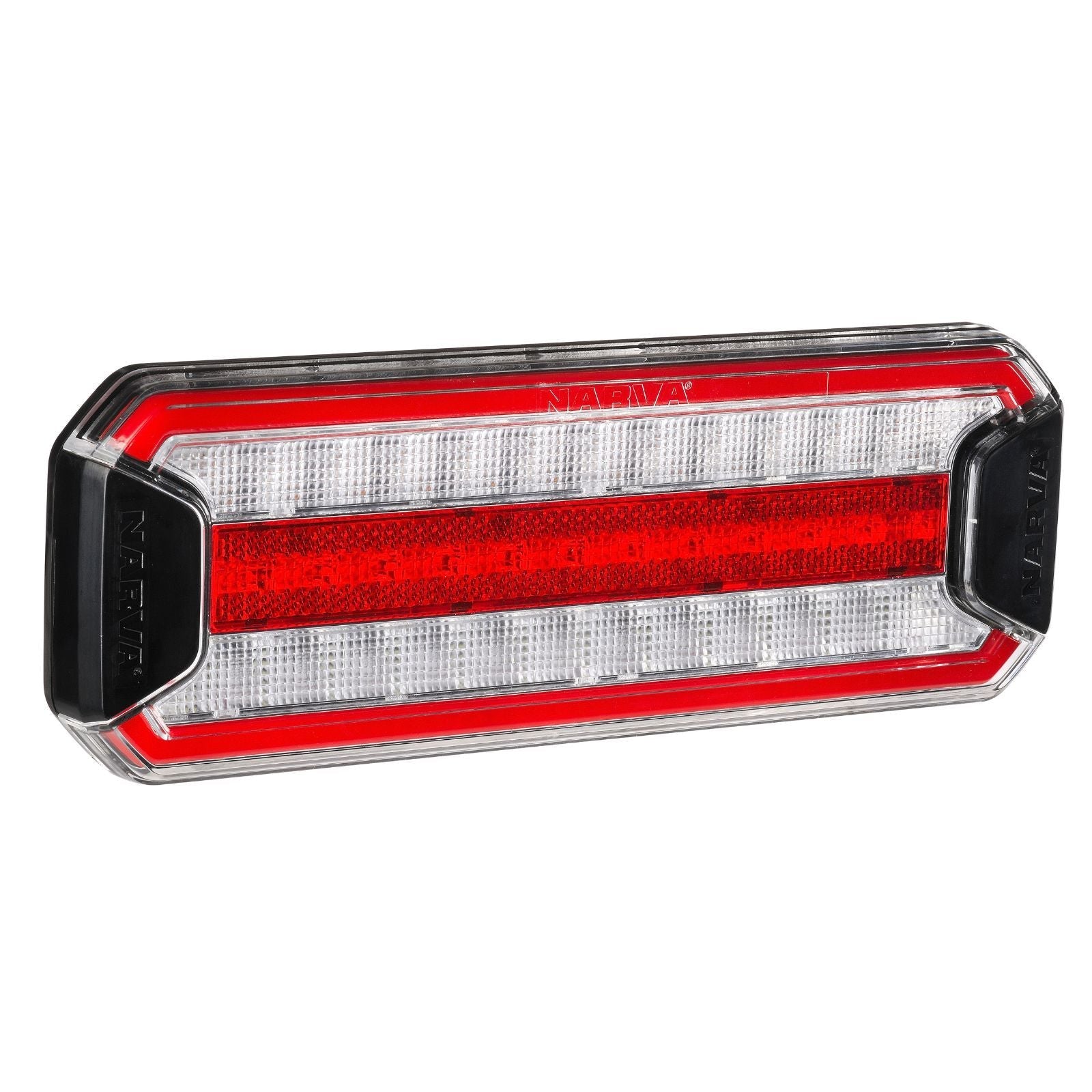

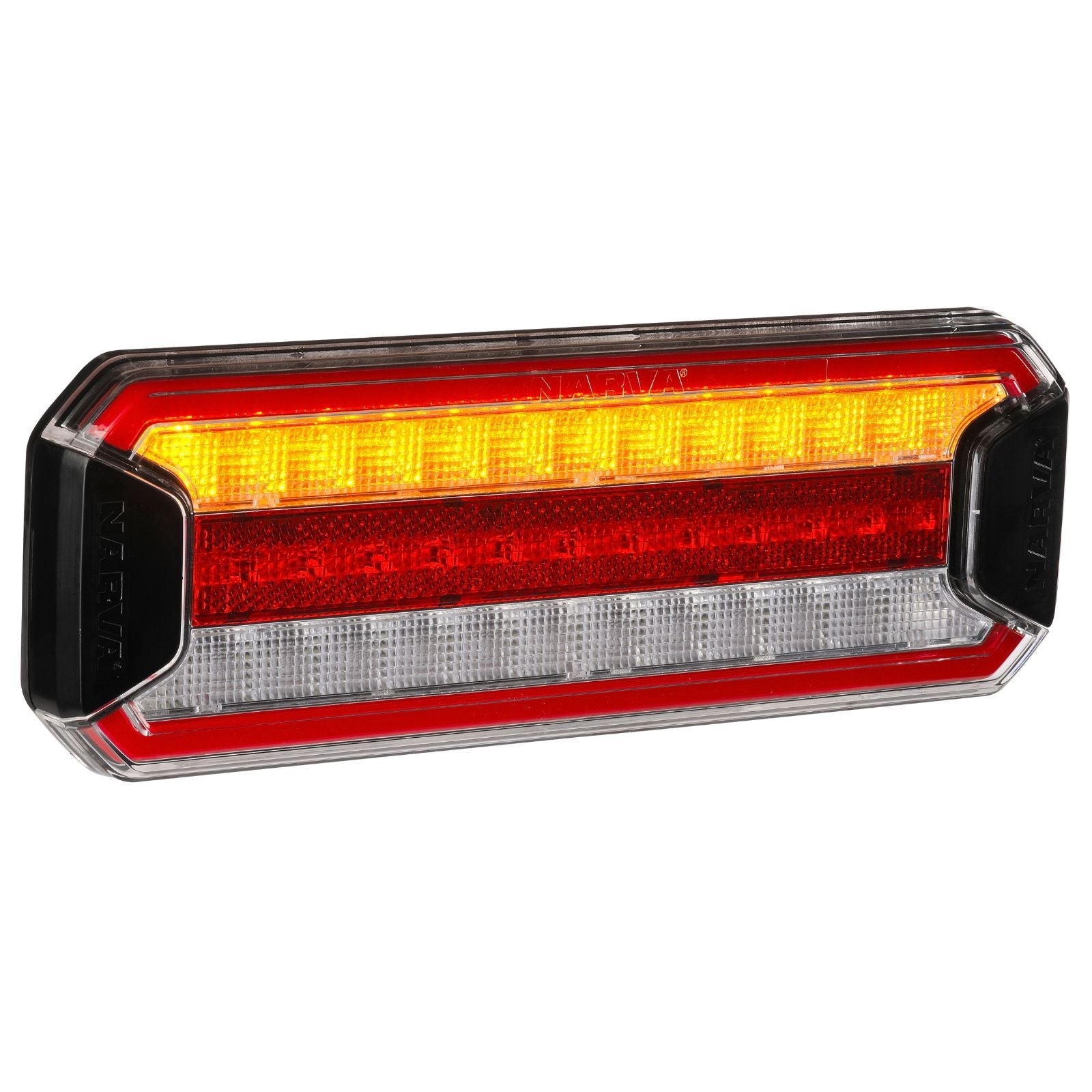

Four-function combination lamp integrating stop, tail, indicator, and reverse functions in a single unit to simplify wiring and reduce mounting locations required
-
In-built retro reflector providing passive rear visibility without requiring a separate reflector installation
-
Hardened acrylic lens with superior UV and chemical resistance preventing yellowing, hazing, and degradation from prolonged exposure
-

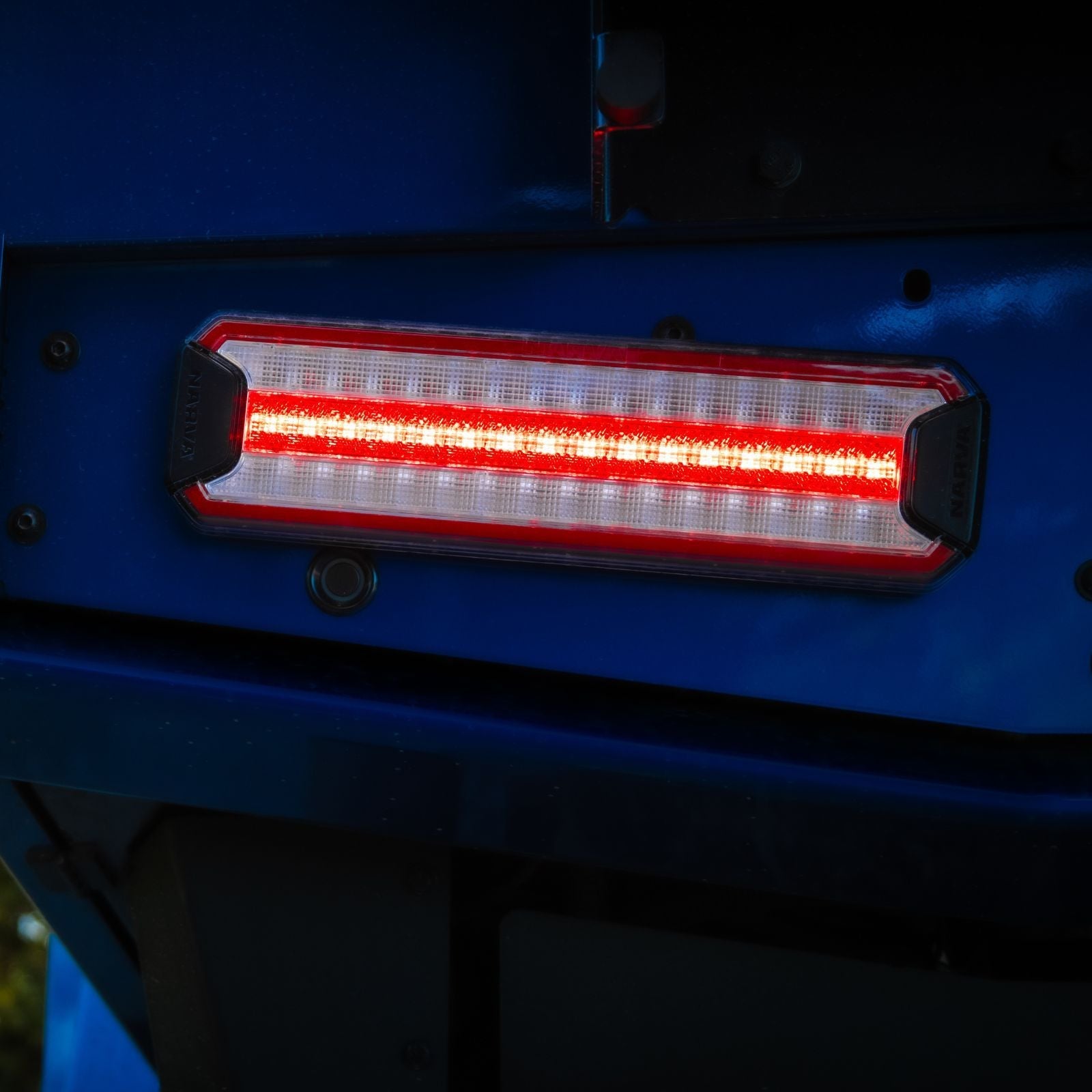

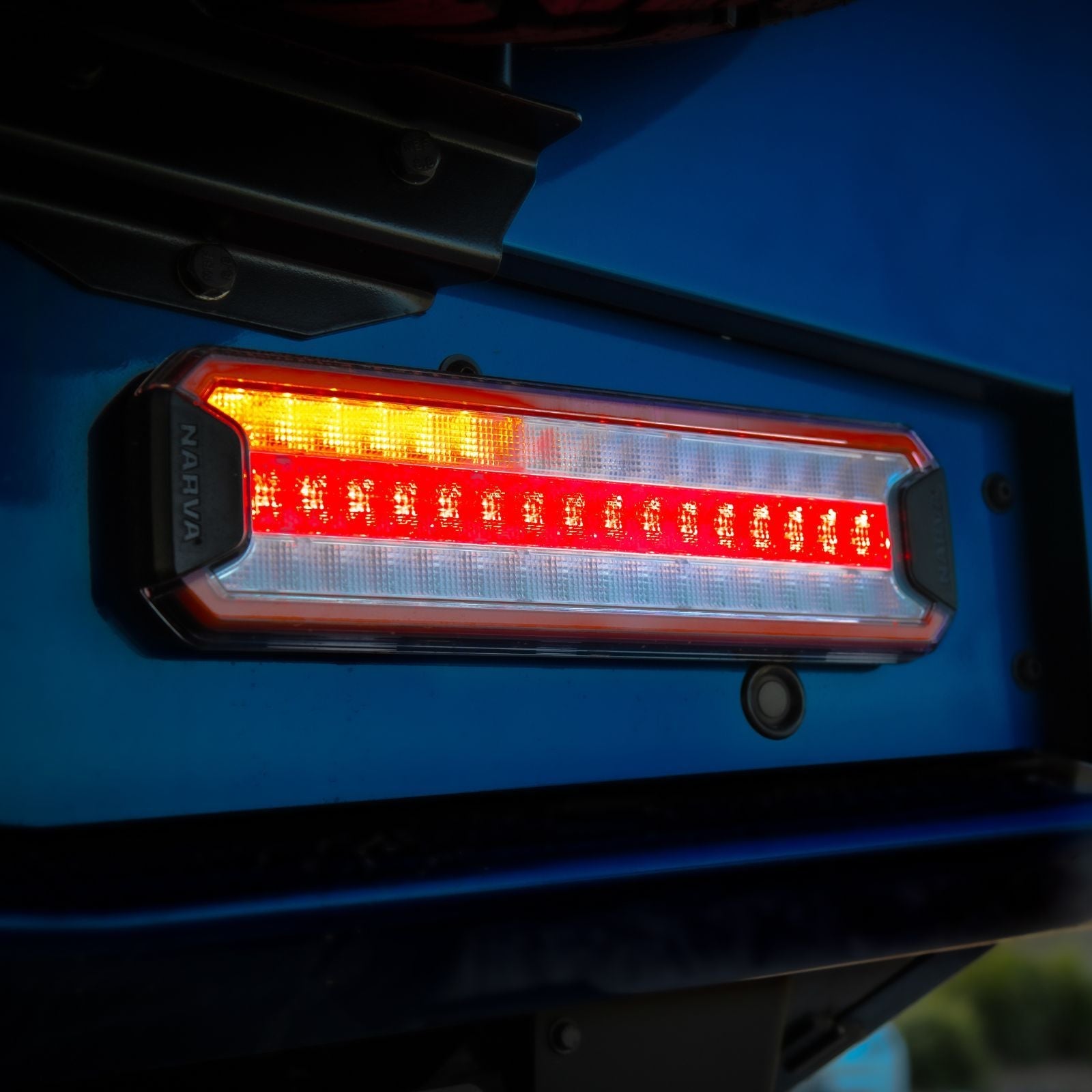

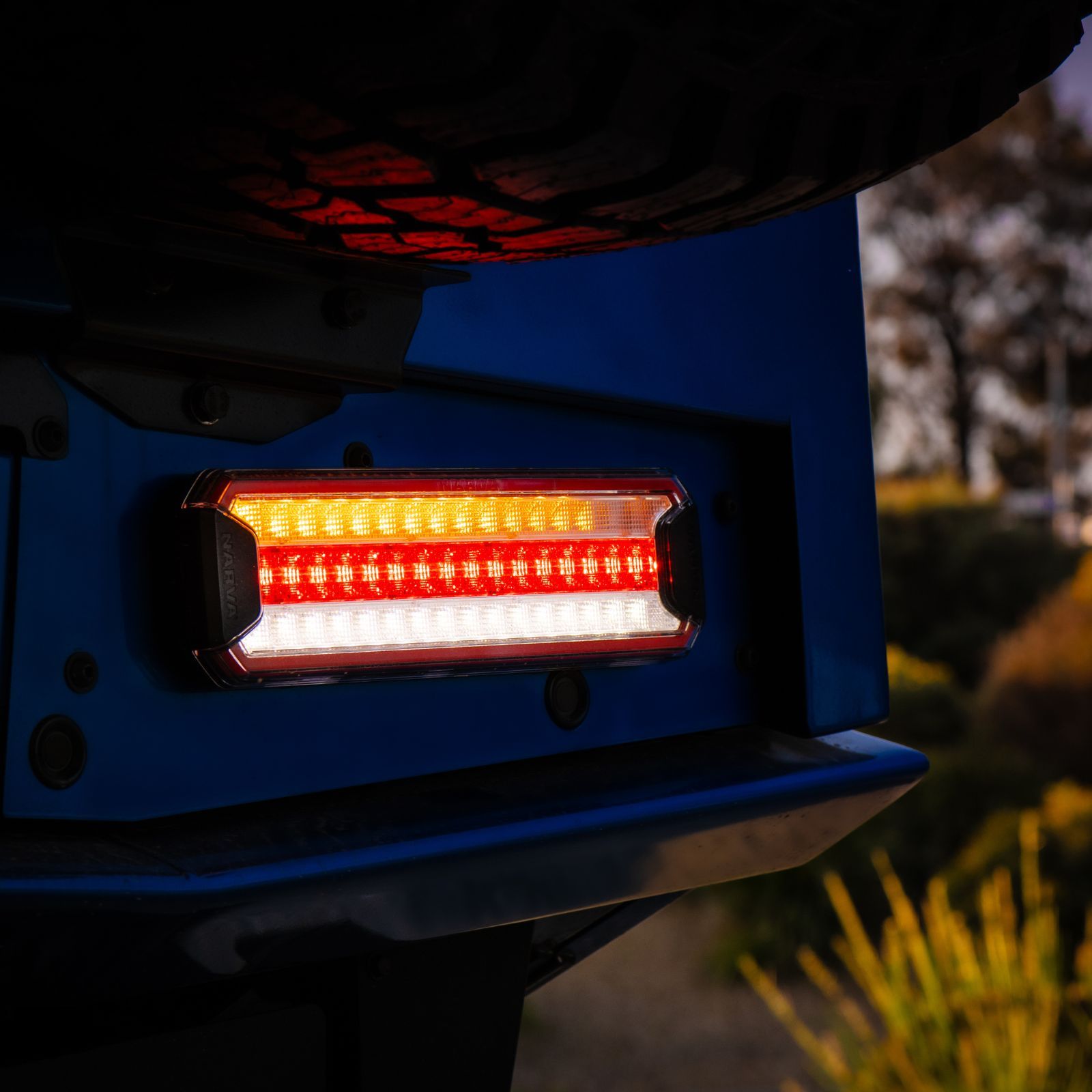

Signature Narva tail light appearance delivering stylish light pipe illumination at night for a professional, modern finish
-
284 x 100mm primary footprint matching the common industry standard for truck and trailer rear light locations
-
Adjustable bolt pattern also suits 222 x 96mm footprint for increased versatility across a wider range of vehicle and trailer body types
-
Surface mount from the front with adjustable bolt holes for straightforward installation and slight alignment flexibility
-
IP68 and IP69K fully sealed and waterproof protecting against complete submersion and high-pressure water jets
-
9-33V operation compatible with both 12V passenger and light commercial vehicles and 24V trucks and heavy vehicles
-
ADR approved for legal road use compliance on Australian road-registered vehicles
-
0.5m cable included for standard installation routing
-
7-year warranty backed by Narva for long-term commercial confidence
Technical Specs
| Specification |
Details |
| Part Number |
97210 |
| Brand |
Narva |
| Model |
Model 72 |
| Product Type |
Rear Combination Lamp |
| Functions |
Stop, Tail, Indicator, Reverse |
| Retro Reflector |
In-Built |
| Voltage Range |
9-33V |
| IP Rating |
IP68 and IP69K |
| Primary Footprint |
284mm x 100mm |
| Secondary Footprint |
222mm x 96mm (Adjustable Bolt Pattern) |
| Mounting Type |
Surface Mount (Front) |
| Bolt Holes |
Adjustable |
| Lens Material |
Hardened Acrylic |
| Cable Length |
0.5 Metres |
| ADR Approved |
Yes |
| Warranty |
7 Years |
| Unit of Measure |
Each |
| Product Group |
Lighting / Truck and Trailer Lighting |
Compatible With / Goes Well With
The Narva 97210 Model 72 is suited for a wide range of truck, trailer, and commercial vehicle applications including:
-
Trucks and semi-trailers requiring ADR-compliant rear combination lamps at the standard 284 x 100mm industry footprint
-
Box trailers and enclosed trailers requiring a compact four-function rear lamp with integrated reflector
-
Ute trays and flat deck trailers where the adjustable bolt pattern provides fitment flexibility across different body configurations
-
Agricultural machinery and farm trailers requiring durable, waterproof rear lighting rated for harsh field conditions
-
Construction and civil equipment including tippers, site trailers, and plant machinery requiring compliant rear lighting
-
Caravans and camper trailers requiring a reliable, long-warranty rear combination lamp for extended touring use
Goes well with:
- Narva Model 72 front and side marker lamps (for a complete matched Narva lighting setup)
- Narva trailer wiring harnesses and connectors (for clean, ADR-compliant installations)
- Narva 97212 LED Tail Light Pair (for ute tray applications requiring a matched left and right sequential pair)
Frequently Asked Questions
Q: What is the difference between the Narva 97210 and the 97212?
A: The 97210 is a single Model 72 rear combination lamp sold individually, featuring a standard indicator and an in-built retro reflector, with a primary 284 x 100mm industry footprint suited for trucks and trailers. The 97212 is sold as a matched left and right pair with sequential indicator technology, designed specifically for ute tray and canopy applications with a 222 x 96mm footprint. Choose the 97210 for standard truck and trailer installations, and the 97212 for ute tray paired setups with sequential indicators.
Q: Does the 97210 fit both the 284 x 100mm and 222 x 96mm footprints?
A: Yes. The primary footprint is 284 x 100mm to suit the common industry standard for truck and trailer rear light locations. The adjustable bolt holes also accommodate the smaller 222 x 96mm footprint, providing increased installation versatility for vehicles and trailers where only the smaller mounting pattern is available.
Q: Is the Narva 97210 ADR approved for road use in Australia?
A: Yes. The 97210 carries ADR (Australian Design Rules) approval, confirming it meets Australian vehicle lighting standards for road-registered vehicles. It is suitable for use on trucks, trailers, and other commercial vehicles requiring legally compliant rear combination lighting.
Q: Is the 97210 compatible with 24V truck electrical systems?
A: Yes. The 97210 operates across a 9-33V range, making it fully compatible with both standard 12V passenger and light commercial vehicles and 24V heavy vehicles including trucks, buses, and commercial trailers without any modification or voltage conversion.
Q: What warranty does the Narva 97210 carry and what does it cover?
A: The Narva 97210 is backed by a 7-year warranty covering manufacturer defects. This extended warranty reflects Narva's confidence in the Model 72's build quality and makes it a strong choice for commercial fleet operators and owner-operators who require long-term reliability from their rear lighting equipment.
