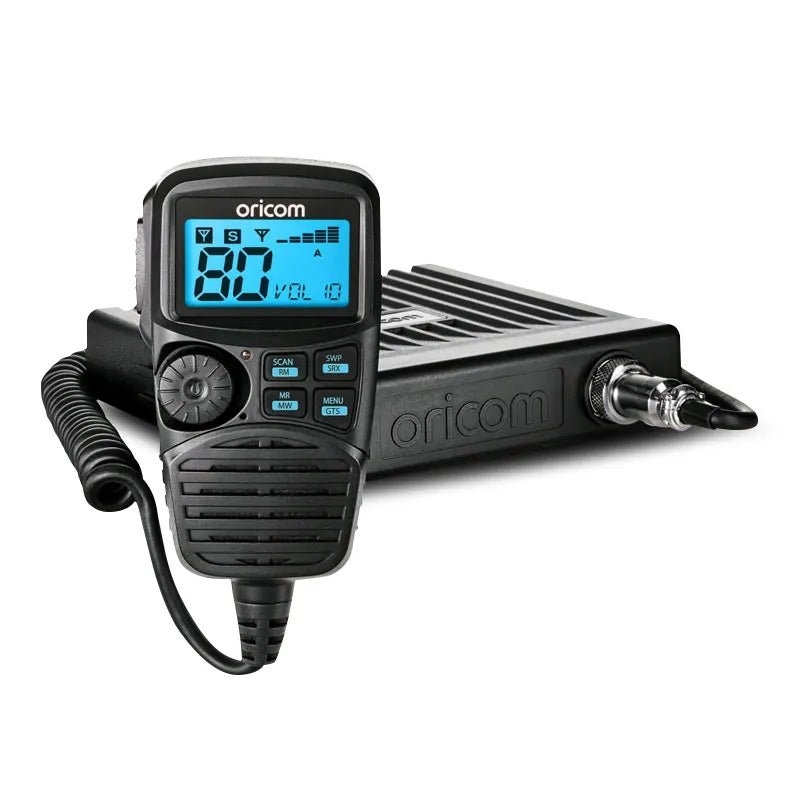

Oricom DTX4200 Dual Receive Controller Speaker Mic

Description

Oricom Dual Receive Controller Speaker Mic: An Australian First! Perfect Radio for Any Vehicle Where Space is Limited



Like having two radios in one, the dual receive function allows you to receive and listen to two different channels simultaneously without compromising the regular features you'd expect from a UHF CB Radio.
Simply, install the transceiver out-of-sight as the fully functional ergonomic controller speaker mic has all you'll need to stay connected on and off road.
The DTX4200 recently featured on both ‘What's Up Down Under' and ‘Top Of Down Under'.

Oricom DTX4200 Features:

  • Heavy duty controller speaker microphone

  • IP54 dust and splash resistant

  • Dual receive

  • Heavy duty diecast metal chassis

  • 12/24 volt operation

  • 3 memory groups of 16 channels per group

  • (PC programmable)

  • Large 96 multi-colour backlit display

  • Back light brightness (5 preset levels plus auto)

  • Fast scanning 80 channels within 3 seconds

  • Rotary volume/channel and squelch control

  • Included in the pack; 2m microphone extension cable, slide in bracket and mounting hardware

  • 3.5mm external jack (for optional external speaker or PA adaptor)


Oricom DTX4200 Specifications:
GENERAL

  • Compliance: AS/NZS 4365:2011

  • Frequency Range: TX/RX 476.425 - 477.4125 MHz

  • Number of TX/RX Channels: 80 UHF CB Channels (75 voice)

  • Channel Spacing: TX/RX 12.5KHz

  • Operating modes: Simplex, Repeater TX offset (+750KHz)

  • Scanning Speed: 50 msec per channel

  • Antenna Impedance: 50 Ohms

  • Operating Volts nominal: 13.8VDC to 28VDC

  • Operating Volts Range: 10 to 30VDC

  • Over Voltage Protection: Diode and Voltage regulator system

  • Over Current Protection: 2 AMP fuse

  • Reverse Polarity Protection: Shunt diode

  • Frequency stability: +/- 5 ppm


TRANSMITTER

  • RF Output Power: 5 watts max

  • Modulation: F3E(FM)

  • Maximum deviation: 2.5KHz

  • Spurious Emissions: < -30dBm

  • TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz

  • Current consumption: 1.7 AMP with 50 ohm during TX antenna termination


RECEIVER

  • Circuit Type: Dual conversion super heterodyne

  • Intermediate Frequencies: 1st IF : 21.4MHz , 2nd IF : 450KHz for Main RX 1st IF: 38.85MHz, 2nd IF: 455KHz for Sub RX

  • Receiver sensitivity: -123dBm for 12dB SINAD

  • Audio output power: > 2 Watts at 8 ohm load

  • RX Audio de-emphasis: +6dB/Octave from 300Hz to 3KHz

  • Signal to Noise Ratio: > 40dB

  • Conducted Spurious Emission: > -57dBm


MECHANICAL

  • Dimensions: (H) X (W) X (D) 31 X 128 X 147

  • Weight: 548g transceiver; 200g controller speaker mic


Optional Accessories

  • PC programming cable (P/N: 2U0135)

  • External speaker (P/N: SPE85)

  • PA adaptor cable (P/N: PAC001)



Legendary Products & Support From Authorized Dealers

When you choose ORICOM, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized ORICOM dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by ORICOM's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized ORICOM dealer today!
