Description
Oricom 5W UHF CB Radio Smart Dual Antenna System: Offering the Best Communication Solution For Whatever Terrain You Find Yourself In!

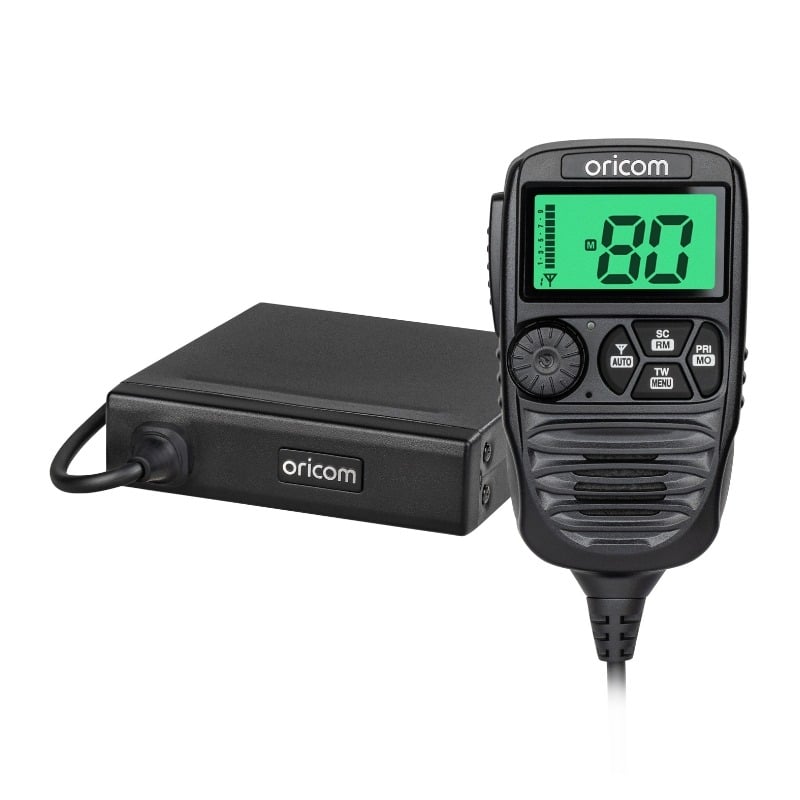

Smart Dual Antenna System 5W UHF CB Radio
Get the best from two antennas without the need for an additional switch. Whether you're in the high country, in rough terrain, or on the flat, Oricom's Smart Dual Antenna Technology makes sure you stay in touch with all the features you'd expect from a 5-watt UHF CB Radio. The UHF182XP features the unique Integrated (DAS) Dual Antenna System, allowing you to always receive the strongest signal automatically (Antennas Not Included). The reverse side of the transceiver features two antenna inputs, offering the best communication solution for whatever terrain you find yourself in. Including a heavy-duty Controller Speaker Microphone and a 3 Colour Backlit Display, this UHF is an exciting addition to the ever-evolving Oricom range of heavy-duty UHF CB radios in Australia and New Zealand.
Oricom UHF182XP Features:
- Integrated (DAS) Dual Antenna System
- Heavy-Duty Controller Speaker Microphone
- 80 Channels
- Open/Priority & Memory Scanning
- 5 Memory Channels
- Over/Under Voltage Alert Function
- 38 CTCSS & 104 DCS Codes
- 3 Colour Backlit Display (2 Levels of Brightness)
- Audio Scrambler
- Tri-Watch
- Automatic Power Off
- Duplex (Range Extender)
- Volume, Channel & Squelch Control
- 3.5mm External Speaker Jack
- Includes extension cables for use with and without a pass-through connector.
- Requires at least one antenna (Not Supplied)
- Designed, engineered, and made in Korea.
Oricom UHF182XP Specifications:
- General: Compliance: AS/NZS 4365:2011 Frequency Range: TX/RX: 476.425 ~ 477.4125MHz Number of TX/RX Channels: 80 UHF CB Channel Spacing TX/RX: 12.5KHz Operating Modes: Simplex, Repeater TX Offset (+750KHz) Scanning Speed: 130MS Per Channel Antenna Impedance: 50 Ohms For ANTI, ANT2 Operating Volts Nominal: 13.8V DC Operating Volts Range: 10 ~ 15V DC Over Voltage Protection: Diode & Voltage Regulator System Over Current Protection: 2 AMP Fuse Reverse Polarity Protection: Shunt Diode Frequency Stability: +/- 5PPM
- Transmitter: RF Output Power: Nominal 5 Watts Modulation: F3E (FM) Maximum Deviation: 2.5KHz Spurious Emissions: <-30dBm TX Audio Pre-Emphasis: +6dB/Octave From 300Hz ~ 3KHz Current Consumption During TX: 1.6AMP With 50 Ohm Antenna Termination
- Receiver: Circuit Type: Direct Conversion By Single DSP Chip Intermediate Frequencies: 137KHz Maximum Useable Sensitivity: Less Than -122dBm For 12dB SINAD Un-Weighted Audio Output Power: >2 Watts @ 8 Ohm Load RX Audio De-Emphasis: +6dB/Octave From 300Hz ~ 3KHz Signal-To-Noise Ratio: >40dB Conducted Spurious Emission: >-57dBm
- Dimensions: (H) 29mm x (W) 110mm x (D) 115mm
- Weight: 2.00kg
