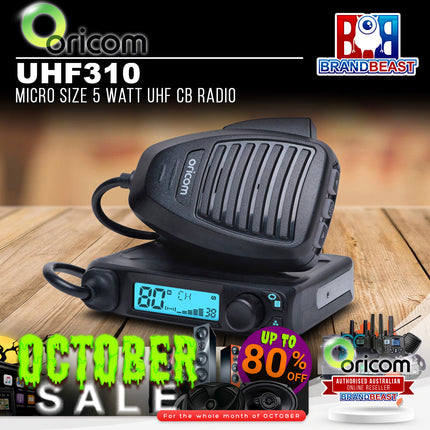

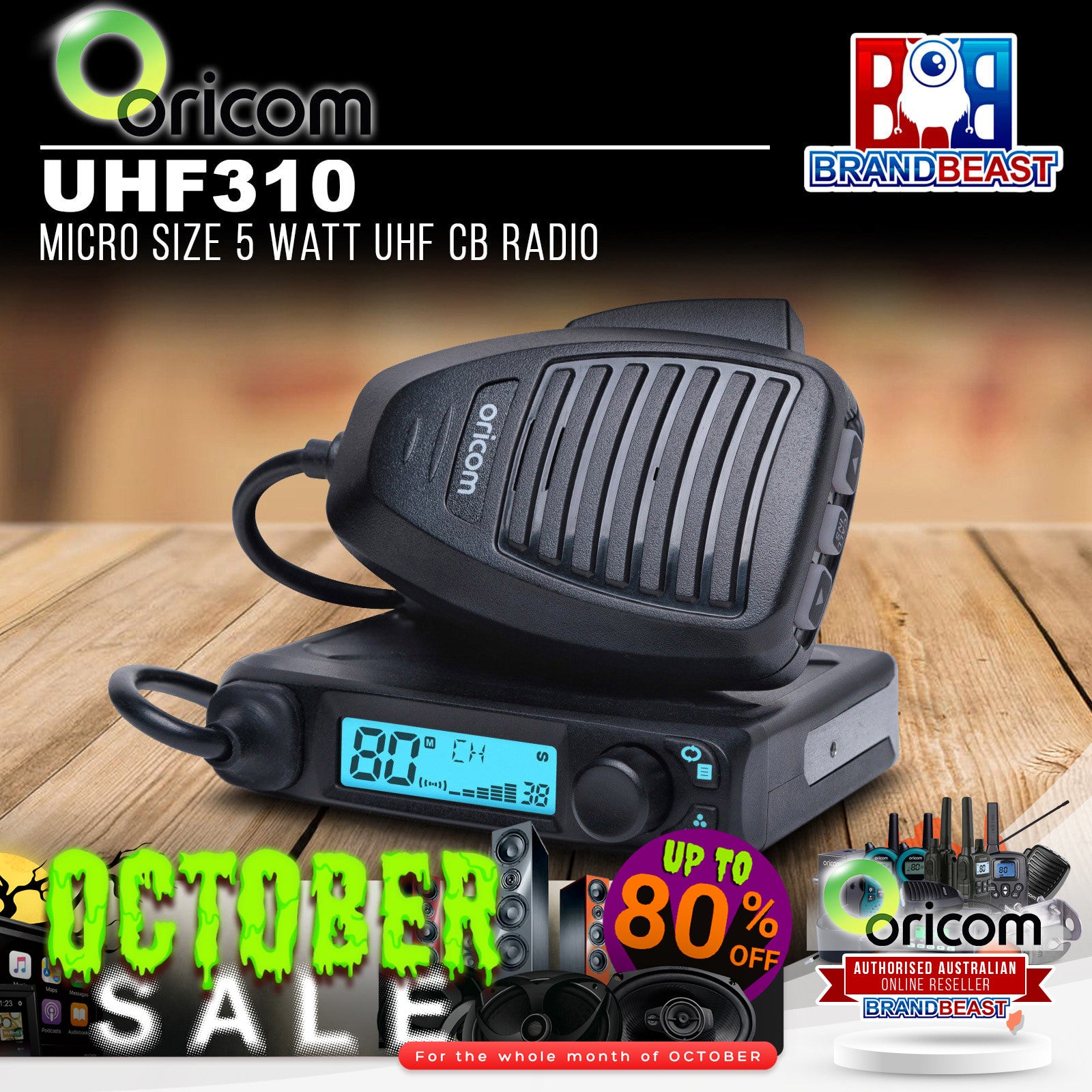

Oricom UHF310 5 Watt 80 Channel Micro UHF CB Radio

Description

Oricom 5 Watt 80 Channel Micro UHF CB Radio: The Perfect Install in Modern Vehicles or Plant Equipment, Where Space is Often Limited

This ultra-compact UHF CB radio features a flip screen function and 7 colours backlit display. It'll keep you connected with 5 watts of RF power and the standard 80 channels. Oricom UHF310 Features:
  • 5 Watt (max TX power)
  • 80 Channels
  • Ultra-compact micro size
  • 7-colour backlit display
  • Automatic Level Control (ALC) for consistent audio levels
  • 38 CTCSS and 104 DCS
  • Duplex (Range Extender)
  • Open/Priority scan
  • Priority channel
  • Heavy-duty microphone with channel control
  • 3.5mm external speaker jack
  • Dimensions of transceiver: 23.8 (h) x 100 (w) x 94 (d) mm
  • 5-year warranty – Peace of mind. Buy your Oricom product with confidence
Oricom UHF310 Specifications: General:
  • Compliance: AS/NZS 4365:2011
  • Frequency Range TX/RX: 476.425 - 477.4125 MHz
  • Number of TX/RX Channels: 80 UHF CB (75 Voice channels)
  • Channel Spacing TX/RX: 12.5KHz
  • Operating modes: Simplex, Repeater TX offset (+750kHz)
  • Scanning Speed: 130 msec per channel
  • Antenna Impedance: 50 Ohms
  • Operating Volts nominal: 13.8VDC
  • Operating Volts Range: 10 to 15 VDC
  • Over Voltage Protection: voltage regulator
  • Over Current Protection: 2 AMP fuse
  • Reverse Polarity Protection: Shunt diode
  • Frequency stability: +/- 2.5ppm
Transmitter:
  • RF Output Power Nominal: 5 watts
  • Modulation: F3E(FM)
  • Maximum deviation: 2.5KHz
  • Spurious Emissions: < -70 dBc
  • TX Audio pre-emphasis: + 6dB/octave from 300Hz to 3kHz
  • Current consumption during TX: 1.5 Amps with 50 Ohm antenna termination
Receiver:
  • Circuit Type Direct: conversion by Single DSP chip
  • Intermediate Frequencies: IF = 137KHz
  • Maximum usable sensitivity: Less than -122dBm at 12dB SINAD
  • Audio output power: 3 Watts Maximum
  • RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz

Legendary Products & Support From Authorized Dealers

When you choose ORICOM, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized ORICOM dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by ORICOM's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized ORICOM dealer today!

Oricom UHF310 5 Watt 80 Channel Micro UHF CB Radio

Product form

Oricom 5 Watt 80 Channel Micro UHF CB Radio: The Perfect Install in Modern Vehicles or Plant Equipment, Where Space... Read more

SKU: UHF310

  • In Stock

$229.00 Incl. VAT
