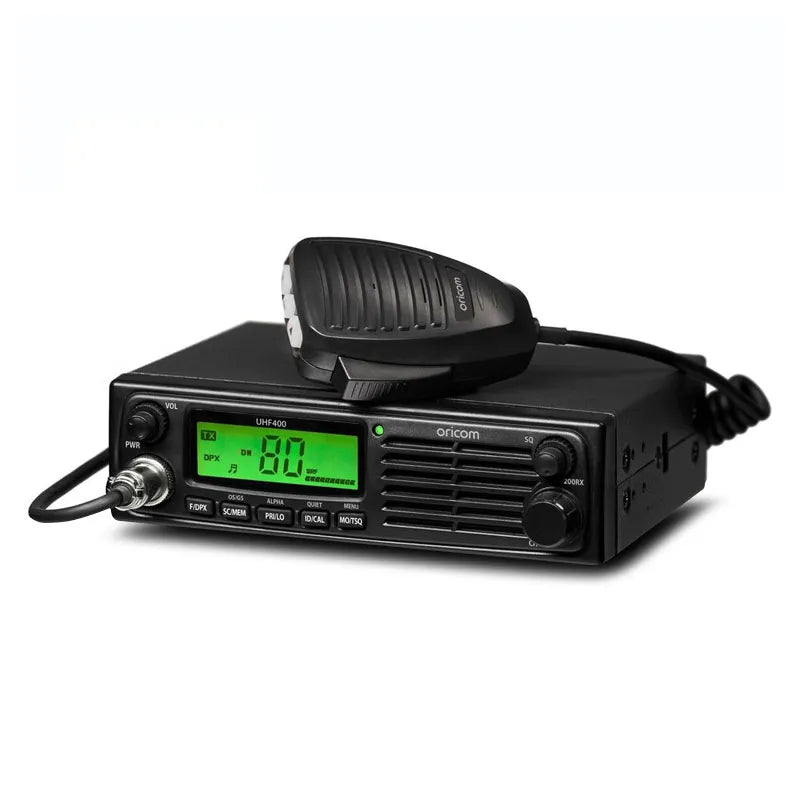

Oricom UHF400R 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio

Description

Oricom 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio: Specially Built for Australian Transport

Oricom’s UHF400 features 12v/24v auto switching which makes it quick and easy to install in any truck regardless of power supply.The external heat sink ensures you maintain a full 5 watt power output and has tuned sensitivity to ensure optimal reception.Oricom UHF400R Features:
  • 80 CHANNELS
  • Allows you to choose from 80 transmission frequencies (75 voice) to transmit or receive messages
  • 12v/24v Auto Switching For easy installation into any vehicle regardless of power supply
  • Automatic Level Control (ALC) For consistent audio output levels
  • 5 Watt Maximum TX Output Power Maximum transmit power for best possible range
  • 200 Receive Only Channels Allows you to program in other channels in the UHF frequency between 400MHz to 512MHz and monitor transmissions
  • Duplex (Range Extender) Capability Local repeater stations area. This extends the effective range of the radio, giving you the greater reach
  • 38 interference eliminator codes (CTCSS)
  • Block out any unwanted conversations
  • Open/Group/Priority scanning Gives you the option to scan all channels in memory and lock on any active channels or to select the channels you wish to monitor/listen to in a group, along with a priority channel (priority watch)
  • Large easy to read Colour LCD display (green/amber) The keypad and Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations
  • Rugged chassis construction with integrated heat sink The external heat sink cools quickly, ensuring the radio maintains the highest possible output power
  • UHF400R – with rear mic jack
5 Year Warranty – Peace of mind. Buy your Oricom product with confidence.Oricom UHF400R Specifications:GENERAL
  • Compliance: AS/NZS 4365:2011
  • Frequency Range: TX/RX 476.425 - 477.4125 MHz/ 400 - 512MHz
  • Number of TX/RX Channels: 80 UHF CB Channels (75 voice)
  • Channel Spacing TX/RX: 12.5KHz
  • Operating modes: Simplex, Repeater TX offset (+750kHz)
  • Scanning Speed: 130 msec per channel
  • Antenna Impedance: 50 Ohms
  • Automatic Level Control: For consistent audio output
  • Operating Volts Range: 10 to 30 VDC
  • Over Voltage Protection: voltage regulator
  • Over Current Protection: 2 AMP fuse
  • Reverse Polarity Protection: Series diode
  • Frequency stability: +/- 2.5ppm
RECEIVER
  • Circuit Type Dual conversion: superheterodyne
  • Intermediate Frequencies: 1st IF = 21.4MHz , 2nd IF = 450kHz
  • Maximum usable sensitivity: < -123dBm at 12dB SINAD
  • Audio output power: 3 Watts Maximum
  • RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz
  • Spurious Immunity: > 70dB
TRANSMITTER
  • RF Output Power Nominal: 5 watts
  • Modulation: F3E(FM)
  • Maximum deviation: 2.5KHz
  • Spurious Emissions: <-30dBm
  • TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz
  • Current consumption during TX: 1.6AMP with 50ohm antenna termination
*This 80 channel narrowband radio has a total of 75 useable voice channels Channels 22 and 23 are used for Telemetry and Telecommand, voice communications are not allowed on these channels. Channels 61,62 and 63 are guard channels and are not available for use.

Legendary Products & Support From Authorized Dealers

When you choose ORICOM, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized ORICOM dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by ORICOM's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized ORICOM dealer today!

Oricom UHF400R 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio

Product form

Oricom 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio: Specially Built for Australian TransportOricom’s UHF400 features 12v/24v... Read more

SKU: UHF400R

  • In Stock

$299.00 $224.79 Incl. VAT

    Description

    Oricom 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio: Specially Built for Australian Transport

    Oricom’s UHF400 features 12v/24v auto switching which makes it quick and easy to install in any truck regardless of power supply.The external heat sink ensures you maintain a full 5 watt power output and has tuned sensitivity to ensure optimal reception.Oricom UHF400R Features:
    • 80 CHANNELS
    • Allows you to choose from 80 transmission frequencies (75 voice) to transmit or receive messages
    • 12v/24v Auto Switching For easy installation into any vehicle regardless of power supply
    • Automatic Level Control (ALC) For consistent audio output levels
    • 5 Watt Maximum TX Output Power Maximum transmit power for best possible range
    • 200 Receive Only Channels Allows you to program in other channels in the UHF frequency between 400MHz to 512MHz and monitor transmissions
    • Duplex (Range Extender) Capability Local repeater stations area. This extends the effective range of the radio, giving you the greater reach
    • 38 interference eliminator codes (CTCSS)
    • Block out any unwanted conversations
    • Open/Group/Priority scanning Gives you the option to scan all channels in memory and lock on any active channels or to select the channels you wish to monitor/listen to in a group, along with a priority channel (priority watch)
    • Large easy to read Colour LCD display (green/amber) The keypad and Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations
    • Rugged chassis construction with integrated heat sink The external heat sink cools quickly, ensuring the radio maintains the highest possible output power
    • UHF400R – with rear mic jack
    5 Year Warranty – Peace of mind. Buy your Oricom product with confidence.Oricom UHF400R Specifications:GENERAL
    • Compliance: AS/NZS 4365:2011
    • Frequency Range: TX/RX 476.425 - 477.4125 MHz/ 400 - 512MHz
    • Number of TX/RX Channels: 80 UHF CB Channels (75 voice)
    • Channel Spacing TX/RX: 12.5KHz
    • Operating modes: Simplex, Repeater TX offset (+750kHz)
    • Scanning Speed: 130 msec per channel
    • Antenna Impedance: 50 Ohms
    • Automatic Level Control: For consistent audio output
    • Operating Volts Range: 10 to 30 VDC
    • Over Voltage Protection: voltage regulator
    • Over Current Protection: 2 AMP fuse
    • Reverse Polarity Protection: Series diode
    • Frequency stability: +/- 2.5ppm
    RECEIVER
    • Circuit Type Dual conversion: superheterodyne
    • Intermediate Frequencies: 1st IF = 21.4MHz , 2nd IF = 450kHz
    • Maximum usable sensitivity: < -123dBm at 12dB SINAD
    • Audio output power: 3 Watts Maximum
    • RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz
    • Spurious Immunity: > 70dB
    TRANSMITTER
    • RF Output Power Nominal: 5 watts
    • Modulation: F3E(FM)
    • Maximum deviation: 2.5KHz
    • Spurious Emissions: <-30dBm
    • TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz
    • Current consumption during TX: 1.6AMP with 50ohm antenna termination
    *This 80 channel narrowband radio has a total of 75 useable voice channels Channels 22 and 23 are used for Telemetry and Telecommand, voice communications are not allowed on these channels. Channels 61,62 and 63 are guard channels and are not available for use.

    Legendary Products & Support From Authorized Dealers

    When you choose ORICOM, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized ORICOM dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by ORICOM's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized ORICOM dealer today!
