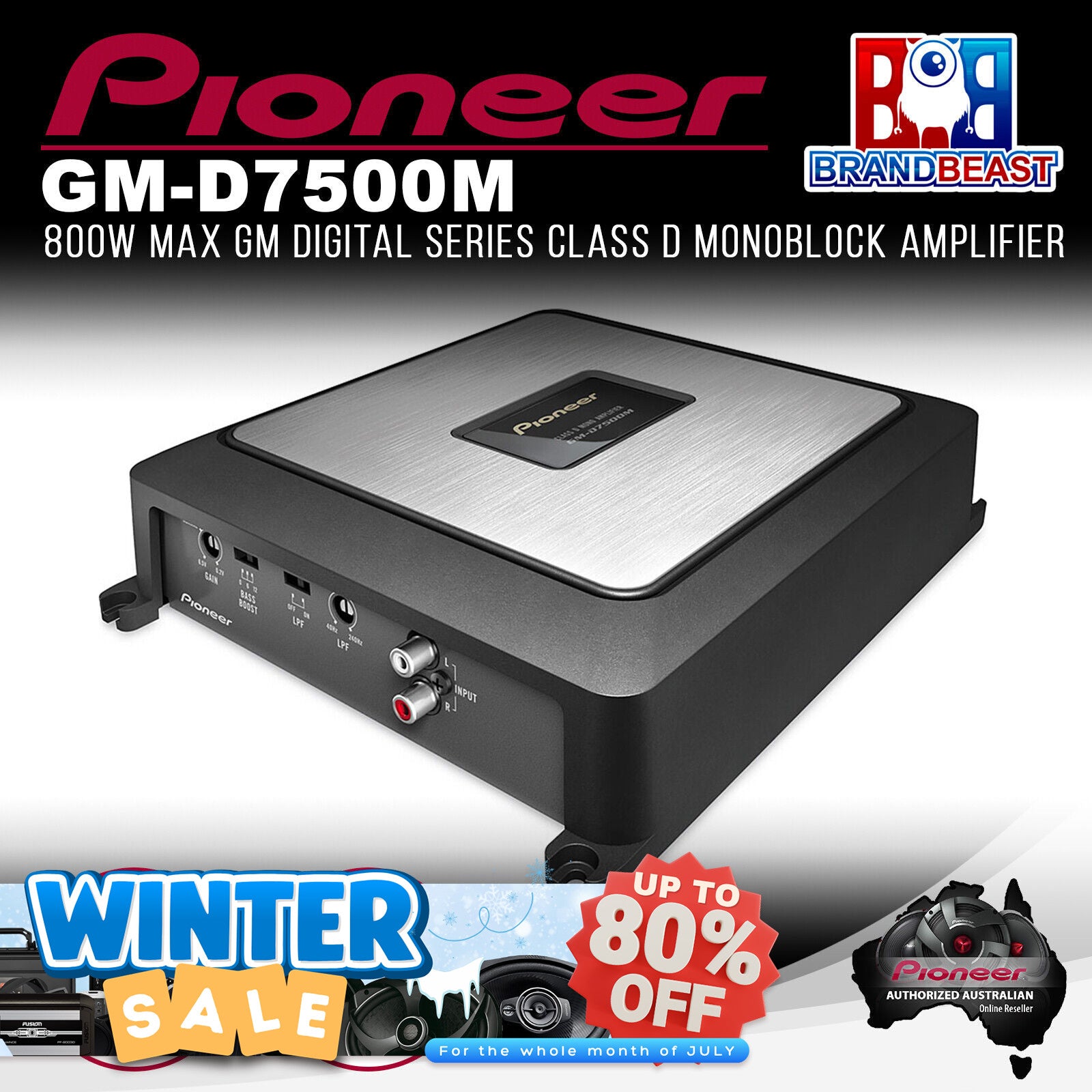

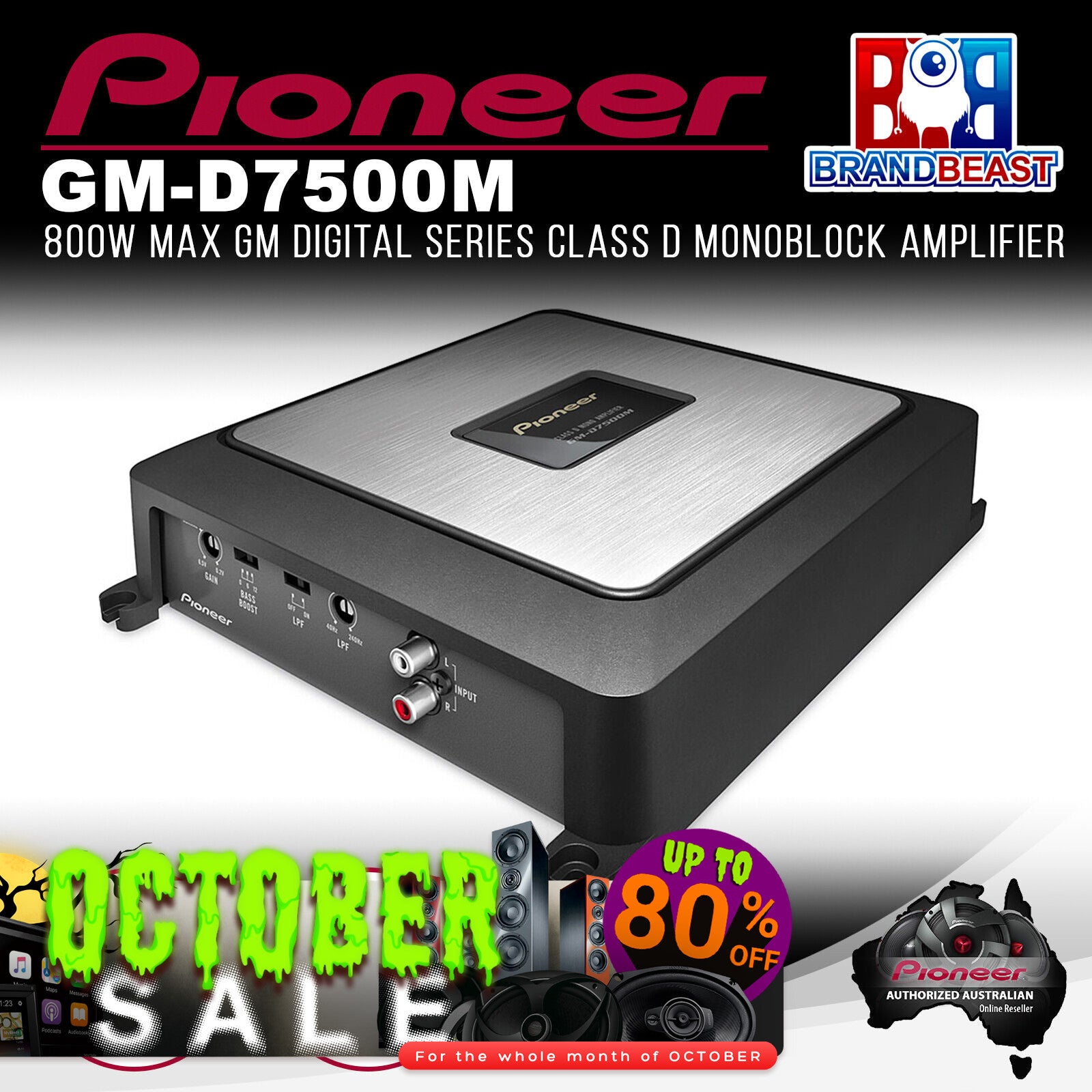

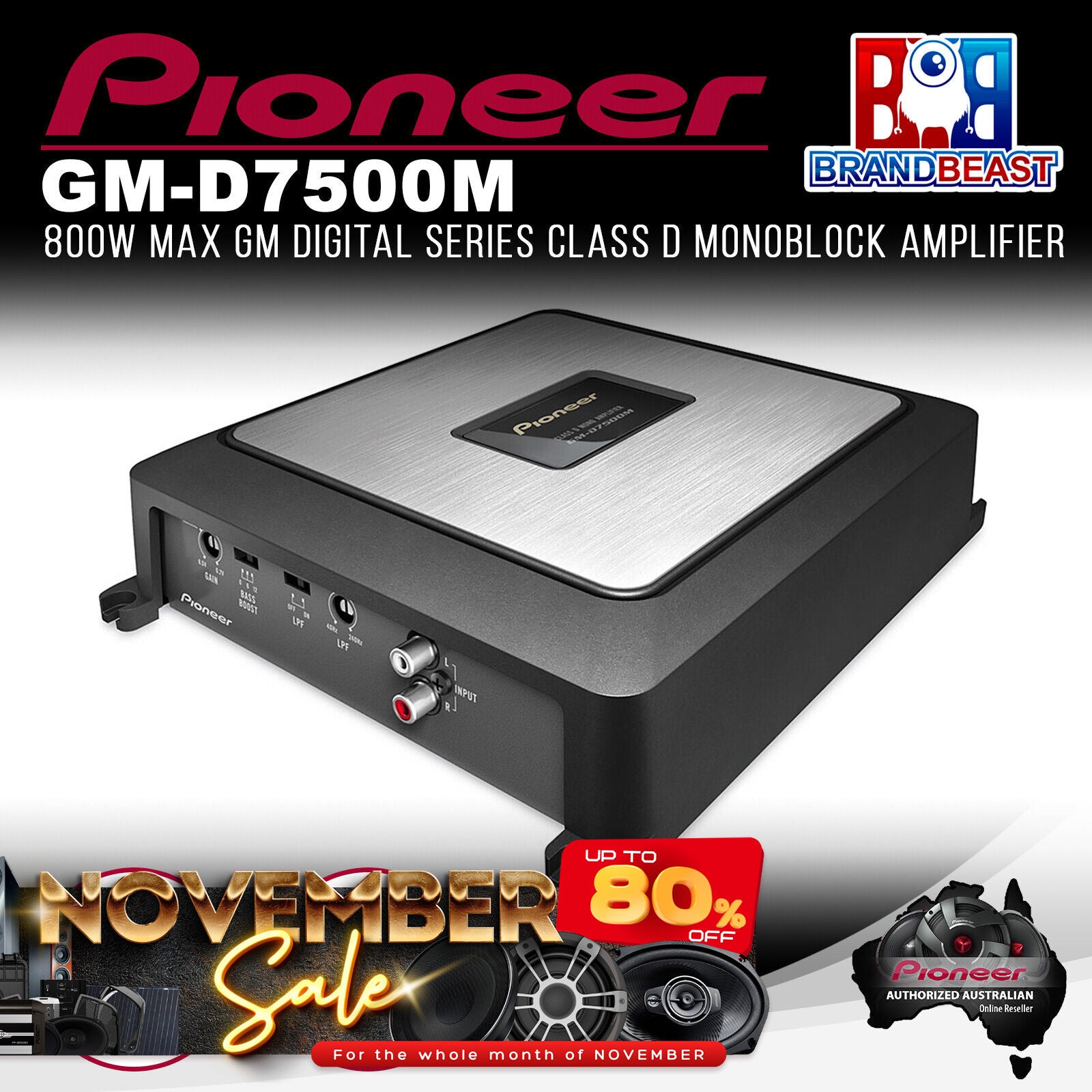

Pioneer GM-D7500M 800W Class-D Mono Amplifier

Description

Small Size, Big Mouth!



An amplifier shouldn't take up too much space, especially in your car. But you still want that extra power. Well, our Class-D amps might just be what you're looking for. Compact in size as it is, you can install it virtually anywhere in your car.
And here it comes: thanks to our signature improved electrical and thermal efficiencies, you get more than twice the power output than you'd get from a regular amplifier. And meanwhile you save on your input power.
Don't worry about distortion: our Class-D amps produce a perfectly clean and crisp sound even at high volumes. What you hear is as smooth as is its stylish design.
Same Powerful Output from a More Compact Amp
100 % of the power, 45 % of the size. The superior efficiency of a Class-D amplifier means higher power output and greater compactness than an analog amplifier offers.
Efficiently Compact, Awesome Power
Class-D amplifiers overcome the inefficiencies of traditional Class-A or AB amplifiers. Pioneer's Class-D amps transform very little power into heat so a higher percentage of the power supply (67 %) is transformed into the load. This results in a very compact amp which needs less input power to produce very high output power. The Class-D amplifier's PWM (Pulse Width Modulator) modulates the original audio input signal with a triangulated signal wave which has a much higher fixed frequency. The result is a digital signal which contains both the input signal and a band of frequency components around the modulation frequency. A LPF (Low Pass Filter) then filters out the high frequency pulses and the resulting amplified output signal is then sent to the subwoofer and/or speakers.
Selectable 50Hz Bass Boost
Bass boost gives you more control over how your music sounds. It lets you set the optimal bass level for each speaker/sub connected to the GM-D7500M, so the tone controls from your headunit can do what they do best. And because this is selectable bass boost, you can set the level at 0dB, 6dB, or 12dB, whichever sounds best to you.
Built-In Crossover (40~240Hz Low-Pass Filter)
Built into the GM-D7500M is a very smart crossover network. It works like a gateway, routing the big bass signals (adjustable from 40 to 240Hz or lower, at -12dB/octave) and filtering out higher-frequency signals to that subwoofer. This optimizes your system's efficiency and delivers the best possible sound quality.
Speaker Level Inputs
What, you DON'T own a Pioneer headunit? Well, we won't hold it against you. In fact we'll even help you build onto your system. The GM-D7500M's speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you've got a Pioneer amp in your vehicle.
Features:

  • Class D amplifier maximizes efficiency while minimizing heat generation.

  • Extra-compact design for versatile installation.

  • Selectable Bass Boost controls audio balance and impact


Specifications:
General

  • Number of Channels: Mono

  • Maximum Power Output: 800 W

  • Continuous Power Output (2‚Ѷ, ‚⧠1% THD+N): 400 W x 1

  • Continuous Power Output (4‚Ѷ, ‚⧠1% THD+N): 200 W x 1

  • Continuous Power Output Bridged (4‚Ѷ): -

  • Frequency Response: 10 Hz to 30 kHz

  • Total Harmonic Distortion (4‚Ѷ): < 0.03% (100 Hz)

  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): > 95 dB

  • Dimensions (WxHxD): 9-5/8" x 2-1/4" x 7-7/8"


Main Features

  • Amplifier Class: Class D

  • Load Impedance Allowance (W): 2 to 8

  • MOSFET Output Selection: Yes

  • PWM Regulated MOSFET: Yes

  • Balanced Isolator Input Circuit: Yes

  • RCA Inputs: 2-Ch.

  • Speaker Level Input: Yes

  • Speaker Line Input Turn-On Sensor: Yes

  • Hi-Volt Input Level Control: Yes

  • Terminal Type: Screw-Type

  • Crossover Type: LPF

  • Crossover Frequency: 40 Hz to 240 Hz

  • Crossover Slope: -12 dB/oct.

  • Bass Boost Frequency: 50 Hz

  • Bass Boost Level: 0/6/12 dB


Legendary Products & Support From Authorized Dealers

When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Pioneer dealer today!
