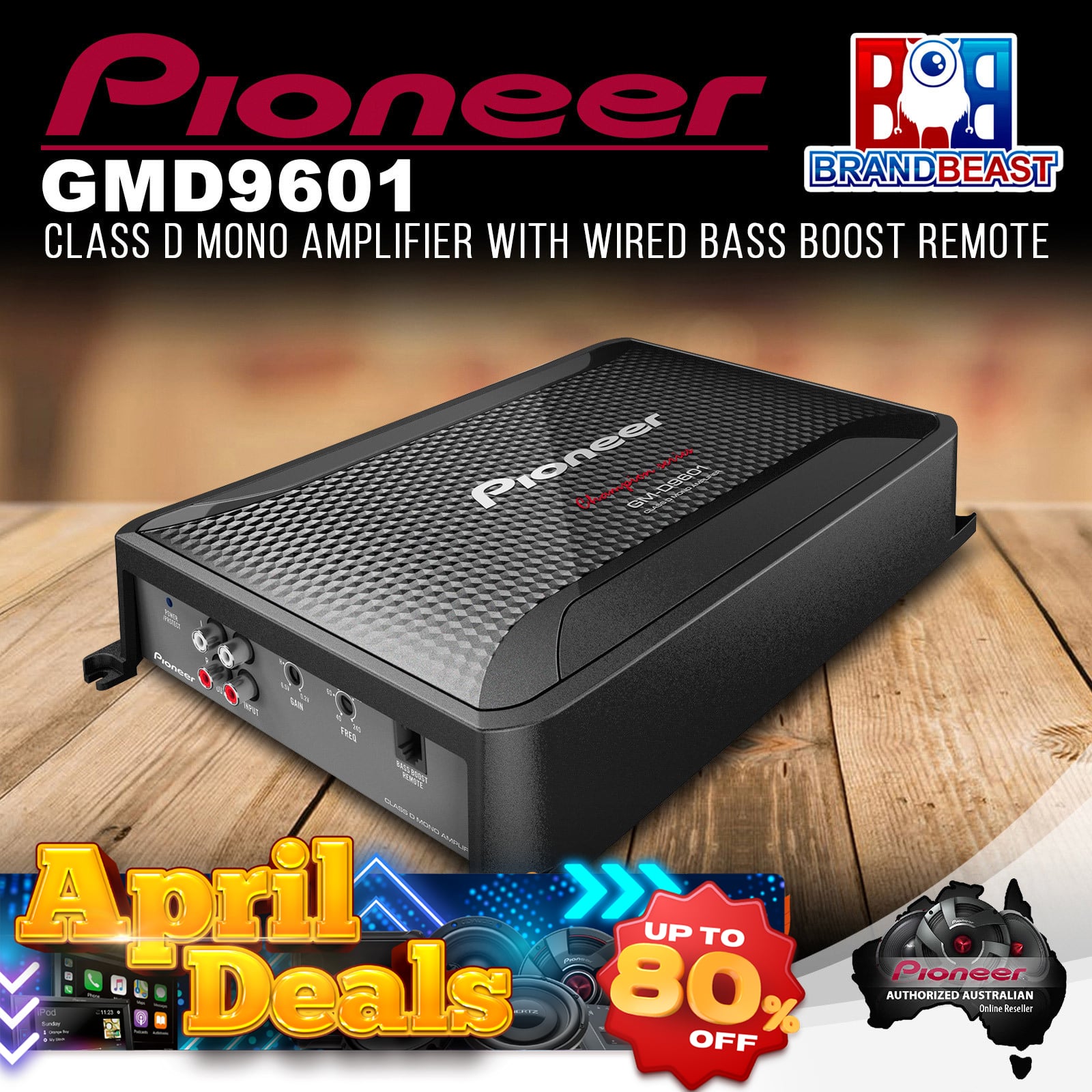

Pioneer GM-D9601 2400W Class D Mono Amplifier with Wired Bass Boost Remote

Description

Powerful Bass That'll Get You and Your Car Rockin'!


Class D mono amplifier with wired bass boost remote.
Big Power, Small Size
Pioneer's new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.
Improved Circuit Design
To prevent circuit shutdown, Pioneer's new digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection. This design enhances the flexibility to connect multiple subwoofers to a system.
Variable Low Pass Filter
For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D9601 LPF is adjustable from 40 Hz to 240 Hz.
Turn Up the Bass
Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.
Speaker Level Inputs
What, you DON'T own a Pioneer headunit? Well, we won't hold it against you. In fact we'll even help you build onto your system. The GM-D9601's speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you've got a Pioneer amp in your vehicle.
Features:

  • 2,400 Watts Max Power

  • Compact Design for Versatile Installation Options

  • Wired Bass Boost Remote and Variable Bass Control

  • 1 ohms Stable


Specifications:
General

  • Number of Channels Mono

  • Maximum Power Output 2,400 W

  • Continuous Power Output (1‚Ѷ, ‚â§ 1% THD+N) 1,200 W x 1

  • Continuous Power Output (2‚Ѷ, ‚â§ 1% THD+N) 800 W x 1

  • Continuous Power Output (4‚Ѷ, ‚â§ 1% THD+N) 500 W x 1

  • Continuous Power Output Bridged (4‚Ѷ) ‚Äï

  • Frequency Response 10 Hz to 240 Hz

  • Total Harmonic Distortion (4‚Ѷ) < 0.5% (100 Hz)

  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz) > 100 dB

  • Dimensions (WxHxD) 12-3/8" x 2-3/8" x 7-7/8"


Main Specifications

  • Amplifier Class Class D

  • Load Impedance Allowance (W) 1 to 8

  • Protection Control System Yes

  • MOSFET Output Selection Yes

  • Balanced Isolator Input Circuit Yes

  • RCA Inputs 2-Ch.

  • RCA Outputs (Pass-Through) Yes

  • Speaker Level Input Yes

  • Speaker Line Input Turn-On Sensor Yes

  • Hi-Volt Input Level Control 200 mV to 6.5 V

  • Terminal Type Block

  • Crossover Type Variable LPF

  • Crossover Frequency 40 Hz to 240 Hz

  • Crossover Slope -12 dB/oct.

  • Bass Boost Frequency 50 Hz

  • Bass Boost Level 0 dB to 18 dB


Legendary Products & Support From Authorized Dealers

When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Pioneer dealer today!

Out of stock

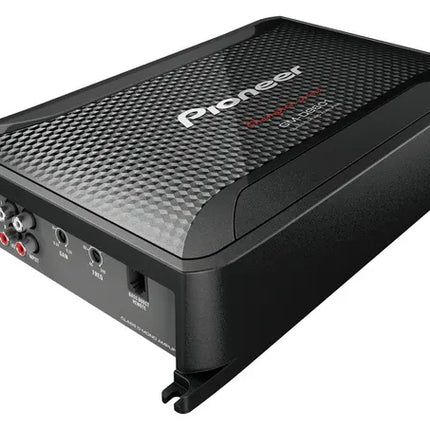

Pioneer GM-D9601 2400W Class D Mono Amplifier with Wired Bass Boost Remote
