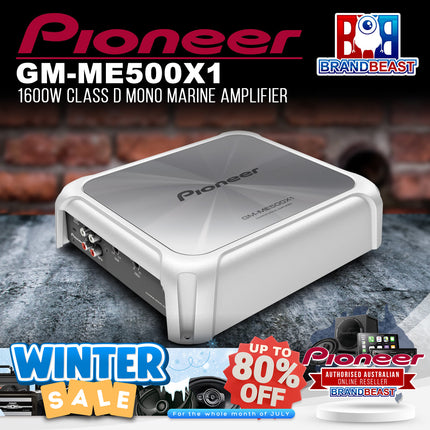

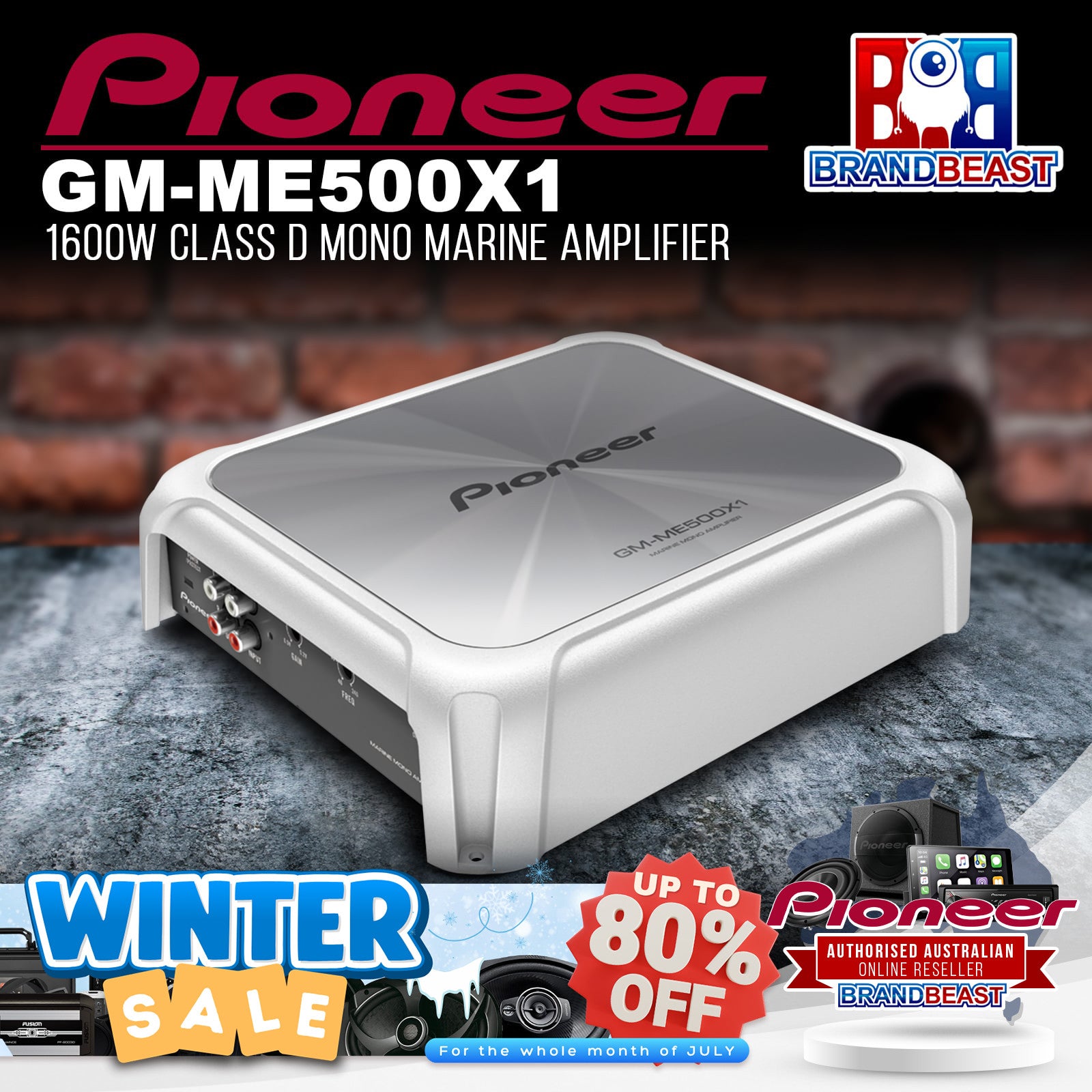

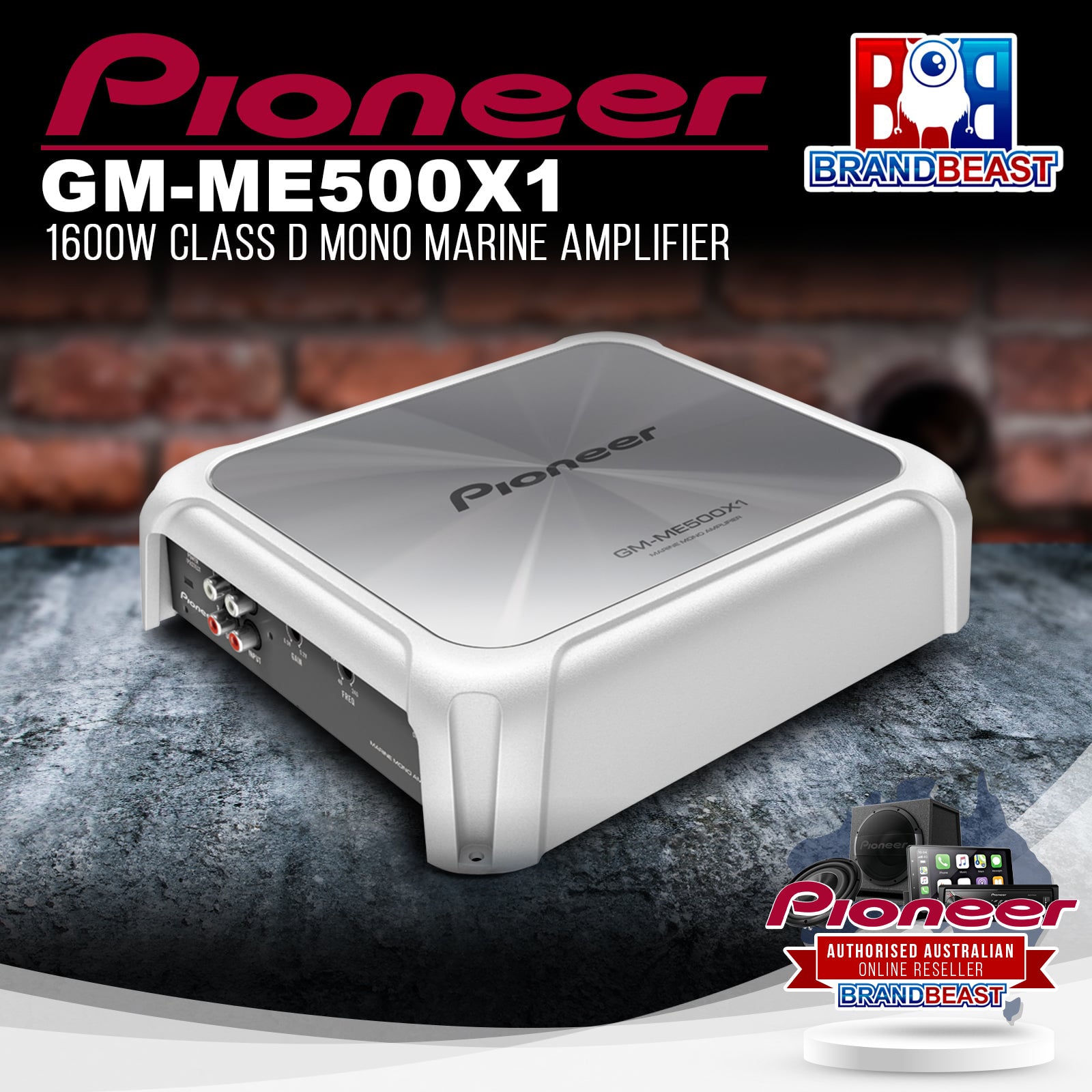

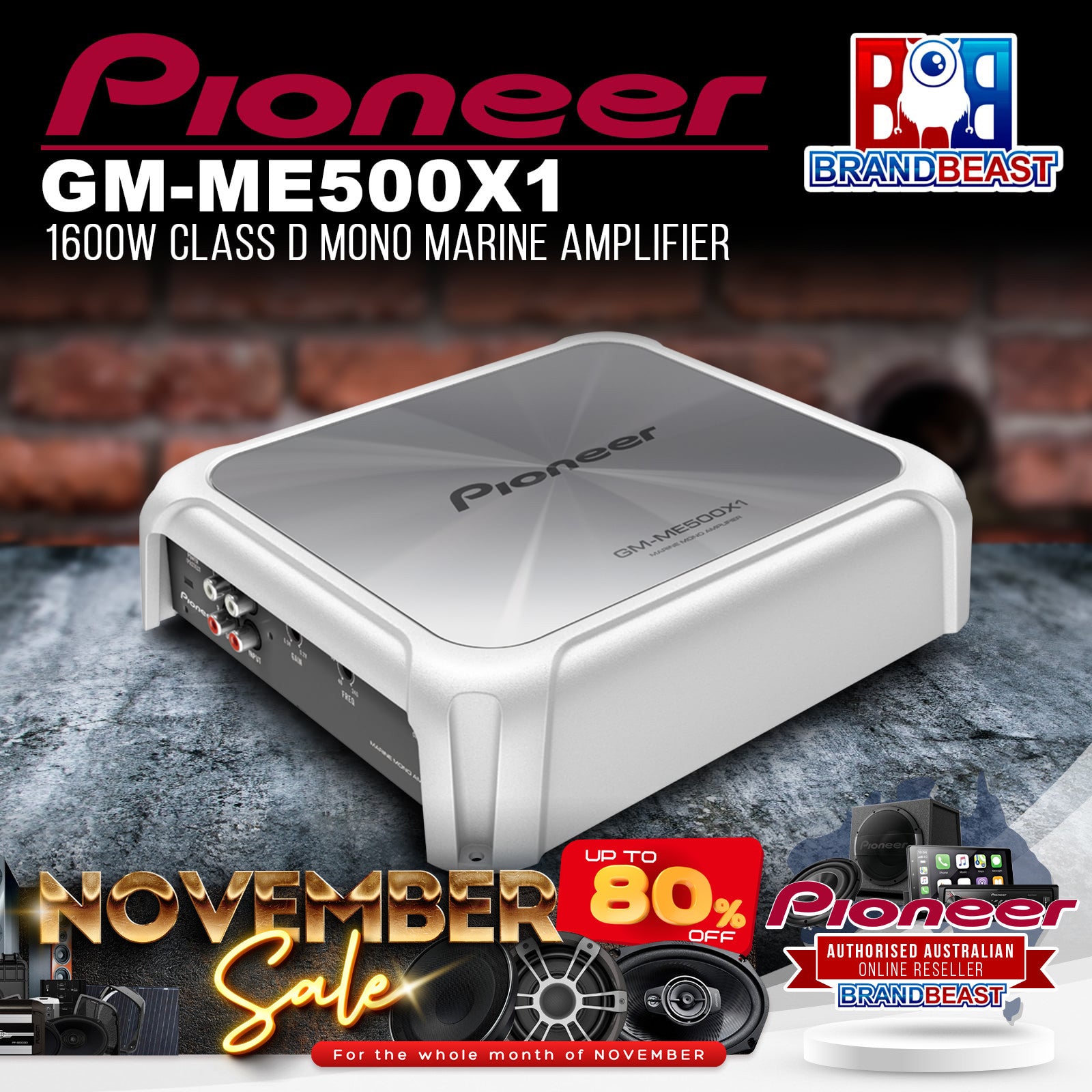

Pioneer GM-ME500X1 1600W Class D Mono Marine Amplifier

Description

Is the Power from Your Marine Audio System Not Quite Matching the Power of Your Boat?


The Pioneer GM-ME500X1 can easily and cost effectively solve your problems. Designed to support the Pioneer range of subwoofers they also feature a conformal coating on the PCB to reduce the damaging impacts of exposure to sun and adverse weather conditions.
The Pioneer GM-ME500X1 is your perfect power partner!

Conformal Coated PCB
Pioneer's marine amplifiers support a conformal coated PCB to reduce the damaging effects of sun exposure and adverse weather conditions making them ideal for marine use.
Specifications:
General

  • RCA Inputs: Mono

  • Amplifier Class: Class-D

  • Speaker Level Input: Yes

  • Warranty: 1 Year

  • Fuse Rating: 40A x 2

  • Terminal Type: Block

  • Load Impedance Allowance (Ohms): 1 to 8

  • Protection Control System: Yes

  • Dimensions: 252mm (W) x 60mm (H) x 215mm (D)


Audio

  • Continuous Power (RMS) Output @ 1‚Ѷ: 800W RMS x 1

  • Continuous Power (RMS) Output @ 2‚Ѷ: 500W RMS x 1

  • Continuous Power (RMS) Output @ 4‚Ѷ: 300W RMS x 1

  • Frequency Response: 10 Hz to 240 Hz

  • Total Harmonic Distortion (THD): < 0.5% (100 Hz)

  • Signal-to-Noise (SN) Ratio: > 100 dB

  • Crossover Type: Variable LPF

  • Low-Pass Crossover Frequency: 40 Hz to 240 Hz

  • Low-Pass Slope (dB/octave): -12 dB/oct.

  • High-Pass Crossover Frequency: N/A


Marine

  • Rubber Covers Included: Side Panel Cover, RCA Terminal Cover, FUSE Cover


Legendary Products & Support From Authorized Dealers

When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Pioneer dealer today!

Pioneer GM-ME500X1 1600W Class D Mono Marine Amplifier

Product form

Is the Power from Your Marine Audio System Not Quite Matching the Power of Your Boat?The Pioneer GM-ME500X1 can easily... Read more

SKU: GMME500X1

  • In Stock

$700.00 Incl. VAT

    Description

    Is the Power from Your Marine Audio System Not Quite Matching the Power of Your Boat?


    The Pioneer GM-ME500X1 can easily and cost effectively solve your problems. Designed to support the Pioneer range of subwoofers they also feature a conformal coating on the PCB to reduce the damaging impacts of exposure to sun and adverse weather conditions.
    The Pioneer GM-ME500X1 is your perfect power partner!

    Conformal Coated PCB
    Pioneer's marine amplifiers support a conformal coated PCB to reduce the damaging effects of sun exposure and adverse weather conditions making them ideal for marine use.
    Specifications:
    General

    • RCA Inputs: Mono

    • Amplifier Class: Class-D

    • Speaker Level Input: Yes

    • Warranty: 1 Year

    • Fuse Rating: 40A x 2

    • Terminal Type: Block

    • Load Impedance Allowance (Ohms): 1 to 8

    • Protection Control System: Yes

    • Dimensions: 252mm (W) x 60mm (H) x 215mm (D)


    Audio

    • Continuous Power (RMS) Output @ 1‚Ѷ: 800W RMS x 1

    • Continuous Power (RMS) Output @ 2‚Ѷ: 500W RMS x 1

    • Continuous Power (RMS) Output @ 4‚Ѷ: 300W RMS x 1

    • Frequency Response: 10 Hz to 240 Hz

    • Total Harmonic Distortion (THD): < 0.5% (100 Hz)

    • Signal-to-Noise (SN) Ratio: > 100 dB

    • Crossover Type: Variable LPF

    • Low-Pass Crossover Frequency: 40 Hz to 240 Hz

    • Low-Pass Slope (dB/octave): -12 dB/oct.

    • High-Pass Crossover Frequency: N/A


    Marine

    • Rubber Covers Included: Side Panel Cover, RCA Terminal Cover, FUSE Cover


    Legendary Products & Support From Authorized Dealers

    When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized Pioneer dealer today!
