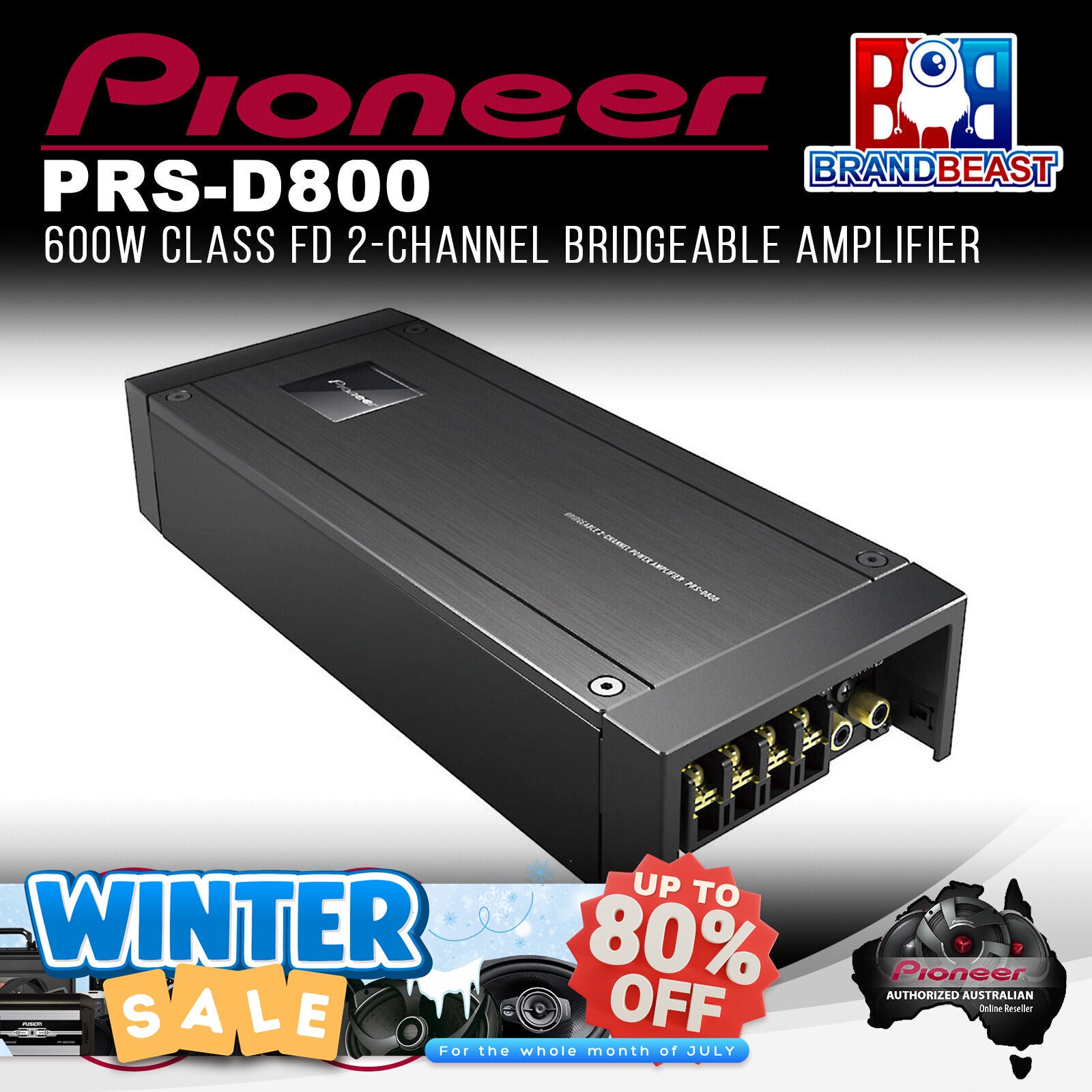

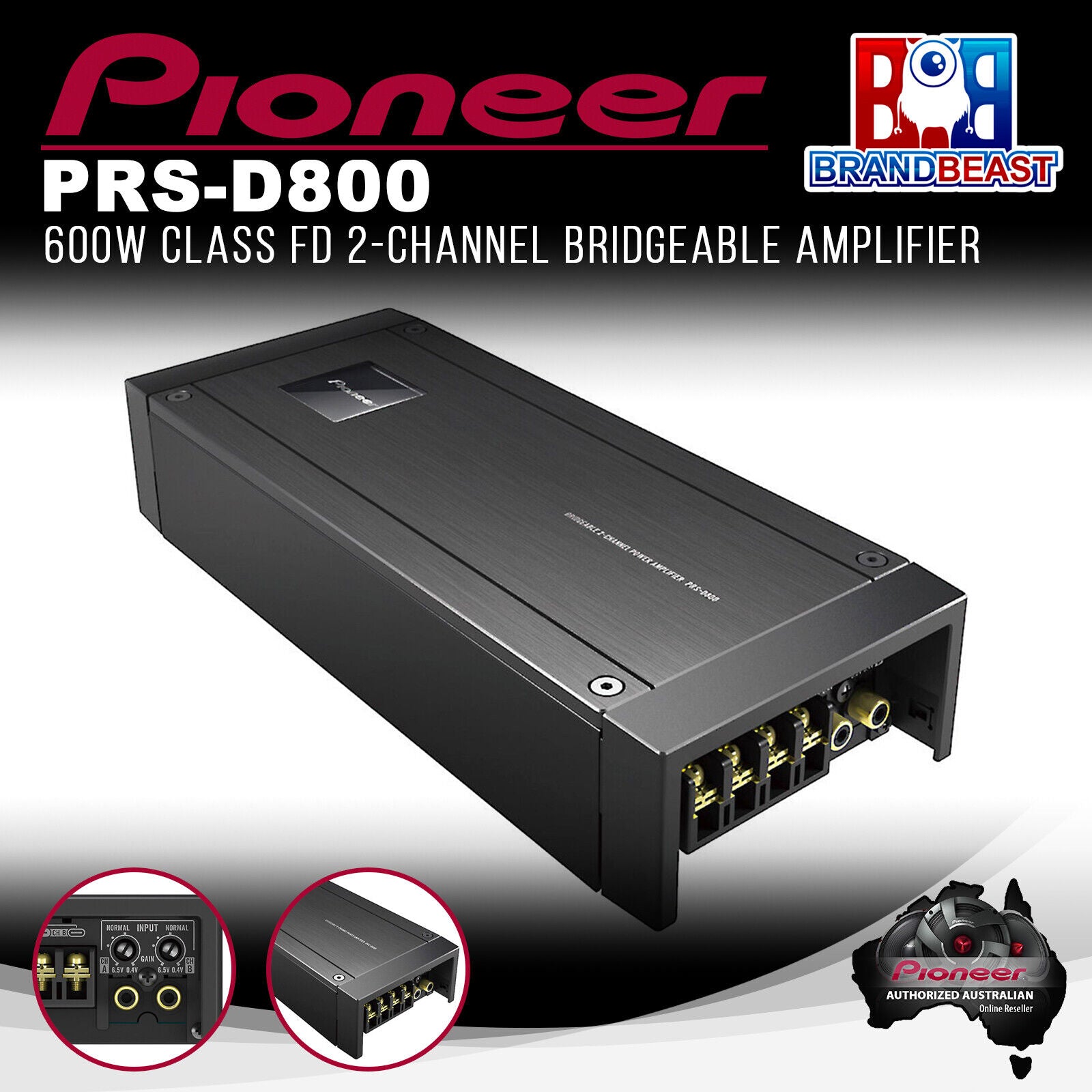

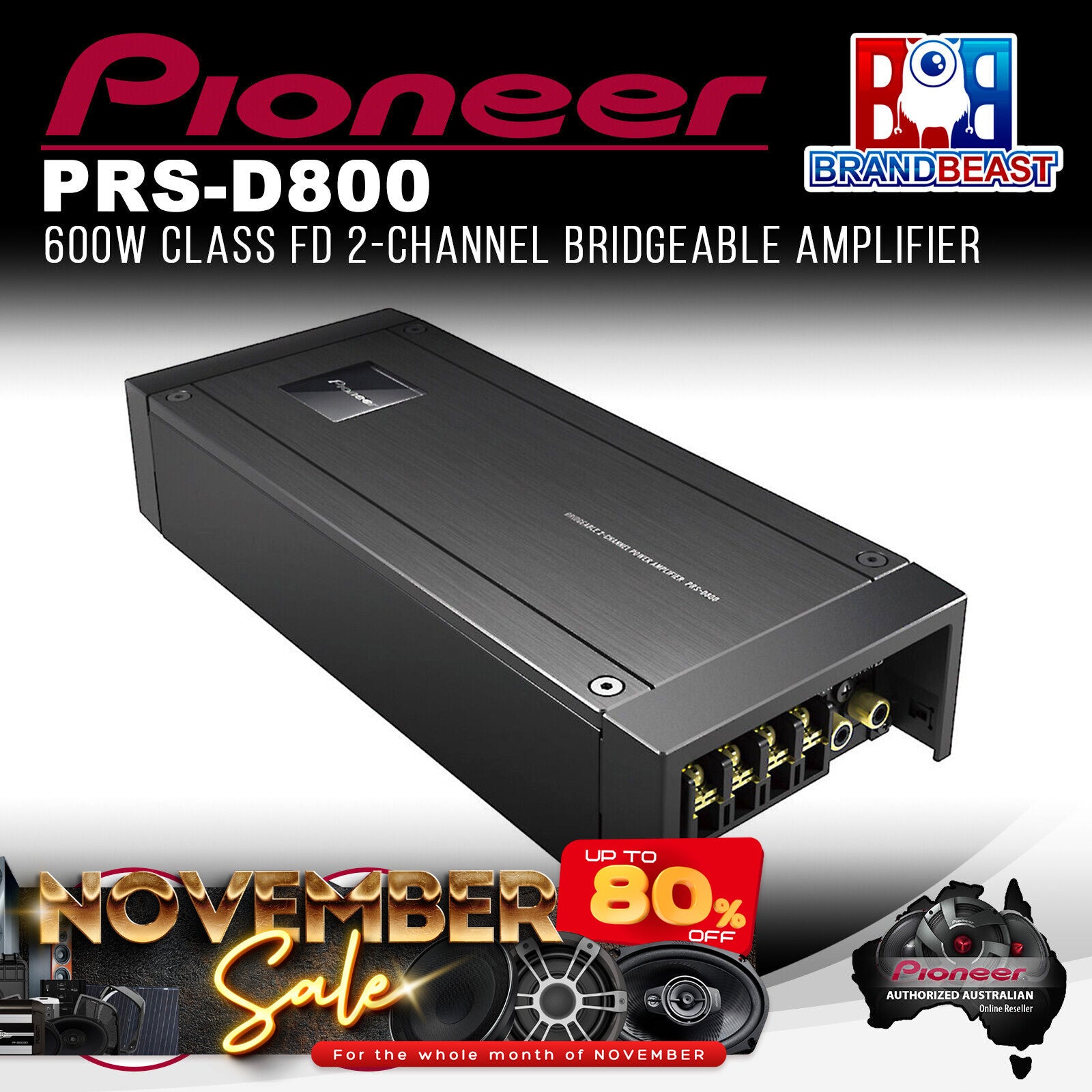

Pioneer PRS-D800 Class FD 2-Channel Bridgeable Amplifier

Description

The PRS-D800 2-Channel Amplifier Contains Audiophile Grade Components That Were Carefully Selected and Designed to Achieve the Highest Audio Quality

Compact Design The ultra-compact design of the PRS-D800 gives you a multitude of installation options. Functionally separated circuit layout and four-layer circuit board are designed to integrate mounted parts, reduce circuit impedance, and maintain high performance and sound quality. The design's efficient heat dissipation is ideal for an amplifier that is compact enough to be installed in various places in a vehicle. Flexible Connectivity The PRS amplifier is designed for a sense of unity in parallel connections, allowing for flexible amplifier combinations and installation according to system configuration. A “mode switch” makes left- and right-channel independent systems possible. Features:
  • High-Performance High-Slew Rate Operational Amp: The PRS amplifier includes Linear Technology Corporation's high-performance high-slew rate operational amplifier in the circuitry that generates PWM (Pulse Width Modulation) signals from analog input signals with amazing accuracy. The result: very linear music reproduction with a low distortion rate.
  • Electrolytic Capacitor for Audio: Extensive listening tests went into selecting and mounting an audio capacitor for optimal audio frequency response and dynamic range that are characteristics of high-end sound tone and detail.
  • OFC (Oxygen-Free Copper) Wire Coil for Output: The LPF output of the Class-FD amplifier features an OFC wire coil for low DC (Direct Current) resistance and low loss so that speakers can be driven strongly to produce tight bass and a clear, vivid mid- and high-range sound.
  • TVC (Total Vibration Control): Anti-vibration material under the transformer thoroughly eliminates vibration that normally blocks sound when high current is applied, enhancing power flow stability, minimizing distortion, and raising signal-to-noise ratio.
Specifications:
  • Maximum Power: 600 W
  • Frequency Response: 10 - 30.000
  • Input level control: 400 mV to 6.5 V (A/B Independent)
  • Distortion: <0.004
  • S/N Ratio: >105
  • Max. current consumption: 6.4 A / 4 Œ© for two channels
  • Chassis Size (W x H x D): 255 x 50 x 104
  • Unit weight: 1.6
  • Continuous power output:
    • 125 W RMS x 2 Channels (at 14.4V, 4 Œ©)
    • 150 W RMS x 2 Channels (at 14.4V, 2 Œ©)
    • 300 W RMS x 1 Channel (at 14.4V, 4 Œ© BRIDGE)
  • Car Amplifier Group: Yes
  • Pioneer Reference Series (PRS): Yes
  • Load impedance capability: 2 Œ© - 8 Œ© Stereo
  • CEA 2006 Power:
    • 2 Channels at 14.4V, 4 Œ©
    • 2 Channels at 14.4V, 2 Œ©
    • 1 Channel at 14.4V, 4 Œ© BRIDGE
  • RCA terminals: 2-Ch. (Gold-plated)
  • High Voltage Input Capability: Yes
  • Speaker Terminals: Screw-type
  • 2-channel: Yes
  • High-performance balanced isolator circuit:
  • Compact size: Yes
  • MOSFET output section: Yes
  • D-class: Yes

Legendary Products & Support From Authorized Dealers

When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Pioneer dealer today!

Pioneer PRS-D800 Class FD 2-Channel Bridgeable Amplifier

Product form

The PRS-D800 2-Channel Amplifier Contains Audiophile Grade Components That Were Carefully Selected and Designed to Achieve the Highest Audio Quality... Read more

SKU: PRSD800

  • In Stock

$499.00 Incl. VAT
