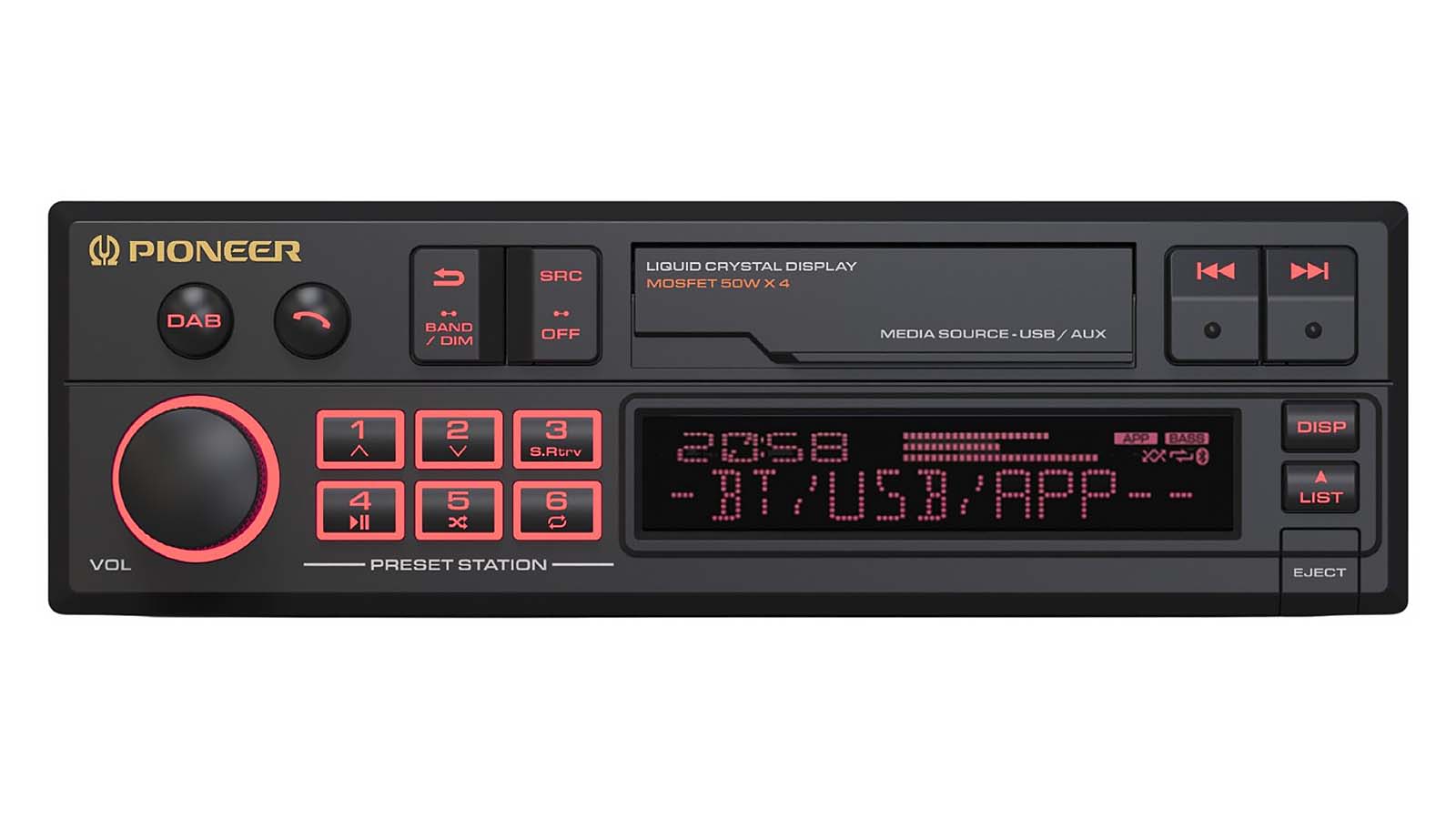

Pioneer SXT-C10PS Retro Radio Digital Media Receiver
Retro outside, smart inside — the Pioneer SXT-C10PS is the ultimate single DIN head unit for classic car enthusiasts who refuse to sacrifice modern technology for style, delivering DAB+ digital radio, Bluetooth, USB smartphone integration, and a 13-band EQ wrapped in an iconic 1985-inspired cassette-deck design.
Product Overview

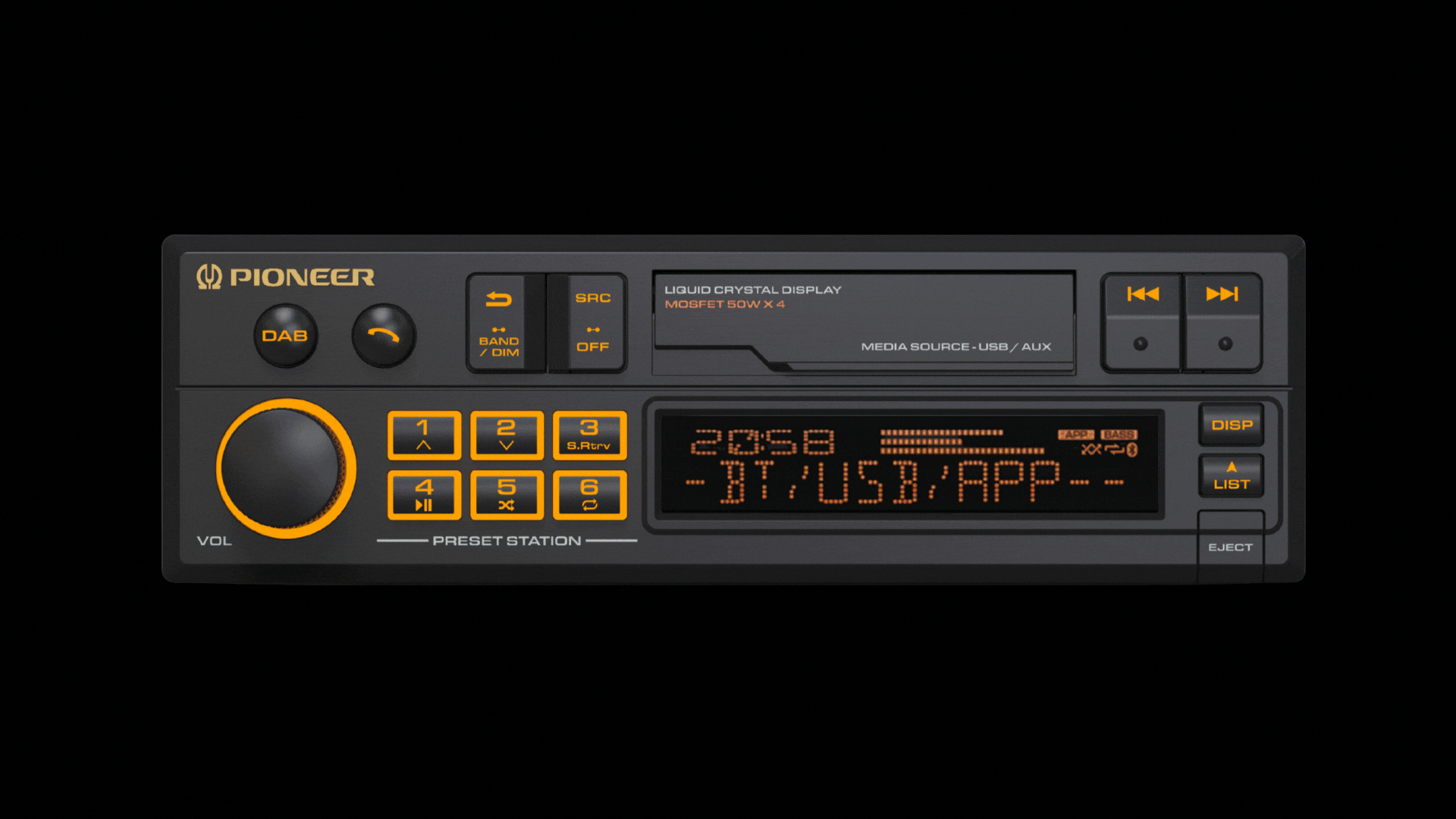

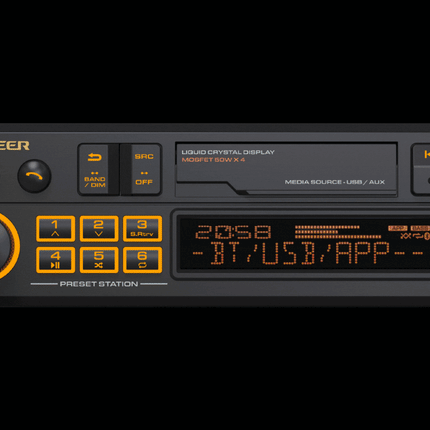

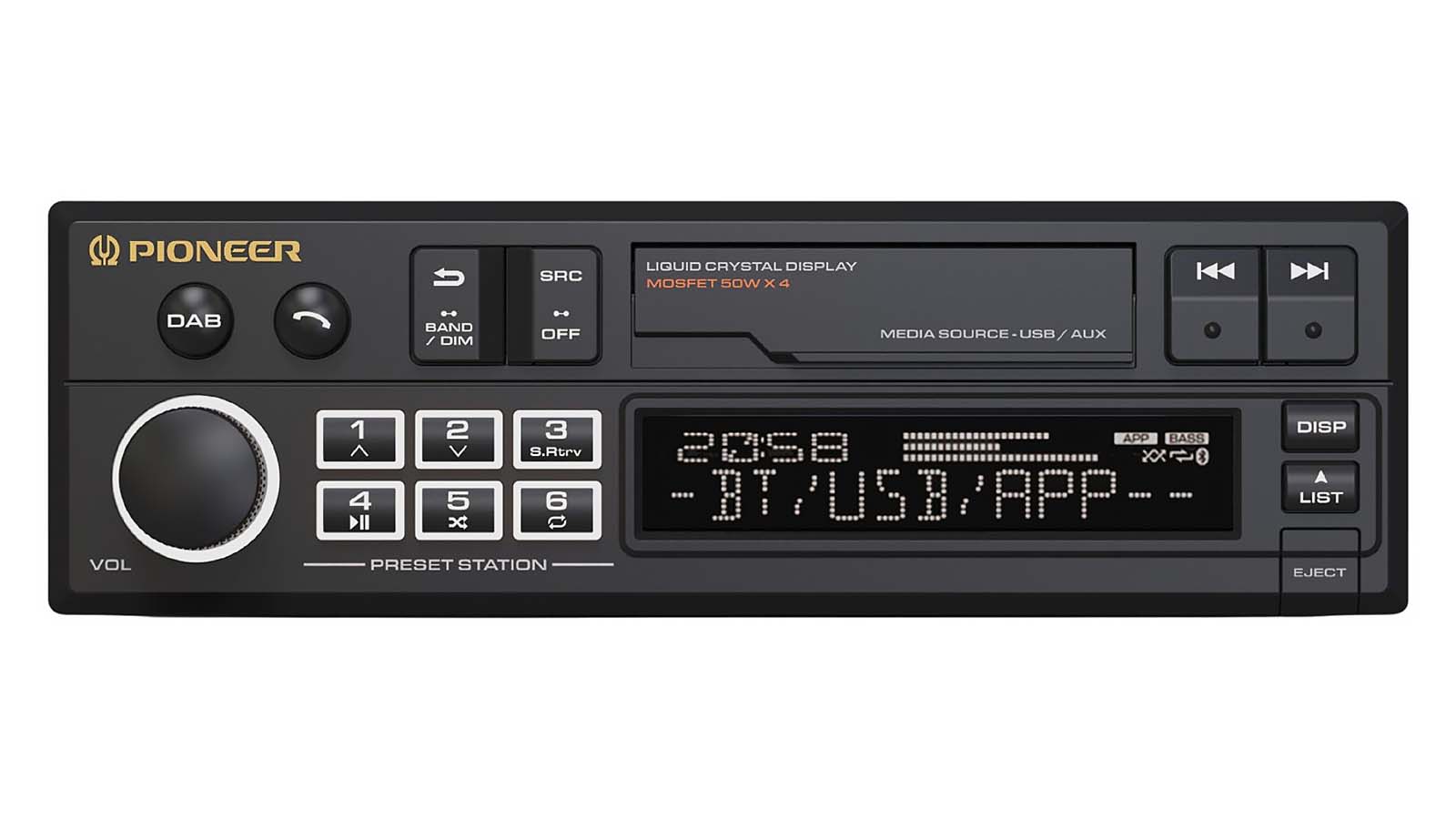

The Pioneer SXT-C10PS is a single DIN digital media receiver inspired by the original Pioneer KE-3080 cassette radio from 1985, recreating the iconic matt-finish cassette-deck aesthetic, old school Pioneer logo, and retro styling that made that era of car audio legendary — while concealing a full suite of modern connectivity features behind a hinged media cover.

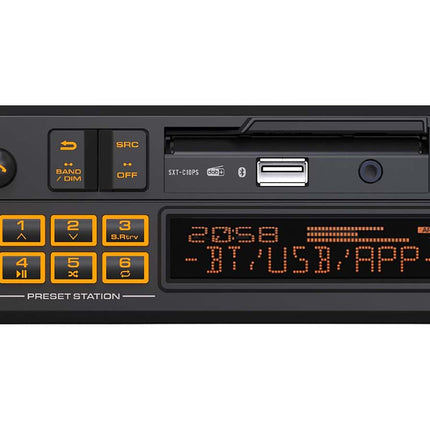

Lift the cover and you'll find a front-facing USB input and 3.5mm AUX input cleverly hidden to maintain the classic look on the outside. Under the hood, the SXT-C10PS delivers DAB+ digital radio with selectable phantom power, RDS FM and AM tuning, Bluetooth hands-free calling and music streaming, Pioneer Smart Sync 2 app support, and USB connectivity for both Apple iPhone and Android devices.
Audio performance is driven by a MOSFET amplifier rated at 4x 50W with three RCA pre-outs covering front, rear, and subwoofer channels. A 13-band graphic equaliser, Dynamic Bass Enhancer, Time Alignment, Advanced Sound Retriever, and 3-way network mode provide professional-level tuning capability well beyond what the retro exterior suggests.

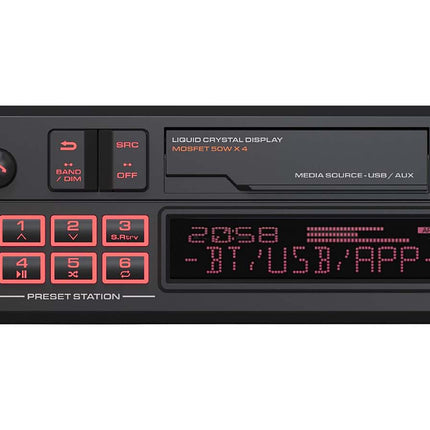

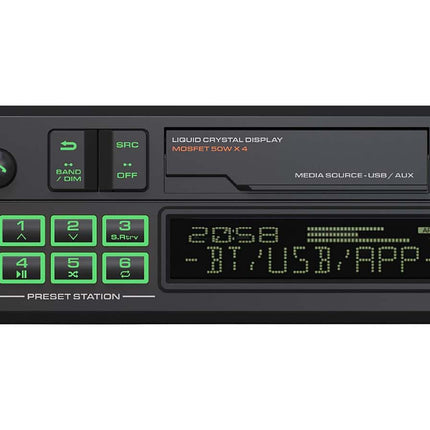

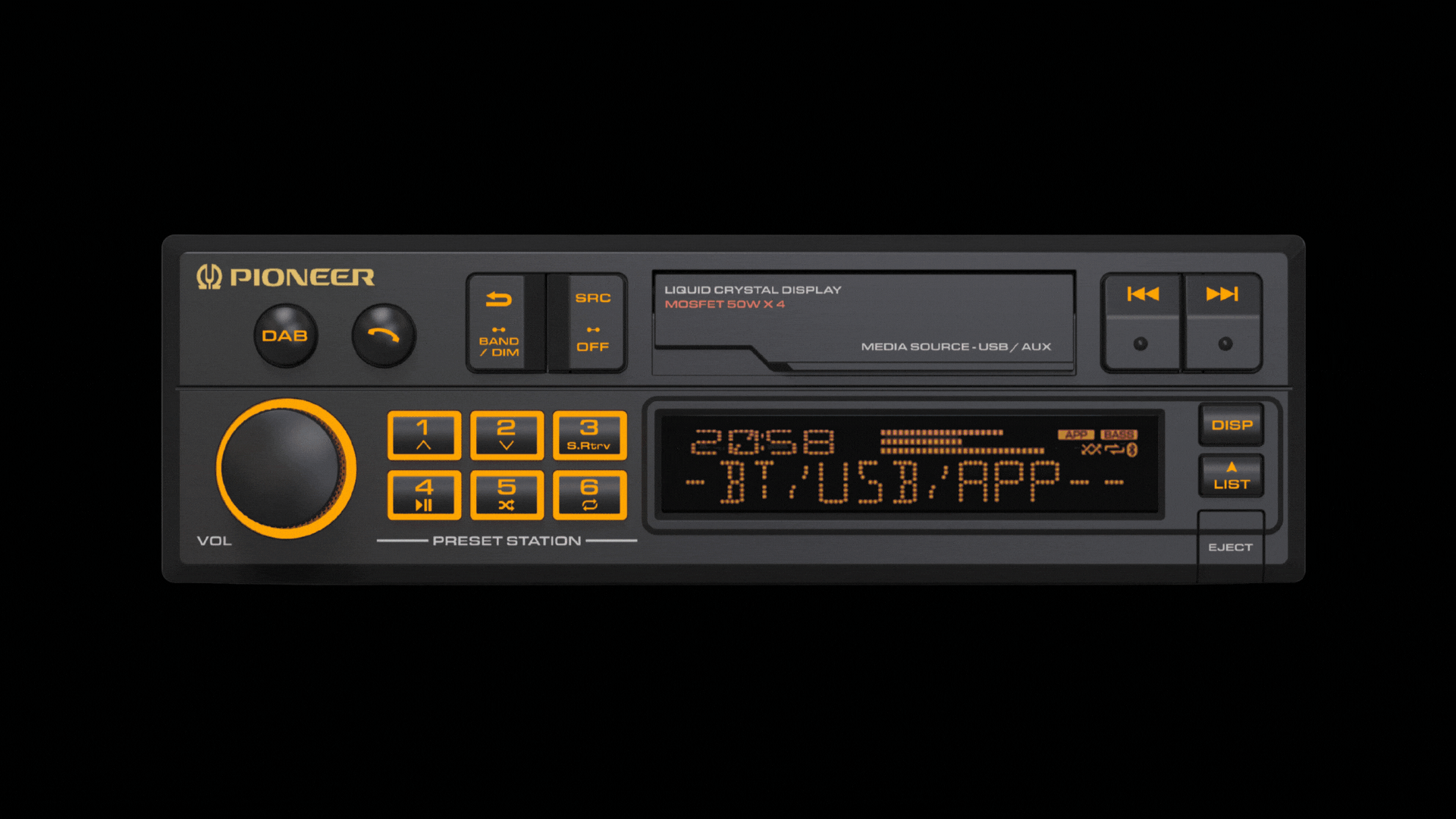

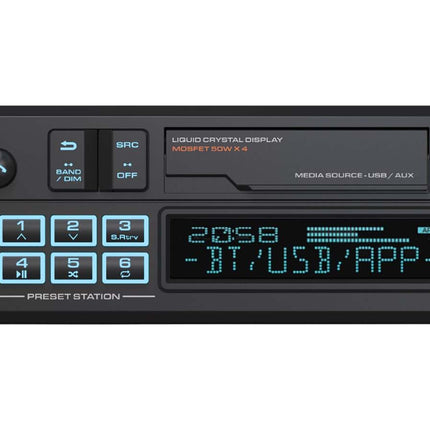

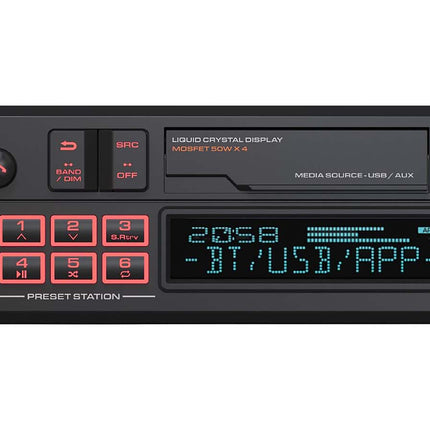

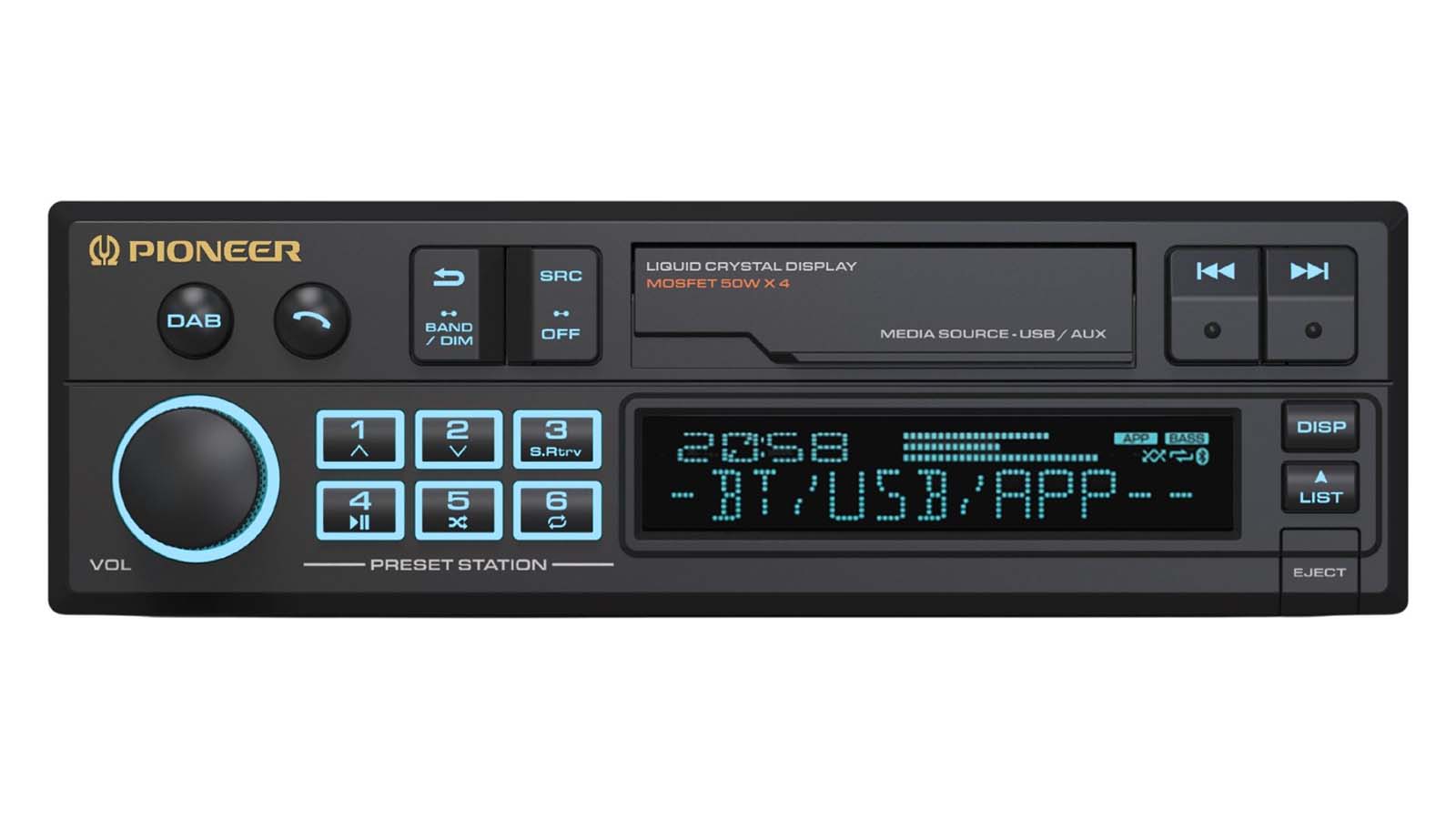

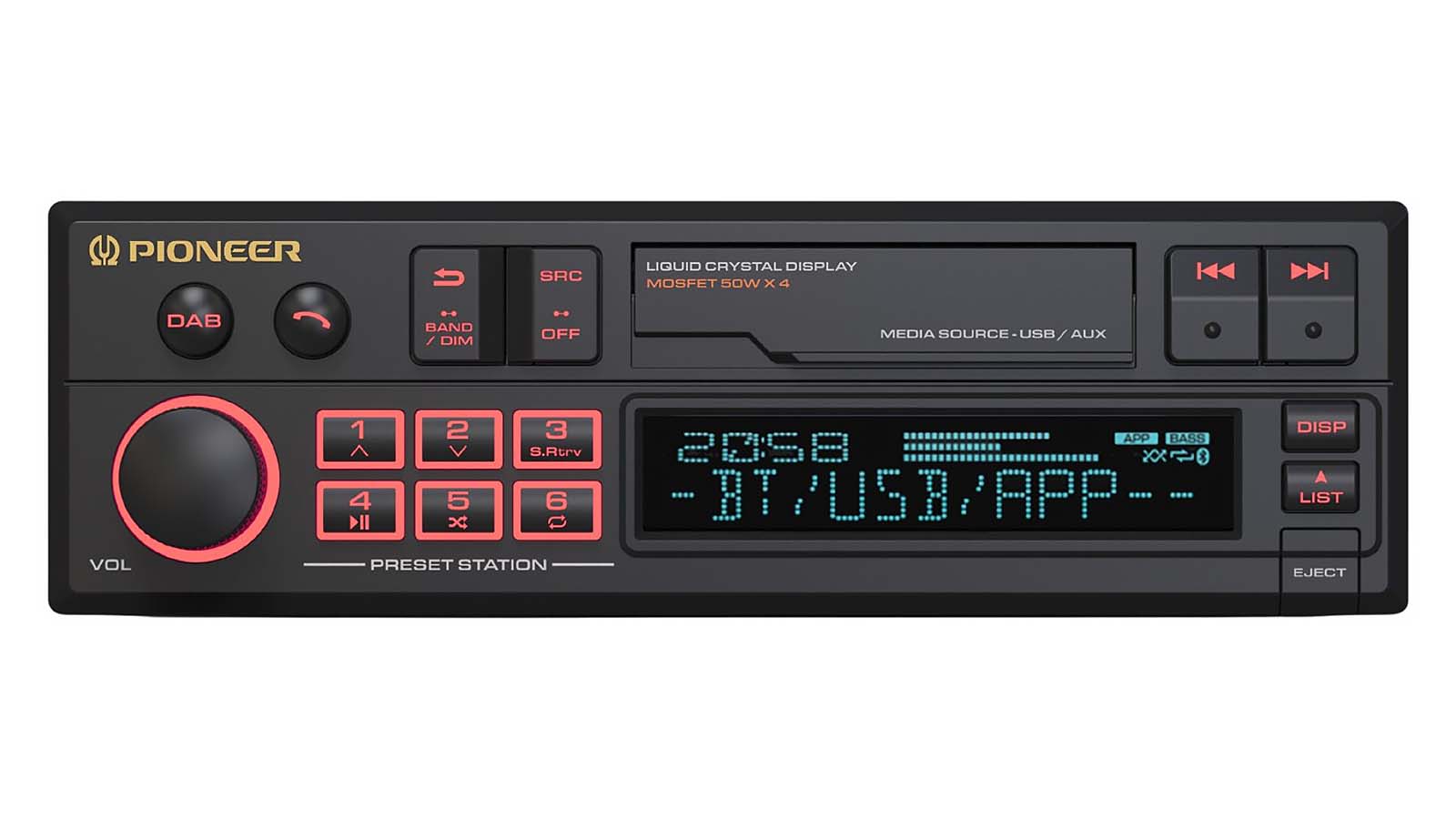

The dot matrix LCD display supports 12 preset illumination colours plus full RGB control, with separate key and display colour adjustment and dimming control — letting you match the dashboard lighting of any classic vehicle build.
Features & Benefits
-
1985-inspired retro design modelled on the original Pioneer KE-3080 cassette radio with matt finish, cassette-deck style media cover, and vintage Pioneer logo
-
Hidden modern connectivity with front USB input and 3.5mm AUX concealed behind the media cover to maintain the retro aesthetic
-
DAB+ digital radio with selectable phantom power, plus RDS FM and AM tuner with Best Station Memory
-
Bluetooth for hands-free phone calls and wireless music streaming
-
USB Apple iPhone and Android support for compatible smartphones
-
Pioneer Smart Sync 2 app support for safe and convenient smartphone app integration in the car
-
13-band graphic equaliser for precise audio tuning across the full frequency range
-
MOSFET amplifier 4x 50W (4 Ohm) with options for 2x 50W plus 1x 70W subwoofer output at 2 Ohm
-
Advanced Sound Retriever restoring audio quality from compressed digital files and Bluetooth streams
-
Time Alignment precisely adjusting speaker output timing so sound from all speakers reaches the driver's ears in sync
-
3-way network mode enabling 2-way plus subwoofer multi-amp and multi-speaker system configurations
-
Multi-colour dot matrix LCD with 12 preset colours plus RGB control, separate key and display colour control, dimming and brightness adjustment
-
FLAC lossless audio playback plus WMA, MP3, WAV, and AAC file support via USB
-

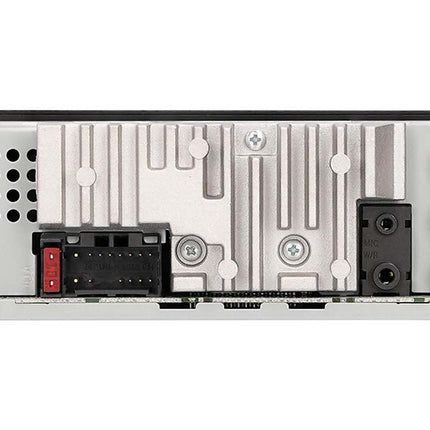

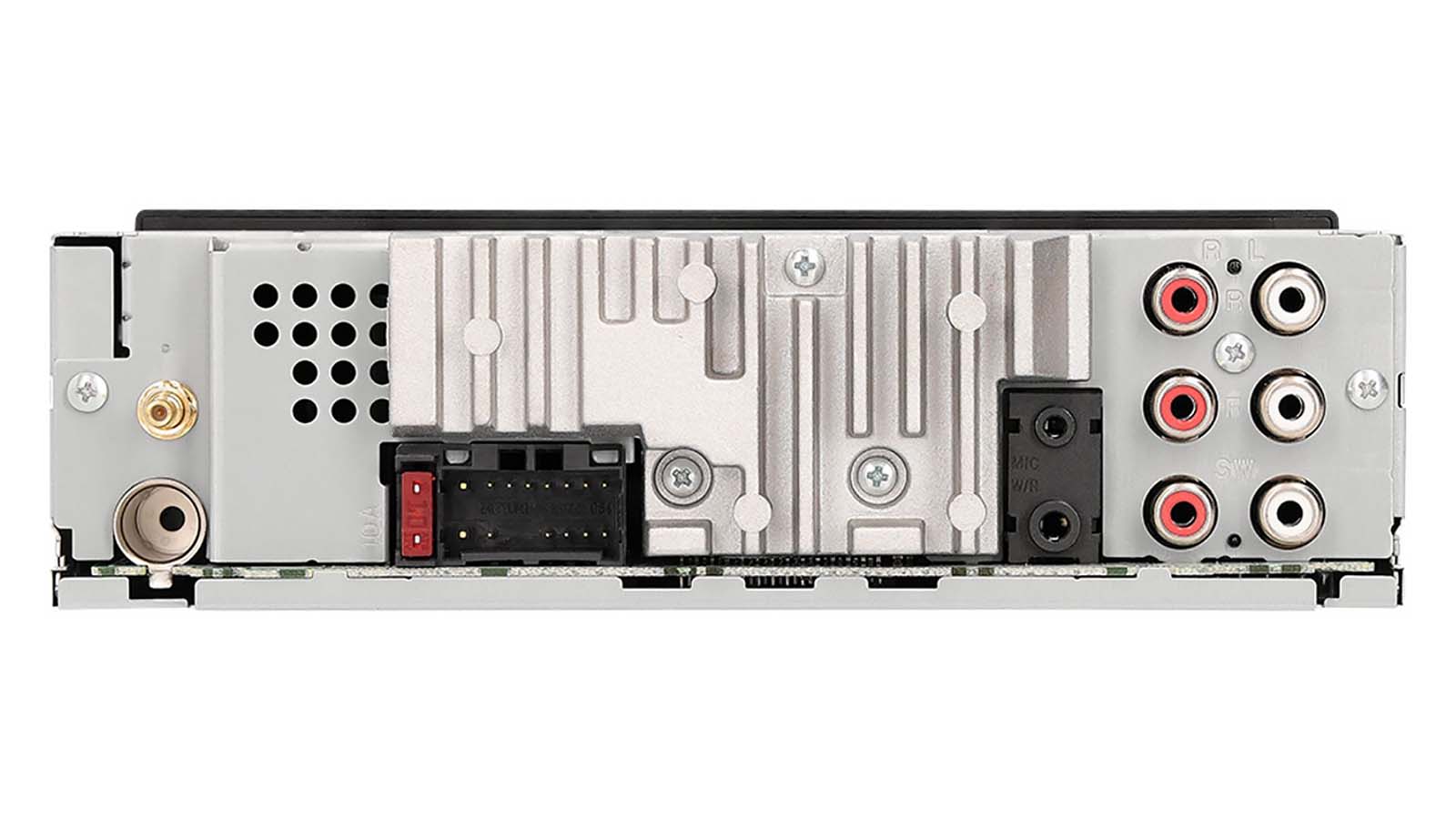

3 RCA pre-outs (front, rear, subwoofer) for external amplifier connection
-
Detachable front panel anti-theft security with memory backup
- Includes hands-free microphone, mounting chassis, DIN ISO adaptor cable, and unlocking tools
Technical Specs
| Specification |
Details |
| Part Number |
SXT-C10PS |
| Brand |
Pioneer |
| Installation Type |
Single DIN |
| Design Inspiration |
Pioneer KE-3080 (1985) |
| DAB+ Digital Radio |
Yes (Selectable Phantom Power) |
| FM Tuner |
Yes (RDS) |
| AM Tuner |
Yes |
| Bluetooth |
Yes (Calls and Music Streaming) |
| USB Inputs |
1 (Front, Hidden) |
| AUX Input |
3.5mm (Front, Hidden) |
| App Support |
Pioneer Smart Sync 2 |
| Amplifier Type |
MOSFET |
| Power Output |
4x 50W (4 Ohm) |
| Subwoofer Output |
1x 70W (2 Ohm) |
| Continuous Power Output |
4x 22W (50Hz-15kHz, 5% THD, 4 Ohm) |
| Load Impedance |
4 Ohm (4-8 Ohm, 2 Ohm for 1 channel) |
| Preout Max Output Level |
2.0V |
| RCA Pre-Outs |
3 (Front, Rear, Subwoofer) |
| Graphic Equaliser |
13-Band |
| Dynamic Bass Enhancer |
Yes |
| Advanced Sound Retriever |
Yes |
| Time Alignment |
Yes |
| Listening Position Selector |
Yes |
| Speaker Mode |
Standard or 3-Way Network Mode |
| High Pass Filter |
Yes |
| Low Pass Filter |
Yes |
| Subwoofer Control |
Yes (Subwoofer Optional) |
| Audio Formats |
FLAC, MP3, WMA, WAV, AAC |
| Display |
Dot Matrix LCD |
| Illumination |
12 Preset Colours plus RGB, Separate Key and Display Control |
| Clock |
12/24 Hour |
| Anti-Theft |
Detachable Front Panel |
| Remote Control Ready |
Yes (Hard-Wired) |
| Power |
12V DC (10.8V to 15.1V) |
| Max Current Draw |
10A |
| DIN Chassis Dimensions |
178mm x 50mm x 165mm (W x H x D) |
| Nose Dimensions |
187mm x 57mm x 24mm |
| Weight |
0.724kg |
| Included Accessories |
Unlocking Tools, Mounting Chassis, Manual, Hands-Free Microphone (3m), Power and Speaker DIN ISO Adaptor Cable |
Compatible With / Goes Well With
The Pioneer SXT-C10PS is suited for single DIN head unit installations across a wide range of vehicles including:
-

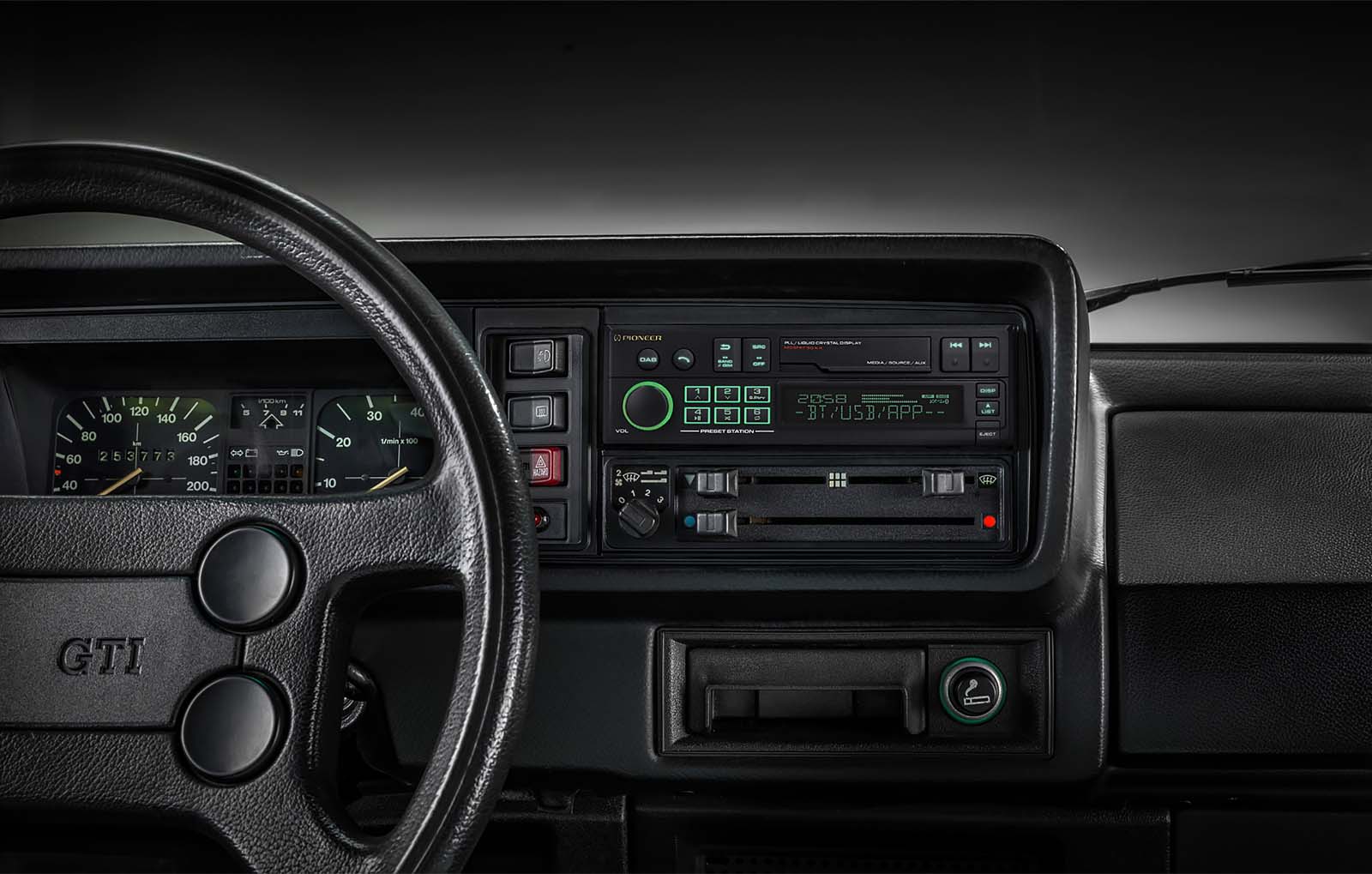

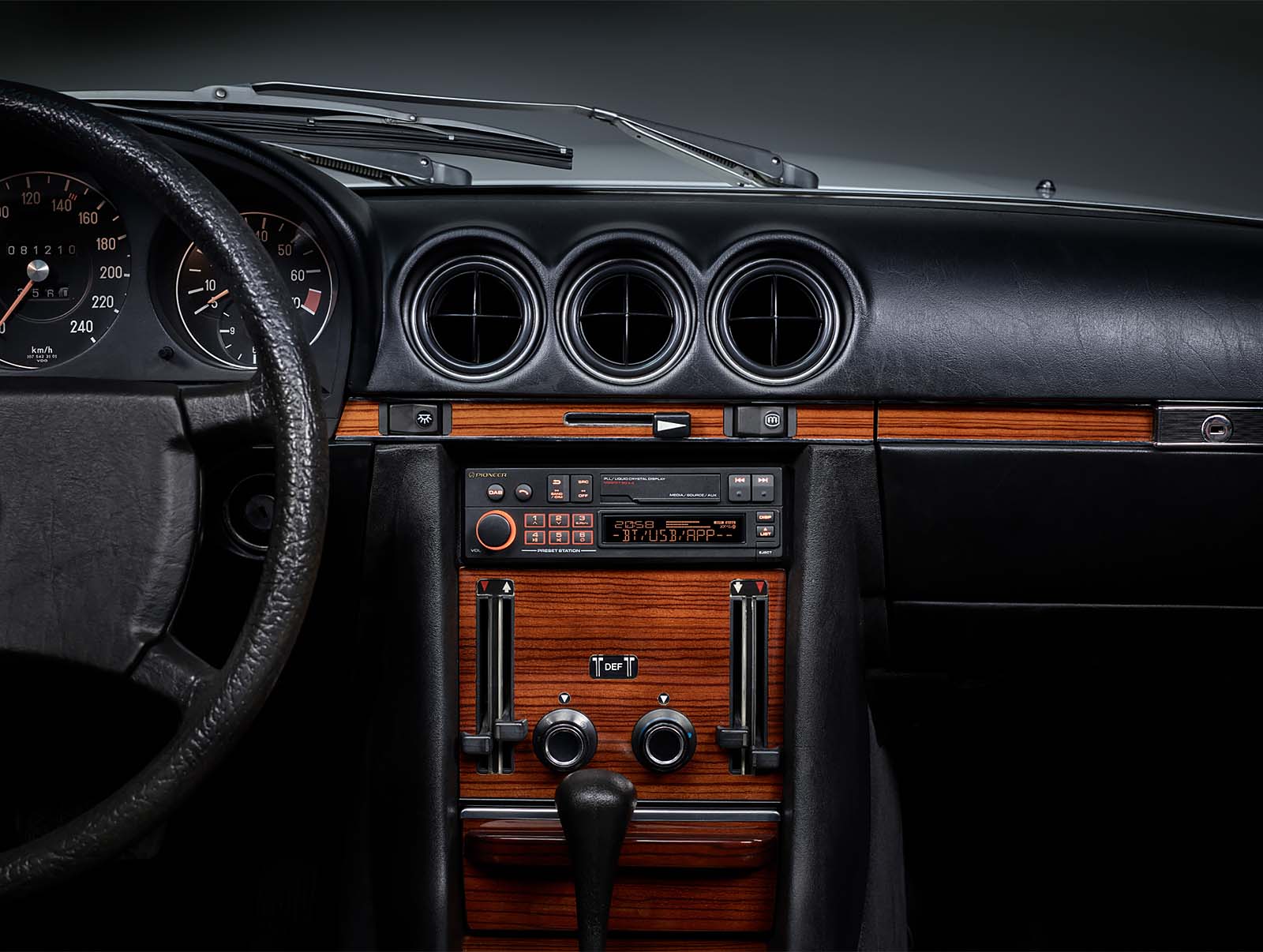

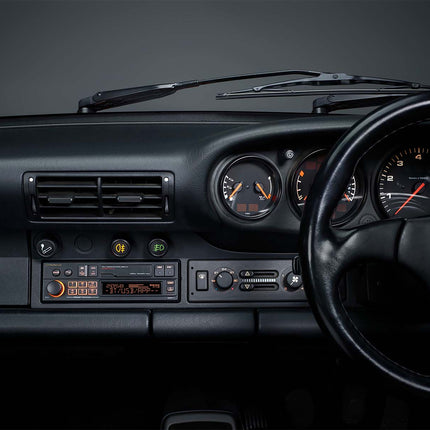

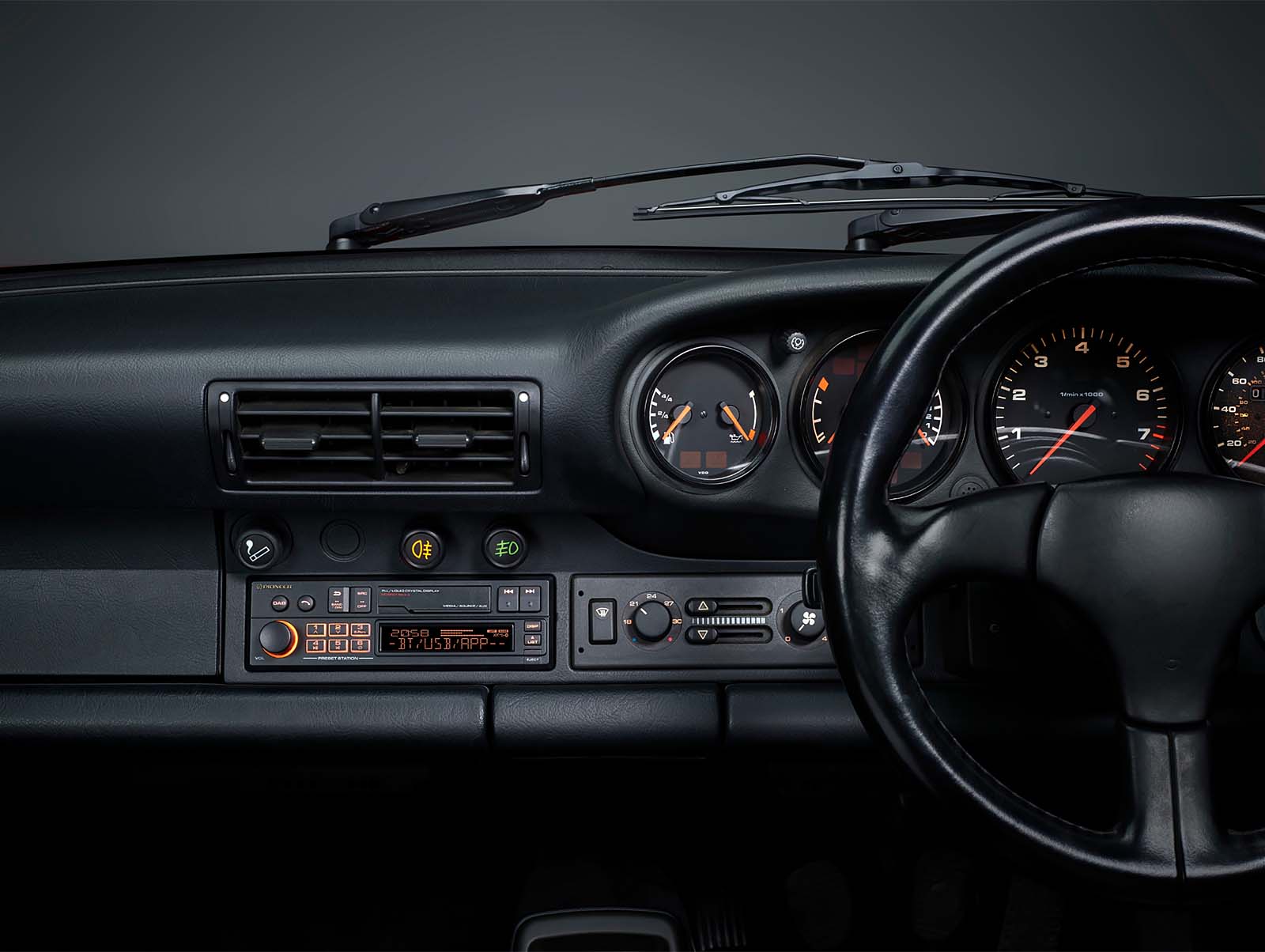

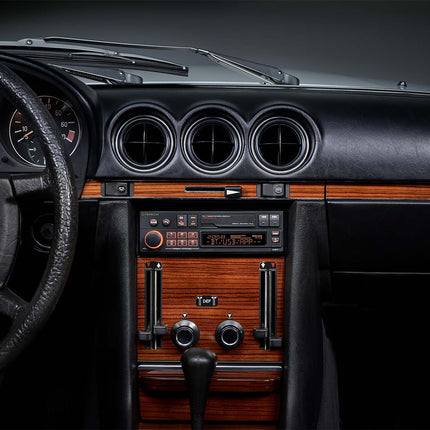

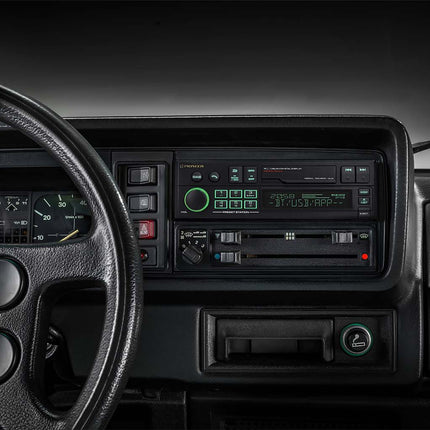

Classic and vintage vehicles from the 1960s through 1990s where the retro aesthetic provides a period-correct or sympathetic dashboard upgrade
-
Restomod and custom builds where a vintage exterior look is desired alongside full modern audio technology
-
Modern vehicles with single DIN dash openings where the retro design makes a statement without requiring a double DIN conversion
-
Enthusiast vehicles including classic Fords, Holdens, Minis, VWs, and imported JDM models where retro styling suits the build theme
Goes well with:
- Pioneer TS series coaxial or component speakers (to complement the 13-band EQ and MOSFET amplifier output)
- Pioneer GM series external amplifiers (via the 3 RCA pre-outs for front, rear, and subwoofer channels)
- Pioneer TS-WX series compact subwoofers (for subwoofer output utilising the 1x 70W 2 Ohm channel)
- DAB+ antenna (if not already installed in the vehicle for digital radio reception)
Frequently Asked Questions
Q: How does the retro media cover work and does it affect usability?
A: The cassette-deck style media cover flips open to reveal the front USB input and 3.5mm AUX port, keeping the classic exterior clean and uncluttered when not in use. The cover does not affect playback controls or display visibility — the dot matrix LCD, control buttons, and volume knob remain accessible at all times. For daily use, USB devices or cables can be left connected through the open cover, or the cover can be closed around the cable depending on cable diameter.
Q: Can I control the illumination colour to match my vehicle's dashboard lighting?
A: Yes. The SXT-C10PS features 12 preset illumination colours plus full RGB control, with separate adjustment for key backlight colour and display colour independently. Dimming and brightness control is also available. This makes it straightforward to match the unit's lighting to the dash illumination of virtually any classic or modern vehicle, from warm amber period-correct tones through to modern white or blue dashboard lighting.
Q: Does the SXT-C10PS support wired Apple CarPlay or Android Auto?
A: No. The SXT-C10PS does not support Apple CarPlay or Android Auto. Smartphone integration is provided through Pioneer Smart Sync 2 app support and USB connectivity for compatible iPhones and Android devices, plus Bluetooth for hands-free calls and audio streaming. For CarPlay and Android Auto functionality, refer to the Pioneer floating screen or double DIN receiver range available at F.A.E.
Q: What does 3-way network mode mean and do I need it?
A: 3-way network mode allows the SXT-C10PS to be configured as the processor in a multi-amp, multi-speaker system with separate amplifier channels driving a high-range speaker, mid-range speaker, and subwoofer independently. This is an advanced audio setup used by enthusiasts building high-performance sound systems. For standard installations with coaxial speakers and an optional subwoofer, the standard speaker mode is all that is required.
Q: Is the detachable front panel anti-theft system easy to use daily?
A: Yes. The front panel removes with a single button press and reattaches simply by pressing it back into place. The unit includes a storage pouch or case for the panel, and memory backup ensures all settings, presets, and clock are retained when the panel is removed. This is a well-established single DIN security feature that Pioneer has refined over many years and is straightforward for daily use.
