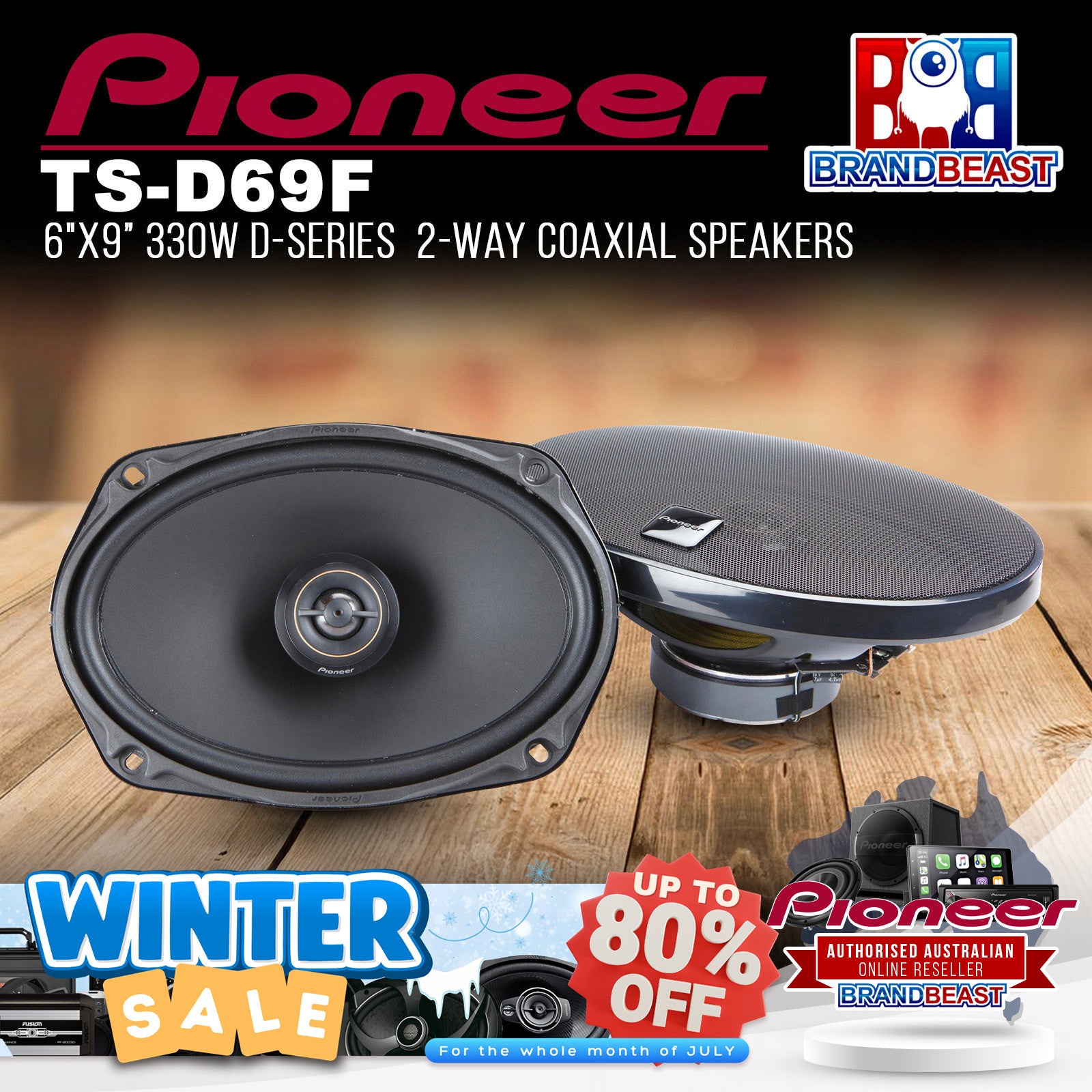

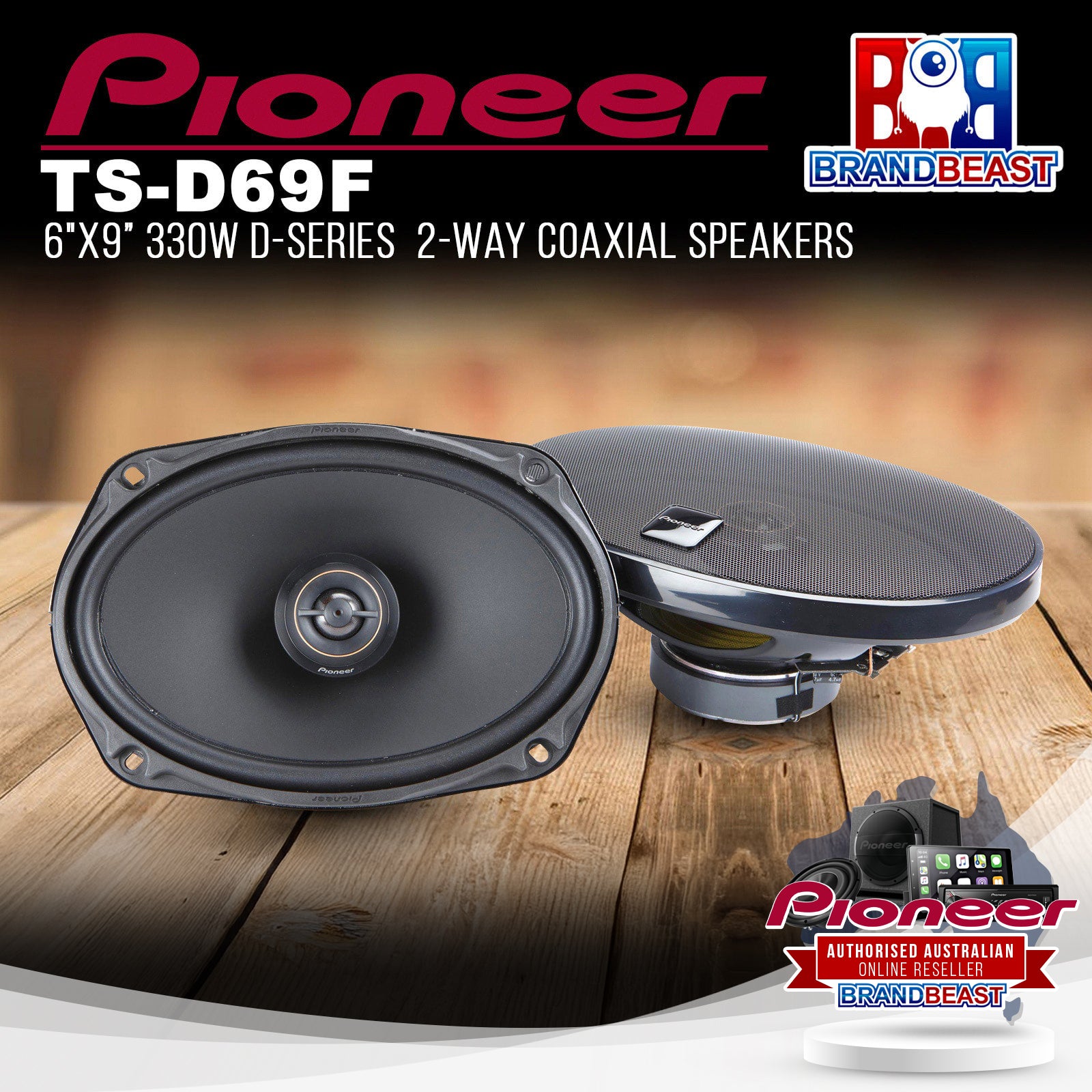

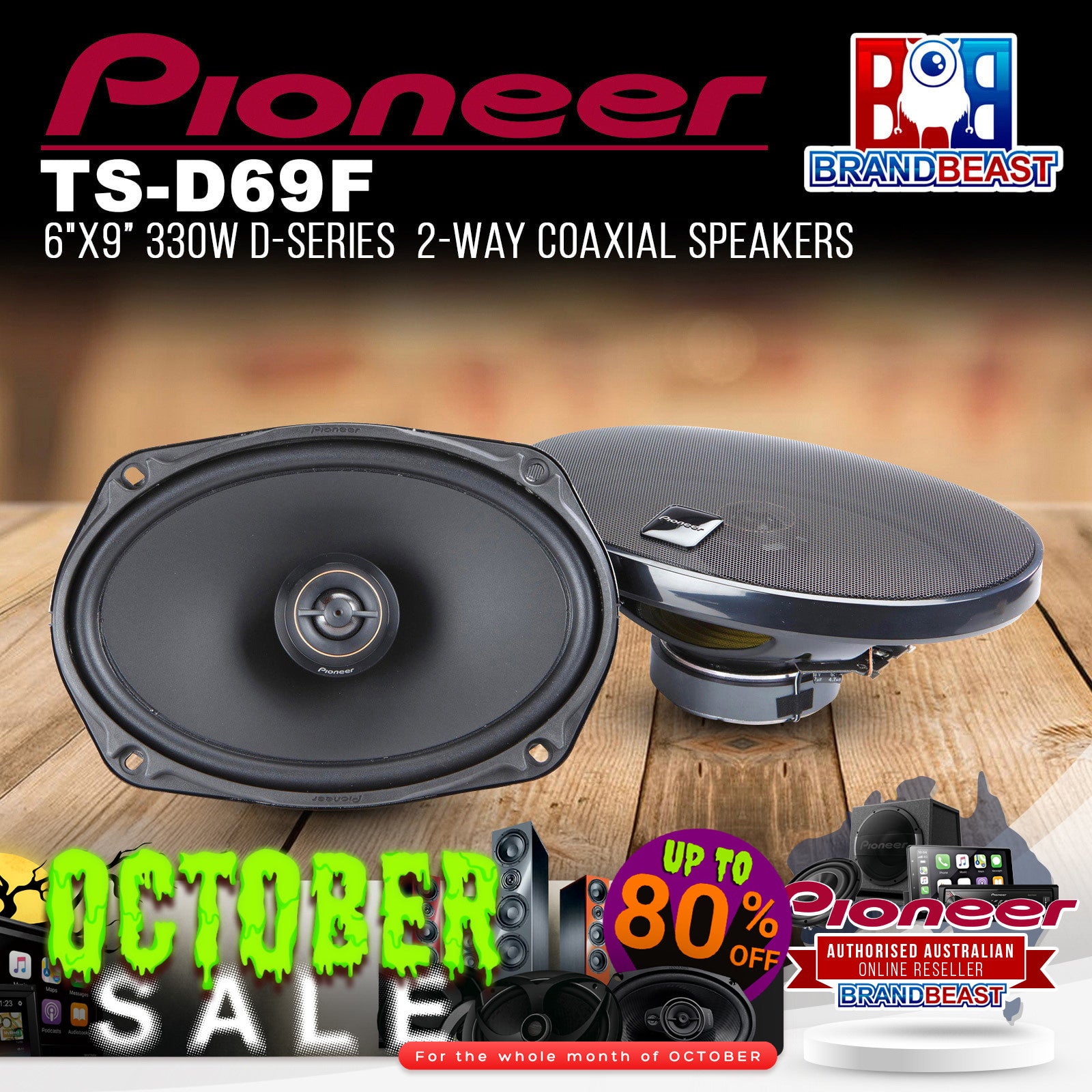

Pioneer TS-D69F 330W 6" x 9" Coaxial 2-Way Component Speaker System

Description

Sound Quality Unlike Any Other 6x9 Speaker!

D Full Range, Music for All The D is a result of Pioneer's automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities. Following Pioneer's OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener. 26mm Polyestersoft Dome Tweeter Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound. Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend Aramid fibers into the polypropylene resin during the injection molding process. The resulting Aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass. Features:
  • 330 Watts Max Power
  • 26mm Polyester Soft Dome Tweeter with Swivel Capability
  • Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
  • Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass & Sound
Specifications: General
  • Size: 6x9"
  • Design: 6x9" 2-Way Coaxial System
  • Tweeter Design: 26mm Soft Dome
  • Tweeter Composition: Polyester
  • Woofer Composition: Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
  • Woofer Surround: Butyl Rubber
  • Woofer Magnet Composition: Ferrite
  • Warranty: 1 Year
Installation Specification
  • Max. Music Power (Nominal): 330W Max (110W Nom)
  • Frequency Response: 33Hz to 42kHz
  • Sensitivity (1W/1 m): 87 dB
  • Impedance: 4‚Ѷ
  • Mounting Depth: 73mm
  • Cut-Out Dimensions: 153mm x 222mm

Legendary Products & Support From Authorized Dealers

When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Pioneer dealer today!

Pioneer TS-D69F 330W 6" x 9" Coaxial 2-Way Component Speaker System

Product form

Sound Quality Unlike Any Other 6x9 Speaker! D Full Range, Music for All The D is a result of Pioneer's... Read more

SKU: TSD69F

  • In Stock

$330.00 $247.03 Incl. VAT
