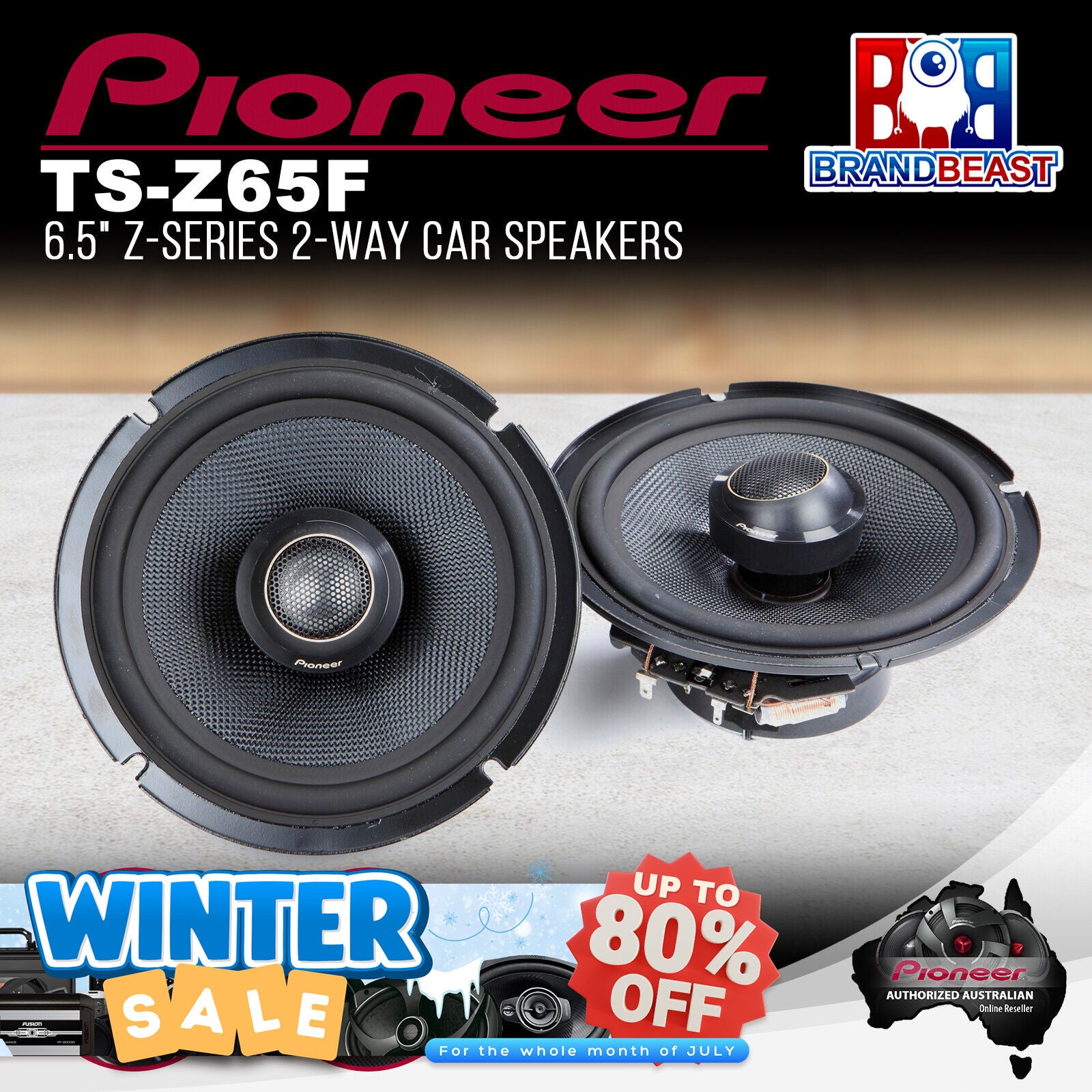

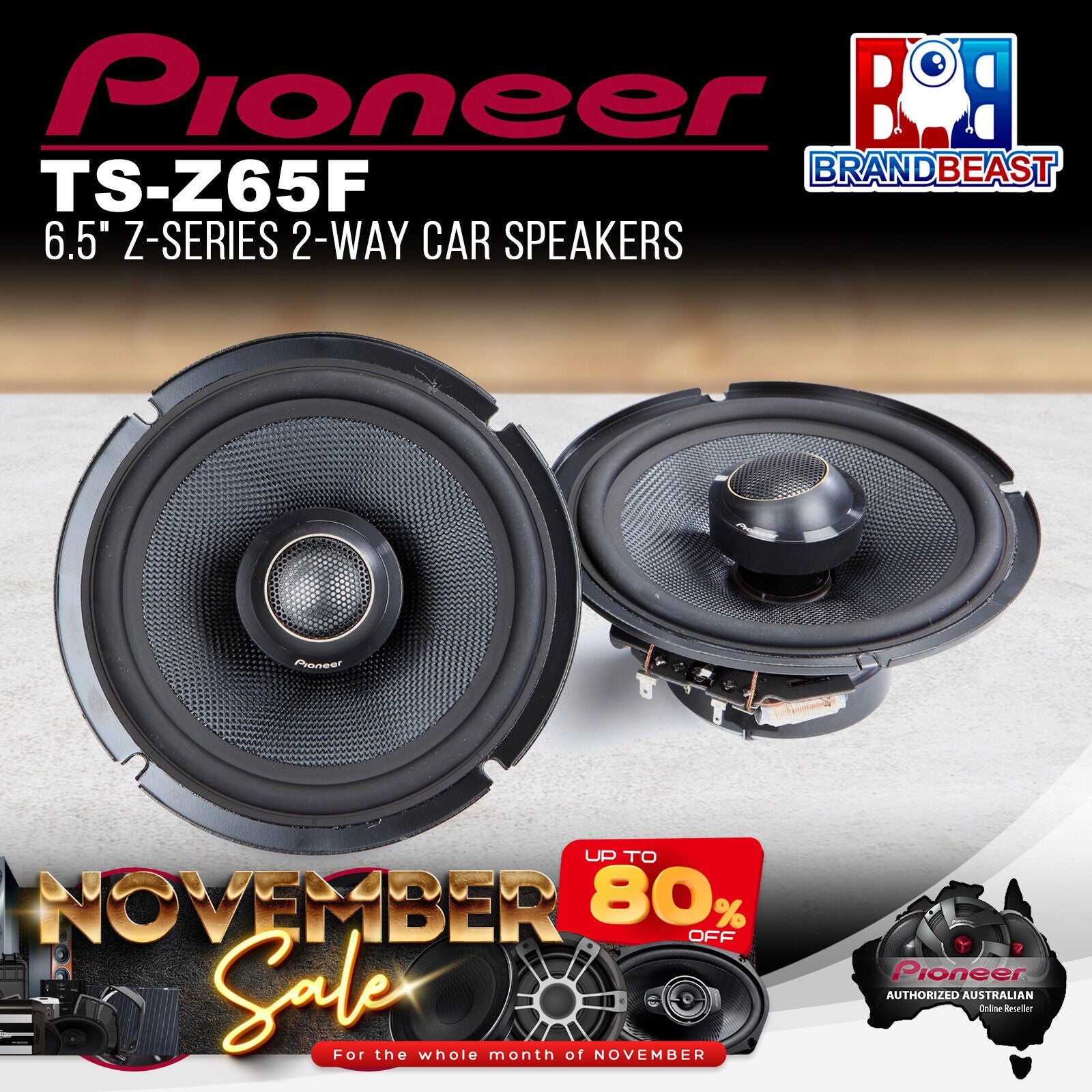

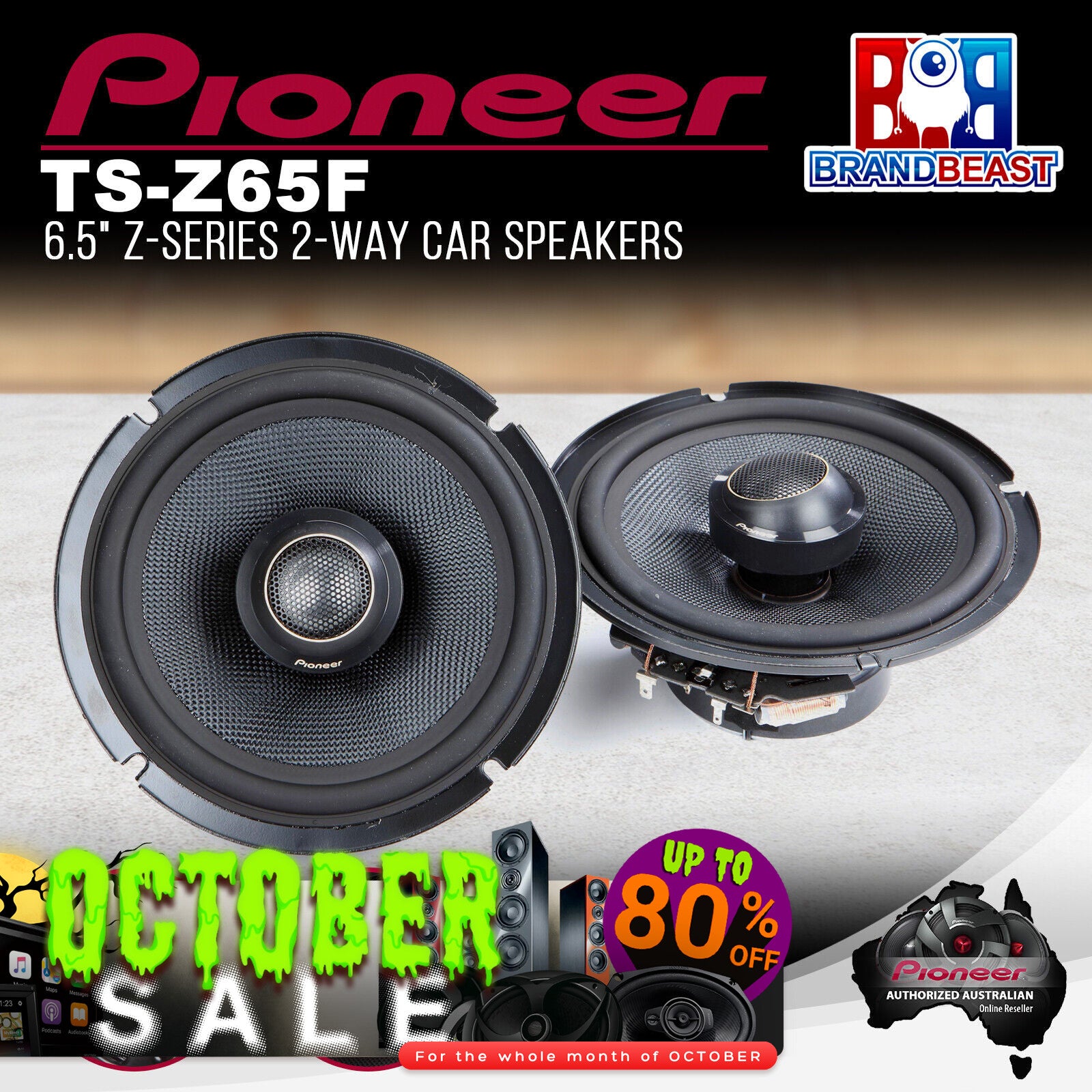

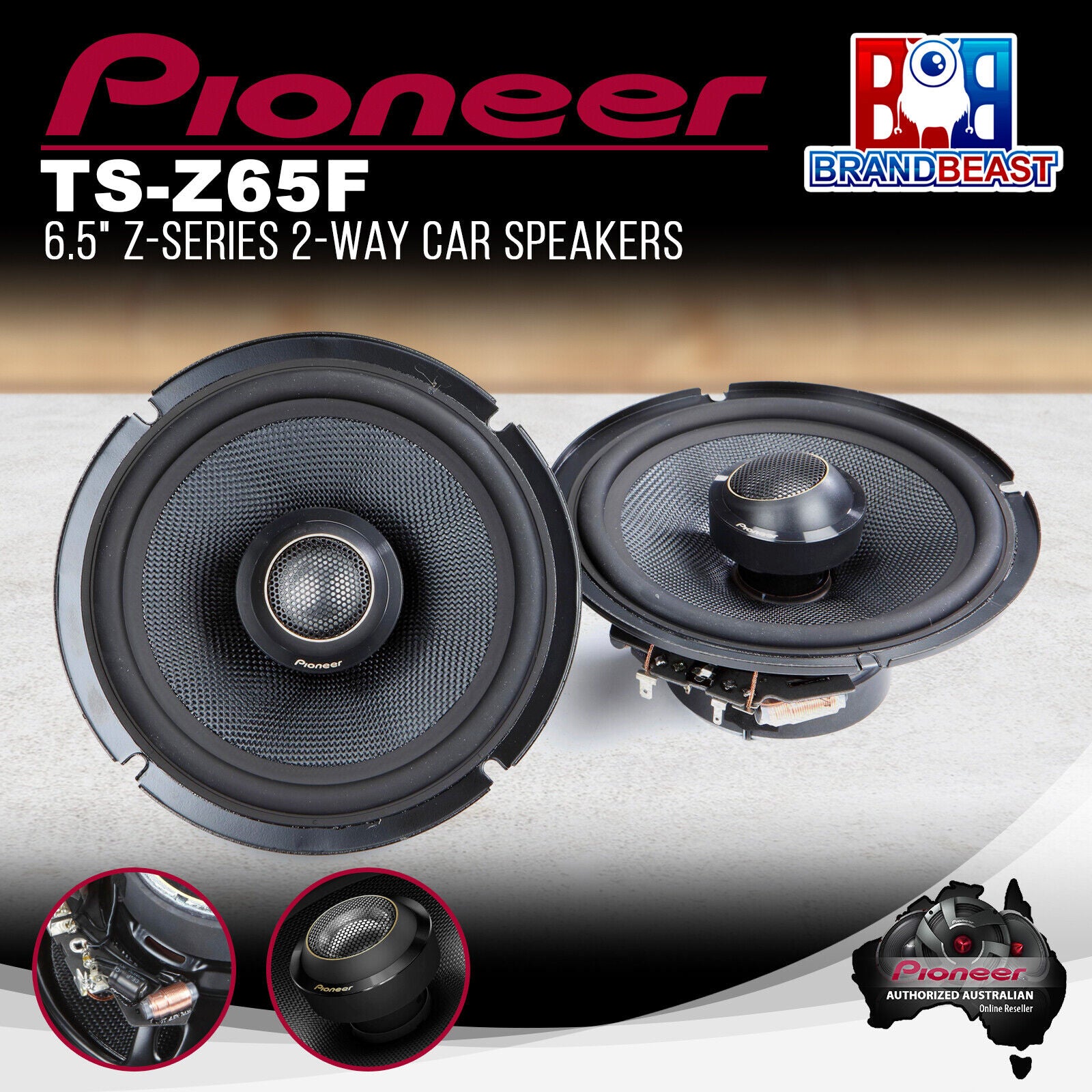

Pioneer TS-Z65F 300W 6.5" Coaxial 2-Way Coaxial Speaker System

Description

Z Full Range, No Compromises

The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability. The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from decades of automotive loudspeaker design theory and testing ability. Following Pioneer's OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers features smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car. The result is a purity of sound that achieves unprecedented audio artistry.
Designed for High-Res Audio The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that's clearer, sharper and more complex – reproducing music that is closer to the original performance. 29mm Aluminum Alloy Balanced Dome Tweeter The Z tweeter's aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion. Pioneer's Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling.
Features:
  • 300 Watts Max Power / 100W Nominal
  • 29mm Aluminum Allow Dome Tweeter with Vertex Drive System
  • Twaron Aramid Fibre Construction
  • Designed for High Res Audio
Specifications: General
  • Size: 6.5"
  • Design: 6.5" 2-Way Coaxial System
  • Tweeter Design: 29mm Balanced Dome
  • Tweeter Composition: Aluminum
  • Woofer Composition: Twaron
  • Woofer Surround: Butyl Rubber
  • Woofer Magnet Composition: Ferrite
  • Warranty: 1 Year
Installation Specification
  • Max. Music Power (Nominal): 330W MAX (110W Nom)
  • Frequency Response: 33Hz to 96kHz
  • Sensitivity (1W/1 m): 85dB
  • Impedance: 4‚Ѷ
  • Mounting Depth: 65mm
  • Cut-Out Dimensions: 144mm

Legendary Products & Support From Authorized Dealers

When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Pioneer dealer today!

Pioneer TS-Z65F 300W 6.5" Coaxial 2-Way Coaxial Speaker System

Product form

Z Full Range, No Compromises The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials... Read more

SKU: TSZ65F

  • In Stock

$435.00 $343.91 Incl. VAT

    Description

    Z Full Range, No Compromises

    The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability. The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from decades of automotive loudspeaker design theory and testing ability. Following Pioneer's OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers features smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car. The result is a purity of sound that achieves unprecedented audio artistry.
    Designed for High-Res Audio The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that's clearer, sharper and more complex – reproducing music that is closer to the original performance. 29mm Aluminum Alloy Balanced Dome Tweeter The Z tweeter's aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion. Pioneer's Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling.
    Features:
    • 300 Watts Max Power / 100W Nominal
    • 29mm Aluminum Allow Dome Tweeter with Vertex Drive System
    • Twaron Aramid Fibre Construction
    • Designed for High Res Audio
    Specifications: General
    • Size: 6.5"
    • Design: 6.5" 2-Way Coaxial System
    • Tweeter Design: 29mm Balanced Dome
    • Tweeter Composition: Aluminum
    • Woofer Composition: Twaron
    • Woofer Surround: Butyl Rubber
    • Woofer Magnet Composition: Ferrite
    • Warranty: 1 Year
    Installation Specification
    • Max. Music Power (Nominal): 330W MAX (110W Nom)
    • Frequency Response: 33Hz to 96kHz
    • Sensitivity (1W/1 m): 85dB
    • Impedance: 4‚Ѷ
    • Mounting Depth: 65mm
    • Cut-Out Dimensions: 144mm

    Legendary Products & Support From Authorized Dealers

    When you choose Pioneer, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized Pioneer dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by Pioneer's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized Pioneer dealer today!
