Description

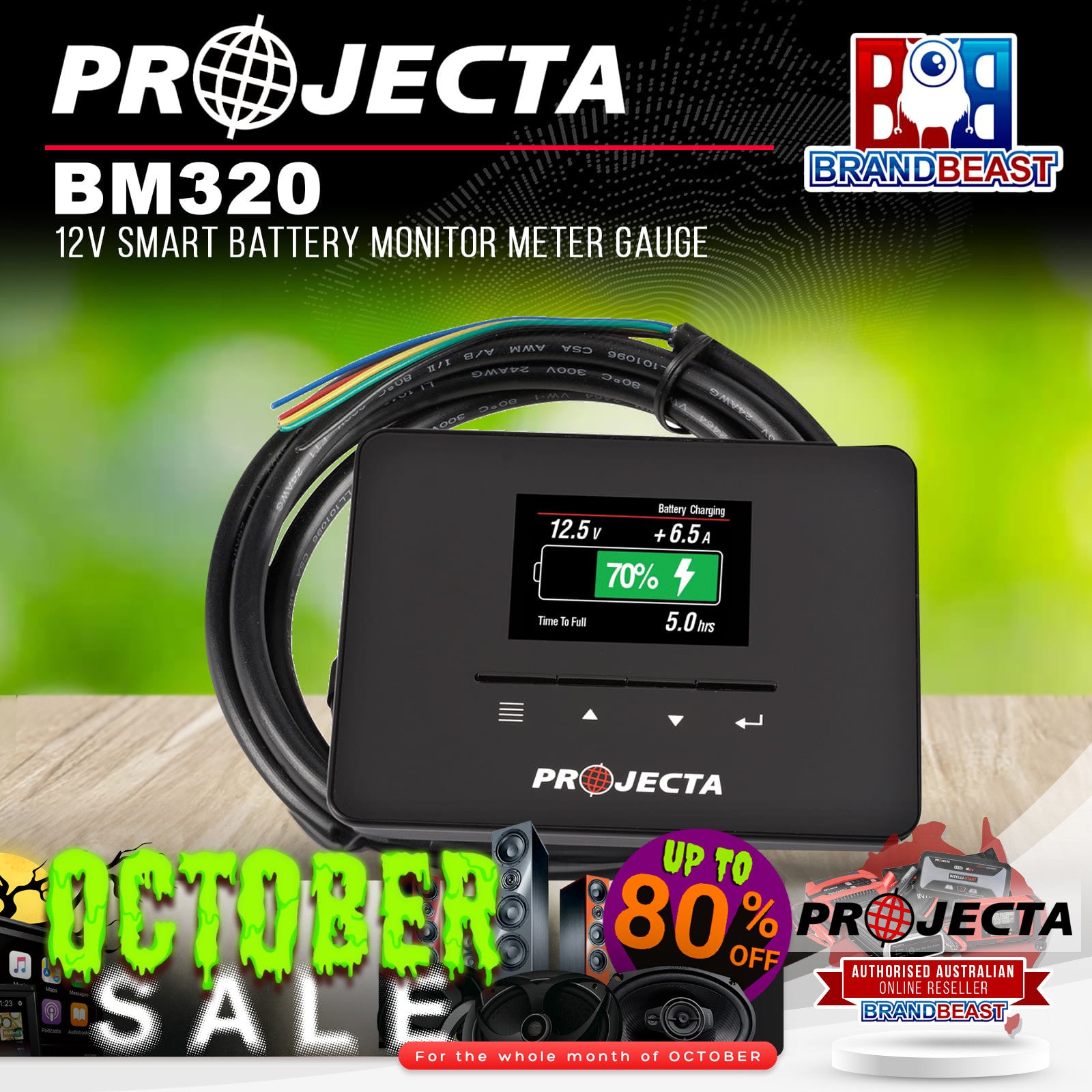

Projecta BM320 Smart Battery Monitor
A 320A smart battery monitor from Projecta, the BM320 features a 2.4 inch colour LCD screen displaying predicted state of charge, battery health, time to full charge, and time to empty, with a 500 amp shunt installation kit.
Product overview
The Projecta BM320 is a smart battery monitor with a 2.4 inch colour LCD screen displaying predicted state of charge, battery health, time to full charge, and time to empty. The installation kit includes a 500 amp shunt and terminals for professional installation, along with a 1.5m pre-wired harness with a 4 pin connector. Compatible with Wet, AGM, Gel, and Calcium battery types rated 5-320Ah.
Features and benefits
2.4 inch colour LCD screen: Displays predicted state of charge, battery health, time to full charge, and time to empty for comprehensive battery monitoring.
Installation kit included: Includes a 500 amp shunt and terminals for professional installation.
1.5m pre-wired harness with 4 pin connector: Simplifies wiring installation with a ready-to-connect harness.
320A maximum current: Provides substantial monitoring capacity for demanding electrical systems.
Supports 5-320Ah battery capacity: Suited to a wide range of battery bank sizes from small to large installations.
Multi-chemistry battery support: Compatible with Wet, AGM, Gel, and Calcium battery types.
Technical specs
| Specification |
Detail |
| Part Number |
BM320 |
| Brand |
Projecta |
| Type |
Battery Monitor |
| Voltage |
12V |
| Shape |
Rectangle |
| Size |
118 x 96 x 18mm |
| Weight |
0.75kg |
| Max Current |
320A |
| Supported Battery Capacity |
5-320Ah |
| Battery Type Supported |
Wet, AGM, Gel, Calcium |
| Harness |
1.5m Pre-Wired with 4 Pin Connector |
| Warranty |
1 Year |
Compatible with
The BM320 is compatible with 12V Wet, AGM, Gel, and Calcium batteries rated between 5-320Ah.
Frequently asked questions
What battery types is the BM320 compatible with?
The BM320 is compatible with Wet, AGM, Gel, and Calcium battery types.
What is the maximum current rating of the BM320?
The BM320 has a maximum current rating of 320A.
What battery capacity range does the BM320 support?
The BM320 supports battery capacities from 5-320Ah.
What does the BM320 display?
The BM320 displays predicted state of charge, battery health, time to full charge, and time to empty on a 2.4 inch colour LCD screen.
What is included in the BM320 installation kit?
The BM320 installation kit includes a 500 amp shunt, terminals, and a 1.5m pre-wired harness with a 4 pin connector.
