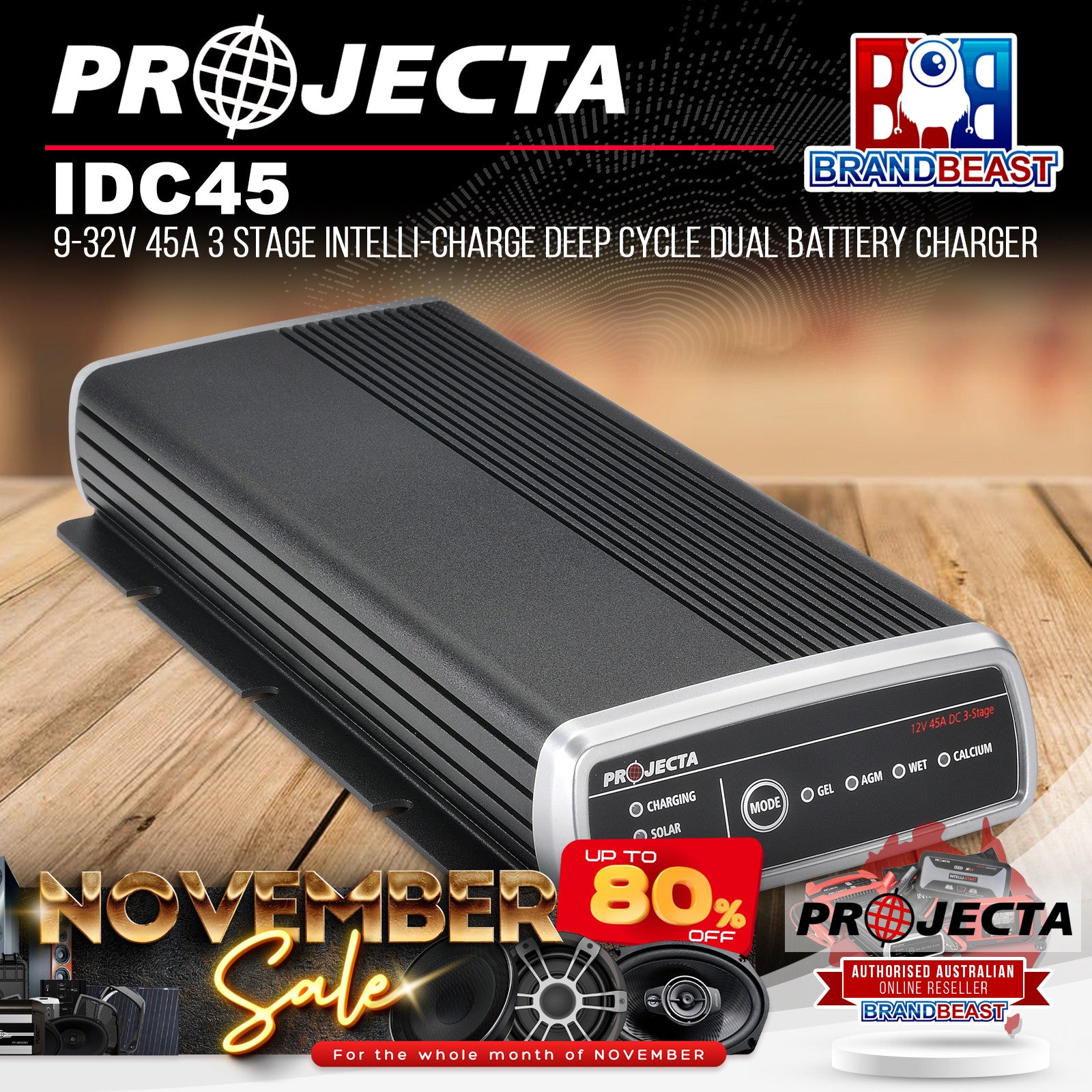

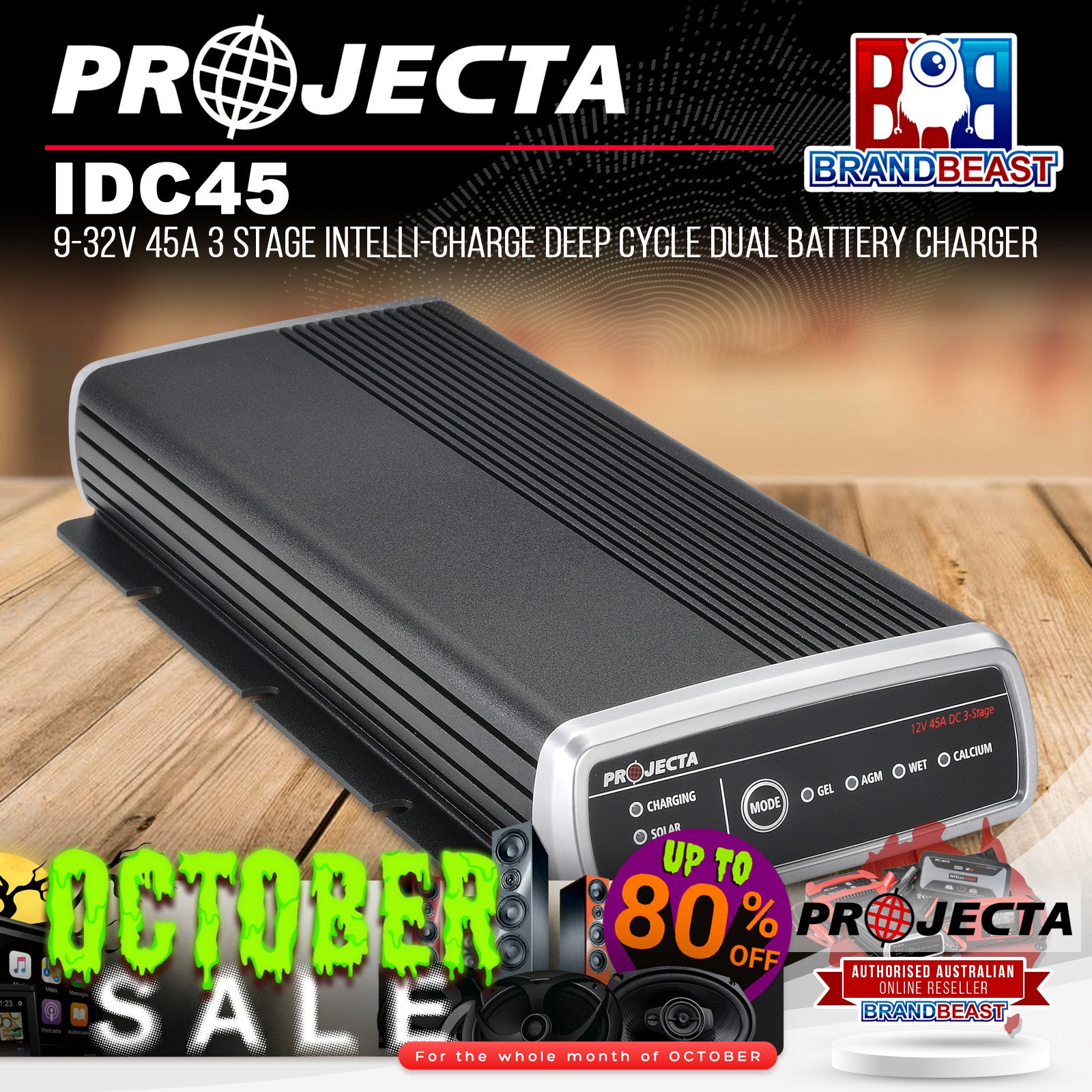

PROJECTA IDC45 9-32V 45A 3 Stage Intelli-Charge Deep Cycle Dual Battery Charger

Description

Ideal for The Larger Power Requirements of Caravans, Motor Homes & Trucks


Automatic 9-32V 45A 3 Stage DC/Solar Battery Charger
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.
Features:

  • Engine Bay Installation – Sealed To IP67, The IDC Is Dust, Splash, Shock Proof & Can Safely Operate In Extreme Temperatures Up To 80¬∞C.

  • Dual Charging Modes – Engineered To Work With Both Smart & Conventional Alternators.

  • Multi-Chemistry – Set The Charging Profile To Suit Battery Chemistry.

  • Dual Input Operation – Simultaneous Dual Battery Charging From Both Solar & Alternator Inputs.

  • Total Safeguard Protection – Over Temperature, Reverse Connection, Over/Under & Spark Free Protection.


Specifications:

  • Type: Wet, Calcium AGM or Gel

  • Charge Type: 3 Stage

  • Alternator Input Voltage: 9-32Vdc

  • Max Solar Input: 28Vdc, 693W

  • Output Current: Input 9-11Vdc 37A, Input 11-32Vdc 45A

  • Back Drain On Aux Battery: <5mA

  • Charger Control: Gel: 14.1V, AGM: 14.4V, Wet: 14.7V, Calcium: 15.4V

  • Battery Capacity: 150-600Ah

  • Batteries Supported: Gel, AGM, Wet & Calcium

  • Smart Alternator: 12V: Turn On: 12.2-20V ; 24V: Turn On: 24.4-32V; Turn Off: <11.9V; Turn Off: <24V

  • Conventional Alternator: 12V: Turn On: 13.4-20V; 24V: Turn On: 26.8-32V;Turn Off: <12.8V; Turn Off: <25.6V

  • Operating Temperature: -10¬∞C to +80¬∞C
