Description

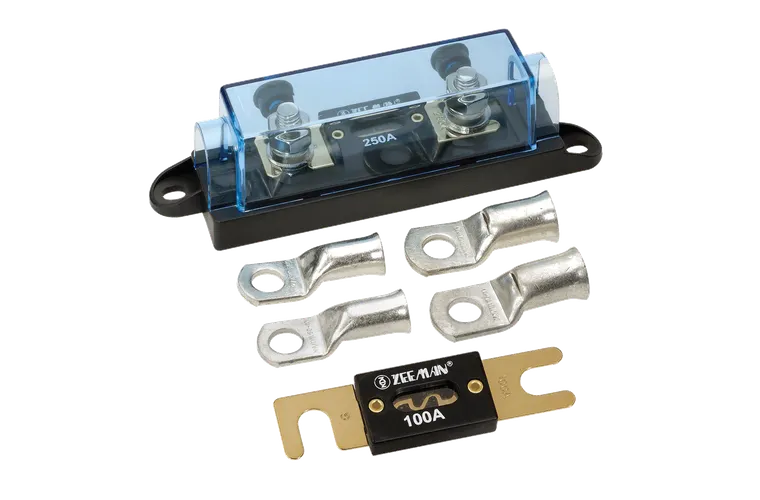

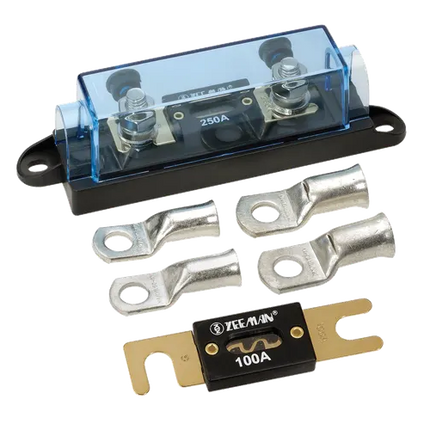

Projecta IFB-100 Fuse Box with 100A ANL Fuse - Heavy-Duty Inline Fuse Holder for Inverter and High-Current DC Circuit Protection
Protect your inverter installation and prevent cable fires with Projecta IFB-100 Fuse Box—featuring heavy-duty ANL fuse holder with 100A fuse providing critical overcurrent protection for high-current DC circuits, designed for installation in positive (+) DC line close to battery protecting cable from fire risk during short circuit conditions, suitable for inverter installations up to approximately 1200W continuous power (100A at 12V), robust construction withstanding harsh automotive and marine environments, includes 100A ANL fuse ready for immediate installation, accepts standard ANL fuse format enabling easy replacement when fuse operates, transparent cover allowing visual fuse inspection without disassembly, brass terminals providing reliable electrical connection and corrosion resistance, recommended safety component for all inverter installations protecting expensive equipment and preventing vehicle fire risk, significantly safer than installations without proper fusing between battery and inverter, meets electrical safety requirements for professional inverter installations, suitable for caravans, motorhomes, 4WD vehicles, boats, and any high-current DC application requiring circuit protection, replacement fuses available separately (Projecta IF-100), essential component for DIY inverter installations or upgrading existing installations lacking proper overcurrent protection, and providing peace of mind through professional-grade circuit protection preventing catastrophic failures.
Product Overview
Projecta IFB-100 Fuse Box delivers essential overcurrent protection for inverter installations and high-current DC circuits preventing cable fires and equipment damage. ANL fuse holder with 100A fuse protects positive DC line between battery and inverter—during short circuit conditions (cable damage, inverter internal fault, equipment malfunction), fuse interrupts current flow before cable overheats preventing fire. Critical safety component often overlooked in DIY installations—installations without proper fusing risk cable fires from short circuits potentially causing vehicle fire and catastrophic damage. 100A rating suitable for inverters up to approximately 1200W continuous power—covers popular inverter sizes (500W, 1000W, 1100W models). Larger inverters (1600W+) require higher-rated fuses (150A, 200A, 250A) available separately. ANL fuse format industry-standard for automotive and marine high-current applications—readily available, reliable operation, visual indication when operated (blown fuse visible through transparent cover). Brass terminals provide reliable electrical connection withstanding vibration, corrosion, and repeated connection cycles. Transparent cover enables visual inspection without disassembly—quickly verify fuse condition without tools. Recommended installation location close to battery (within 450mm maximum)—protects maximum cable length from short circuit damage. Professional inverter installations require fusing meeting electrical safety standards—proper fusing essential for insurance compliance, electrical inspections, and safe operation. Applications include inverter installations (all sizes), DC-DC charger protection, high-current accessory circuits, solar panel overcurrent protection, and any DC circuit requiring 100A overcurrent protection. Replacement fuses (Projecta IF-100) available separately enabling service after fuse operation.
Key Features
Heavy-Duty ANL Fuse Holder with 100A Fuse: Professional-grade ANL fuse holder with included 100A fuse providing immediate overcurrent protection. ANL format industry-standard for automotive and marine high-current applications—reliable operation, widely available replacement fuses, proven design. 100A rating suitable for inverters up to approximately 1200W continuous power. Fuse interrupts current during short circuit protecting cable from fire risk.
Critical Fire Prevention Safety Component: Essential safety device preventing cable fires during short circuit conditions. Without proper fusing, short circuit (damaged cable, inverter fault, equipment malfunction) causes cable to carry excessive current overheating insulation causing fire. Fuse interrupts current before cable reaches ignition temperature preventing fire. Critical protection often overlooked in DIY installations—proper fusing difference between safe installation and potential vehicle fire.
Installation in Positive DC Line Close to Battery: Designed for installation in positive (+) DC line between battery and inverter within 450mm of battery terminal. Close battery placement protects maximum cable length from short circuit damage. Positive line fusing standard practice—interrupts circuit at source preventing downstream equipment damage. Essential component for professional inverter installations meeting electrical safety standards.
Transparent Cover with Visual Inspection: Clear transparent cover enabling visual fuse inspection without disassembly. Quickly verify fuse condition—intact fuse visible, blown fuse shows broken element. Simplifies troubleshooting during electrical issues—immediately identify blown fuse versus other problems. Tool-free inspection saves time during service and maintenance.
Brass Terminals for Reliable Connection: Heavy-duty brass terminals providing reliable electrical connection and corrosion resistance. Brass withstands vibration, temperature cycling, and moisture exposure common in automotive and marine environments. Accepts large gauge cables required for high-current applications. Secure terminal design prevents loosening from vibration ensuring reliable long-term operation.
Suitable for Inverters Up to 1200W: 100A rating appropriate for inverters up to approximately 1200W continuous power at 12V. Covers popular inverter sizes including 500W, 1000W, 1100W, and small 1200W models. Provides appropriate overcurrent protection without nuisance tripping during normal operation. Larger inverters require higher-rated fuses—1600W requires 150A, 2100W requires 200A, 2700W requires 250A.
Standard ANL Fuse Format: Industry-standard ANL fuse format ensuring replacement fuse availability. ANL fuses available at automotive stores, marine suppliers, and electrical retailers. Standard format eliminates proprietary fuse requirements simplifying service. Replacement fuses (Projecta IF-100 for 100A) available separately enabling service after fuse operation.
Robust Automotive/Marine Construction: Heavy-duty construction withstanding harsh automotive and marine environments. Resistant to vibration, temperature extremes, moisture exposure, and corrosion. Suitable for permanent installation in vehicles, caravans, boats, and outdoor applications. Professional-grade components ensuring reliable long-term operation in demanding conditions.
Essential for Professional Installations: Recommended component for all inverter installations meeting electrical safety standards. Professional installations require proper overcurrent protection for insurance compliance, electrical inspections, and Australian Standards compliance. DIY installations benefit from professional-grade safety components preventing fire risk and equipment damage.
Projecta Quality and Support: Projecta 50-year Australian heritage delivering quality electrical components. Professional-grade construction meeting automotive and marine standards. Australian support ensuring replacement part availability and technical assistance. Quality assurance for critical safety applications.
Technical Specifications
|
|
| SKU |
IFB-100 |
| Product Type |
Fuse Box with ANL Fuse |
| Brand |
Projecta |
| Fuse Type |
ANL (Automotive Nickel Link) |
| Fuse Rating |
100A |
| Fuse Included |
Yes (100A ANL) |
| Voltage |
12V DC systems |
| Suitable for Inverters |
Up to ~1200W continuous |
| Approximate Current |
100A maximum |
| Terminal Material |
Brass |
| Cover |
Transparent (visual inspection) |
| Installation Location |
Positive (+) DC line, close to battery (within 450mm) |
| Weight |
0.500kg |
| Replacement Fuse |
IF-100 (100A ANL) |
| Construction |
Heavy-duty automotive/marine grade |
| Applications |
Inverter Protection, DC-DC Charger, High-Current Circuits, Solar Protection |
Frequently Asked Questions
Q: Where exactly should I install this fuse box in my inverter setup?
A: Install in positive (+) DC line between battery positive terminal and inverter positive input, as close to battery as practical (within 450mm maximum). Close battery placement protects maximum cable length from short circuit damage. Typical installation: battery positive terminal → fuse box → cable run to inverter → inverter positive input. Do not install in negative line—positive line fusing standard practice. Secure mounting preventing vibration loosening. Accessible location simplifying fuse inspection and replacement.
Q: How do I know what size fuse I need for my inverter?
A: Calculate based on inverter continuous power rating. Formula: Fuse rating (amps) = (Inverter watts ÷ 12V) × 1.25 safety margin. Examples: 500W inverter = (500W ÷ 12V) × 1.25 = 52A, use 60A-80A fuse; 1000W inverter = (1000W ÷ 12V) × 1.25 = 104A, use 100A-125A fuse; 1600W inverter = (1600W ÷ 12V) × 1.25 = 167A, use 150A-200A fuse; 2100W inverter = (2100W ÷ 12V) × 1.25 = 219A, use 200A-250A fuse. This 100A fuse suitable for inverters up to approximately 1200W. Oversized fuse provides inadequate protection, undersized fuse causes nuisance tripping.
Q: Can I use this instead of a circuit breaker for my inverter?
A: Yes, ANL fuse provides equivalent overcurrent protection to circuit breaker for inverter applications. Advantages of fuse: lower cost, simpler installation, no mechanical parts to fail. Advantages of circuit breaker: resettable without replacement part, manual disconnect capability, easier troubleshooting. Both provide adequate protection—choice depends on preference and budget. Fuse more common in budget installations, circuit breaker preferred in premium installations requiring manual disconnect capability.
Q: What happens when the fuse blows and how do I replace it?
A: Blown fuse interrupts power to inverter—inverter stops operating, connected appliances lose power. Fuse blows during short circuit conditions or sustained overload exceeding rating. To replace: disconnect battery negative terminal (safety), remove fuse box cover, remove blown fuse (visible broken element), install replacement 100A ANL fuse (Projecta IF-100), replace cover, reconnect battery. Investigate cause before restoring power—identify and repair short circuit or overload preventing repeated fuse operation. Carry spare fuses when touring enabling roadside repair.
Q: My inverter didn't come with a fuse—do I really need to add one?
A: Absolutely yes—fusing critical safety component preventing cable fire risk during short circuit conditions. Many inverters sold without external fusing expecting installer to provide appropriate protection. Australian electrical standards and insurance policies typically require proper overcurrent protection on high-current DC circuits. Without fusing, short circuit (damaged cable, inverter internal fault) causes cable to carry excessive current overheating insulation potentially causing vehicle fire. Proper fusing difference between safe installation and catastrophic failure. Always install appropriate fuse or circuit breaker between battery and inverter—never operate without overcurrent protection.
