Description

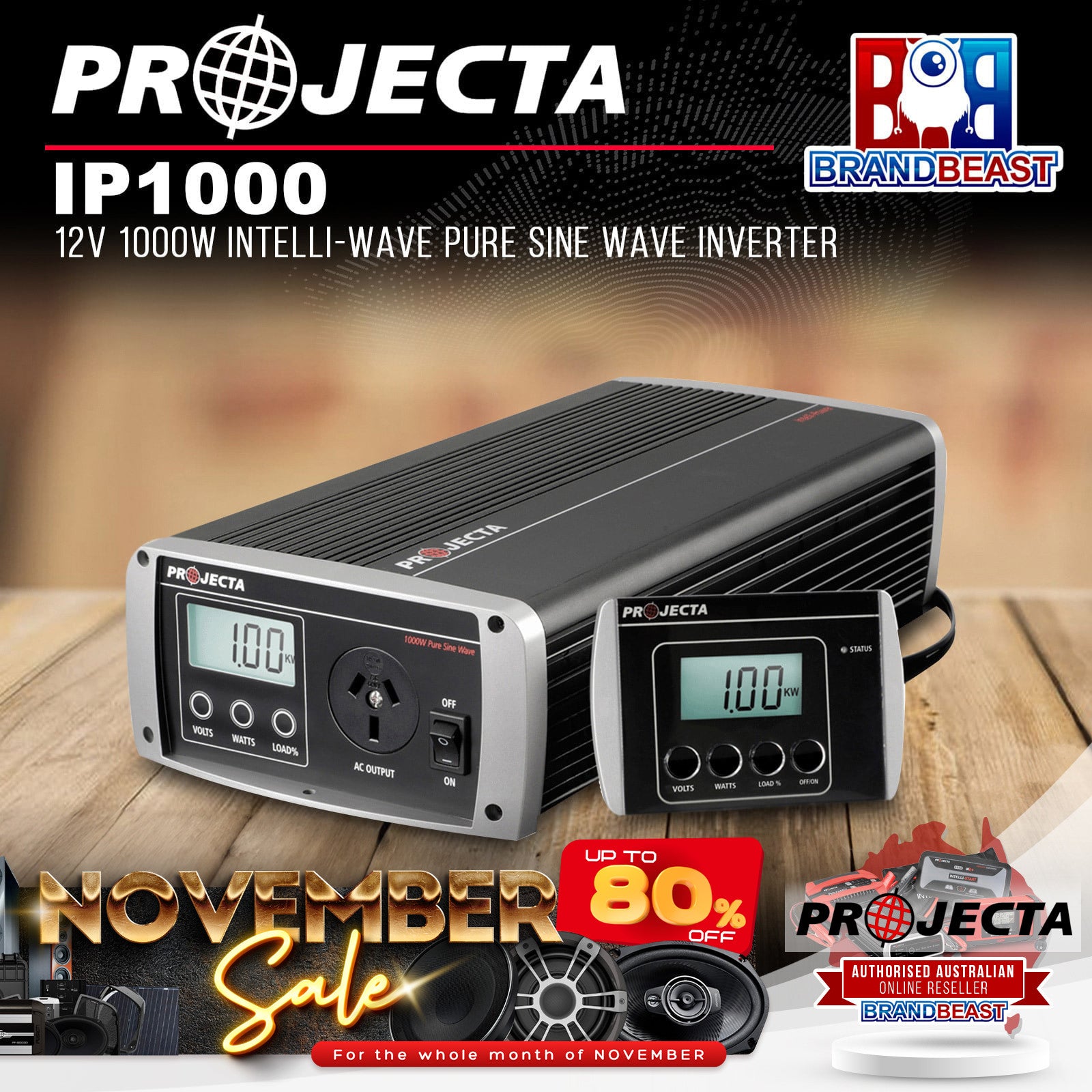

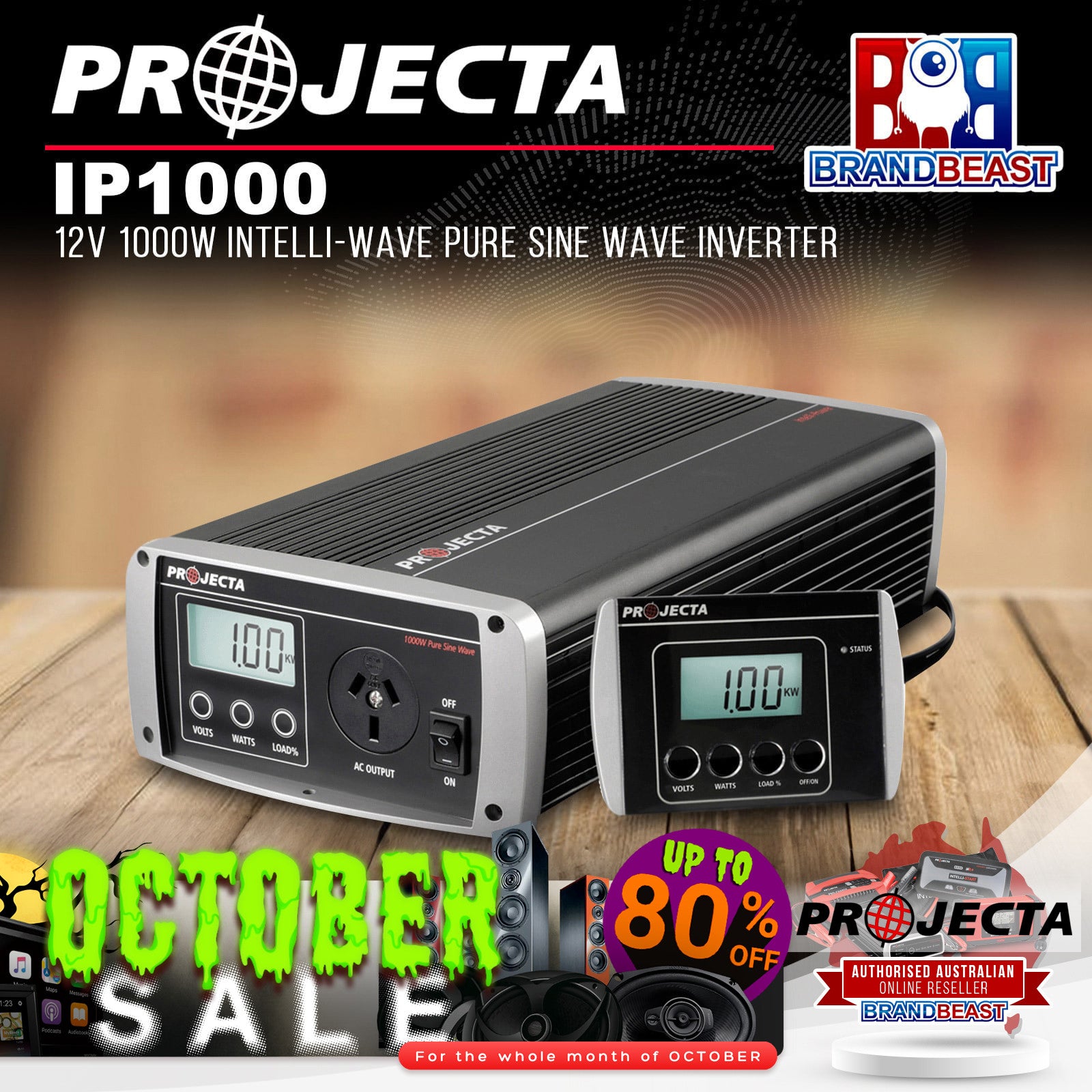

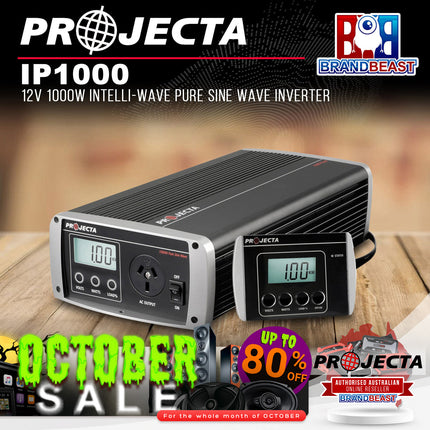

Projecta IP1000 Intelli-Wave Pure Sine Wave Inverter
With a peak power output of an astonishing 2000W, the Projecta IP1000 is the ideal inverter for powering all your electrical needs that require ultra clean power, perfectly suited to caravans and trade requirements as a permanent installation.
Product overview
With a peak power output of an astonishing 2000W, the PROJECTA IP1000 is the ideal inverter for powering all your electrical needs that require ultra clean power. Ideal for permanent installation, this sophisticated inverter is perfectly suited to caravans and trade requirements.
Features and benefits
Approved output socket: AS/NZ approved 240V sockets, with the inverter designed to Australian Standard AS4763.
Remote control: LCD display and remote control unit provide information on battery voltage, power usage, and load capacity.
Wiring kit included: Battery lugs with 1100mm 16mm2 battery cable.
Efficient design: Thermostatically controlled cooling fan manages internal temperature during operation.
Mounting flange: Convenient and robust mounting points for permanent installation.
Technical specs
| Specification |
Detail |
| SKU |
IP1000 |
| Brand |
Projecta |
| Type |
Pure Sine Wave Inverter |
| Input |
12V DC, 100A Max |
| No Load Current Draw |
1.2A |
| Output |
240VAC, 50Hz (Pure Sine Wave) |
| Output Power |
1000W Continuous (2000W Peak) |
| Inverter Classification |
Equipotentially Bonded (EPB) |
| Efficiency |
85-90% |
| Low Battery Alarm |
10.25V |
| Shutdown |
9.75V (±0.2V) |
| Cooling Fan |
Automatic Temperature Controlled |
| Thermal Shutdown |
65°C (±5°C) |
| Fuse |
220A (4 x 40A, 2 x 30A) |
| Ideal Battery Size |
75-250Ah |
| Minimum Battery Size |
75Ah, 550CCA |
| Run Time (1000W Load, 75Ah Battery) |
15 Minutes |
| Run Time (100W Globe, 75Ah Battery) |
6 Hours |
| Approvals |
Electrical Safety and EMC |
Compatible with
The IP1000 is compatible with 12V battery systems rated 75-250Ah, with a minimum battery size of 75Ah and 550CCA, suited to caravans and trade requirements.
Frequently asked questions
What is the peak power output of the IP1000?
The IP1000 has a peak power output of 2000W, with 1000W continuous output.
What battery size is recommended for the IP1000?
The ideal battery size is 75-250Ah, with a minimum battery size of 75Ah and 550CCA.
Does the IP1000 include a remote control?
Yes. The IP1000 includes an LCD display and remote control unit providing information on battery voltage, power usage, and load capacity.
What run time can I expect from the IP1000?
On a 75Ah battery, the IP1000 provides approximately 15 minutes of run time at 1000W load, or approximately 6 hours running a 100W globe.
Is the IP1000 approved for use in Australia?
Yes. The IP1000 is designed to Australian Standard AS4763, with AS/NZ approved 240V sockets.
