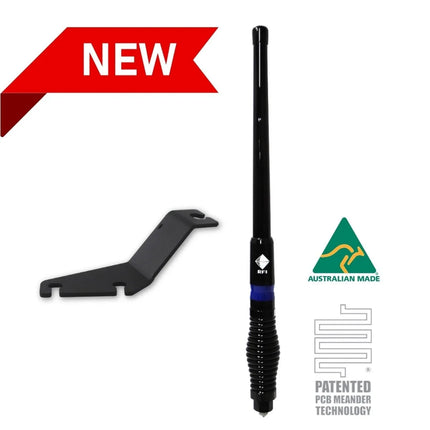

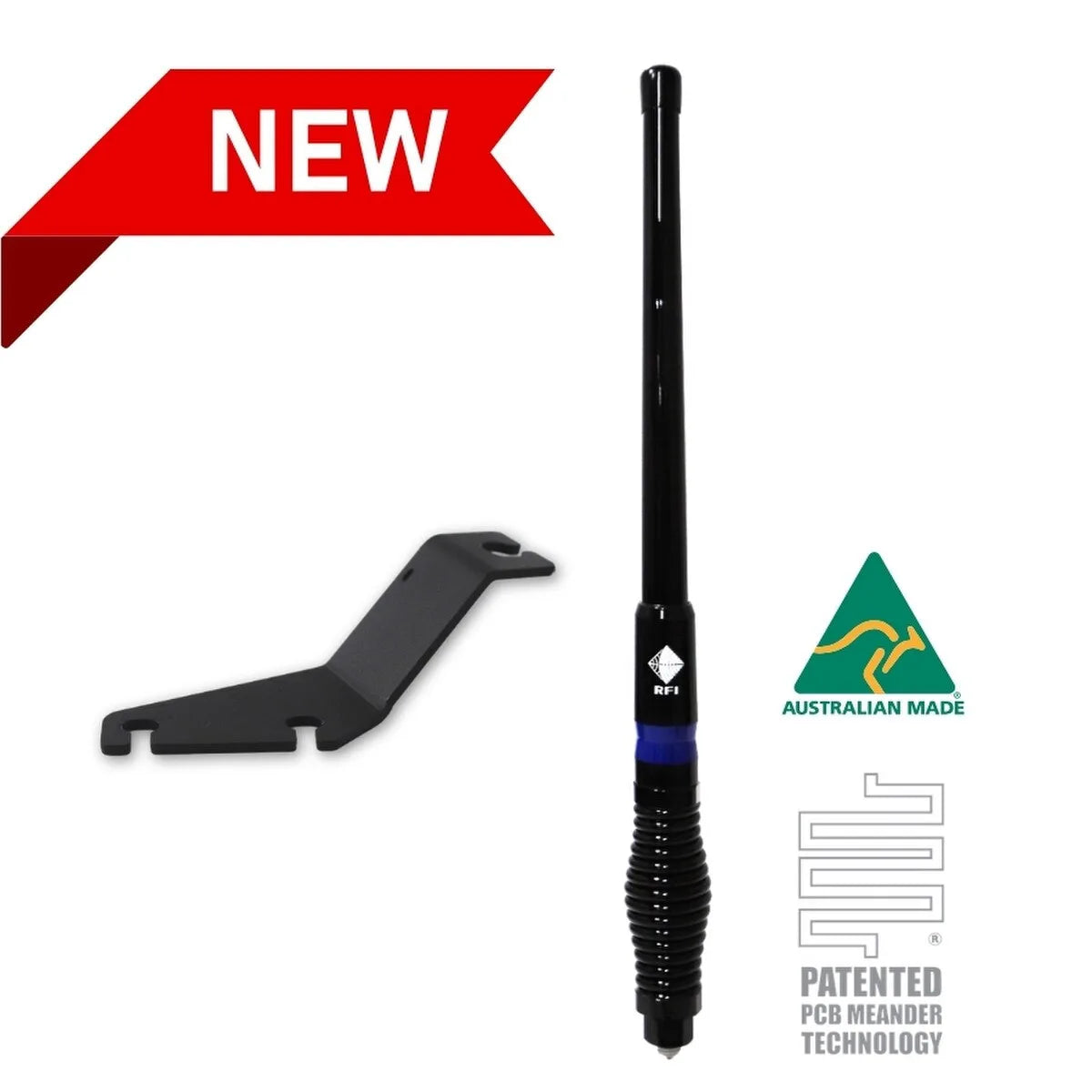

RFI CDX3000-B-Toyota-BHMB-515 CDX-Treme Compact UHF CB Antenna with Bonnet Hinge Bracket for Toyota Hilux N80 2015-2025 LHS
The CDX3000-B-Toyota-BHMB-515 is a complete UHF CB antenna and mounting bracket kit combining the RFI CDX-Treme compact collinear antenna with the BHMB-515 bonnet hinge mounting bracket. Designed for the Toyota Hilux N80 (2015-2025) left-hand side bonnet hinge, it operates on 477MHz with a 0.6m overall length, 10W power rating, and 5m RG58 coaxial cable terminated with an FME female connector.
Product overview
The RFI CDX-Treme is a compact ground-independent collinear UHF CB antenna operating at 477MHz, designed for vehicle installations where a full-length antenna is not practical. The 0.6m overall length and spring base mount provide a lower profile than standard UHF CB antennas while maintaining omni-directional coverage and vertical polarisation for reliable communications performance.
The BHMB-515 bonnet hinge mounting bracket is Australian made from 4mm mild steel with a matte black finish, designed specifically for the Toyota Hilux N80 (2015-2025) left-hand bonnet hinge position. In Australian vehicles, the left-hand side is the passenger side. The bracket provides a secure, vehicle-specific mounting point without requiring drilling or permanent modification to the vehicle body.
The antenna connects via a 5m RG58 low loss coaxial cable terminated with an FME female connector. A UHF male adaptor is also included for direct connection to radios with a UHF female input. The black antenna whip and spring feature a subtle blue band at the base, a detail specific to RFI's CDX-Treme range.
Features and benefits
RFI CDX-Treme compact collinear at 477MHz: The CDX-Treme operates on the 477MHz UHF CB frequency band with a compact 0.6m overall length, providing a lower-profile alternative to full-length UHF CB antennas for vehicles where height clearance or aesthetics are a consideration.
Ground-independent design: The CDX-Treme is a ground-independent antenna and does not require a ground plane for correct operation, making it suitable for bonnet hinge and other body-mounted positions where a ground plane is not available.
BHMB-515 vehicle-specific bonnet hinge bracket for Toyota Hilux N80 2015-2025: The BHMB-515 is Australian made from 4mm mild steel with a matte black finish, engineered specifically for the left-hand bonnet hinge of the Toyota Hilux N80 (2015-2025) for a secure, vehicle-specific fit without drilling.
Left-hand side fitment: The BHMB-515 bracket in this kit suits the left-hand side bonnet hinge of the Toyota Hilux N80 (2015-2025). In Australia, the left-hand side is the passenger side. In the USA, the left-hand side is the driver side.
5m RG58 low loss coaxial cable: The 5m cable length provides sufficient reach from the bonnet hinge mounting position to the radio inside the vehicle cabin, with low loss construction to maintain signal quality across the cable run.
FME female connector with UHF male adaptor: The cable terminates in an FME female connector, with a UHF male adaptor also included for direct connection to radios with a UHF female input, covering both FME and UHF radio connector configurations.
Bottom fix spring base: The bottom fix spring base with large nut and star washer provides a secure antenna mounting point on the bracket, with the spring allowing the antenna to deflect on impact and return to position.
Omni-directional coverage with vertical polarisation: Omni-directional horizontal beamwidth ensures consistent UHF CB signal coverage regardless of vehicle orientation, with vertical polarisation matching standard UHF CB base station antenna configurations.
Australian made bracket: The BHMB-515 bracket is manufactured in Australia from 4mm mild steel, confirming local engineering and quality construction suited to Australian conditions.
What's in the box
- RFI CDX-Treme compact UHF CB collinear antenna (CDX3000-B)
- Toyota Hilux N80 2015-2025 LHS bonnet hinge mounting bracket (BHMB-515)
- 5m RG58 low loss coaxial cable with FME female connector
- UHF male adaptor
Technical specs
| Specification |
Detail |
| SKU |
CDX3000-B-Toyota-BHMB-515 |
| Antenna Model |
RFI CDX-Treme (CDX3000-B) |
| Bracket Model |
BHMB-515 |
| Frequency |
477MHz |
| Antenna Type |
Compact collinear, ground independent |
| Overall Length |
0.6m |
| Power Rating |
10W |
| Horizontal Beamwidth |
Omni-directional |
| Polarisation |
Vertical |
| Radome Diameter |
29-25mm |
| Mounting Hole |
16mm diameter |
| Cable |
5m RG58 low loss |
| Cable Connector |
FME female |
| Included Adaptor |
UHF male |
| Antenna Configuration |
SISO |
| Colour |
Black |
| Bracket Material |
4mm mild steel, matte black finish |
| Bracket Fitment |
Toyota Hilux N80 2015-2025, LHS bonnet hinge |
| Bracket Origin |
Australian made |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
Hilux |
N80, LHS bonnet hinge |
2015-2025 |
Frequently asked questions
Which side of the Toyota Hilux N80 does this bracket suit?
The BHMB-515 bracket in this kit suits the left-hand side bonnet hinge of the Toyota Hilux N80 (2015-2025). In Australia, the left-hand side is the passenger side. A right-hand side variant may be available separately. Contact us to confirm the correct bracket side for your installation preference.
Does the CDX-Treme antenna require a ground plane?
No. The CDX-Treme is a ground-independent antenna and does not require a ground plane for correct operation, making it suitable for bonnet hinge mounting positions where a ground plane is not available.
What connector does my UHF CB radio need to connect to this antenna?
The antenna cable terminates in an FME female connector. A UHF male adaptor is also included in the kit for radios with a UHF female input. Contact us if your radio uses a different connector type before purchasing.
Is the BHMB-515 bracket suitable for Toyota Hilux models other than the N80 series?
The BHMB-515 bracket is confirmed for the Toyota Hilux N80 (2015-2025). Compatibility with other Hilux generations has not been confirmed in the available source data. Contact us to confirm bracket fitment for your specific Hilux model and build date before purchasing.
How does this kit differ from the Toyota Prado 150 versions?
The antenna component is identical across all CDX-Treme bracket kits. The BHMB-515 bracket is engineered specifically for the Toyota Hilux N80 (2015-2025) bonnet hinge geometry, while the BHMB-511 and BHMB-512 brackets are designed for the Toyota Prado 150 (2019+). Each bracket is vehicle-specific and not interchangeable between models.
