RFI CDX3000-B-VW-BHMB-503 CDX-TREME Compact UHF CB Antenna with Bonnet Hinge Mounting Bracket Volkswagen Amarok 2023+ LHS Australian Passenger Side 477MHz 0.6m 5m RG58 FME(F) Cable UHF(M) Adaptor Included 10W Omni-Directional Australian Made Bracket

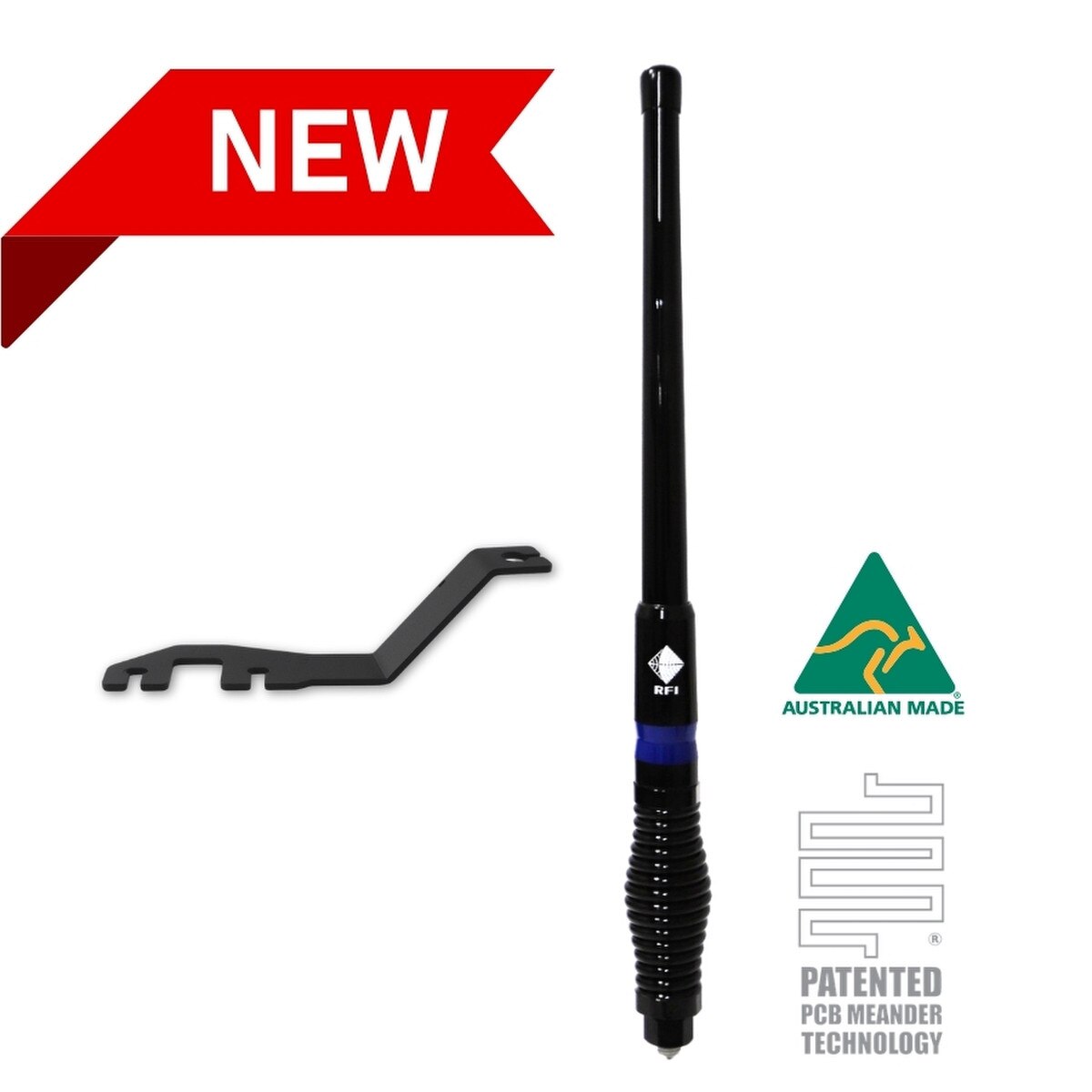

The RFI CDX3000-B-VW-BHMB-503 is a kit pairing the CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B) with the BHMB-503 bonnet hinge mounting bracket for the Volkswagen Amarok (2023+), left-hand side (Australian passenger side). The antenna operates at 477MHz, is 0.6m full length, and is terminated with an FME(F) straight plug on 5m RG58 coaxial cable. A UHF(M) adaptor is included. The bracket is Australian made from 4mm mild steel with a matte black finish.
Product overview
Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX3000-B is a compact UHF CB collinear antenna for 477MHz operation. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The FME(F) straight plug terminates a 5m RG58 low-loss coaxial cable, and a UHF(M) adaptor is included for connection to standard UHF CB radios. The included BHMB-503 bonnet hinge bracket mounts the antenna to the left-hand bonnet hinge of the Volkswagen Amarok 2023+, using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.
What's in the box
- CDX-TREME Compact UHF CB Collinear Antenna (CDX3000-B)
- UHF(M) adaptor
- Bonnet Hinge Mounting Bracket for VW Amarok 2023+ LHS (BHMB-503)
Features and benefits
CDX-TREME CDX3000-B UHF CB antenna: 477MHz operation for Australian UHF CB radio.
0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.
FME(F) straight plug on 5m RG58 low-loss coaxial cable.
UHF(M) adaptor included: Ready to connect to standard UHF CB radios.
10W power rating.
Omni-directional, vertical polarisation.
Black whip and spring with subtle blue band.
BHMB-503 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.
Vehicle-specific fit for Volkswagen Amarok 2023+, left-hand side (Australian passenger side).
Installer packaging.
Technical specs
| Specification |
Detail |
| SKU |
CDX3000-B-VW-BHMB-503 |
| Brand |
RFI |
| Kit Contents |
CDX3000-B antenna, UHF(M) adaptor, BHMB-503 bracket |
| Antenna Type |
Compact UHF CB collinear |
| Frequency |
477MHz |
| Full Length |
0.6m |
| Power |
10W |
| Connector |
FME(F) straight plug |
| Adaptor Included |
UHF(M) |
| Cable |
5m RG58 low-loss coaxial |
| Radome Diameter |
29-25mm |
| Horizontal Beamwidth |
Omni-directional |
| Polarisation |
Vertical |
| Antenna Configuration |
SISO |
| Mounting Hole |
16mm |
| Bracket Material |
4mm mild steel |
| Bracket Finish |
Matte black |
| Bracket Side |
LHS (Australian passenger side / USA driver side) |
| Bracket Origin |
Australian made |
Compatible with
| Make |
Model |
Variant |
Years |
| Volkswagen |
Amarok |
2023+ |
2023 onwards |
Frequently asked questions
What frequency does the CDX3000-B operate on? The CDX3000-B operates at 477MHz, which is the Australian UHF CB radio frequency.
What connector does the CDX3000-B use? The CDX3000-B terminates with an FME(F) straight plug on a 5m RG58 low-loss coaxial cable. A UHF(M) adaptor is included for connecting to standard UHF CB radios.
What is the difference between this kit and the CDX3000-B-VW-BHMB-504? The CDX3000-B-VW-BHMB-503 includes the BHMB-503 bracket for the left-hand side (Australian passenger side). The CDX3000-B-VW-BHMB-504 includes the BHMB-504 bracket for the right-hand side (Australian driver side). Both use the same CDX3000-B antenna.
Does the BHMB-503 bracket suit other vehicles? The BHMB-503 also suits the Ford Ranger (2023+) and Ford Everest (2023+). This bundle is configured for the Volkswagen Amarok 2023+ LHS. Contact us to confirm suitability for other applications.
Is the bracket retail packaged? No. The BHMB-503 bracket is supplied in installer packaging and is not retail hang sell.
