RFI CDX8194-B-Ford-BHMB-510 CDX-TREME Compact Cellular Antenna with Bonnet Hinge Mounting Bracket Ford Ranger PX and Everest 2011 to 2021 RHS Australian Driver Side 698-3800MHz 0.6m 5m RG58 SMA(M) Cable 10W Fibreglass Whip Omni-Directional Australian Made Bracket

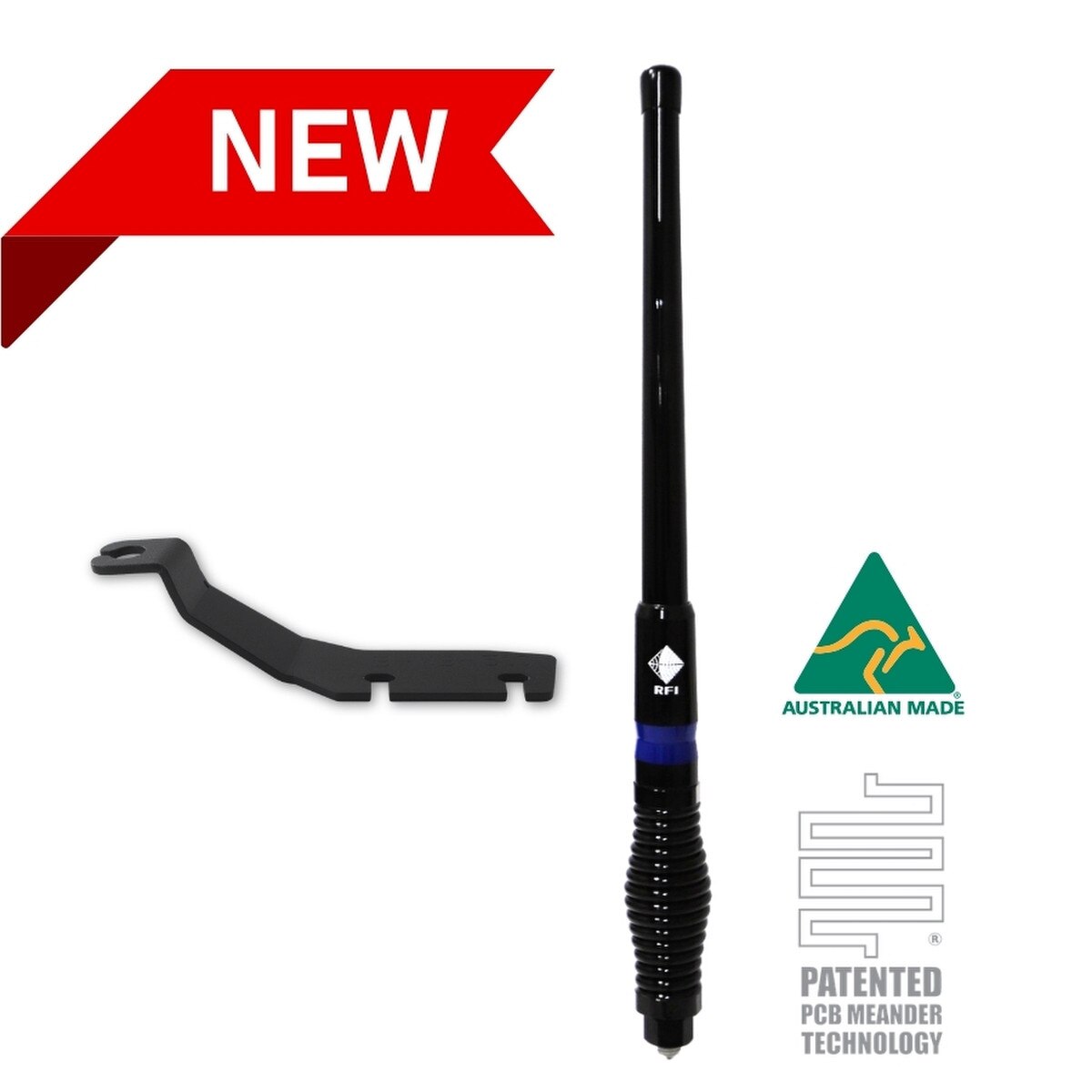

The RFI CDX8194-B-Ford-BHMB-510 is a kit pairing the CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B) with the BHMB-510 bonnet hinge mounting bracket for the Ford Ranger PX (2011 to 2021) and Ford Everest (2011 to 2021), right-hand side (Australian driver side). The antenna covers 698-3800 MHz, is 0.6m full length with fibreglass whip, and is terminated with an SMA(M) straight plug on 5m RG58 coaxial cable. The bracket is Australian made from 4mm mild steel with a matte black finish.
Product overview
Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX8194-B is a compact cellular collinear antenna covering the full cellular spectrum from 698MHz through to 3800MHz. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The fibreglass whip and black spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The SMA(M) straight plug terminates a 5m RG58 low-loss coaxial cable, giving flexible routing through the vehicle. The included BHMB-510 bonnet hinge bracket mounts the antenna to the right-hand bonnet hinge of the Ford Ranger PX and Ford Everest (2011 to 2021), using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.
What's in the box
- CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B)
- Bonnet Hinge Mounting Bracket for Ford Ranger PX and Everest 2011-2021 RHS (BHMB-510)
Features and benefits
CDX-TREME CDX8194-B cellular antenna: 698-3800 MHz coverage across all Australian cellular bands.
0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.
Fibreglass whip.
SMA(M) straight plug on 5m RG58 low-loss coaxial cable: Flexible cable routing within the vehicle.
10W power rating.
VSWR less than 2.5:1.
Omni-directional, vertical polarisation.
Black spring with subtle blue band.
BHMB-510 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.
Suits Ford Ranger PX and Ford Everest 2011 to 2021, right-hand side (Australian driver side).
Installer packaging.
Technical specs
| Specification |
Detail |
| SKU |
CDX8194-B-Ford-BHMB-510 |
| Brand |
RFI |
| Kit Contents |
CDX8194-B antenna, BHMB-510 bracket |
| Antenna Type |
Compact cellular collinear |
| Frequency Range |
698-960 / 1710-2170 / 2300-2700 / 3400-3807 MHz |
| Tuned Bandwidth |
Full |
| Full Length |
0.6m |
| Power |
10W |
| VSWR |
Less than 2.5:1 |
| Connector |
SMA(M) straight plug |
| Cable |
5m RG58 low-loss coaxial |
| Whip Material |
Fibreglass |
| Radome Diameter |
29-25mm |
| Horizontal Beamwidth |
Omni-directional |
| Polarisation |
Vertical |
| Antenna Configuration |
SISO |
| Mounting Hole |
16mm |
| Bracket Material |
4mm mild steel |
| Bracket Finish |
Matte black |
| Bracket Side |
RHS (Australian driver side / USA passenger side) |
| Bracket Origin |
Australian made |
Compatible with
| Make |
Model |
Variant |
Years |
| Ford |
Ranger |
PX |
2011 to 2021 |
| Ford |
Everest |
All |
2011 to 2021 |
Frequently asked questions
What frequency bands does the CDX8194-B antenna cover? The CDX8194-B covers 698-960MHz, 1710-2170MHz, 2300-2700MHz, and 3400-3807MHz, covering all Australian 4G and 5G cellular bands.
What connector does the CDX8194-B use? The CDX8194-B terminates with an SMA(M) straight plug on a 5m RG58 low-loss coaxial cable.
What side does this kit suit? This kit suits the right-hand side, which is the Australian driver side (or USA passenger side).
Is a left-hand side version of this kit available? Contact us to confirm availability of a left-hand side version for the Ford Ranger PX and Everest 2011-2021.
Is the bracket retail packaged? No. The BHMB-510 bracket is supplied in installer packaging and is not retail hang sell.
