RFI CDX8194-B-MMC-BHMB-513 CDX-TREME Compact Cellular Antenna with Bonnet Hinge Mounting Bracket Mitsubishi Pajero Sport QF and Triton MR LHS Australian Passenger Side 698-3800MHz 0.6m 5m RG58 SMA(M) Cable 10W Omni-Directional Australian Made Bracket

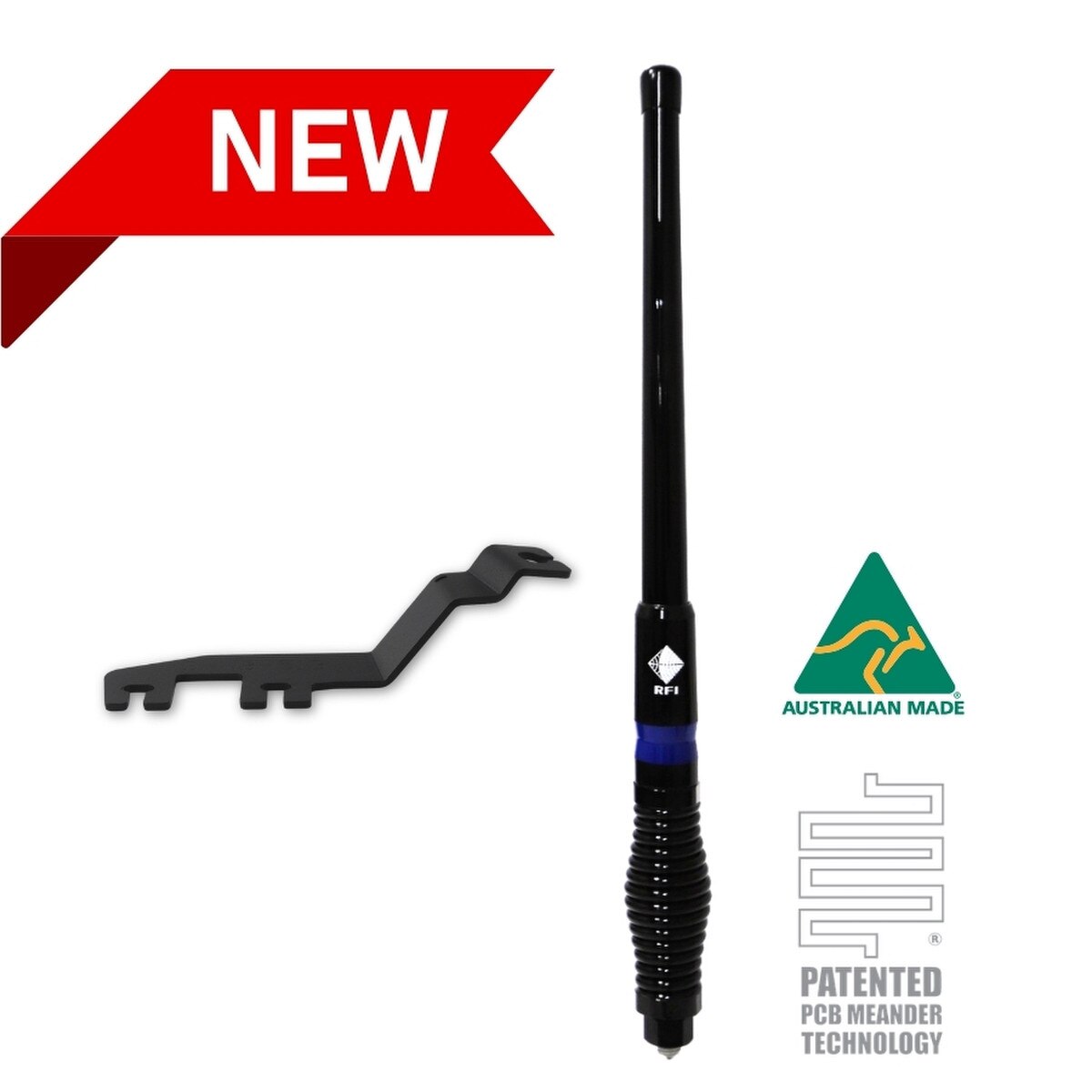

The RFI CDX8194-B-MMC-BHMB-513 is a kit pairing the CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B) with the BHMB-513 bonnet hinge mounting bracket for the Mitsubishi Pajero Sport QF and Mitsubishi Triton MR, left-hand side (Australian passenger side). The antenna covers 698-3800 MHz, is 0.6m full length, and is terminated with an SMA(M) straight plug on 5m RG58 coaxial cable. The bracket is Australian made from 4mm mild steel with a matte black finish.
Product overview
Backed by over 45 years of RFI antenna engineering, the CDX-TREME CDX8194-B is a compact cellular collinear antenna covering the full cellular spectrum from 698MHz through to 3800MHz. Its 0.6m full length and bottom-fix spring base with large nut and star washer provide a secure, road-ready mount. The black whip and spring carry a subtle blue band at the base, a nod to RFI's Australian engineering team. The SMA(M) straight plug terminates a 5m RG58 low-loss coaxial cable, giving flexible routing through the vehicle. The included BHMB-513 bonnet hinge bracket mounts the antenna to the left-hand bonnet hinge of the Mitsubishi Pajero Sport QF and Mitsubishi Triton MR, using the 16mm antenna mounting hole. The bracket is Australian made from 4mm mild steel with a matte black finish and is supplied in installer packaging.
What's in the box
- CDX-TREME Compact Cellular Collinear Antenna (CDX8194-B)
- Bonnet Hinge Mounting Bracket for Pajero Sport QF and Triton MR LHS (BHMB-513)
Features and benefits
CDX-TREME CDX8194-B cellular antenna: 698-3800 MHz coverage across all Australian cellular bands.
0.6m full length with bottom-fix spring base: Large nut and star washer for secure mounting.
SMA(M) straight plug on 5m RG58 low-loss coaxial cable: Flexible cable routing within the vehicle.
10W power rating.
Omni-directional, vertical polarisation.
Black whip and spring with subtle blue band.
BHMB-513 bonnet hinge bracket: 4mm mild steel, matte black, 16mm antenna hole, Australian made.
Suits Mitsubishi Pajero Sport QF and Mitsubishi Triton MR, left-hand side (Australian passenger side).
Installer packaging.
Technical specs
| Specification |
Detail |
| SKU |
CDX8194-B-MMC-BHMB-513 |
| Brand |
RFI |
| Kit Contents |
CDX8194-B antenna, BHMB-513 bracket |
| Antenna Type |
Compact cellular collinear |
| Frequency Range |
698-960 / 1710-2170 / 2300-2700 / 3400-3812 MHz |
| Full Length |
0.6m |
| Power |
10W |
| Connector |
SMA(M) straight plug |
| Cable |
5m RG58 low-loss coaxial |
| Radome Diameter |
29-25mm |
| Horizontal Beamwidth |
Omni-directional |
| Polarisation |
Vertical |
| Antenna Configuration |
SISO |
| Mounting Hole |
16mm |
| Bracket Material |
4mm mild steel |
| Bracket Finish |
Matte black |
| Bracket Side |
LHS (Australian passenger side / USA driver side) |
| Bracket Origin |
Australian made |
Compatible with
| Make |
Model |
Variant |
Years |
| Mitsubishi |
Pajero Sport |
QF |
All |
| Mitsubishi |
Triton |
MR |
All |
Frequently asked questions
What frequency bands does the CDX8194-B antenna cover? The CDX8194-B covers 698-960MHz, 1710-2170MHz, 2300-2700MHz, and 3400-3812MHz, covering all Australian 4G and 5G cellular bands.
What connector does the CDX8194-B use? The CDX8194-B terminates with an SMA(M) straight plug on a 5m RG58 low-loss coaxial cable.
What is the difference between this kit and the CDX8194-B-MMC-BHMB-514? The CDX8194-B-MMC-BHMB-513 includes the BHMB-513 bracket for the left-hand side (Australian passenger side). The CDX8194-B-MMC-BHMB-514 includes the BHMB-514 bracket for the right-hand side (Australian driver side). Both use the same CDX8194-B antenna.
What side does this kit suit? This kit suits the left-hand side, which is the Australian passenger side (or USA driver side).
Is the bracket retail packaged? No. The BHMB-513 bracket is supplied in installer packaging and is not retail hang sell.
