Description
RFI MMB14-5M-NC MB14 Magnetic Antenna Base with 5m Low Loss RG58 Cable - Professional Portable Magnetic Mount with Rubber Boot Paint Protection, 1/4 UNF Thread, and Unterminated Cable for Temporary UHF CB Installations
Achieve portable professional UHF CB antenna mounting with RFI MMB14-5M-NC Magnetic Antenna Base—featuring powerful magnetic mounting platform enabling secure antenna installation without drilling or permanent vehicle modifications, moulded MB14 style antenna base providing reliable connection point for antennas with 1/4 UNF male thread configurations, included 5m low loss RG58 (9014) coaxial cable providing professional-grade signal transmission with adequate routing length, unterminated cable configuration allowing custom connector installation matching specific radio requirements, included rubber boot protecting vehicle paintwork from magnetic base contact preventing scratches or finish damage, portable transferable design enabling easy antenna relocation between multiple vehicles for fleet applications or shared equipment, powerful magnetic attachment providing secure mounting during normal vehicle operation including highway speeds, universal vehicle compatibility suitable for any vehicle with steel roof panel or magnetic mounting surface, ideal for temporary installations, rental vehicles, demonstrations, or situations requiring non-permanent antenna mounting, and proven RFI quality engineering delivering reliable portable antenna mounting solution for mobile UHF CB communication requiring installation flexibility without permanent vehicle modifications.
Product Overview

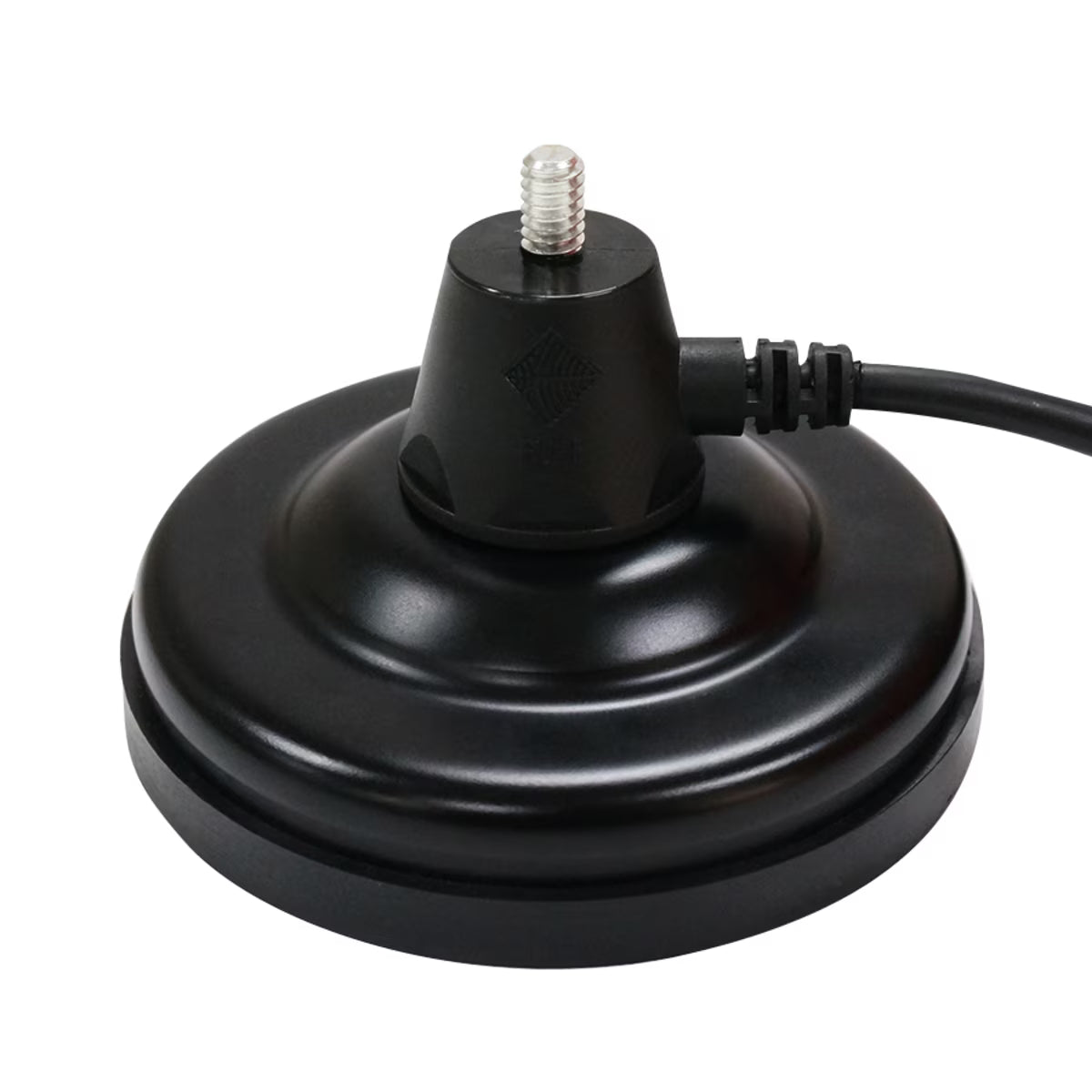

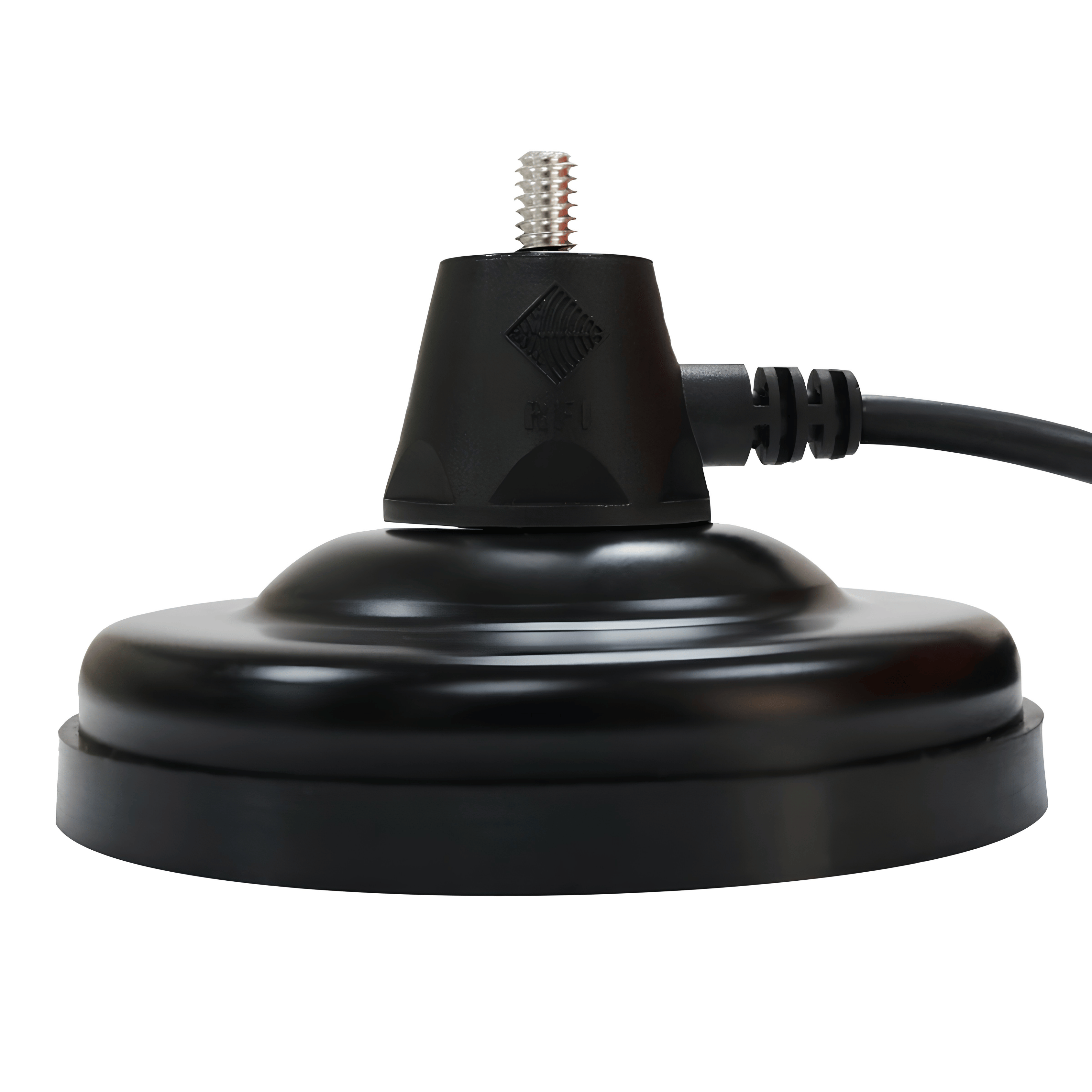

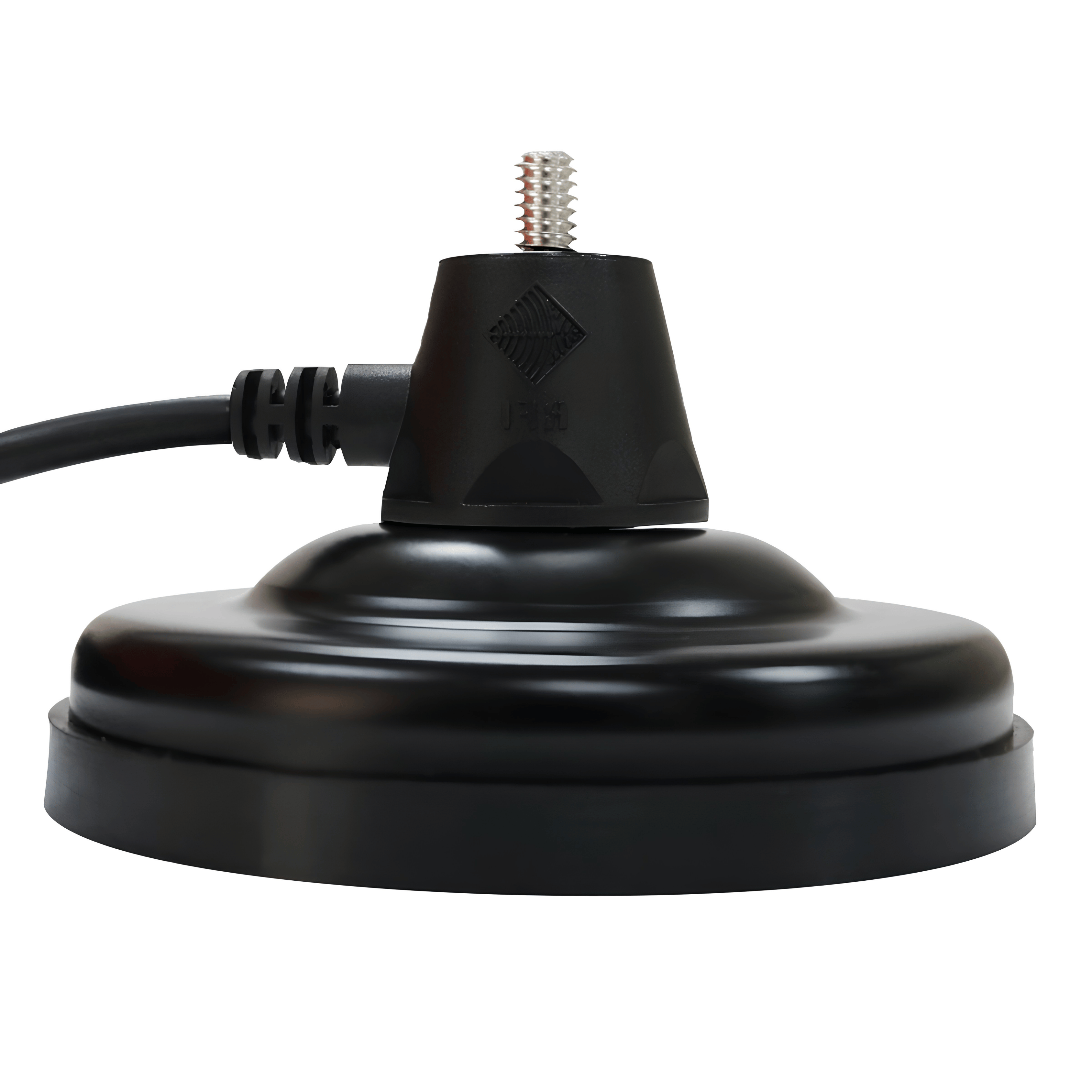

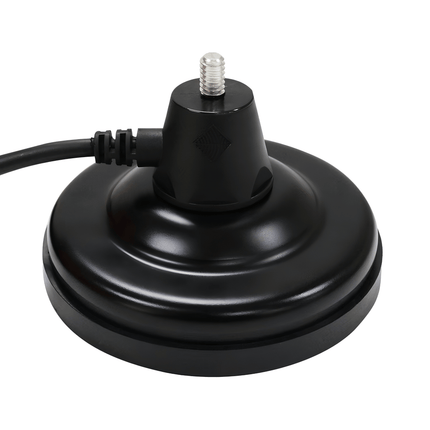

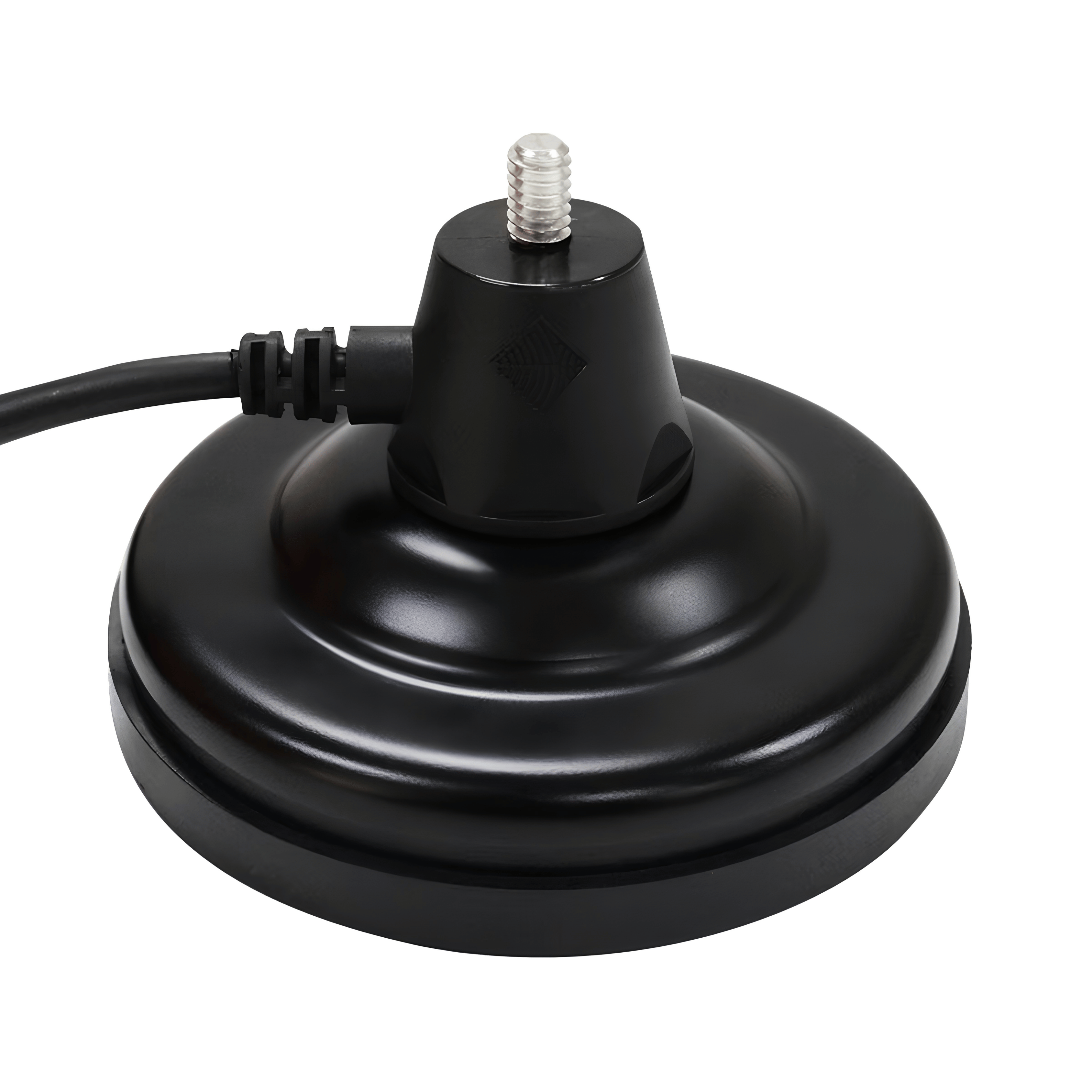

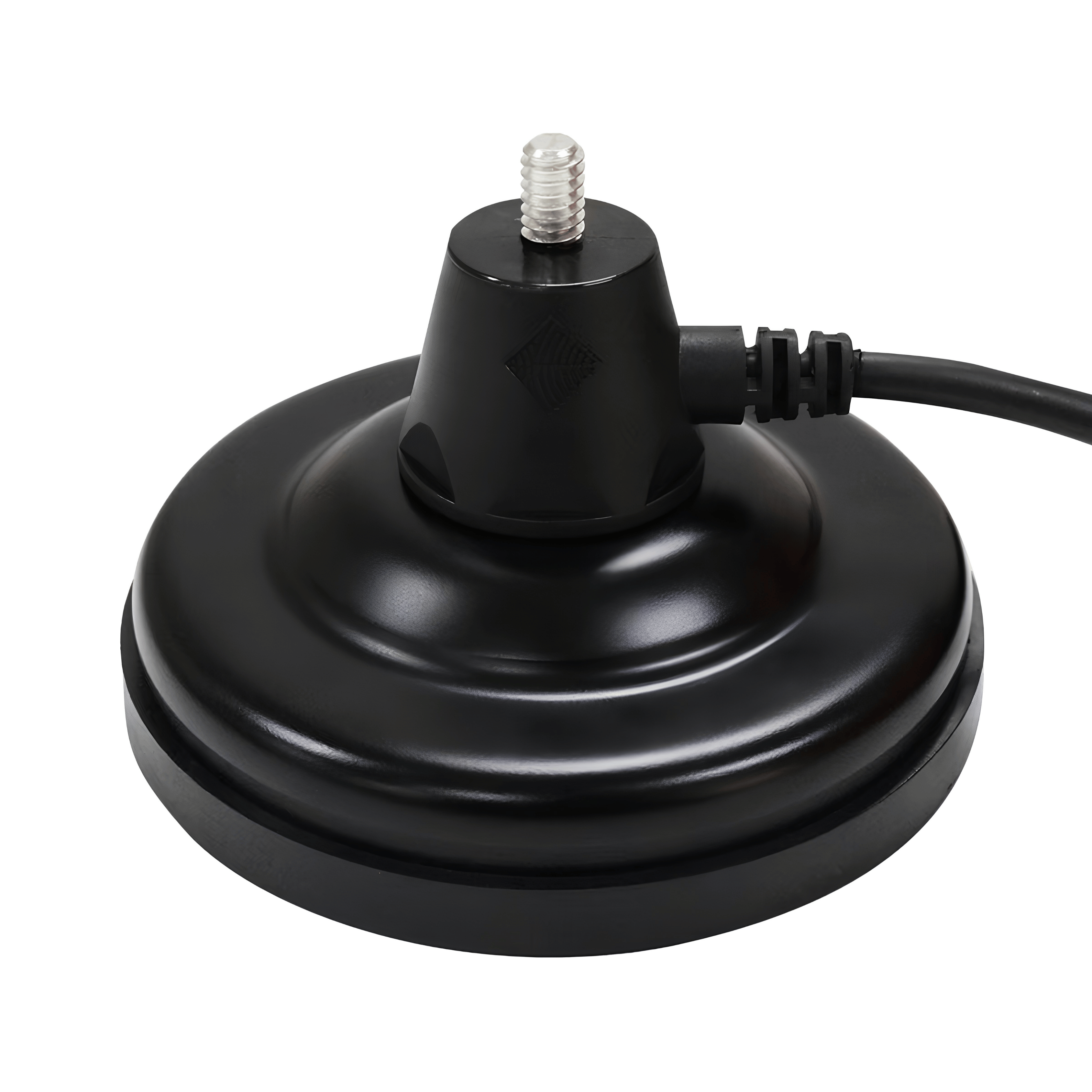

Magnetic Base with moulded MB14 style antenna base with 5m of low loss RG58 (9014) cable.
Suit antennas with 1/4 UNF male thread. Includes rubber boot to protect the vehicles paint work. Allows antennas to be transferred from car to car with ease.
Key Features
Powerful Magnetic Mounting Platform - Strong magnetic base provides secure antenna mounting on steel vehicle surfaces without drilling enabling portable temporary installations.
Moulded MB14 Style Antenna Base - Professional antenna connection point accommodating antennas with 1/4 UNF male thread configurations ensuring reliable mounting.
5m Low Loss RG58 (9014) Cable - Included 5-meter low loss coaxial cable provides professional-grade signal transmission with adequate length for routing to radio installation.
Included Rubber Boot Paint Protection - Protective rubber boot prevents magnetic base contact with vehicle paintwork eliminating scratches or finish damage during installation and use.
Unterminated Cable for Custom Installation - Cable supplied without connector allowing professional custom termination matching specific radio connector requirements.
Portable Transferable Design - Easy antenna relocation between multiple vehicles ideal for fleet applications, rental vehicles, demonstrations, or shared equipment scenarios.
Technical Specifications
| Specification |
Details |
| Model |
MMB14-5M-NC |
| SKU |
MMB14-5M-NC |
| Brand |
RFI |
| Product Type |
Magnetic Antenna Base with Cable |
| Base Style |
MB14 moulded antenna base |
| Mounting Type |
Magnetic (no drilling required) |
| Antenna Thread |
1/4 UNF male (antennas with 1/4 UNF male thread) |
| Cable Type |
Low Loss RG58 (9014) |
| Cable Length |
5 meters |
| Cable Termination |
No connector (unterminated) |
| Paint Protection |
Rubber boot included |
| Vehicle Compatibility |
Universal (vehicles with steel roof panels or magnetic surfaces) |
| Antenna Compatibility |
Antennas with 1/4 UNF male thread |
| Installation Type |
Portable magnetic mounting (temporary, non-permanent) |
| Component Type |
Magnetic Antenna Base |
| Portability |
Transferable between vehicles |
| Application |
Temporary antenna mounting, Portable installations, Fleet vehicles, Rental vehicles, Demonstrations |
Frequently Asked Questions
Q: What vehicles are compatible with MMB14-5M-NC magnetic base?
A: MMB14-5M-NC requires steel roof panel for magnetic attachment—compatible with most vehicles featuring steel roofs including sedans, wagons, hatchbacks, utes, and 4WD vehicles. Not compatible with aluminum, fiberglass, or composite roof panels lacking magnetic properties. Modern vehicles increasingly use aluminum roofs—verify roof panel material before purchase. Test magnetic attraction at proposed mounting location confirming adequate magnetic hold.
Q: Will magnetic base damage vehicle paint?
A: MMB14-5M-NC includes rubber boot protecting vehicle paintwork from direct magnetic base contact preventing scratches. Ensure roof surface clean before installation removing dirt and debris potentially trapped between boot and paint causing scratches. Periodically remove base checking for trapped contaminants. Rubber boot protects finish during normal use—proper installation and maintenance prevents paint damage.
Q: Is magnetic mounting secure at highway speeds?
A: MMB14-5M-NC designed for secure mounting during normal vehicle operation including highway speeds when properly installed on steel roof. Magnetic hold adequate for typical UHF CB antennas during highway travel. Verify antenna secured properly and magnetic base positioned on clean flat steel surface. Extreme speeds, severe weather, or very tall heavy antennas may require permanent mounting solutions. Periodically verify secure attachment especially after highway travel.
Q: What antennas are compatible with 1/4 UNF male thread?
A: MMB14-5M-NC accommodates antennas with 1/4 UNF male thread—common thread size for many UHF CB antennas particularly shorter mobile and magnetic base antennas. Verify antenna thread specification before purchase ensuring 1/4 UNF compatibility. Some antennas use different thread sizes (3/8 inch, PL259) not compatible with MMB14. Check antenna specifications or test-fit antenna ensuring proper thread engagement.
Q: How do I terminate the unterminated cable?
A: MMB14-5M-NC 5m RG58 cable unterminated requiring connector installation. Terminate with PL259 male connector (UHF plug) matching most mobile UHF CB radios. Purchase quality PL259 connector appropriate for RG58 cable. Installation requires cable stripping tools, soldering iron or crimping tool, and connector assembly following manufacturer instructions. Consider professional installation if unfamiliar with coax termination. Alternatively, purchase pre-terminated magnetic base version if available avoiding custom connector installation.
