Description

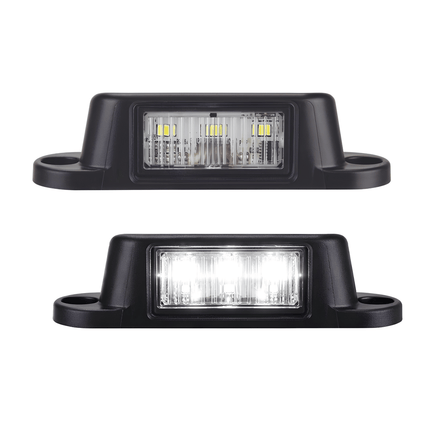

Roadvision BR15B LED Licence Plate Lamp Black Body 10-30V
An ADR-approved LED licence plate lamp from the Roadvision BR15 Series, the BR15B features 3 white LEDs, a high-impact black ABS housing, polycarbonate lens, 10-30V DC multi-volt input, surface and bracket mount options, and a 300mm sheathed tinned copper pre-wired cable, backed by a 5-year warranty.
Product Overview

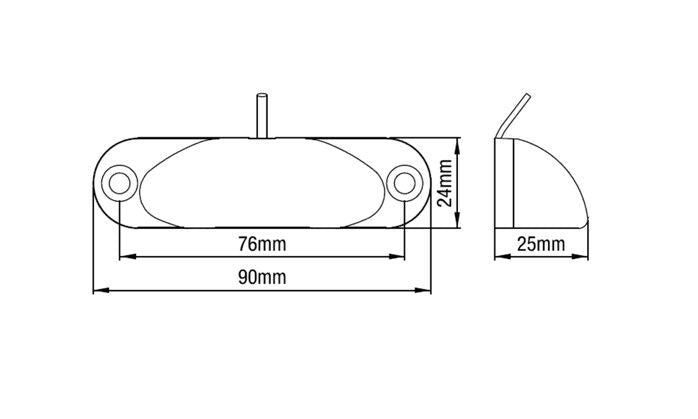

The Roadvision BR15B is a LED licence plate lamp from the BR15 Series, designed as a fit-and-forget replacement for incandescent licence plate lamps. Three white LEDs provide bright licence plate illumination while drawing only 0.05A at 13.8V, significantly less than equivalent incandescent lamps. The high-impact black ABS housing with sealed polycarbonate lens is waterproof, dustproof, vibration-proof, and shock-proof with a rated LED lifespan of 100,000 hours. The 90 x 24 x 25mm lamp mounts via surface or bracket mount with a 75.9mm mounting hole cutout and is pre-wired with a 300mm sheathed tinned copper cable. Multi-volt 10-30V DC input is compatible with 12V and 24V electrical systems. ADR approved (CRN 48416) and CTA approved (CTA-048416). Backed by a 5-year warranty.
Features & Benefits
ADR and CTA Approved: The BR15B holds ADR approval (CRN 48416) and CTA approval (CTA-048416), confirming compliance with Australian road requirements for licence plate lamp applications.
3 White LEDs - Bright Licence Plate Illumination: Three white LEDs provide bright and even licence plate illumination while drawing only 0.05A at 13.8V, a fraction of the current drawn by equivalent incandescent lamps.
Black High-Impact ABS Housing: The black high-impact ABS housing provides a durable, impact-resistant construction suited to trailer and vehicle exterior applications.
Sealed Polycarbonate Lens: The unbreakable polycarbonate lens provides long-term durability, resistance to impact and UV degradation, and a watertight seal.
Waterproof, Dustproof, Vibration-Proof, and Shock-Proof: The fully sealed construction protects the lamp from water, dust, vibration, and shock in all trailer and vehicle operating environments.
100,000 Hour LED Lifespan - Fit and Forget: The 100,000 hour rated LED lifespan with maintenance-free solid-state technology provides long-term reliability with no bulb replacements required.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.
Surface and Bracket Mount with 75.9mm Cutout: The BR15B can be surface mounted or bracket mounted with a 75.9mm mounting hole cutout for flexible installation in trailer and vehicle number plate positions.
300mm Sheathed Tinned Copper Pre-Wired Cable: The 300mm sheathed tinned copper pre-wired cable provides a corrosion-resistant connection to the trailer or vehicle wiring harness.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR15B |
| Brand |
Roadvision |
| Series |
BR15 |
| Description |
Licence Plate Lamp Black Body |
| Function |
Licence Plate Lamp |
| LED Quantity |
3 White LEDs |
| Input Voltage |
10-30V DC |
| Current Draw |
0.05A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
High-Impact ABS |
| Housing Colour |
Black |
| Dimensions |
90mm x 24mm x 25mm |
| Mount Type |
Surface/Bracket Mount |
| Mounting Hole/Cutout |
75.9mm |
| Cable Length |
300mm Sheathed Tinned Copper |
| ADR Approval |
CRN 48416 |
| CTA Approval |
CTA-048416 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR15B is compatible with 10-30V DC trailer and vehicle electrical systems. ADR and CTA approved for licence plate lamp applications. Confirm mounting cutout dimensions (75.9mm) against your specific trailer or vehicle panel before purchase. A chrome body version is available as the BR15C.
Frequently Asked Questions
Is the BR15B ADR approved for on-road use?
Yes. The BR15B is ADR approved (CRN 48416) and CTA approved (CTA-048416), confirming compliance with Australian road requirements for licence plate lamp applications.
Is the BR15B compatible with 24V systems?
Yes. The BR15B operates across 10-30V DC, compatible with both 12V and 24V vehicle and trailer electrical systems.
What is the LED lifespan of the BR15B?
The BR15B has a rated LED lifespan of 100,000 hours with maintenance-free solid-state technology, eliminating bulb replacements over the service life of the lamp.
What is the difference between the BR15B and the BR15C?
Both are identical in specifications, approvals, LED count, dimensions, and electrical ratings. The BR15B has a black high-impact ABS housing. The BR15C has a chromed high-impact ABS housing. Choose based on the aesthetic preference for your trailer or vehicle application.
What mounting cutout does the BR15B require?
The BR15B requires a 75.9mm mounting hole cutout for bracket mount installation. It can also be surface mounted. Confirm the mounting method and cutout dimensions against your specific application before purchase.
