Description

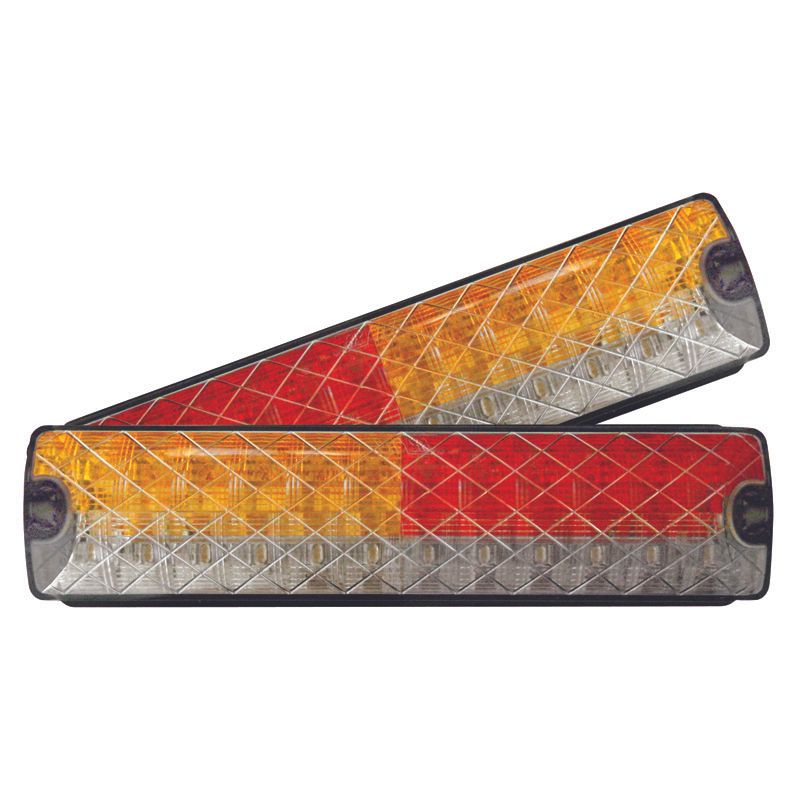

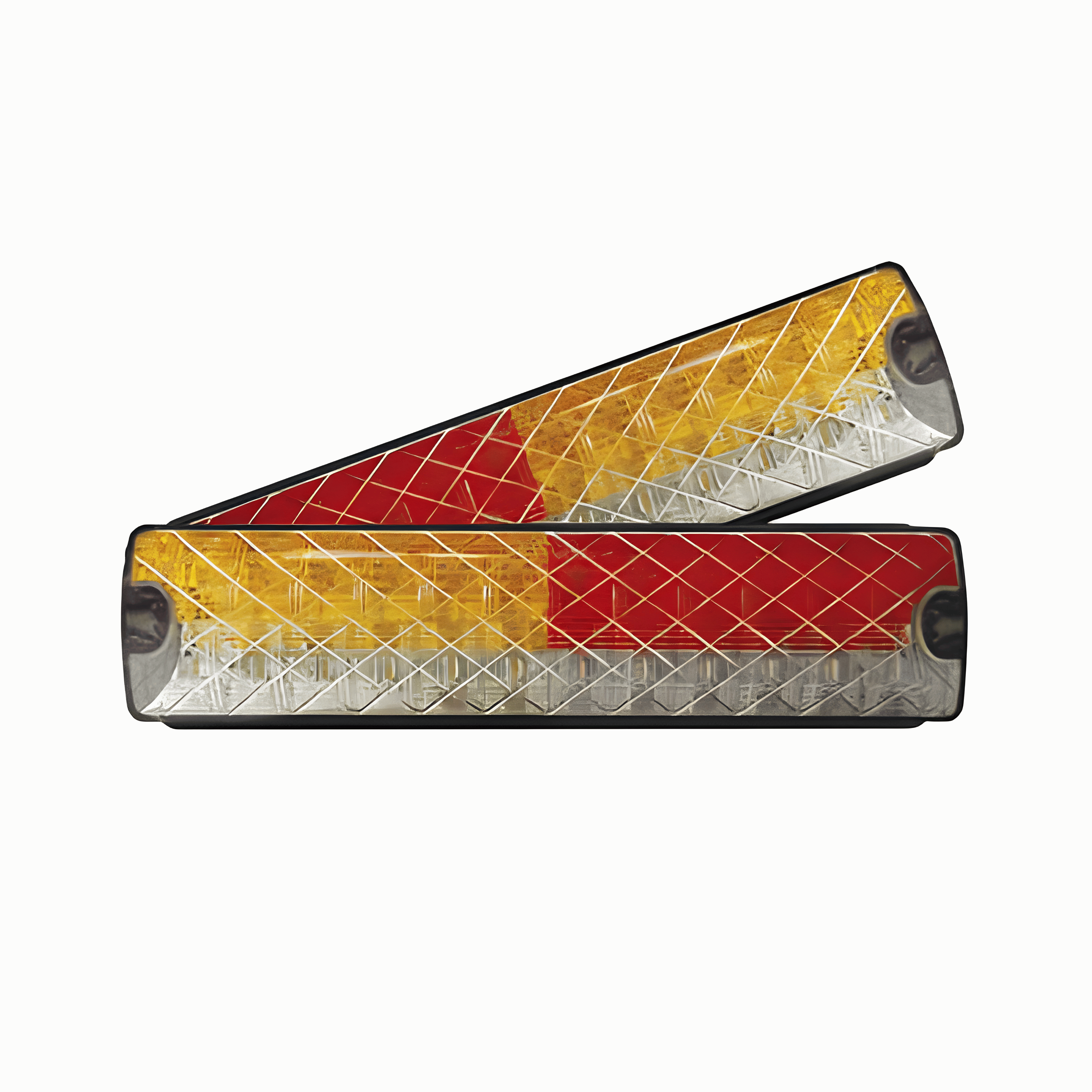

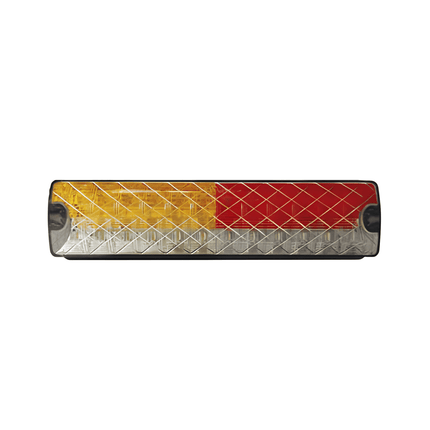

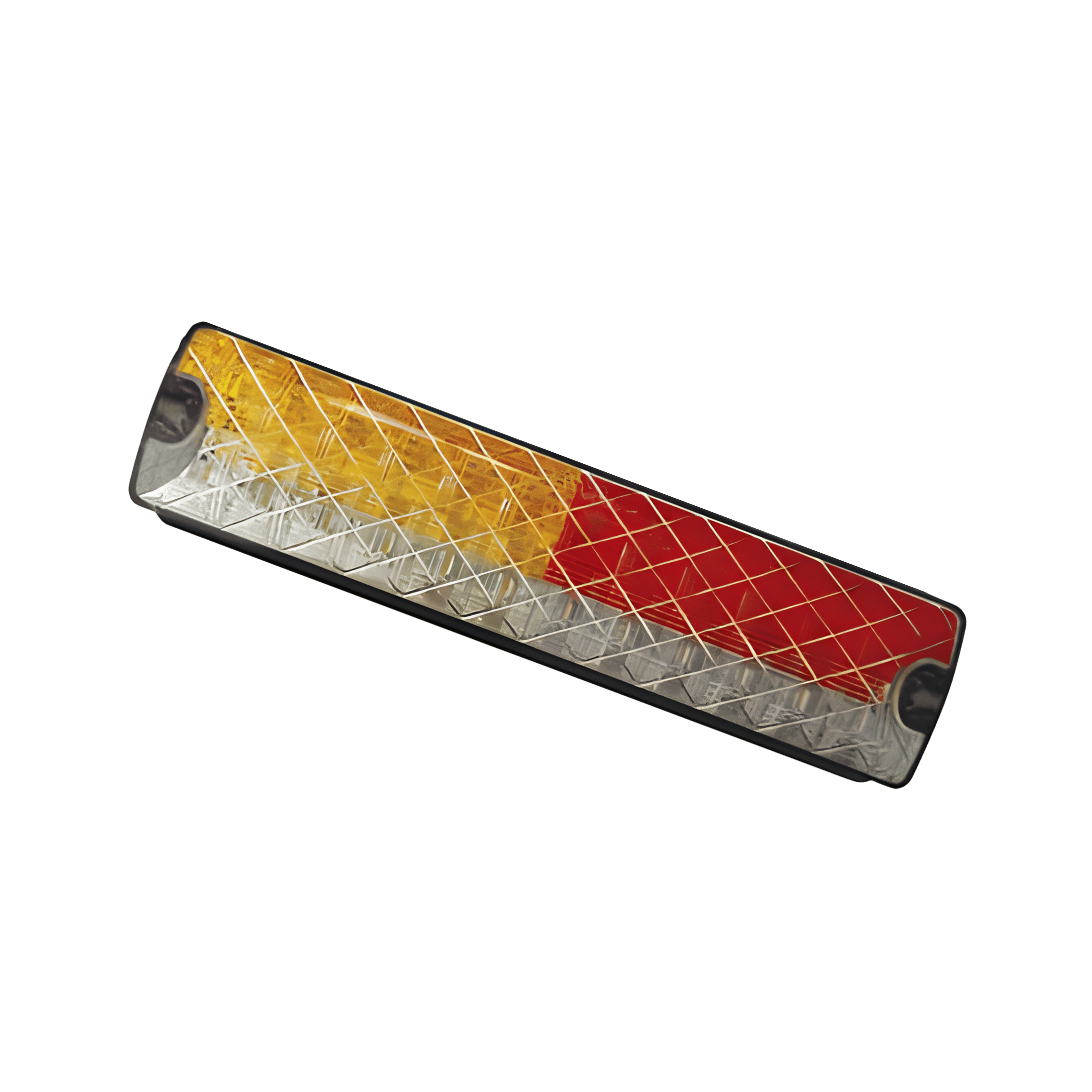

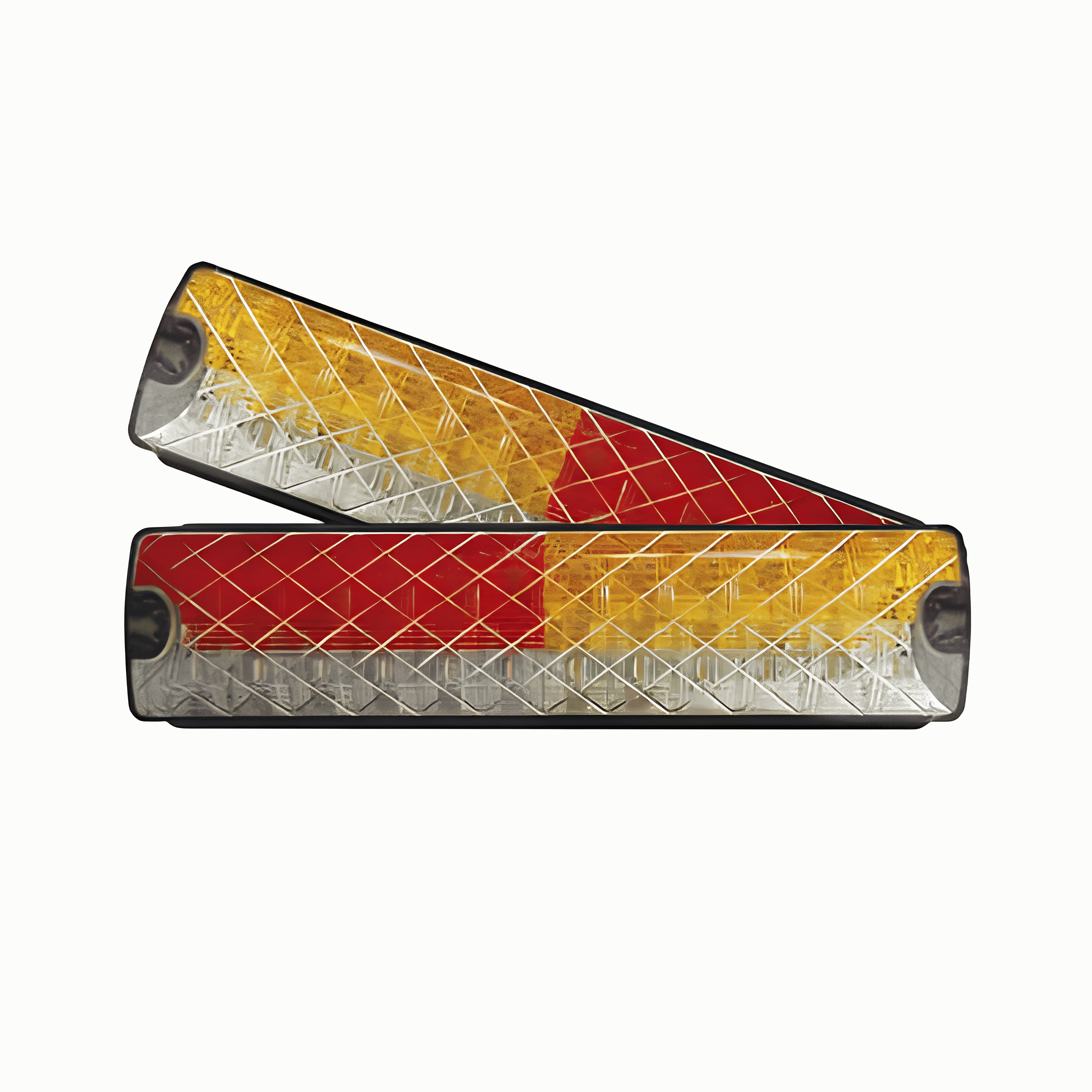

Roadvision BR200LRARW Slim LED Stop Tail Indicator Reverse Twin Pack
A twin pack of slimline rectangular strip LED rear combination lamps from the Roadvision BR200 Series, the BR200LRARW combines stop, tail, indicator, and reverse functions in a super slim 195 x 50 x 32mm package, with multi-volt 10-30V DC input, sealed polycarbonate lens and housing, 100,000 hour rated LED lifespan, ADR/ECE approval for all functions, and a 5-year warranty.
Product Overview
The Roadvision BR200LRARW is a versatile slimline solution from the BR200 Series, designed as a simple DIY trailer lighting option for applications where space is at a premium. Each lamp packs stop/tail, indicator, and reverse functions into a super slim strip body, with 6 stop/tail LEDs, 6 indicator LEDs, and 12 reverse LEDs producing more light output than incandescent lamps while drawing a fraction of the current, at just 0.05A for the indicator, 0.05/0.05A for stop/tail, and 0.1A for reverse at 13.8V.
The BR200 Series is designed to attach easily to horizontal or vertical mounting surfaces with a simple surface mount design on 175mm mounting hole centres. Constructed with a sealed polycarbonate lens and housing, the lamps are dust and water proof and totally maintenance free, with a 100,000 hour rated LED lifespan from solid-state technology. Each lamp is supplied pre-wired with a 300mm tinned copper cable and LEDLink connector, and all functions are ADR/ECE approved. With Roadvision it's fit and forget.
Features & Benefits
Twin Pack with Integrated Reverse Function: The BR200LRARW includes two slimline combination lamps covering stop/tail, indicator, and reverse functions, handling the full rear lighting requirements of a trailer in a single purchase.
Super Slim Strip Design: At 195 x 50 x 32mm, the rectangular strip body suits applications where space is at a premium, mounting neatly to horizontal or vertical surfaces on trailers, tailgates, and bodywork.
More Light, Less Current: The BR200 Series produces more light output than incandescent lamps while drawing a fraction of the current, with 6 stop/tail LEDs, 6 indicator LEDs, and 12 reverse LEDs per lamp.
100,000 Hour Rated LED Lifespan: Solid-state LED technology delivers a 100,000 hour rated lifespan for totally maintenance-free operation over the life of the trailer.
Sealed Polycarbonate Lens and Housing: The durable sealed polycarbonate construction is dust and water proof, built for everyday exposure to road conditions.
Multi-Volt 10-30V DC Input: The 10-30V DC multi-volt input with low current draw makes the BR200LRARW compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
ADR/ECE Approved for All Functions: The indicator, stop/tail, and reverse functions are all ADR/ECE approved for legal on-road use in Australia.
Pre-Wired with LEDLink Connector: Each lamp is supplied pre-wired with a 300mm tinned copper cable and LEDLink connector, with colour-coded wiring for a straightforward connection to the trailer harness.
Simple Surface Mount Installation: The simple surface mount design with 175mm mounting hole centres attaches easily to horizontal or vertical surfaces for a quick DIY fitment.
5-Year Warranty: The BR200LRARW is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR200LRARW |
| Brand |
Roadvision |
| Series |
BR200 Combination |
| Description |
Rect Strip Stop/Tail/Ind/Rev Twin Pack |
| Functions |
Stop/Tail, Indicator and Reverse |
| Voltage Input |
10-30V DC |
| Number of LEDs |
Indicator - 6 LEDs, Stop/Tail - 6 LEDs, Reverse - 12 LEDs |
| Current Draw |
Indicator - 0.05A at 13.8V, Stop/Tail - 0.05/0.05A at 13.8V, Reverse - 0.1A at 13.8V |

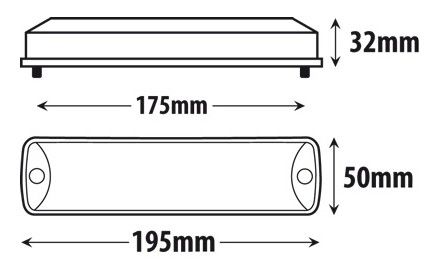

| Dimensions |
195 x 50 x 32mm |
| Lens |
Polycarbonate |
| Housing |
Polycarbonate |
| Ingress Protection |
Water and Dust Proof |
| Mounting Hole Centre |
175mm |
| Cable |
300mm Tinned Copper with LEDLink Connector |
| Wiring Colour Codes |
Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow, Reverse - Black |
| ADR Approval |
Indicator - E4-6R-0115710, Stop/Tail - E4-7R-0215710, Reverse - E4-23R-0015710 |
| CTA Approval |
CTA-060547 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR200LRARW is compatible with 10-30V DC electrical systems, covering both 12V and 24V trailers and tow vehicles, and is ADR/ECE approved for all functions for on-road use in Australia. The simple surface mount design attaches to horizontal or vertical surfaces. Confirm the 195mm lamp length and 175mm mounting hole centres fit your intended location before purchase.
Frequently Asked Questions
What is included in the BR200LRARW twin pack?
The BR200LRARW includes two slimline strip LED combination lamps, each with stop/tail, indicator, and reverse functions, pre-wired with a 300mm tinned copper cable and LEDLink connector.
Does the BR200LRARW include a reverse light?
Yes. Each lamp includes an integrated reverse function with 12 white LEDs, ADR approved under E4-23R-0015710, alongside the stop/tail and indicator functions.
Is the BR200LRARW compatible with 24V vehicles?
Yes. The BR200LRARW operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Is the BR200LRARW waterproof?
Yes. The sealed polycarbonate lens and housing are dust and water proof and totally maintenance free, built for everyday exposure to road conditions.
How does the BR200LRARW mount and wire up?
Each lamp surface mounts to horizontal or vertical surfaces on 175mm mounting hole centres, and connects via the pre-wired 300mm cable with LEDLink connector using colour-coded wiring: white for earth, red for stop, brown for tail, green or yellow for indicator, and black for reverse.
