Description

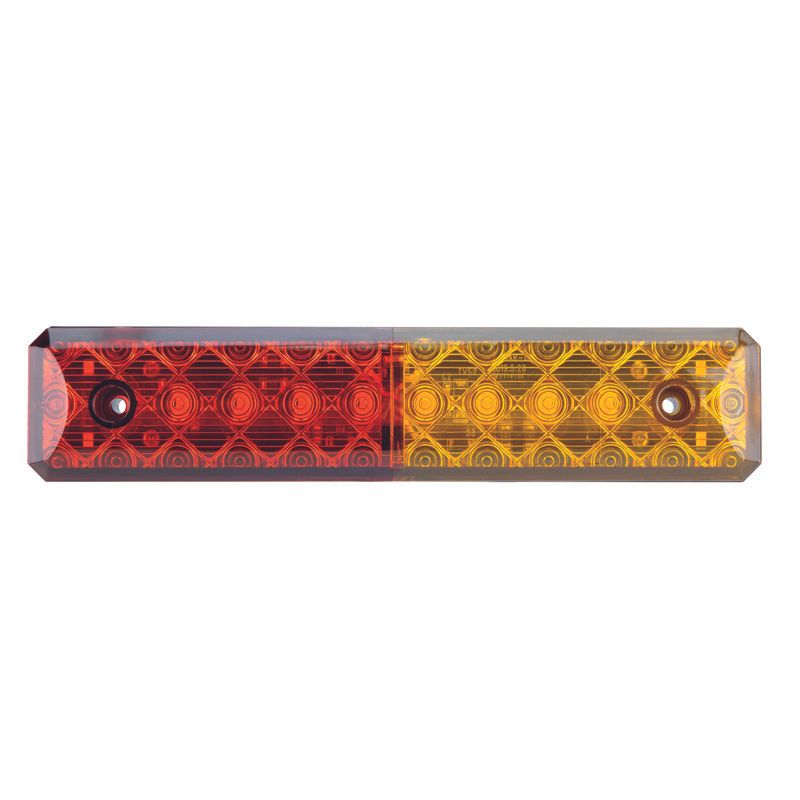

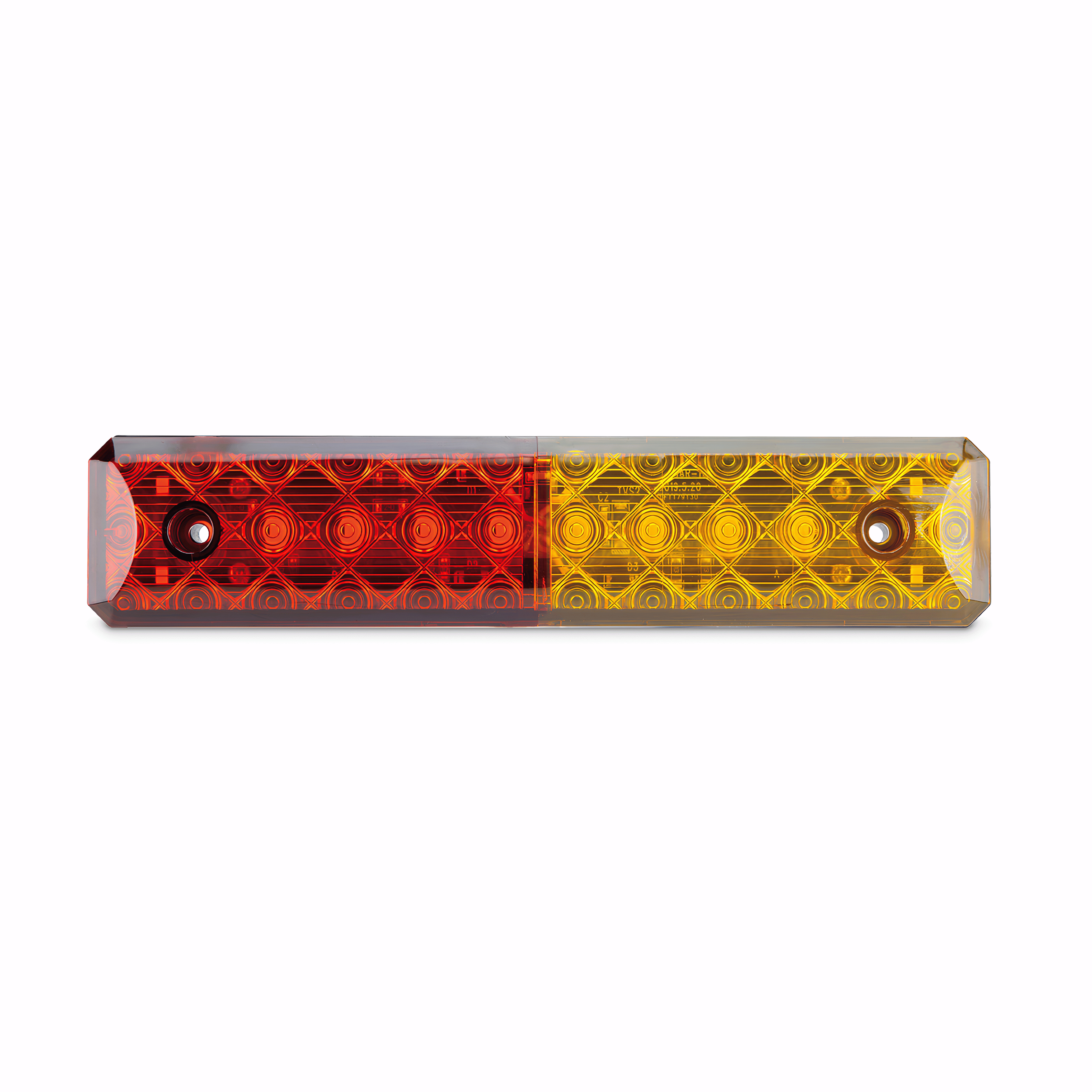

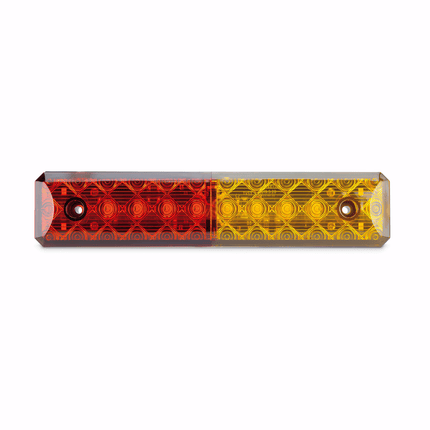

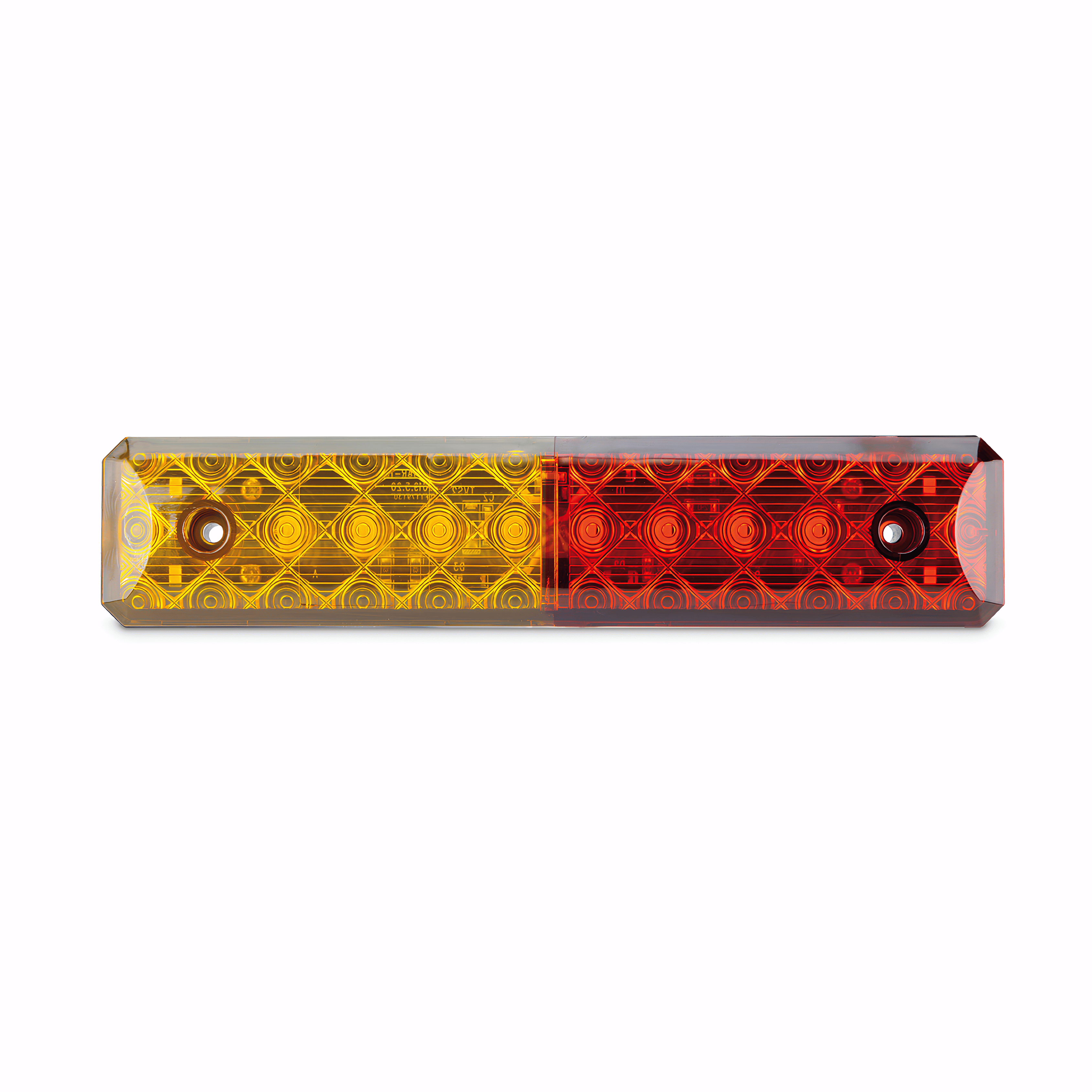

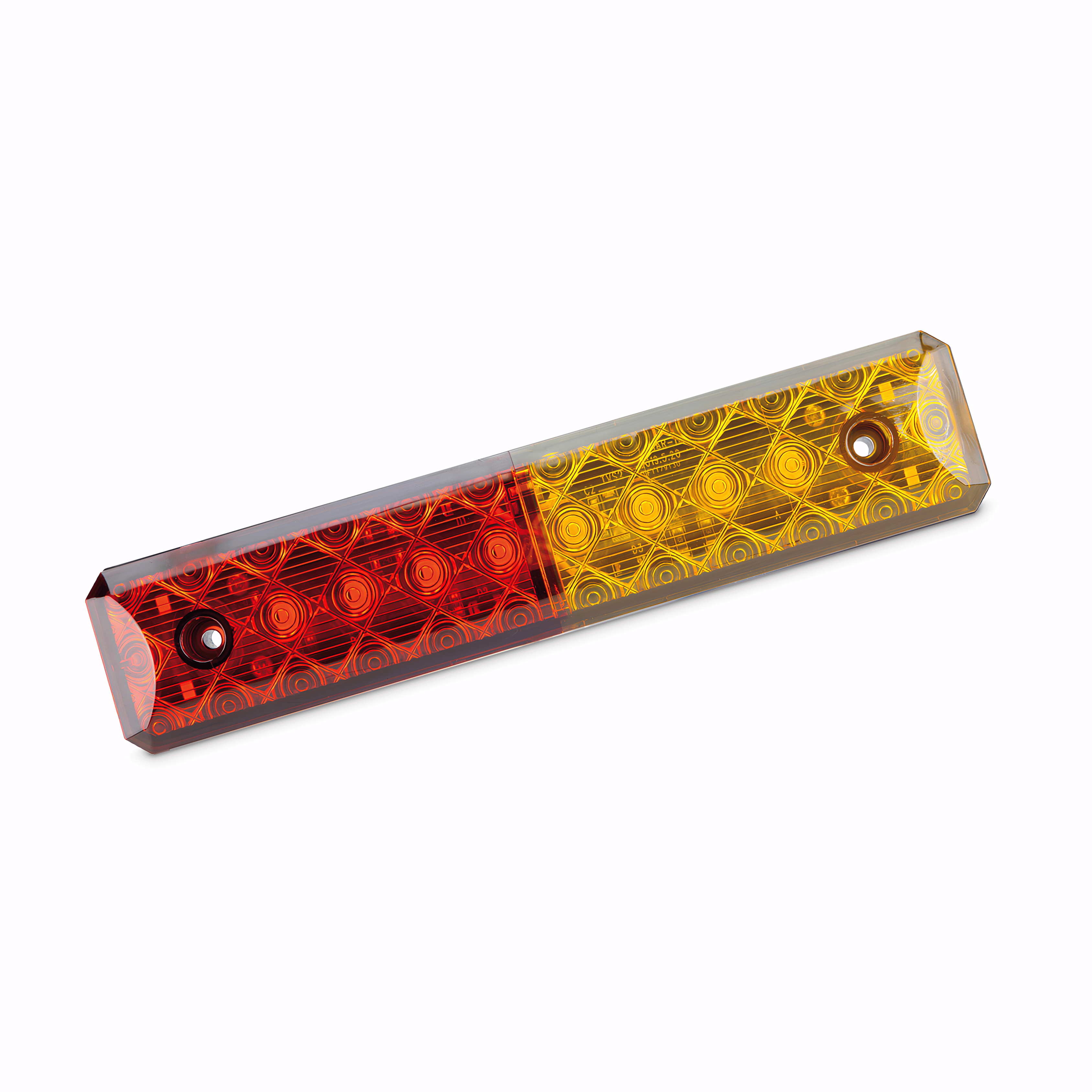

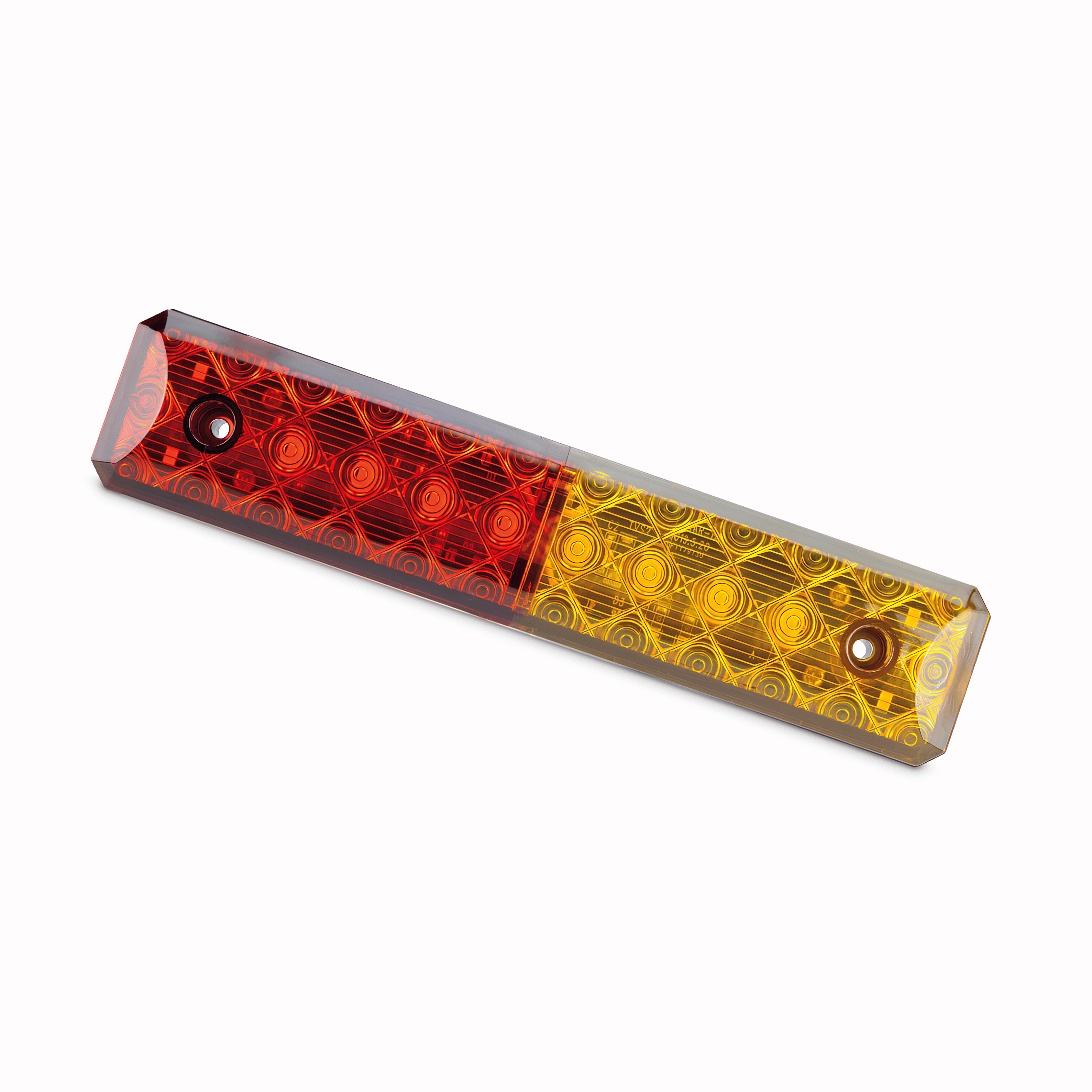

Roadvision BR201AR LED Rectangle Combination Lamp Stop Tail and Indicator
An ADR-approved compact LED rectangle combination lamp from the Roadvision BR201 Series, the BR201AR features stop, tail, and indicator functions with 12 LEDs per function, polycarbonate lens and housing, 10-30V DC multi-volt input, 160mm mounting hole centre, and a 300mm tinned copper pre-wired cable with LEDLink connector, backed by a 5-year warranty.
Product Overview
The Roadvision BR201AR is a compact LED rectangle combination lamp from the BR201 Series, providing stop, tail, and indicator functions in a single 204 x 40 x 28mm surface mount unit. Twelve LEDs per function deliver bright stop, tail, and indicator output, with each function producing more light output than equivalent incandescent lamps while drawing a fraction of the current. Current draw is 0.2A for indicator and 0.2A/0.05A for stop/tail at 13.8V. The polycarbonate lens and housing are waterproof and maintenance-free with a 100,000 hour rated LED lifespan. The 160mm mounting hole centre allows straightforward surface mount installation. Pre-wired with a 300mm tinned copper sheathed cable and LEDLink connector with earth (white), stop (red), tail (brown), and indicator (green or yellow) wires. ADR approved with individual CRN numbers for indicator (CRN 50440), stop (CRN 50441), and tail (CRN 50442) functions. CTA approval CTA-061016. Backed by a 5-year warranty.
Features & Benefits
Compact All-in-One Stop, Tail, and Indicator Combination Lamp: The BR201AR combines stop, tail, and indicator functions in a single compact 204 x 40 x 28mm rectangle unit, reducing the number of individual lamp assemblies required for trailer and vehicle rear lighting.
ADR Approved for All Functions: The BR201AR holds individual ADR approval CRN numbers for indicator (CRN 50440), stop (CRN 50441), and tail (CRN 50442) functions, and CTA approval CTA-061016, confirming compliance with Australian road safety requirements for all lamp functions.
12 LEDs Per Function - Brighter than Incandescent: Twelve LEDs per stop, tail, and indicator function produce more light output than equivalent incandescent lamps while drawing significantly less current, improving safety and visibility.
Polycarbonate Lens and Housing - Weatherproof: Both the lens and housing are manufactured from polycarbonate, providing durability, impact resistance, and weatherproof protection suited to all trailer and vehicle exterior applications.
100,000 Hour LED Lifespan - Fit and Forget: The 100,000 hour rated LED lifespan with maintenance-free solid-state technology eliminates bulb replacements over the service life of the lamp.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.
LEDLink Connector for Simple Wiring: The 300mm tinned copper sheathed cable with LEDLink connector provides a reliable, corrosion-resistant pre-wired connection for straightforward installation into trailer wiring systems using compatible LEDLink connectors.
Surface Mount Design with 160mm Mounting Hole Centre: The compact surface mount design with a single 160mm mounting hole centre provides straightforward installation to trailer and vehicle rear panels.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR201AR |
| Brand |
Roadvision |
| Series |
BR201 |
| Description |
Rectangle Combination - Stop/Tail and Indicator |
| Functions |
Stop, Tail, Indicator |
| LED Quantity - Indicator |
12 LEDs |
| LED Quantity - Stop/Tail |
12 LEDs |
| Input Voltage |
10-30V DC |
| Current Draw - Indicator |
0.2A at 13.8V |
| Current Draw - Stop |
0.2A at 13.8V |
| Current Draw - Tail |
0.05A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| Dimensions |
204mm x 40mm x 28mm |
| Mounting Hole Centre |
160mm |
| Cable Length |
300mm Tinned Copper Sheathed |
| Connector |
LEDLink |
| Wiring |
Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow |
| ADR Approval - Indicator |
CRN 50440 |
| ADR Approval - Stop |
CRN 50441 |
| ADR Approval - Tail |
CRN 50442 |
| CTA Approval |
CTA-061016 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR201AR is compatible with 10-30V DC trailer and vehicle electrical systems. The LEDLink connector is compatible with standard LEDLink trailer wiring systems. ADR and CTA approved for on-road use. Confirm mounting dimensions and wiring compatibility for your specific trailer or vehicle before purchase.
Frequently Asked Questions
Is the BR201AR ADR approved for on-road use?
Yes. The BR201AR holds individual ADR approval CRN numbers for indicator (CRN 50440), stop (CRN 50441), and tail (CRN 50442) functions, and CTA approval CTA-061016, confirming compliance with Australian road safety requirements.
What is a LEDLink connector?
LEDLink is a waterproof connector system used in trailer lighting applications. The BR201AR is pre-wired with a LEDLink connector for direct plug-in connection to compatible LEDLink trailer wiring systems.
Is the BR201AR compatible with 24V systems?
Yes. The BR201AR operates across 10-30V DC, compatible with both 12V and 24V vehicle and trailer electrical systems.
What is the LED lifespan of the BR201AR?
The BR201AR has a rated LED lifespan of 100,000 hours with maintenance-free solid-state technology.
Does the BR201AR include a reverse function?
No. The BR201AR provides stop, tail, and indicator functions only. Confirm whether a reverse function is required for your specific application before purchase.
