Description

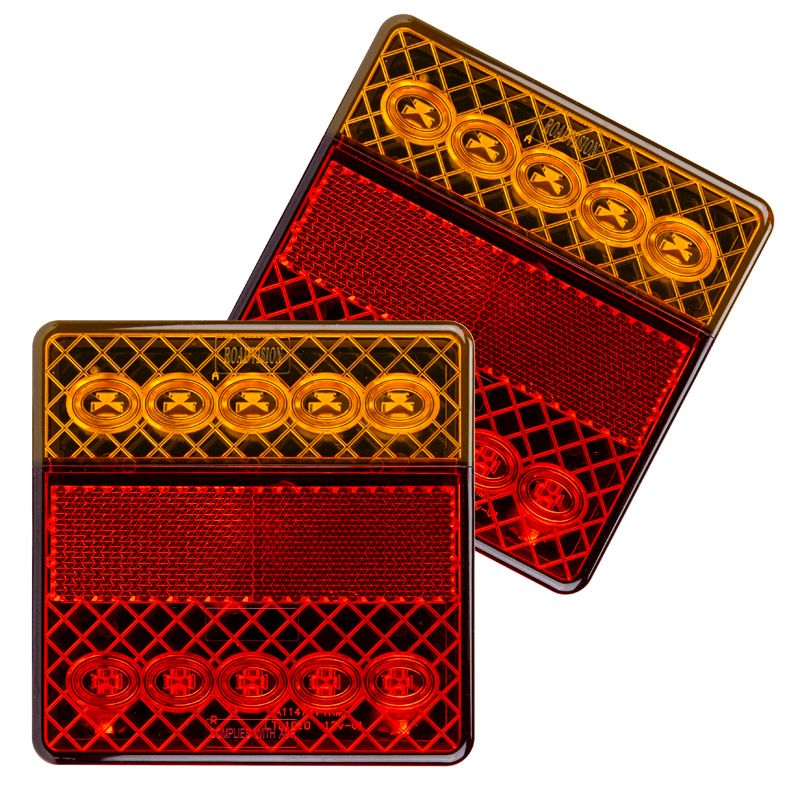

Roadvision BR208LR LED Stop Tail Indicator Lamp Twin Pack 12V
A twin pack of compact square LED rear combination lamps from the Roadvision BR208 Series, the BR208LR combines stop, tail, and indicator functions with an integrated reflector, 12V DC input, sealed polycarbonate lens and housing, submersible water and dust proof construction, 100,000 hour rated LED lifespan, ADR/ECE approval for all functions, and a 5-year warranty.
Product Overview
The Roadvision BR208LR is a simple DIY trailer lighting kit from the BR208 Series, designed for the budget conscious consumer while delivering the durability of maintenance-free LED technology and greater visibility for increased safety. Each compact 100 x 100 x 21mm lamp combines stop/tail and indicator functions with an integrated reflector, producing more light output than incandescent lamps while drawing a fraction of the current, with the indicator drawing just 0.09A and the stop/tail 0.09/0.02A at 13.8V.
Constructed with a sealed polycarbonate lens and housing, the BR208LR is water and dust proof to a submersible standard and totally maintenance free, with a 100,000 hour rated LED lifespan from solid-state technology. Fitment is made easy with integrated twin mounting studs at 70mm centres, stainless steel hardware, and a pre-wired 300mm sheathed tinned copper cable. All functions are ADR/ECE approved. With Roadvision it's fit and forget.
Features & Benefits
Twin Pack DIY Trailer Lighting Kit: The BR208LR includes two compact LED combination lamps, covering both sides of a trailer in a single purchase with a simple DIY-friendly installation.
Stop, Tail, and Indicator with Integrated Reflector: Each lamp combines stop/tail and indicator functions with an integrated reflector, reducing the number of separate lamps and reflectors needed on the rear of the trailer.
More Light, Less Current: The BR208 Series produces more light output than incandescent lamps while drawing a fraction of the current, with 5 indicator LEDs and 5 stop/tail LEDs drawing as little as 0.02A in tail mode at 13.8V.
100,000 Hour Rated LED Lifespan: Solid-state LED technology delivers a 100,000 hour rated lifespan for totally maintenance-free operation over the life of the trailer.
Water and Dust Proof - Submersible: The sealed polycarbonate lens and housing are water and dust proof to a submersible standard, suited to boat trailers and trailers that regularly see water crossings and wet conditions.
ADR/ECE Approved for All Functions: The indicator, stop/tail, and reflector functions are all ADR/ECE approved for legal on-road use in Australia.
Easy Twin Stud Surface Mount Installation: Integrated twin mounting studs at 70mm centres with stainless steel hardware make for a secure, corrosion-resistant surface mount installation.
Pre-Wired 300mm Sheathed Cable: Each lamp is pre-wired with a 300mm sheathed tinned copper cable, with colour-coded wiring for a straightforward connection to the trailer harness.
5-Year Warranty: The BR208LR is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR208LR |
| Brand |
Roadvision |
| Series |
BR208 |
| Description |
Square Stop/Tail/Ind/Ref Twin Pack |
| Functions |
Stop/Tail and Indicator with Integrated Reflector |
| Voltage Input |
12V DC |
| Number of LEDs |
Indicator - 5 LEDs, Stop/Tail - 5 LEDs |
| Current Draw |
Indicator - 0.09A at 13.8V, Stop/Tail - 0.09/0.02A at 13.8V |
| Dimensions |
100 x 100 x 21mm |
| Lens |
Polycarbonate |
| Housing |
Polycarbonate |
| Ingress Protection |
Water and Dust Proof (Submersible) |
| Mounting |
Twin Stud Surface Mount, 70mm Stud Centres, Stainless Steel Hardware |
| Cable |
300mm Sheathed Tinned Copper |
| Wiring Colour Codes |
Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow |
| ADR Approval |
Indicator - E4-6R-0116003, Stop/Tail - E4-7R-0216003, Reflector - E4-3R-0216003 |
| CTA Approval |
CTA-060548 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR208LR is designed for 12V DC trailer electrical systems and is ADR/ECE approved for all functions for on-road use in Australia. The BR208 Series is also available with an integrated licence plate lamp (BR208LRNP twin pack) and in multi-volt 10-30V DC versions (BR208MV and BR208NPMV) for 24V applications. Confirm the 70mm stud centre mounting spacing and your trailer's operating voltage before purchase.
Frequently Asked Questions
What is included in the BR208LR twin pack?
The BR208LR includes two square LED combination lamps, each with stop/tail and indicator functions, an integrated reflector, a pre-wired 300mm sheathed tinned copper cable, and stainless steel twin stud mounting hardware.
Is the BR208LR ADR approved?
Yes. All functions are ADR/ECE approved, with indicator approval E4-6R-0116003, stop/tail approval E4-7R-0216003, reflector approval E4-3R-0216003, and CTA approval CTA-060548.
Can the BR208LR be used on a 24V vehicle?
No. The BR208LR is a 12V DC lamp. For 24V or mixed-voltage applications, the BR208 Series is available in multi-volt 10-30V DC versions, the BR208MV and BR208NPMV.
Is the BR208LR waterproof?
Yes. The sealed polycarbonate lens and housing are water and dust proof to a submersible standard, making the BR208LR suitable for boat trailers and wet conditions.
Does the BR208LR include a licence plate lamp?
No. The BR208LR covers stop/tail and indicator functions with an integrated reflector. For a version with an integrated licence plate lamp, choose the BR208LRNP twin pack.
How does the BR208LR mount and wire up?
Each lamp surface mounts via integrated twin studs at 70mm centres with stainless steel hardware, and connects via the pre-wired 300mm cable using colour-coded wiring: white for earth, red for stop, brown for tail, and green or yellow for indicator.
