Description

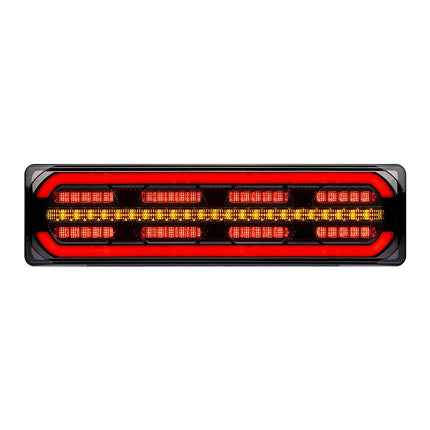

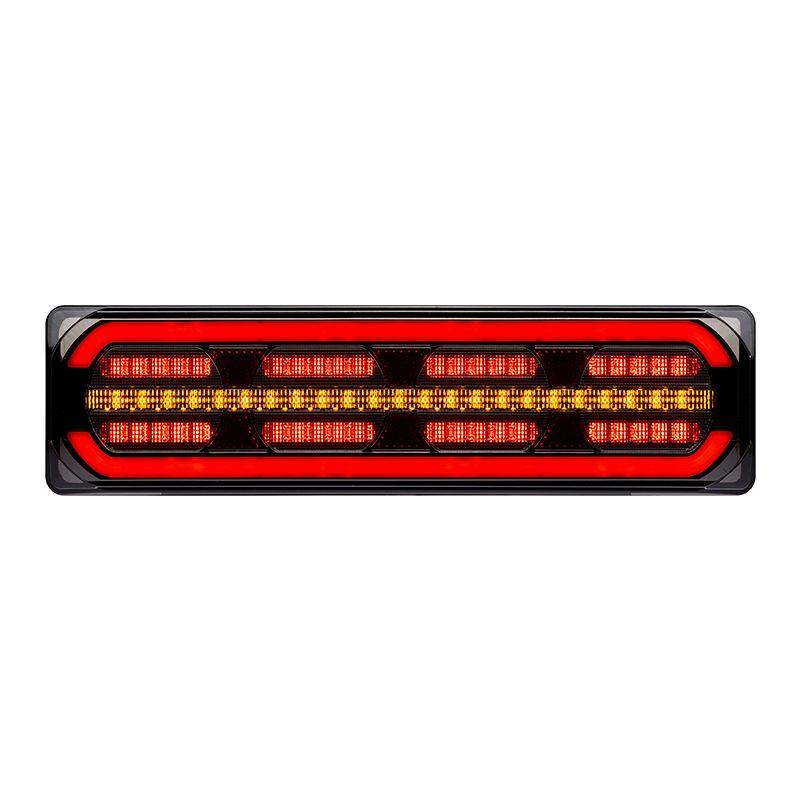

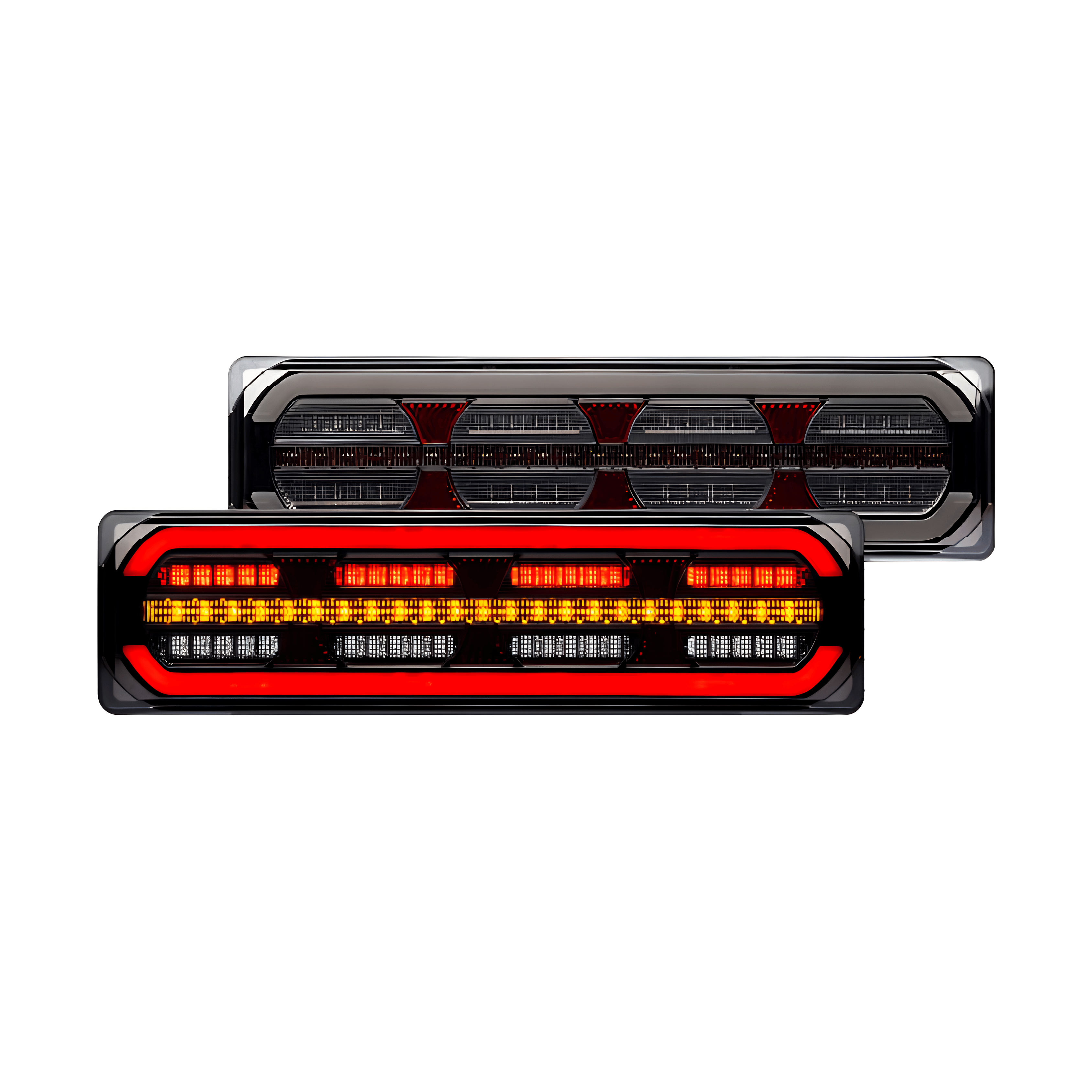

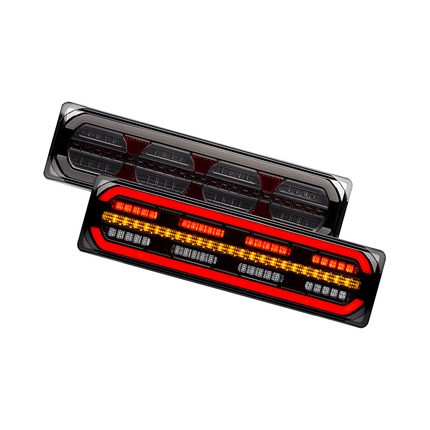

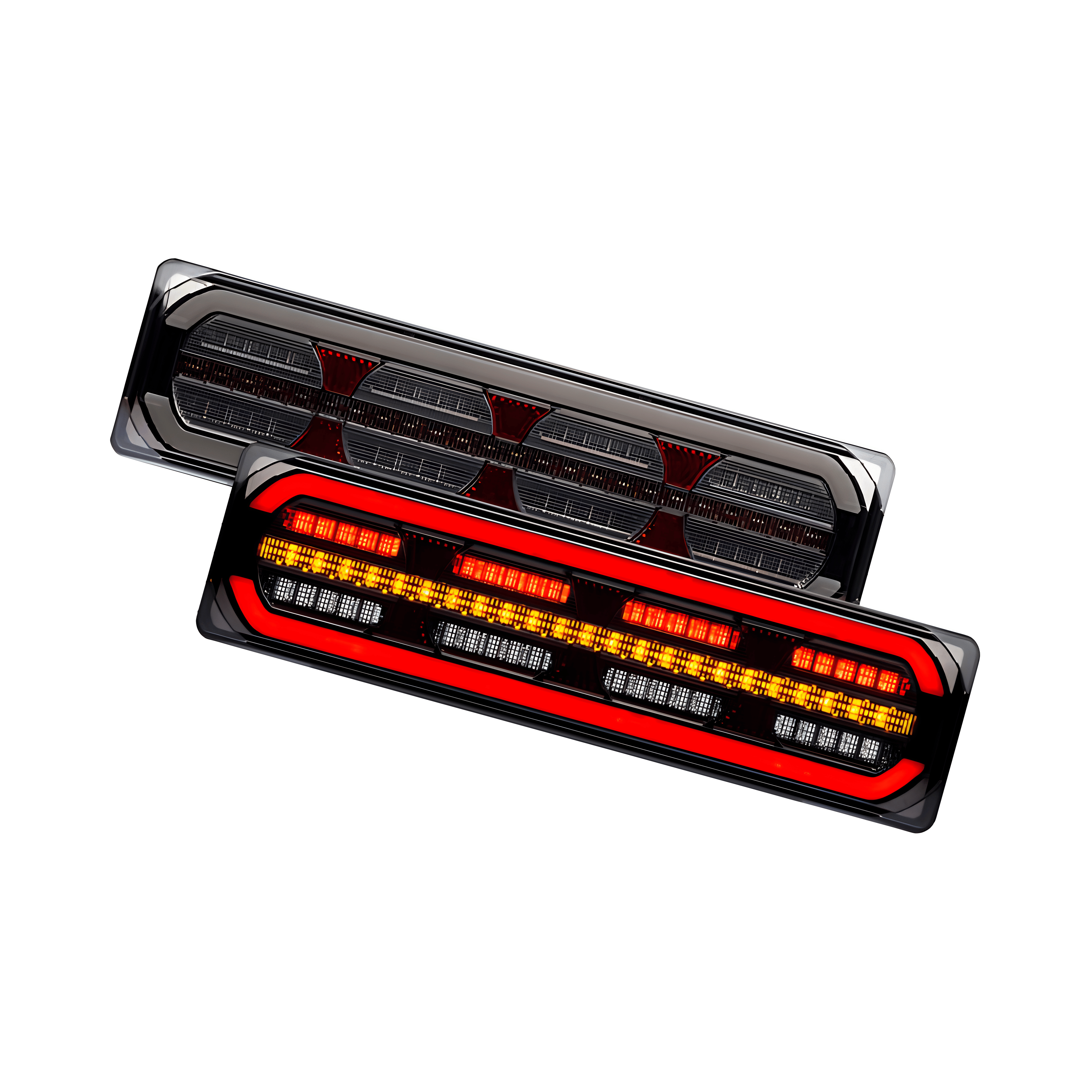

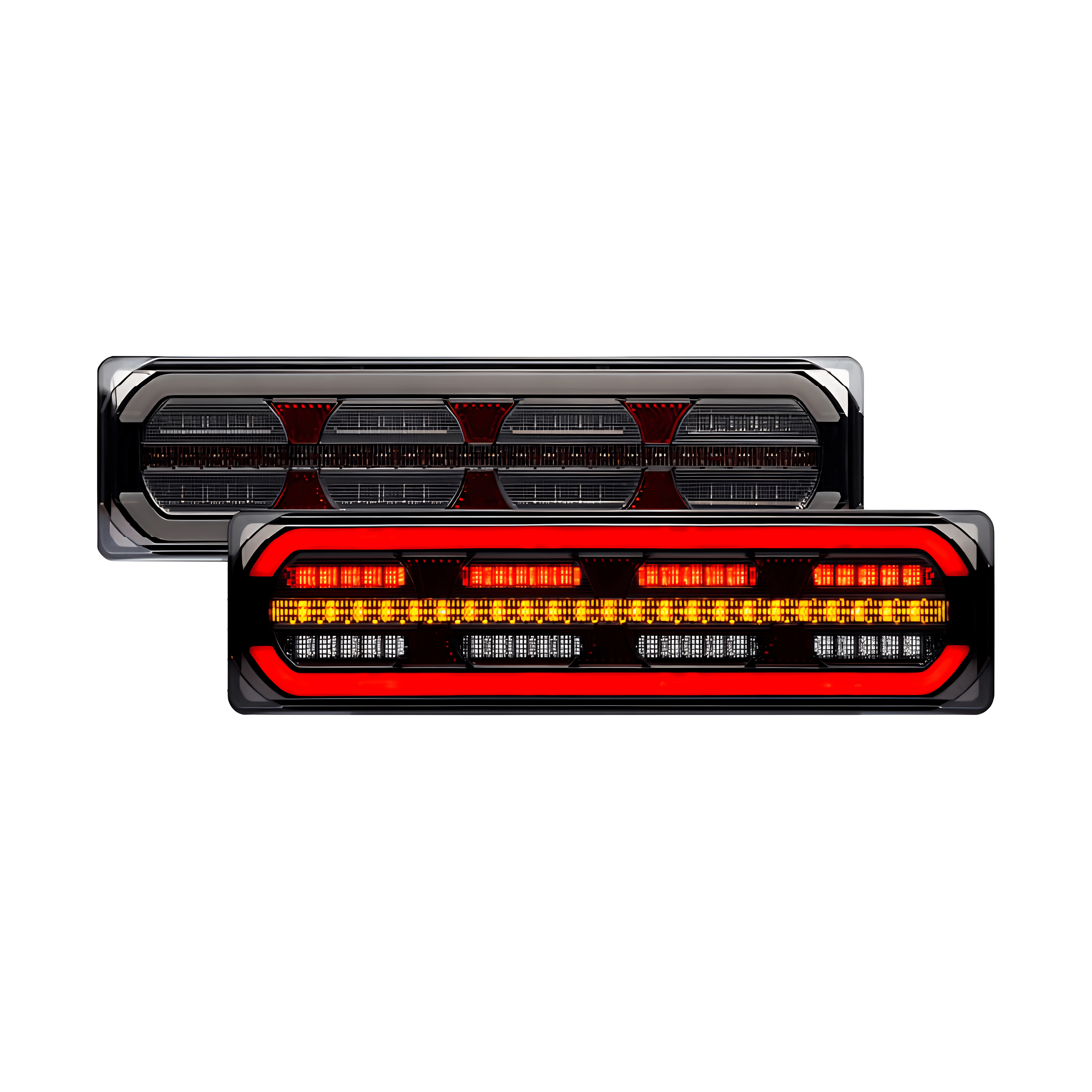

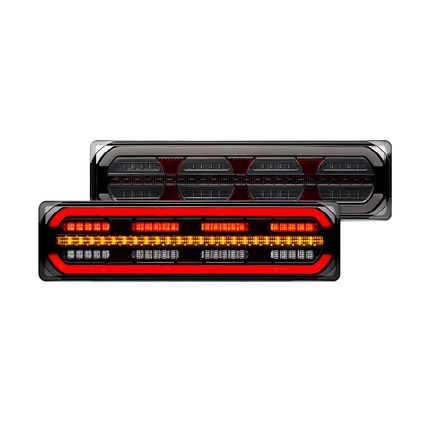

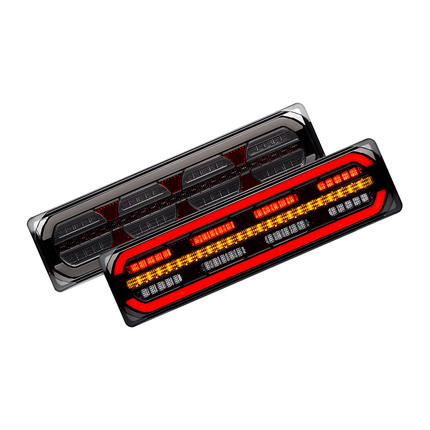

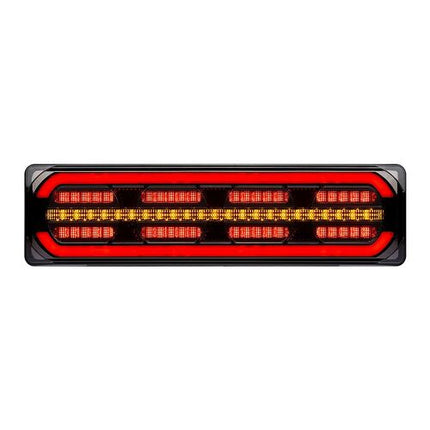

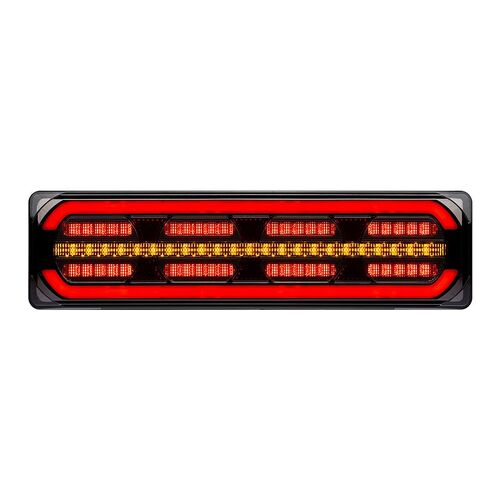

Roadvision BR392ARR LED Rear Combination Lamp Stop Tail Indicator and Reflector
An ADR-approved LED rear combination lamp from the Roadvision BR392 Series, the BR392ARR features stop, tail, indicator, and integrated reflector functions with a sequential indicator, Grey Glowtech tail light, polycarbonate lens and housing, 10-30V DC multi-volt input, and 300mm tinned copper pre-wired cable, backed by a 5-year warranty.
Product Overview

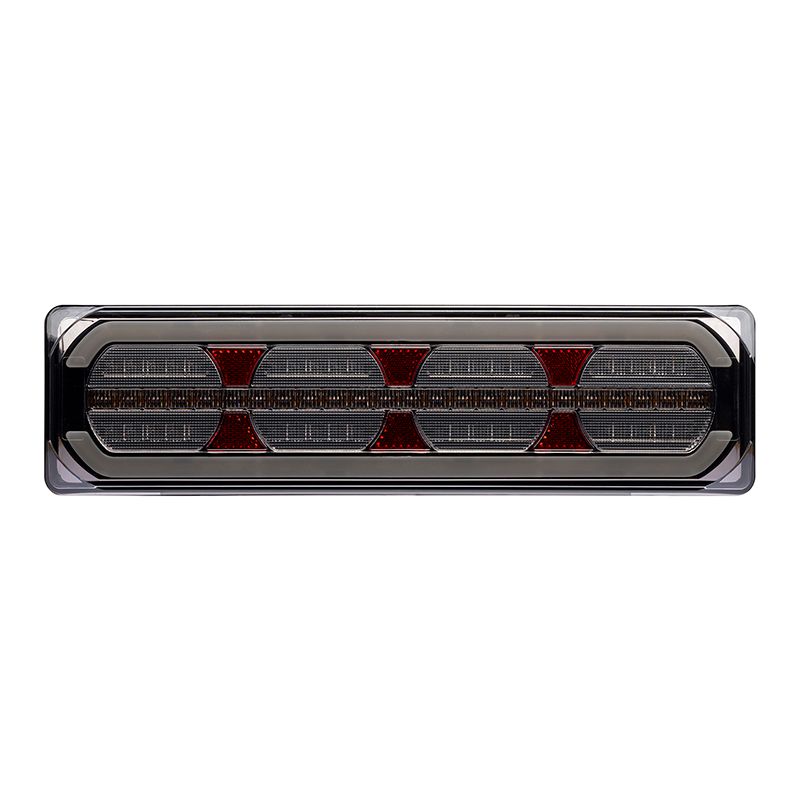

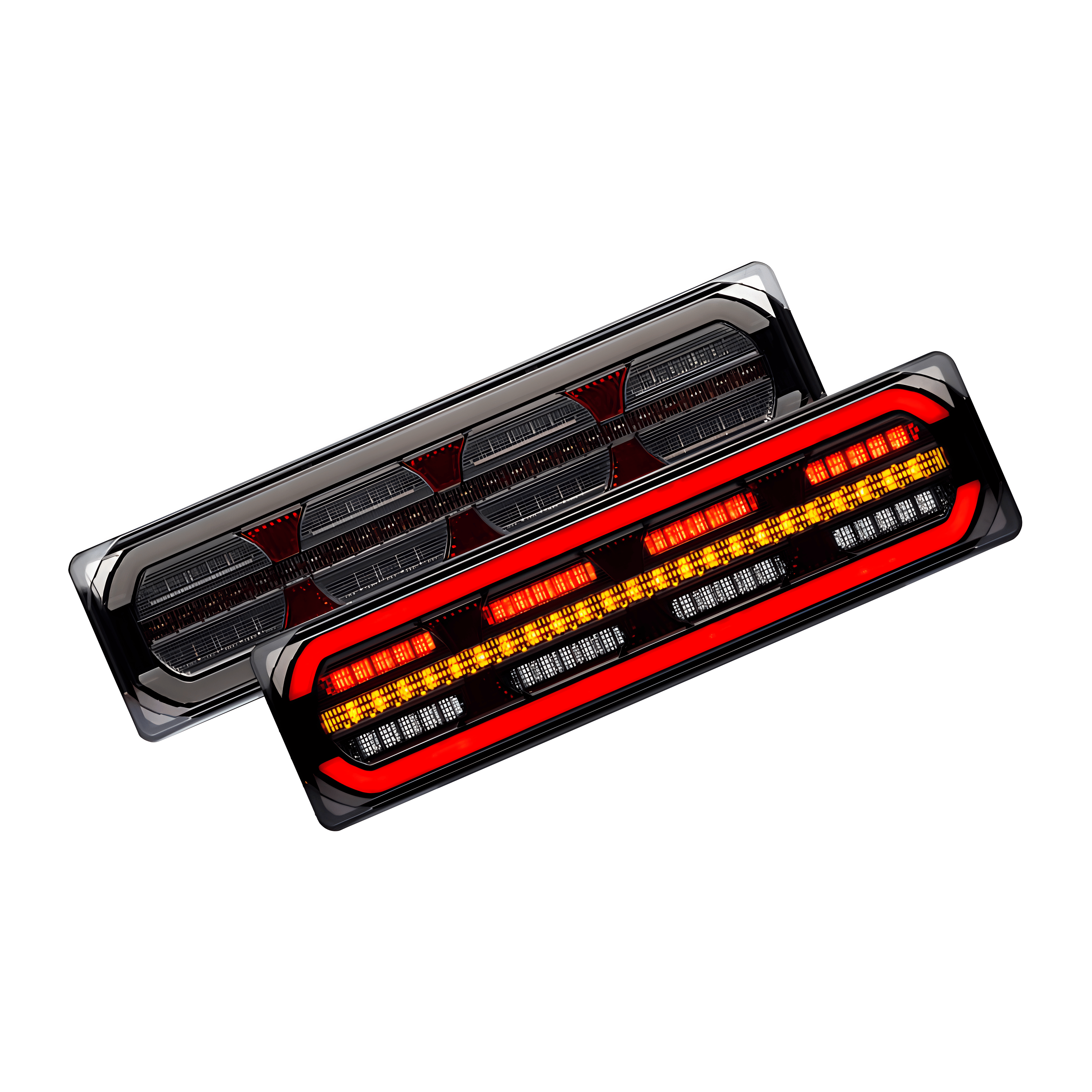

The Roadvision BR392ARR is a rear combination lamp from the BR392 Series, providing stop, tail, indicator, and integrated reflector functions in a single 390 x 105 x 39mm surface mount unit. The sequential indicator delivers a modern, sweeping activation sequence for enhanced road presence. The Grey Glowtech tail light provides a distinctive dynamic start-up effect. The integrated retro reflector boosts passive visibility. The mild tinted lens and gun metal grey chrome finish provide a premium, contemporary aesthetic.
118 LEDs across stop (40 LEDs), tail (54 LEDs), and indicator (24 LEDs) functions. Multi-volt 10-30V DC input with current draws of 0.27A for stop, 0.18A for tail, and 0.37A for indicator at 13.8V. Polycarbonate lens and housing with 185-225mm mounting hole centres. 300mm tinned copper pre-wired cable with earth (white), stop (red), tail (brown), indicator left (yellow), and indicator right (green) wires. ADR approved for all functions. CTA approval CTA-061826. 100,000 hour rated LED lifespan.
Features & Benefits
Sequential Indicator for Enhanced Road Presence: The sequential indicator delivers a sweeping activation sequence for a distinctive and modern appearance that enhances visibility and road presence.
Grey Glowtech Tail Light: The Grey Glowtech tail light provides a dynamic start-up light sequence when the tail light activates, adding a distinctive visual signature.
Stop, Tail, Indicator, and Integrated Reflector Functions: The BR392ARR combines stop, tail, indicator, and reflector functions in a single large combination lamp unit.
Dual Indicator Wiring for Left and Right Channels: The BR392ARR includes separate indicator left (yellow) and indicator right (green) wires, confirming the lamp is designed as an all-in-one rear combination lamp covering both indicator directions in a single elongated unit.
ADR Approved for All Functions: ADR approved and CTA certified CTA-061826 for all lamp functions.
Multi-Volt 10-30V DC: Compatible with 12V and 24V vehicle and trailer electrical systems.
Polycarbonate Lens and Housing: Lightweight, tough polycarbonate construction for long-term durability.
Mild Tinted Lens and Gun Metal Grey Chrome Finish: Premium, contemporary aesthetic suited to modern trailer and vehicle applications.
100,000 Hour LED Lifespan with Solid-State Technology: Long-term maintenance-free performance.
300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white), stop (red), tail (brown), indicator left (yellow), and indicator right (green) wires.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR392ARR |
| Brand |
Roadvision |
| Series |
BR392 |
| Description |
LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm |
| Functions |
Stop, Tail, Indicator, Reflector |
| Indicator Type |
Sequential |
| Tail Light |
Grey Glowtech |
| LED Quantity - Indicator |
24 LEDs |
| LED Quantity - Stop |
40 LEDs |
| LED Quantity - Tail |
54 LEDs |
| Input Voltage |
10-30V DC |
| Current Draw - Indicator |
0.37A at 13.8V |
| Current Draw - Stop |
0.27A at 13.8V |
| Current Draw - Tail |
0.18A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| Finish |
Mild Tinted Lens, Gun Metal Grey Chrome |
| Mounting Hole Centres |
185-225mm |

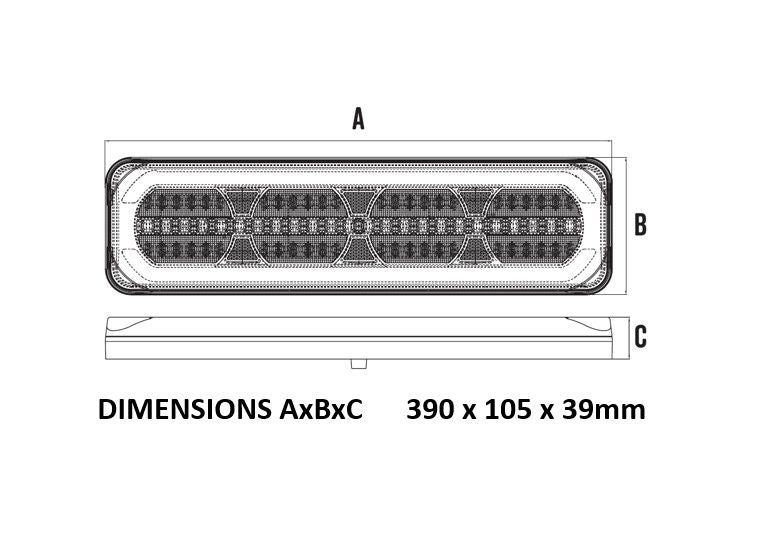

| Overall Dimensions |
390mm x 105mm x 39mm |
| Cable Length |
300mm Tinned Copper |
| Wiring |
Earth - White, Stop - Red, Tail - Brown, Indicator Left - Yellow, Indicator Right - Green |
| CTA Approval |
CTA-061826 |
| ADR Approved |
Yes (all functions) |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR392ARR is compatible with 10-30V DC trailer and vehicle electrical systems. ADR approved for all functions. Confirm mounting dimensions and wiring requirements for your specific application before purchase. A version with reverse function is available as the BR392ARW.
Frequently Asked Questions
Is the BR392ARR ADR approved?
Yes. The BR392ARR is ADR approved for all functions and holds CTA approval CTA-061826.
What is the Grey Glowtech tail light on the BR392ARR?
The Grey Glowtech tail light is a dynamic start-up light sequence that activates each time the tail light powers on, providing a distinctive visual signature and enhanced rear visibility.
What is the sequential indicator on the BR392ARR?
The sequential indicator delivers a sweeping activation sequence rather than a standard simultaneous flash, providing a modern and distinctive indicator appearance that enhances road presence and visibility.
Does the BR392ARR have separate left and right indicator wires?
Yes. The BR392ARR includes separate indicator left (yellow) and indicator right (green) wires, confirming it is designed as a full-width rear combination lamp covering both left and right indicator functions in a single unit.
What is the difference between the BR392ARR and the BR392ARW?
The BR392ARR provides stop, tail, indicator, and reflector functions. The BR392ARW adds a reverse function with a dedicated black reverse wire, making it suited to applications requiring an integrated reverse lamp. Both share the same dimensions, sequential indicator, Grey Glowtech tail, polycarbonate construction, and multi-volt input.
