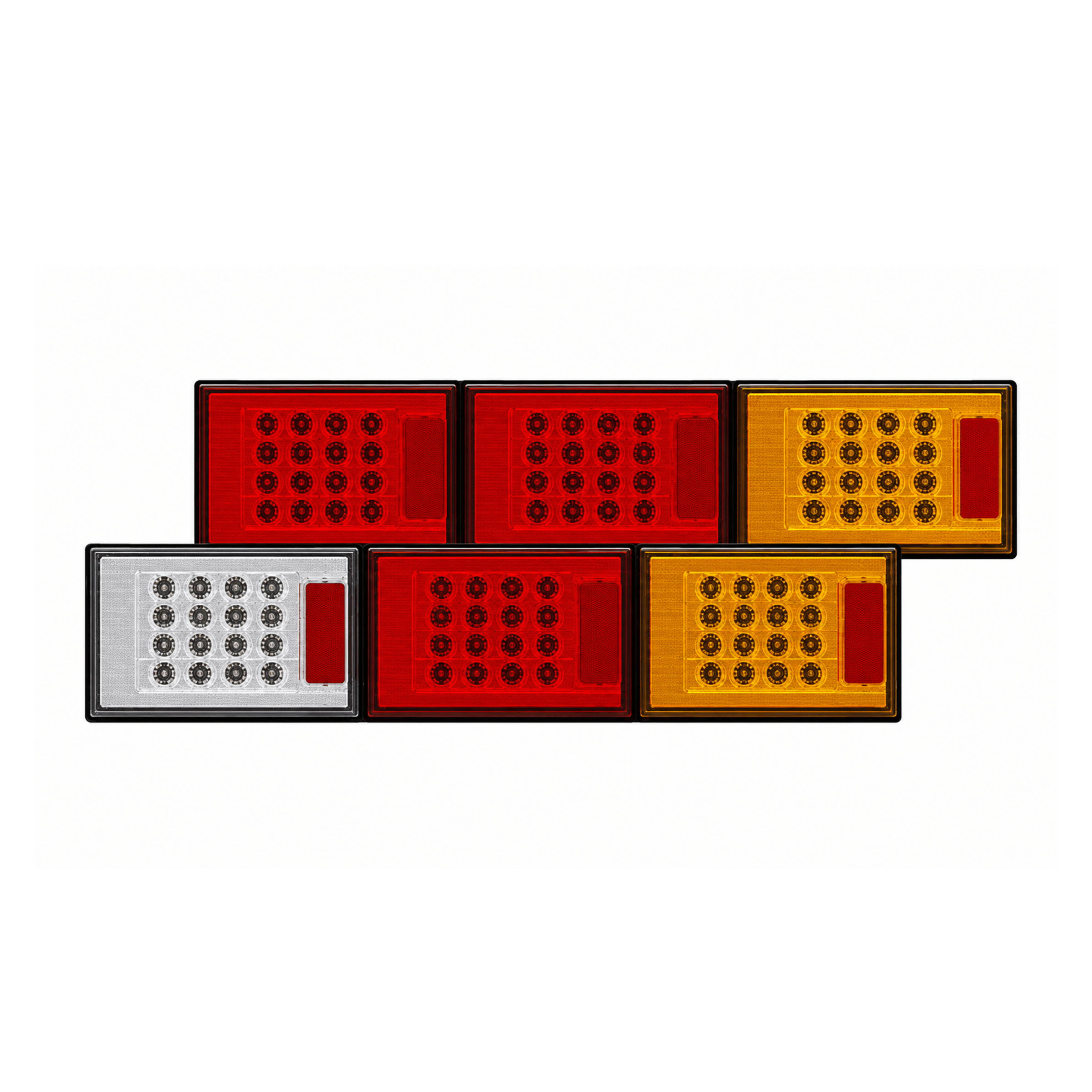

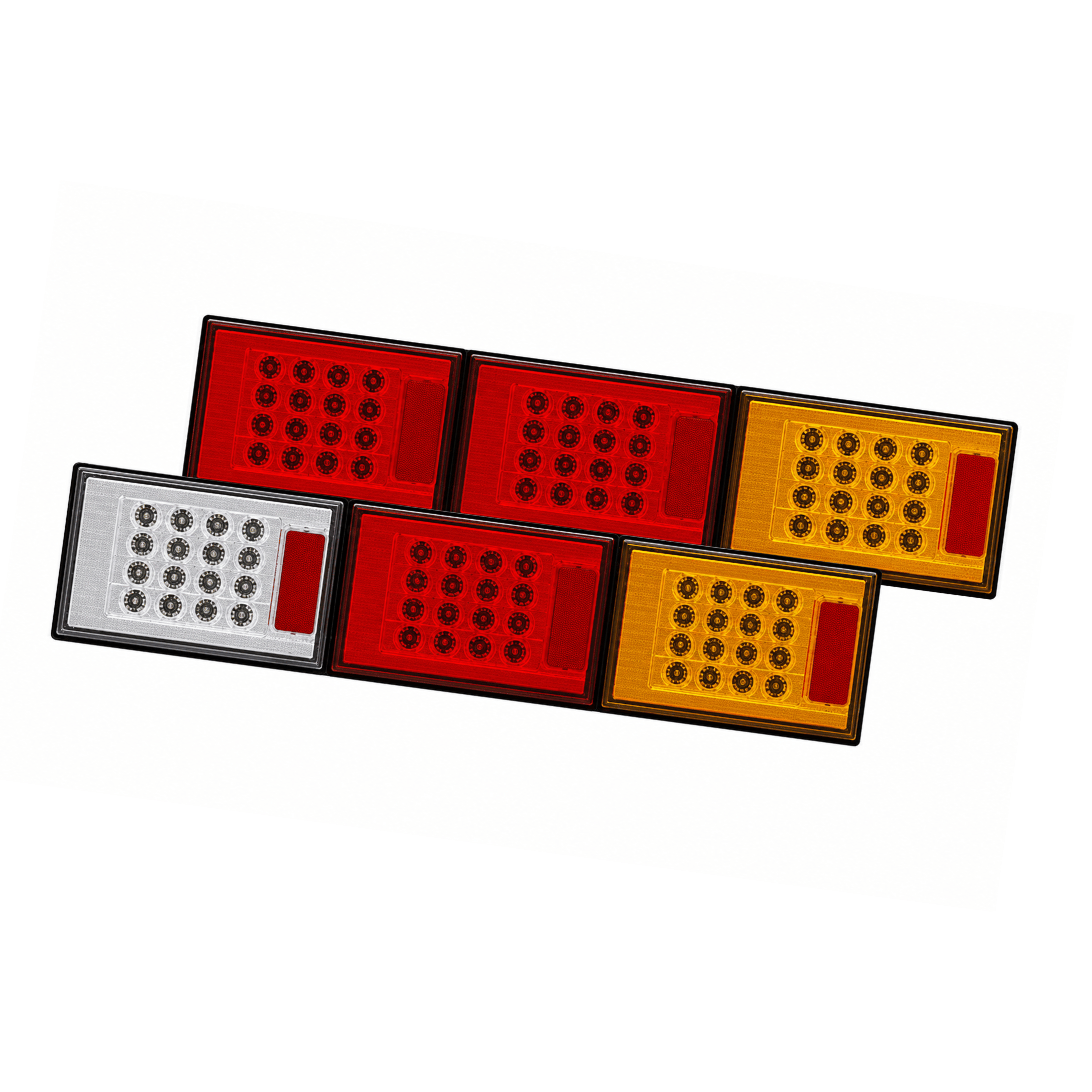

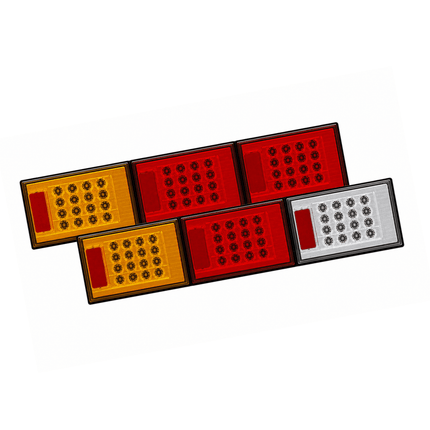

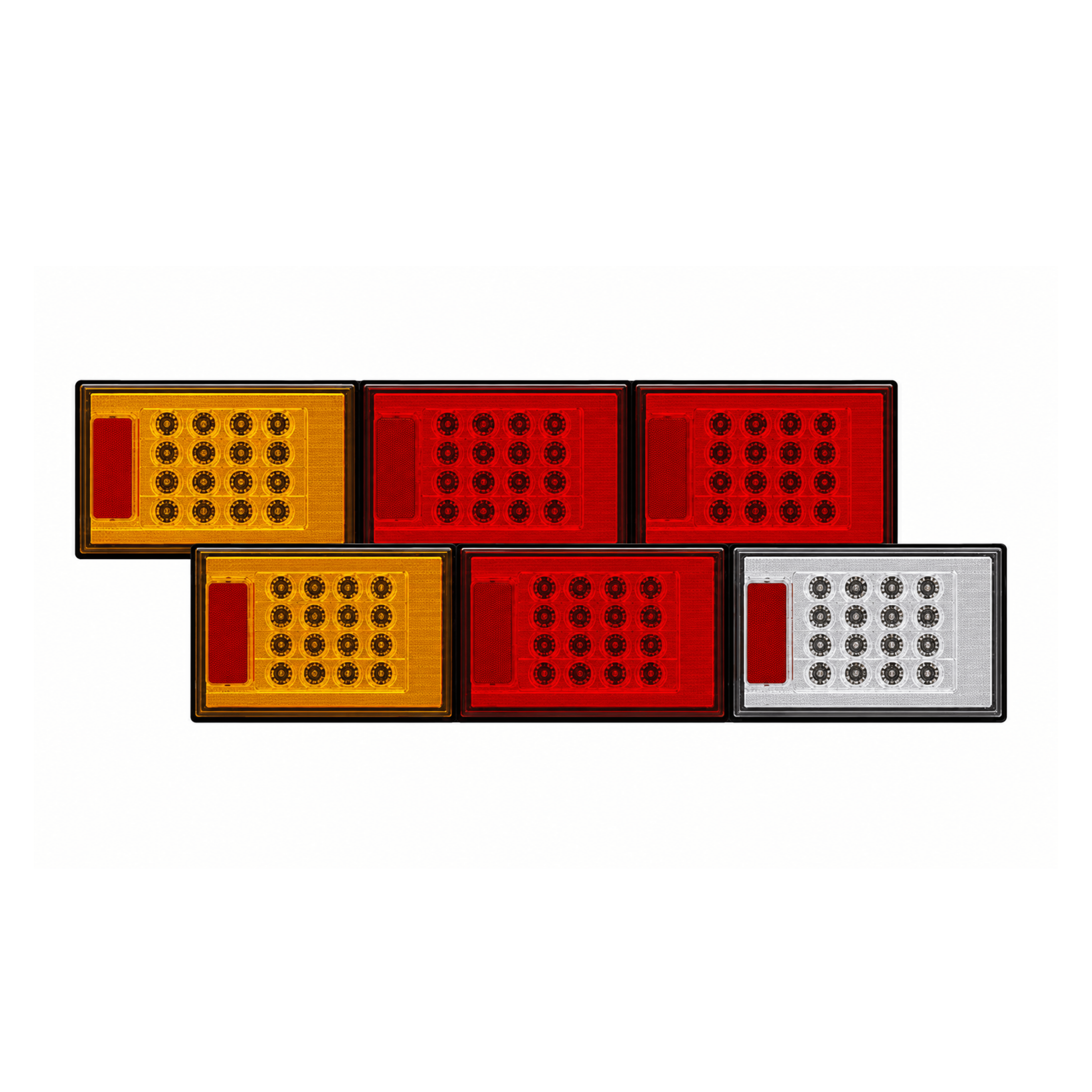

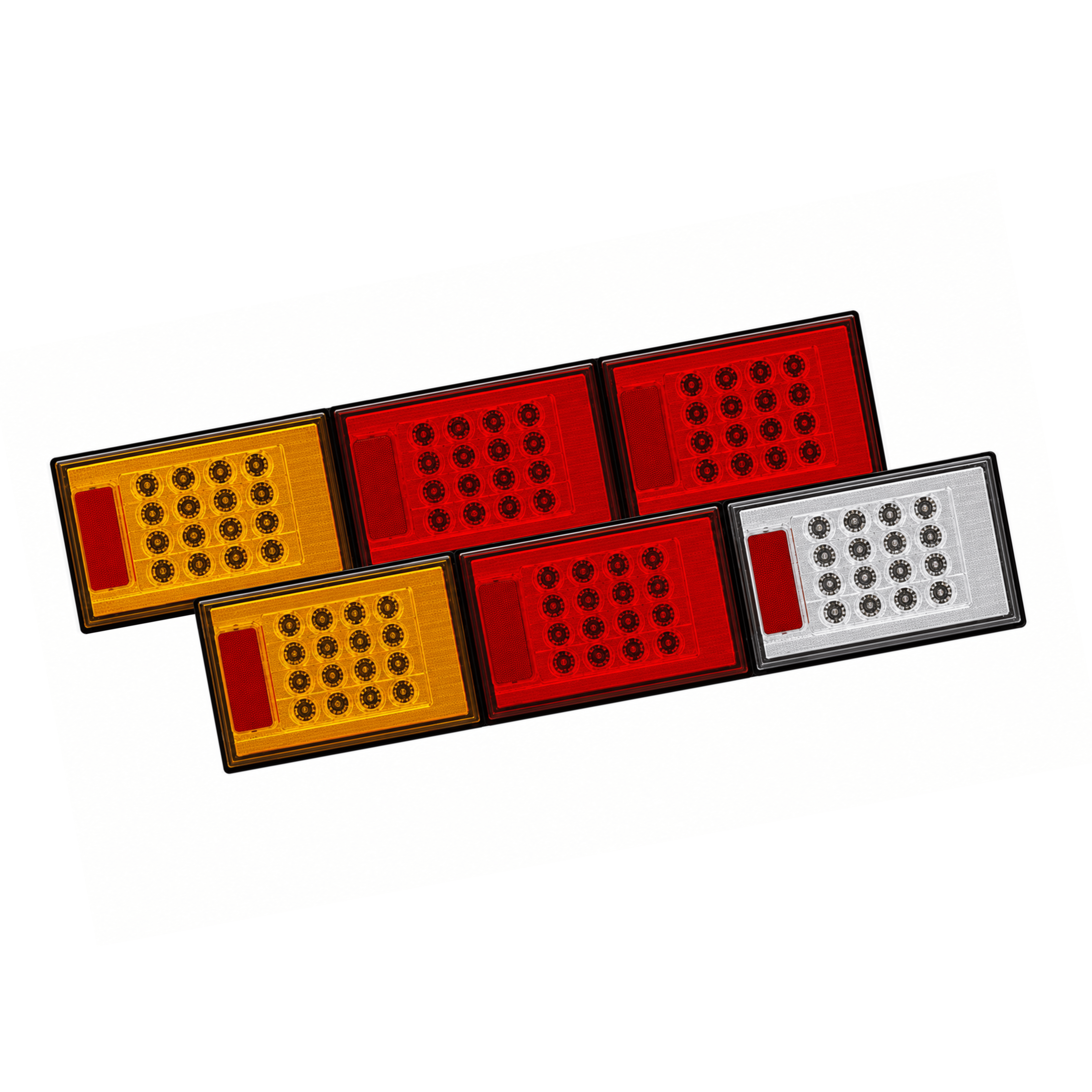

Roadvision BR602ARR LED Rear Combination Lamp - Jumbo Triple Surface Mount Stop/Tail/Indicator
The ultimate heavy-duty lighting solution for trucks and trailers, the Roadvision BR602ARR combines Stop, Tail, and Indicator functions in one robust jumbo combination lamp with enhanced styling and maintenance-free LED technology.
Product Overview
The Roadvision BR602ARR LED Jumbo Combination Lamp represents the pinnacle of commercial vehicle lighting technology, delivering maximum functionality in a robust, maintenance-free package. This comprehensive lighting solution integrates Stop, Tail (dual circuits), and Indicator functions along with integrated retro reflectors in a single 604mm surface-mount unit. Engineered with solid-state LED technology featuring 32 LEDs for stop/tail functions and 16 LEDs for indicators, the BR602ARR delivers superior visibility and safety while consuming only a fraction of the power of traditional incandescent lights. The multi-volt 10-30V DC input ensures compatibility with both 12V and 24V electrical systems commonly found in commercial vehicles, with impressively low current draw of just 0.23A for stop, 0.04A for tail, and 0.11A for indicators at 13.8V. Built tough for demanding environments, the BR602ARR features an unbreakable polycarbonate lens and rugged high-impact ABS housing that is fully sealed against dust and water ingress. The simple surface-mount design with mounting hole centres at 501mm and 325mm allows for straightforward installation and retro-fits perfectly in place of existing jumbo-style lamps. Rated to an impressive 100,000-hour LED lifespan, this ADR-approved combination lamp is a true fit-and-forget solution backed by Roadvision's comprehensive 5-year warranty. The refreshed design enhances both aesthetics and performance, making it ideal for fleet operators, owner-operators, and anyone who demands reliability, performance, and durability in every kilometre.
Features & Benefits
Integrated Multi-Function Design: Combines Stop, Tail (dual circuits), Indicator, and integrated retro reflectors in one robust 604mm unit, simplifying installation and reducing component count while maximizing functionality for comprehensive rear lighting coverage.
Maintenance-Free LED Technology: Solid-state LED construction with 100,000-hour rated lifespan eliminates bulb replacements and reduces downtime. 32 LEDs for stop/tail and 16 LEDs for indicators deliver superior brightness and instant-on response for enhanced safety.
Multi-Volt Compatibility: 10-30V DC input voltage range ensures compatibility with both 12V and 24V electrical systems, making this lamp suitable for the full spectrum of commercial vehicles from light-duty trucks to heavy-duty prime movers.
Extreme Low Current Draw: Ultra-efficient operation draws only 0.23A for stop, 0.04A for tail, and 0.11A for indicators at 13.8V, reducing electrical system load and enabling smaller wiring and circuit protection while improving fuel economy.
Unbreakable Construction: Lightweight yet tough polycarbonate lens and high-impact ABS housing withstand stone strikes, vibration, and harsh weather conditions while remaining fully sealed against dust and water ingress for reliable operation in demanding environments.
Simple Surface Mount Installation: Straightforward surface-mount design with 501mm and 325mm mounting hole centres retro-fits perfectly in place of existing jumbo-style lamps. 300mm tinned copper cable provides corrosion-resistant connections with color-coded wiring for foolproof installation.
ADR Approved & Warranted: Full ADR approval (CTA-061847) ensures legal compliance for Australian road use across all functions. Comprehensive 5-year warranty demonstrates Roadvision's confidence in product quality and durability for commercial applications.
Technical Specifications
| Specification |
Details |
| Model Number |
BR602ARR |
| Product Name |
LED Rear Combination Lamp Stop/Tail x 2/Indicator |
| Series |
BR602 Jumbo Combination Lamp Series |
| Functions |
Stop, Tail (Dual Circuit), Indicator, Integrated Reflectors |
| Input Voltage |
10-30 VDC |
| Number of LEDs |
Stop/Tail: 32 LEDs, Indicator: 16 LEDs |
| Current Draw @ 13.8V |
Indicator: 0.11A, Stop: 0.23A, Tail: 0.04A |
| LED Lifespan |
100,000 hours |
| Lens Construction |
Polycarbonate (Unbreakable) |
| Housing Construction |
High Impact ABS |
| Mounting Type |
Surface Mount |
| Mounting Hole Centres |
501mm & 325mm |
| Overall Dimensions |
604mm × 132mm × 46mm (L × W × H) |
| Cable Length |
300mm Tinned Copper |
| Wiring Color Code |
Earth: White, Stop: Red, Tail: Brown, Indicator: Yellow |
| Operating Voltage Range |
10-30 VDC |
| Ingress Protection |
Fully Sealed (Waterproof) |
| ADR/CTA Approval |
CTA-061847 |
| Warranty |
5 Years |
Compatible With
The Roadvision BR602ARR LED Combination Lamp is compatible with all commercial vehicles operating on 10-30V DC electrical systems including trucks, trailers, semi-trailers, B-doubles, road trains, transporters, tippers, refrigerated vans, curtain-siders, and heavy equipment transporters. Retro-fits directly in place of existing jumbo-style combination lamps with 501mm and 325mm mounting hole spacing. Ideal for fleet operators, owner-operators, transport companies, and commercial vehicle workshops requiring ADR-approved, maintenance-free lighting solutions with long-term reliability.
Frequently Asked Questions

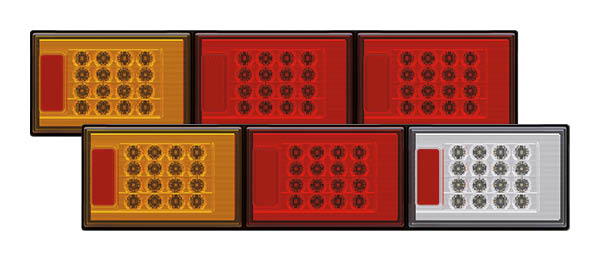

What is the difference between BR602ARR and BR602ARW models? The BR602ARR features dual stop/tail circuits with 32 LEDs dedicated to stop/tail functions and 16 LEDs for indicators. The BR602ARW includes reverse functionality, splitting the stop/tail LEDs to 16 LEDs each with an additional 16 LEDs dedicated to reverse lighting, making it suitable for applications requiring integrated reverse lights.
Can this lamp be used on both 12V and 24V vehicles? Yes, the BR602ARR features multi-volt 10-30V DC input, making it compatible with both 12-volt light commercial vehicles and 24-volt heavy-duty trucks and trailers without any modifications or adjustments required.
How long will these LED combination lamps last? The BR602ARR is rated for 100,000 hours of operation, which translates to approximately 11.4 years of continuous use or decades of typical commercial vehicle operation. The solid-state LED technology eliminates bulb replacements and associated maintenance downtime.
Are these lamps ADR approved for legal road use in Australia? Yes, the BR602ARR is fully ADR approved under CTA-061847 for all functions including stop, tail, indicator, and integrated reflectors, ensuring full legal compliance for Australian road use on commercial vehicles.
Will this lamp retro-fit my existing jumbo combination lamps? The BR602ARR is designed to retro-fit in place of existing jumbo-style combination lamps with standard mounting hole centres of 501mm and 325mm. The 604mm overall length and simple surface-mount design make replacement straightforward with minimal modification required.
