Description

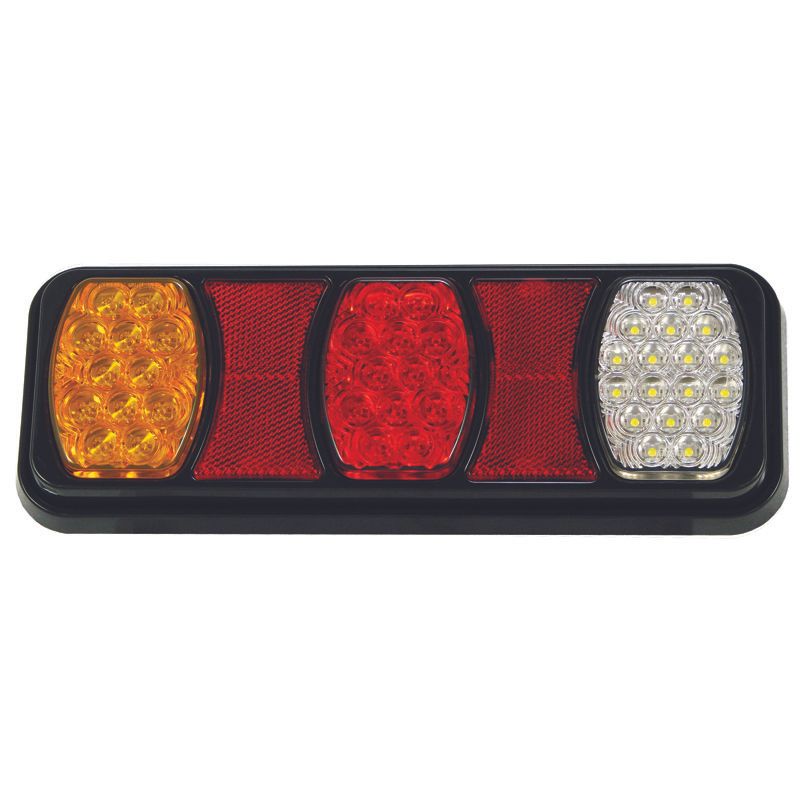

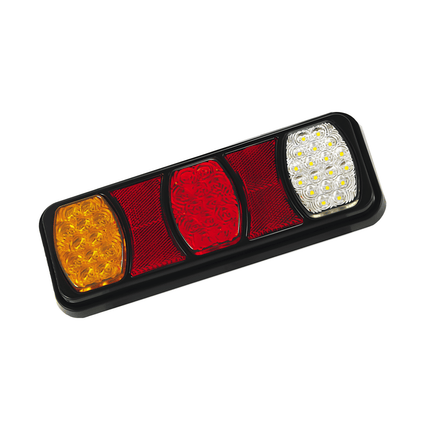

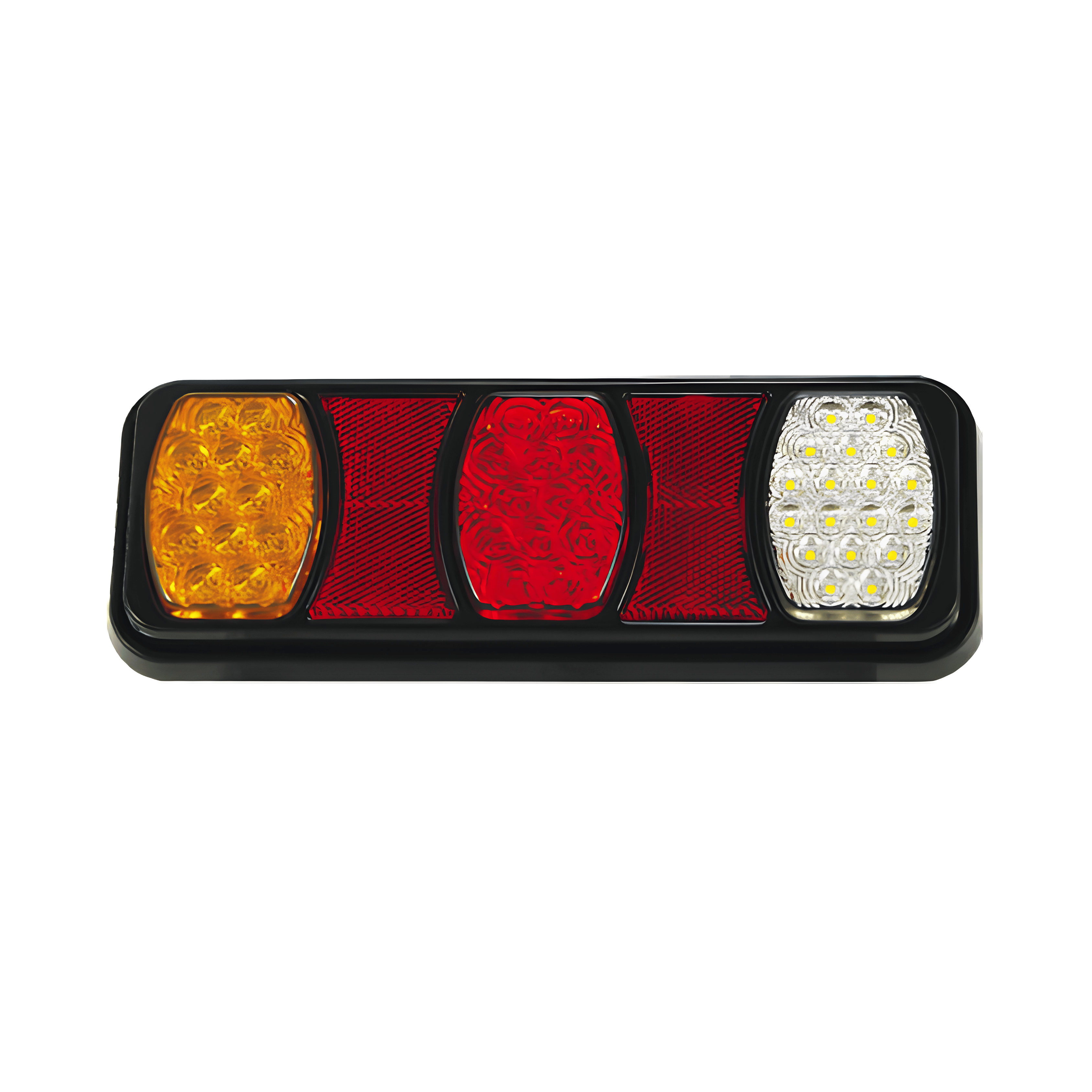

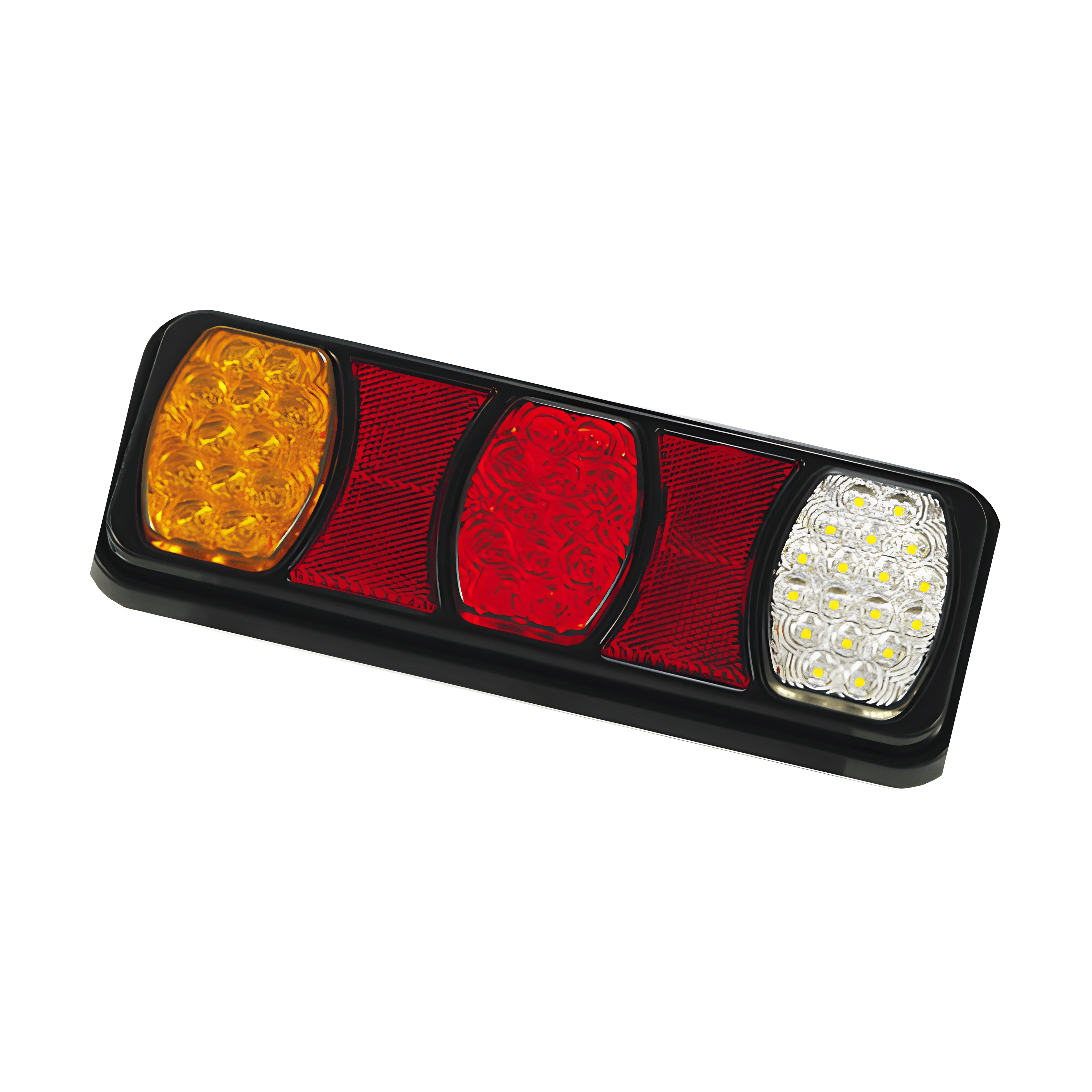

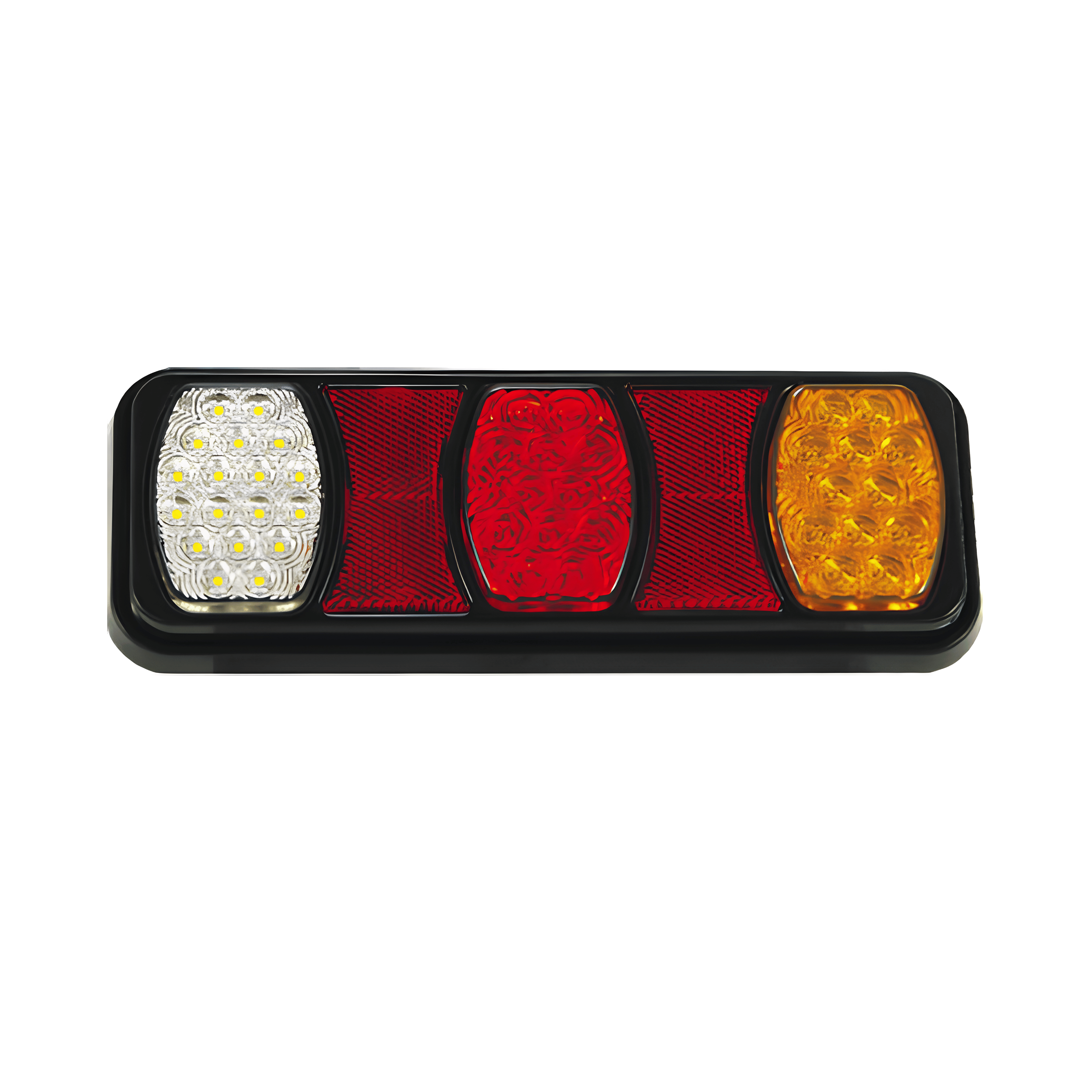

Roadvision BR80ARW LED Rectangle Triple Module Lamp Stop Tail Indicator Reverse and Reflector
An ADR-approved LED rectangle triple module combination lamp from the Roadvision BR80 Series, the BR80ARW features stop, tail, indicator, reverse, and integrated reflector functions with polycarbonate lens and housing, IP67 protection, 10-30V DC multi-volt input, 241mm mounting hole centre, and a 300mm LEDLink connector pre-wired cable, backed by a 5-year warranty.
Product Overview
The Roadvision BR80ARW is a rectangle triple module combination lamp from the BR80 Series, providing stop, tail, indicator, reverse, and integrated reflector functions in a single 288 x 107 x 29mm surface mount unit. Sixteen indicator LEDs, 16 stop/tail LEDs, and 16 reverse LEDs deliver high-output performance with low current draw. Current draw at 13.8V is 0.2A for indicator, 0.2A/0.05A for stop/tail, and 0.3A for reverse. Polycarbonate lens and housing are IP67 waterproof and dustproof with a 100,000 hour rated LED lifespan. Integrated reflector in the housing. 241mm mounting hole centre surface mount. Pre-wired with a 300mm LEDLink connector cable. ADR approved with individual CRN numbers for indicator (CRN 46114), stop (CRN 46112), tail (CRN 46113), reverse (CRN 46115), and reflector (CRN 46075) functions. Backed by a 5-year warranty.
Features & Benefits
Stop, Tail, Indicator, Reverse, and Integrated Reflector Functions: The BR80ARW combines all five functions in a single compact triple module unit, providing a complete rear combination lamp solution including reverse.
ADR Approved for All Functions: Individual ADR approval CRN numbers for indicator (CRN 46114), stop (CRN 46112), tail (CRN 46113), reverse (CRN 46115), and reflector (CRN 46075), confirming compliance with Australian road safety requirements for all lamp functions.
16 LEDs Per Function - Indicator, Stop/Tail, and Reverse: High LED counts per function deliver superior brightness compared to equivalent incandescent lamps with significantly lower current draw.
Integrated Retro Reflector: The retro reflector is integrated into the housing, providing passive rear visibility without requiring a separate reflector assembly.
Polycarbonate Lens and Housing - IP67 Rated: Sealed polycarbonate construction on both lens and housing provides IP67 waterproof and dustproof protection for all exterior trailer and vehicle mounting locations.
100,000 Hour LED Lifespan - Fit and Forget: Maintenance-free solid-state technology with a 100,000 hour rated lifespan eliminates bulb replacements.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.
LEDLink Connector Pre-Wired Cable: The 300mm LEDLink connector cable provides reliable, corrosion-resistant pre-wired connection to LEDLink trailer wiring systems.
241mm Mounting Hole Centre Surface Mount: Simple surface mount installation for horizontal or vertical mounting surfaces.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR80ARW |
| Brand |
Roadvision |
| Series |
BR80 |
| Description |
Rect Stop/Tail/Ind/Rev/Ref Lamp Triple Module |
| Functions |
Stop, Tail, Indicator, Reverse, Reflector |
| LED Quantity - Indicator |
16 LEDs |
| LED Quantity - Stop/Tail |
16 LEDs |
| LED Quantity - Reverse |
16 LEDs |
| Input Voltage |
10-30V DC |
| Current Draw - Indicator |
0.2A at 13.8V |
| Current Draw - Stop |
0.2A at 13.8V |
| Current Draw - Tail |
0.05A at 13.8V |
| Current Draw - Reverse |
0.3A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| Dimensions |
288mm x 107mm x 29mm |
| Mounting Type |
Surface Mount |
| Mounting Hole Centre |
241mm |
| Cable Length |
300mm LEDLink Connector |
| IP Rating |
IP67 |
| ADR Approval - Indicator |
CRN 46114 |
| ADR Approval - Stop |
CRN 46112 |
| ADR Approval - Tail |
CRN 46113 |
| ADR Approval - Reverse |
CRN 46115 |
| ADR Approval - Reflector |
CRN 46075 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR80ARW is compatible with 10-30V DC trailer and vehicle electrical systems. The LEDLink connector is compatible with standard LEDLink trailer wiring systems. ADR approved for all functions including reverse. Confirm mounting dimensions and wiring compatibility for your specific application before purchase. A stop/tail/indicator/reflector version without reverse is available as the BR80ARR.
Frequently Asked Questions
Is the BR80ARW ADR approved for on-road use?
Yes. The BR80ARW holds individual ADR approval CRN numbers for indicator (CRN 46114), stop (CRN 46112), tail (CRN 46113), reverse (CRN 46115), and reflector (CRN 46075) functions.
What is the difference between the BR80ARW and the BR80ARR?
The BR80ARW adds a reverse function with 16 dedicated reverse LEDs to the stop, tail, indicator, and reflector functions of the BR80ARR. Both share the same dimensions, polycarbonate housing, IP67 rating, and LEDLink connector. Choose the BR80ARW where an integrated reverse lamp is required.
Is the BR80ARW compatible with 24V systems?
Yes. The BR80ARW operates across 10-30V DC, compatible with both 12V and 24V systems.
What wires does the BR80ARW include?
The wiring colour codes are not specified in the source data. Confirm wiring colour codes with your supplier before purchase.
What is the LED lifespan of the BR80ARW?
100,000 hours with maintenance-free solid-state technology.
