Description

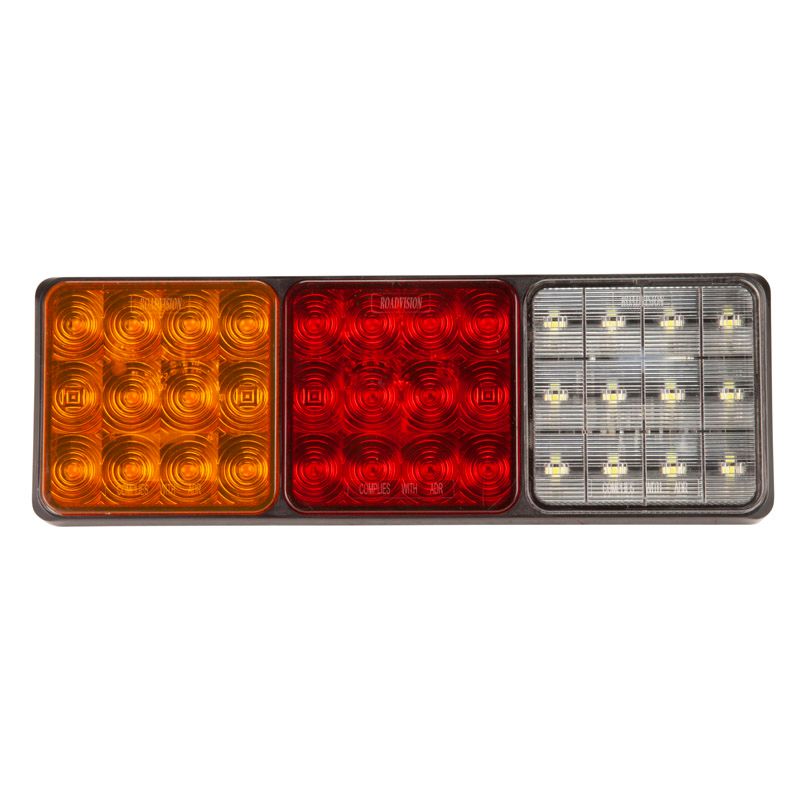

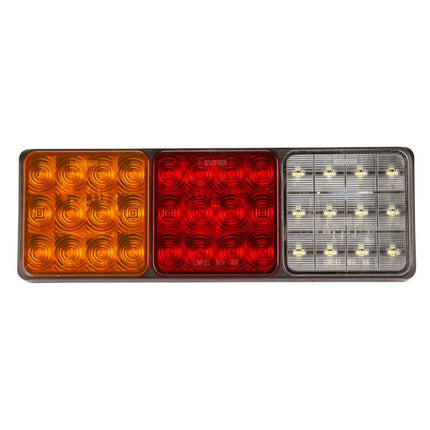

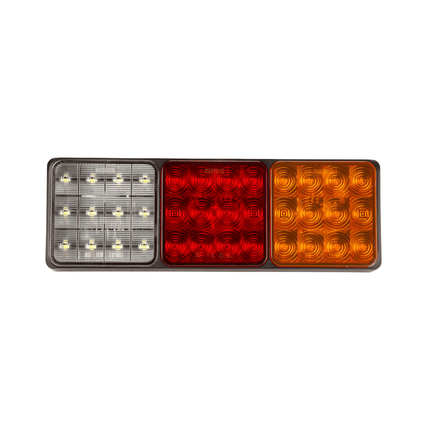

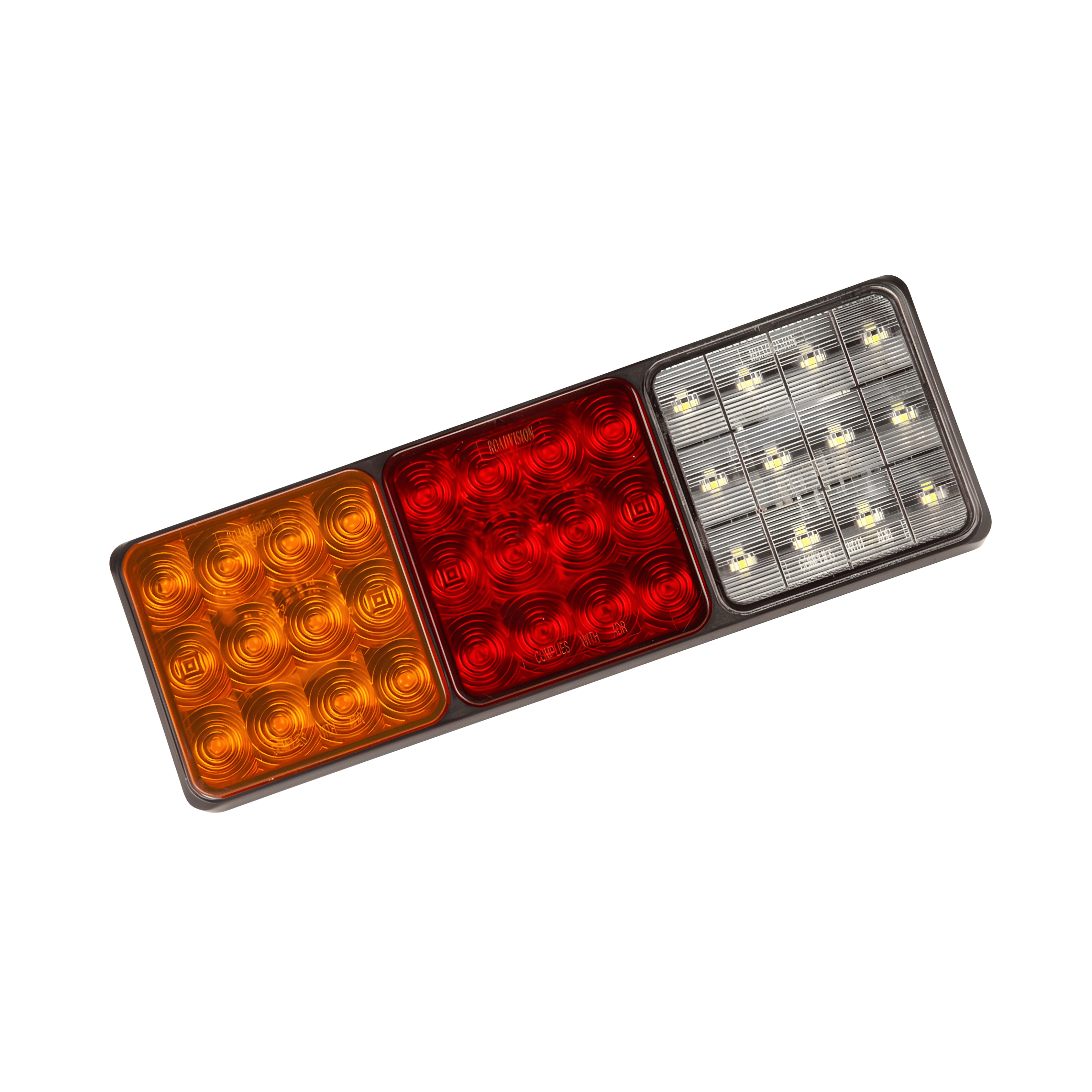

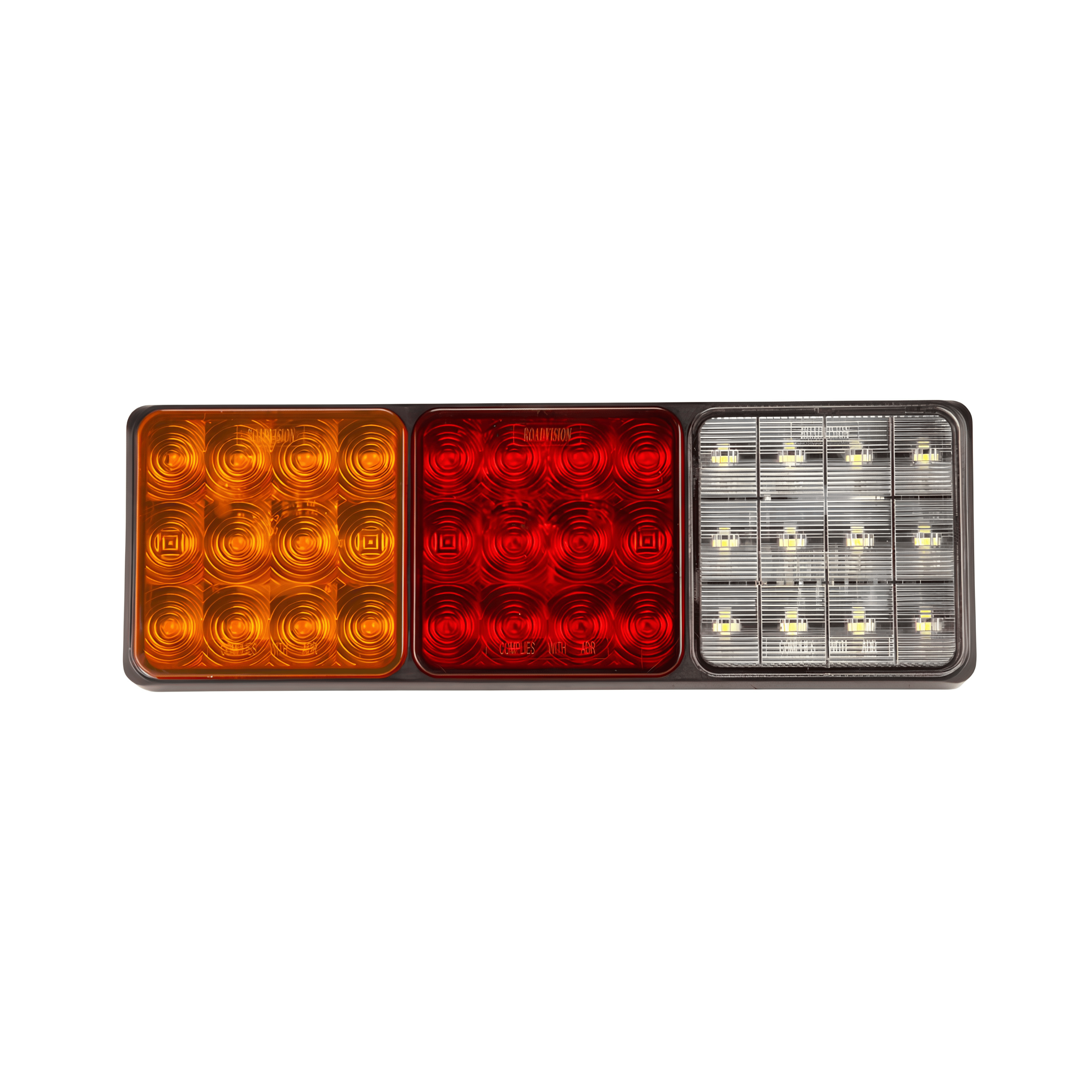

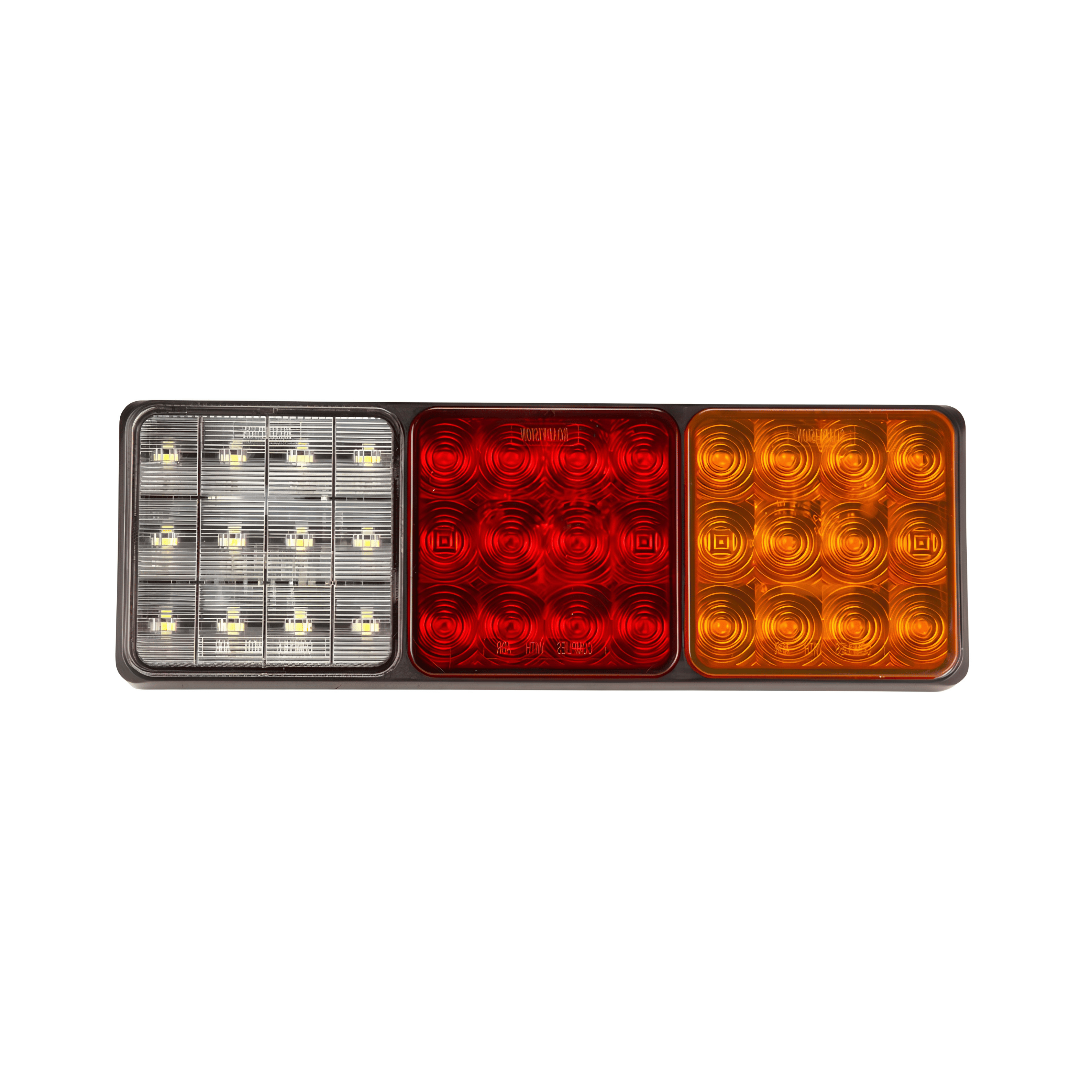

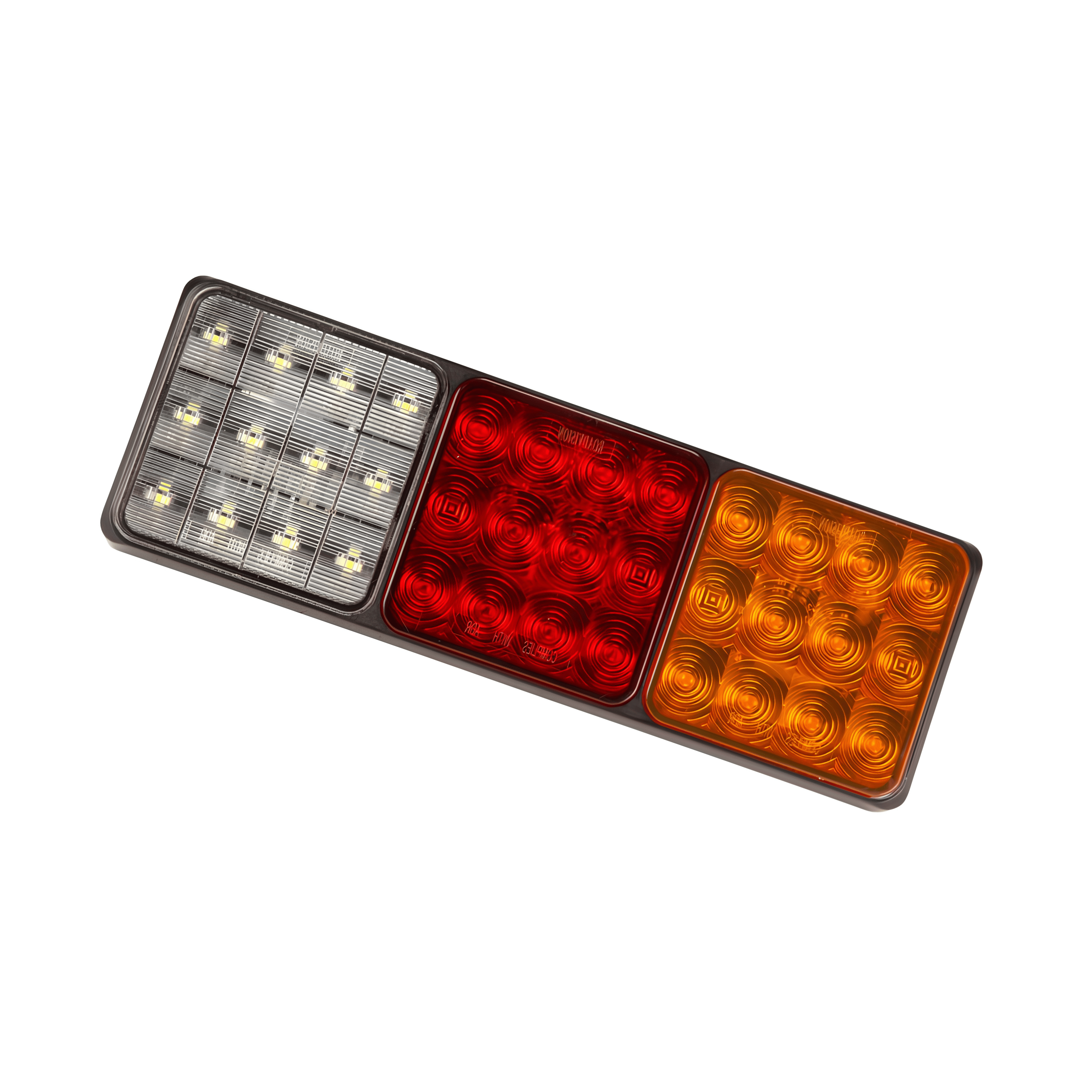

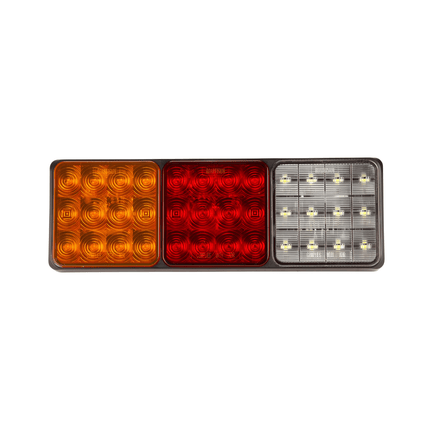

Roadvision BR82ARW LED Triple Combination Lamp Stop Tail Indicator and Reverse
An ADR-approved compact LED triple combination lamp from the Roadvision BR82 Series, the BR82ARW features stop, tail, indicator, and reverse functions with polycarbonate lens, high-impact ABS housing, 10-30V DC multi-volt input, 120mm stud centre mounting, and a 300mm tinned copper pre-wired cable with LEDLink connector, backed by a 5-year warranty.
Product Overview
The Roadvision BR82ARW is a compact LED triple combination lamp from the BR82 Series, providing stop, tail, indicator, and reverse functions in a single 282 x 95 x 30mm surface mount unit. Twelve indicator LEDs, 12 stop/tail LEDs, and 12 reverse LEDs deliver more light output than equivalent incandescent lamps while drawing a fraction of the current. Current draw at 13.8V is 0.1A for indicator, 0.1A/0.05A for stop/tail, and 0.1A for reverse. High-impact ABS housing with sealed polycarbonate lens. 120mm stud centre mounting. Pre-wired with a 300mm tinned copper sheathed cable with LEDLink connector with earth (white), stop (red), tail (brown), indicator (green or yellow), and reverse (black) wires. ADR approved with individual CRN numbers for indicator (CRN 49821), stop (CRN 49823), tail (CRN 49824), and reverse (CRN 49822) functions. CTA approval CTA-060786. Backed by a 5-year warranty.
Features & Benefits
Compact All-in-One Stop, Tail, Indicator, and Reverse Combination Lamp: The BR82ARW combines stop, tail, indicator, and reverse functions in a single compact 282 x 95 x 30mm rectangle unit, providing a complete rear combination lamp solution including reverse in a single assembly.
ADR Approved for All Functions: Individual ADR approval CRN numbers for indicator (CRN 49821), stop (CRN 49823), tail (CRN 49824), and reverse (CRN 49822) functions, and CTA approval CTA-060786, confirming compliance with Australian road safety requirements for all lamp functions.
12 LEDs Per Function - Indicator, Stop/Tail, and Reverse: Dedicated 12 LED arrays per function produce more light output than equivalent incandescent lamps while drawing significantly less current.
High-Impact ABS Housing with Sealed Polycarbonate Lens: Durable high-impact ABS housing with weatherproof sealed polycarbonate lens for long-term reliability.
100,000 Hour LED Lifespan - Fit and Forget: The 100,000 hour rated LED lifespan eliminates bulb replacements.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.
LEDLink Connector for Simple Wiring: The 300mm tinned copper sheathed cable with LEDLink connector provides reliable pre-wired connection to LEDLink trailer wiring systems.
120mm Stud Centre Surface Mount: Surface mount design with 120mm stud centres for straightforward installation.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR82ARW |
| Brand |
Roadvision |
| Series |
BR82 |
| Description |
Rectangle Triple Combination - Stop/Tail, Indicator and Reverse |
| Functions |
Stop, Tail, Indicator, Reverse |
| LED Quantity - Indicator |
12 LEDs |
| LED Quantity - Stop/Tail |
12 LEDs |
| LED Quantity - Reverse |
12 LEDs |
| Input Voltage |
10-30V DC |
| Current Draw - Indicator |
0.1A at 13.8V |
| Current Draw - Stop |
0.1A at 13.8V |
| Current Draw - Tail |
0.05A at 13.8V |
| Current Draw - Reverse |
0.1A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
High-Impact ABS |
| Dimensions |
282mm x 95mm x 30mm |
| Mounting Hole Centre |
120mm Stud Centres |
| Cable Length |
300mm Tinned Copper Sheathed |
| Connector |
LEDLink |
| Wiring |
Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow, Reverse - Black |
| ADR Approval - Indicator |
CRN 49821 |
| ADR Approval - Stop |
CRN 49823 |
| ADR Approval - Tail |
CRN 49824 |
| ADR Approval - Reverse |
CRN 49822 |
| CTA Approval |
CTA-060786 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR82ARW is compatible with 10-30V DC trailer and vehicle electrical systems. The LEDLink connector is compatible with standard LEDLink trailer wiring systems. ADR and CTA approved for on-road use including reverse. Confirm mounting dimensions and wiring compatibility for your specific application before purchase. A stop/tail/indicator version without reverse is available as the BR82ARR.
Frequently Asked Questions
Is the BR82ARW ADR approved for on-road use?
Yes. The BR82ARW holds individual ADR approval CRN numbers for indicator (CRN 49821), stop (CRN 49823), tail (CRN 49824), and reverse (CRN 49822) functions, and CTA approval CTA-060786.
What is the difference between the BR82ARW and the BR82ARR?
The BR82ARW adds a reverse function with 12 dedicated reverse LEDs and a black reverse wire to the stop, tail, and indicator functions of the BR82ARR. Both share the same dimensions, housing, connector, and multi-volt input. Choose the BR82ARW where an integrated reverse lamp is required.
Is the BR82ARW compatible with 24V systems?
Yes. The BR82ARW operates across 10-30V DC, compatible with both 12V and 24V systems.
What wires are included on the BR82ARW?
Earth (white), stop (red), tail (brown), indicator (green or yellow), and reverse (black) wires on a 300mm tinned copper sheathed LEDLink cable.
What is the LED lifespan of the BR82ARW?
100,000 hours with maintenance-free solid-state technology.
