Description

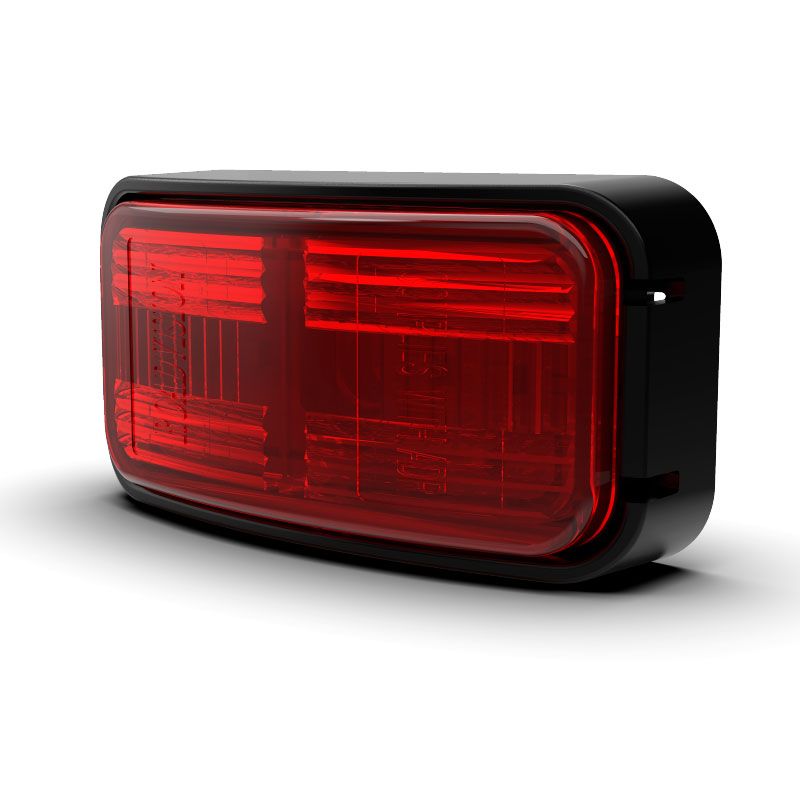

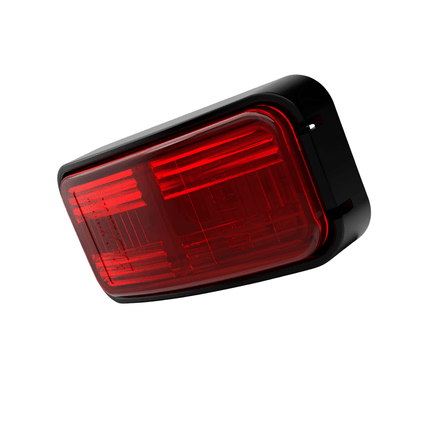

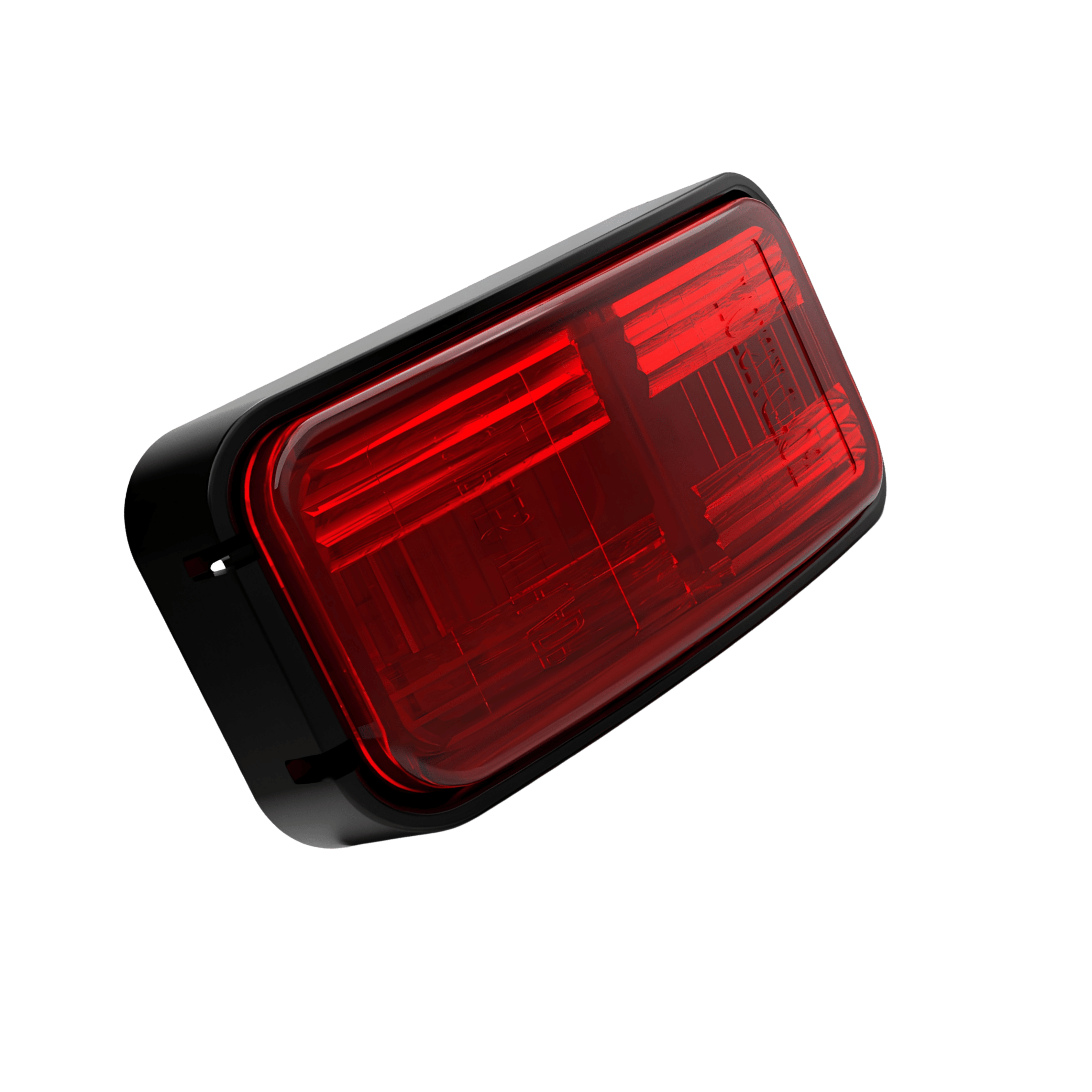

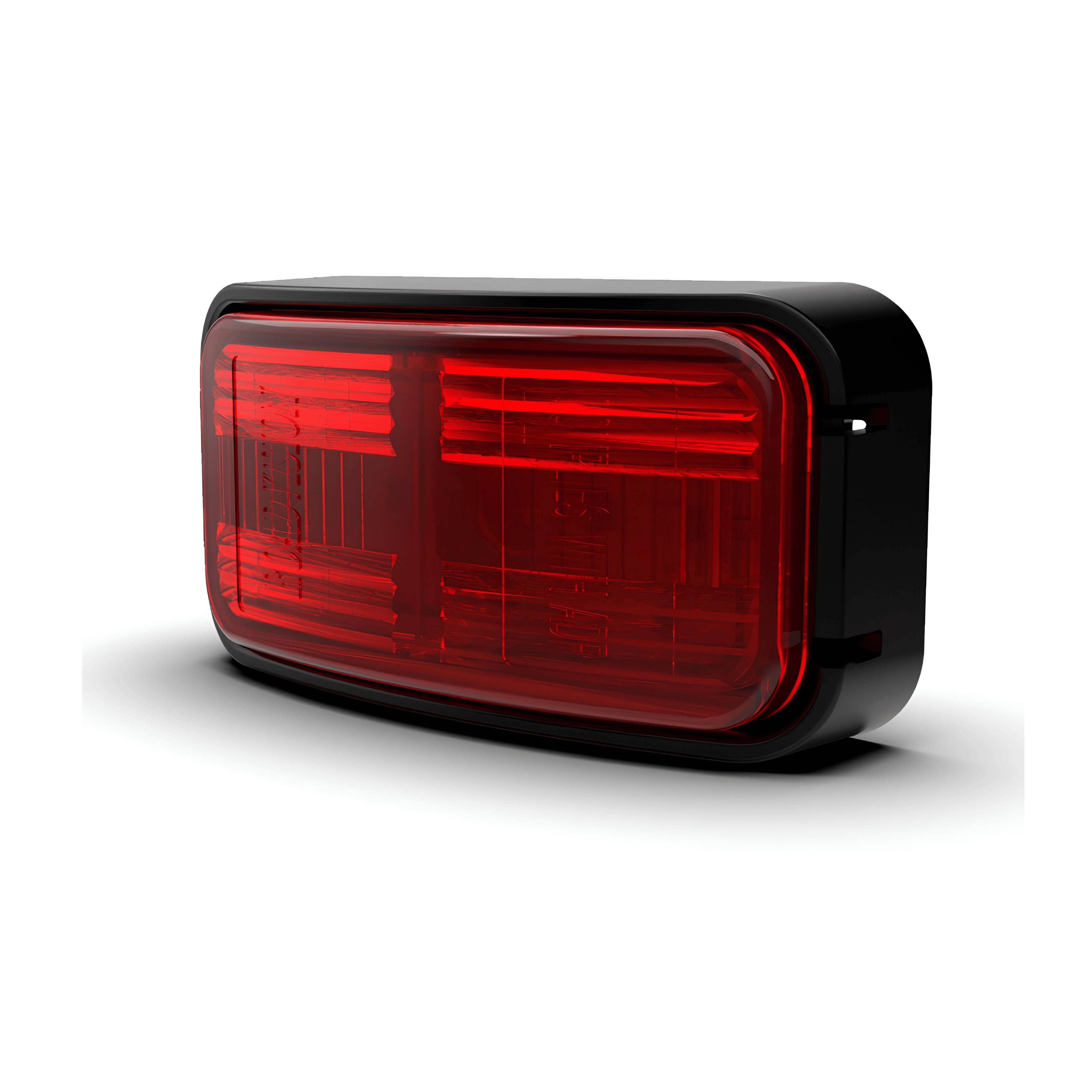

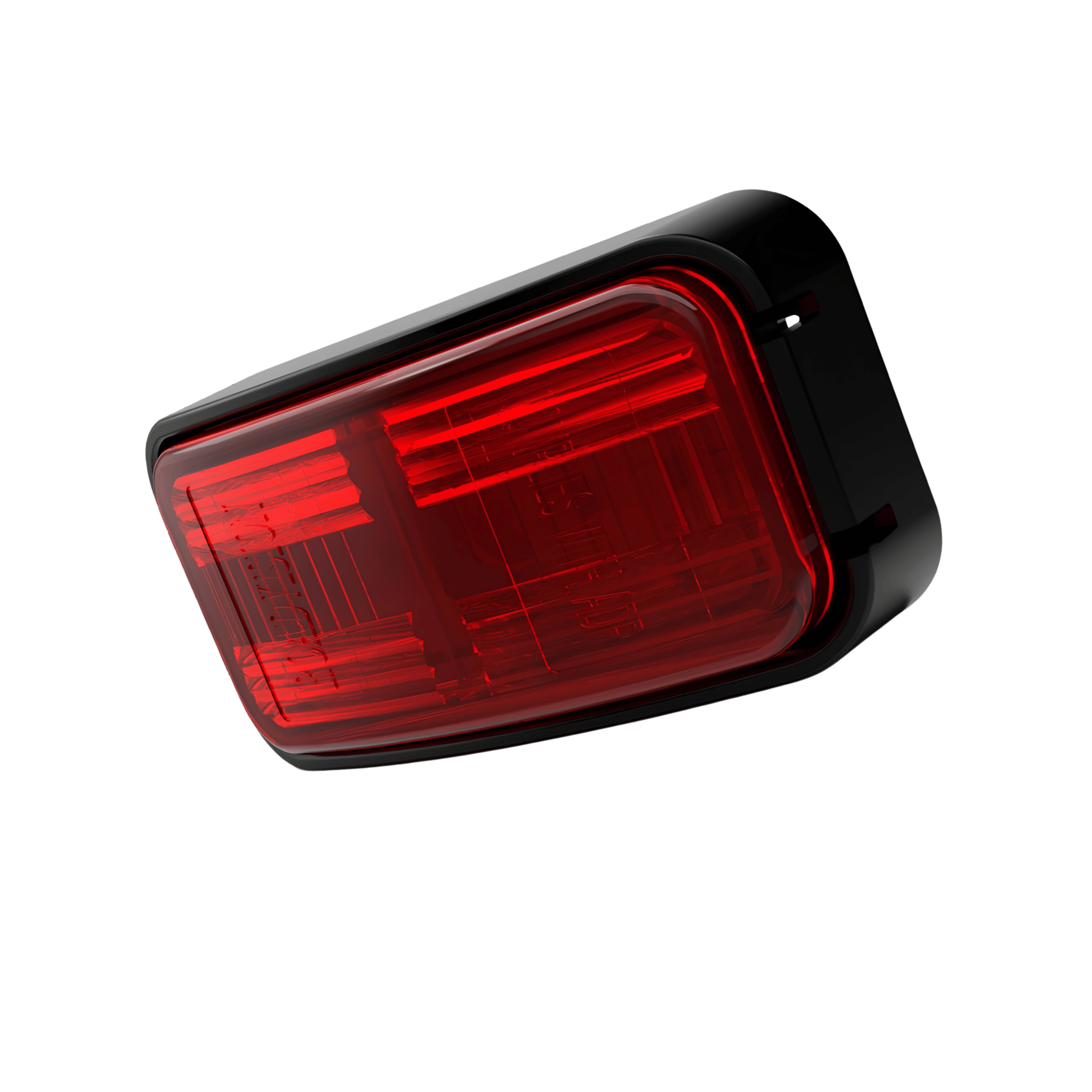

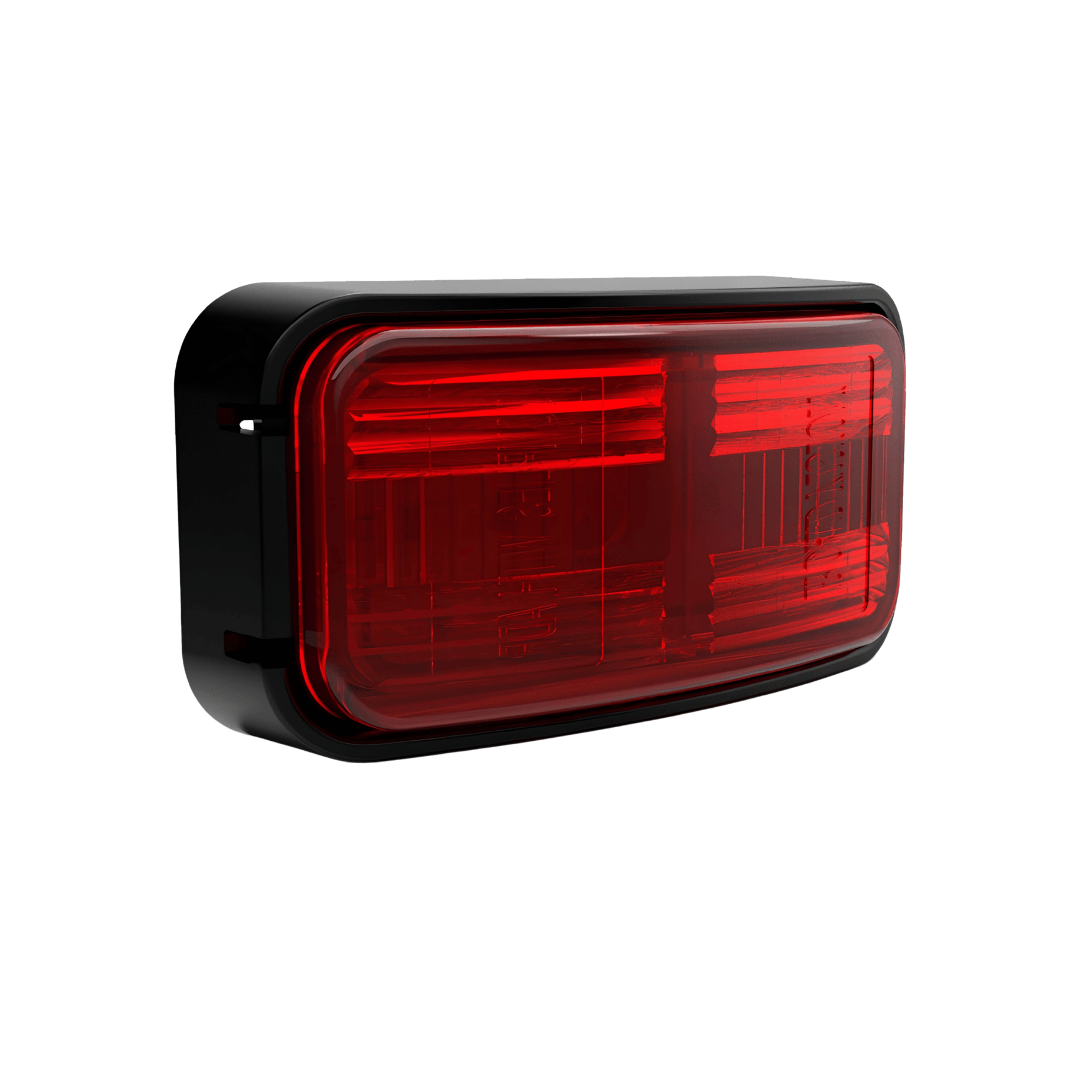

Roadvision BR8R LED Clearance Light Red 10-30V
An ADR-approved IP67 LED clearance lamp from the Roadvision BR8 Series, the BR8R features 4 red LEDs, a polycarbonate lens and housing, 10-30V DC multi-volt operation, 74x38x22mm rectangle form factor, and a 300mm tinned copper pre-wired cable, backed by a 5-year warranty.
Product Overview
The Roadvision BR8R is a rectangle LED clearance lamp from the BR8 Series with a red polycarbonate lens, designed for trailer, caravan, truck, and commercial vehicle clearance lighting. Four red LEDs with a polycarbonate lens and housing provide durable, maintenance-free clearance light output rated to 100,000 hours. IP67 rated, ADR approved, and CTA certified (CTA-062088). Compatible with 10-30V DC systems. Pre-wired with a 300mm tinned copper cable with earth (white) and marker (brown) wires.
Features & Benefits
ADR Approved and CTA Certified: The BR8R holds ADR approval and CTA certification CTA-062088, confirming compliance with Australian road requirements for clearance lamp applications.
IP67 Waterproof and Dustproof: IP67 rating provides full dust and waterproof protection for exposed trailer and vehicle body mounting locations.
Polycarbonate Lens and Housing: Unbreakable polycarbonate construction on both lens and housing provides long-term durability and impact resistance.
4 Red LEDs - 100,000 Hour Rated Lifespan: Four red LEDs deliver reliable clearance light output with a rated 100,000 hour lifespan for maintenance-free performance.
Multi-Volt 10-30V DC: Compatible with 12V and 24V vehicle and trailer electrical systems.
300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white) and marker (brown) wires.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR8R |
| Brand |
Roadvision |
| Series |
BR8 |
| Description |
Clearance Lamp Rectangle Red |
| Function |
Clearance |
| LED Quantity |
4 Red LEDs |
| Input Voltage |
10-30V DC |
| Current Draw |
0.05A at 13.8V |

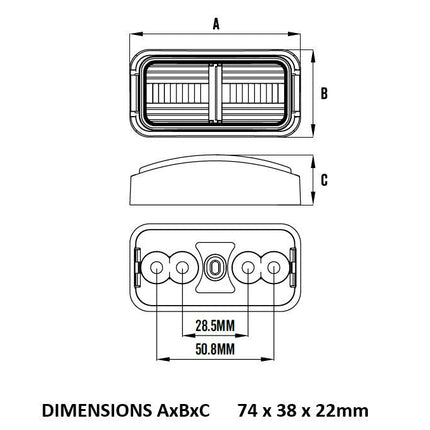

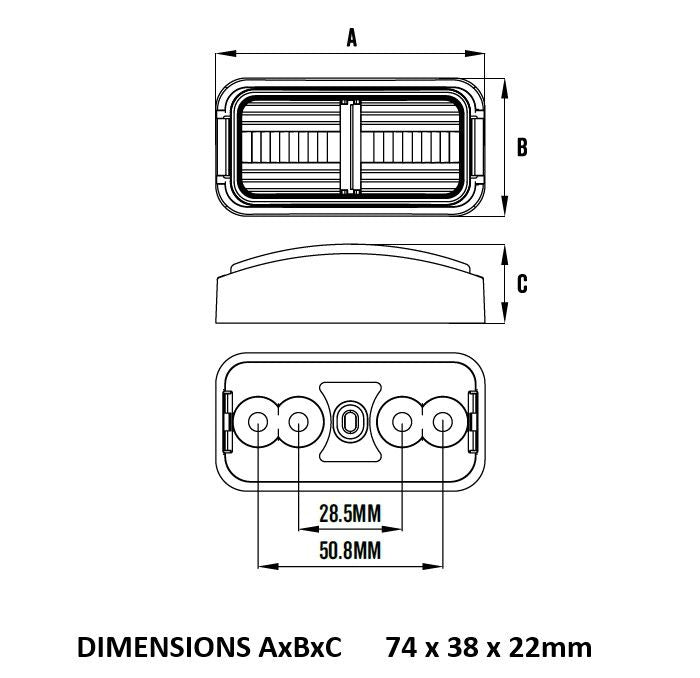

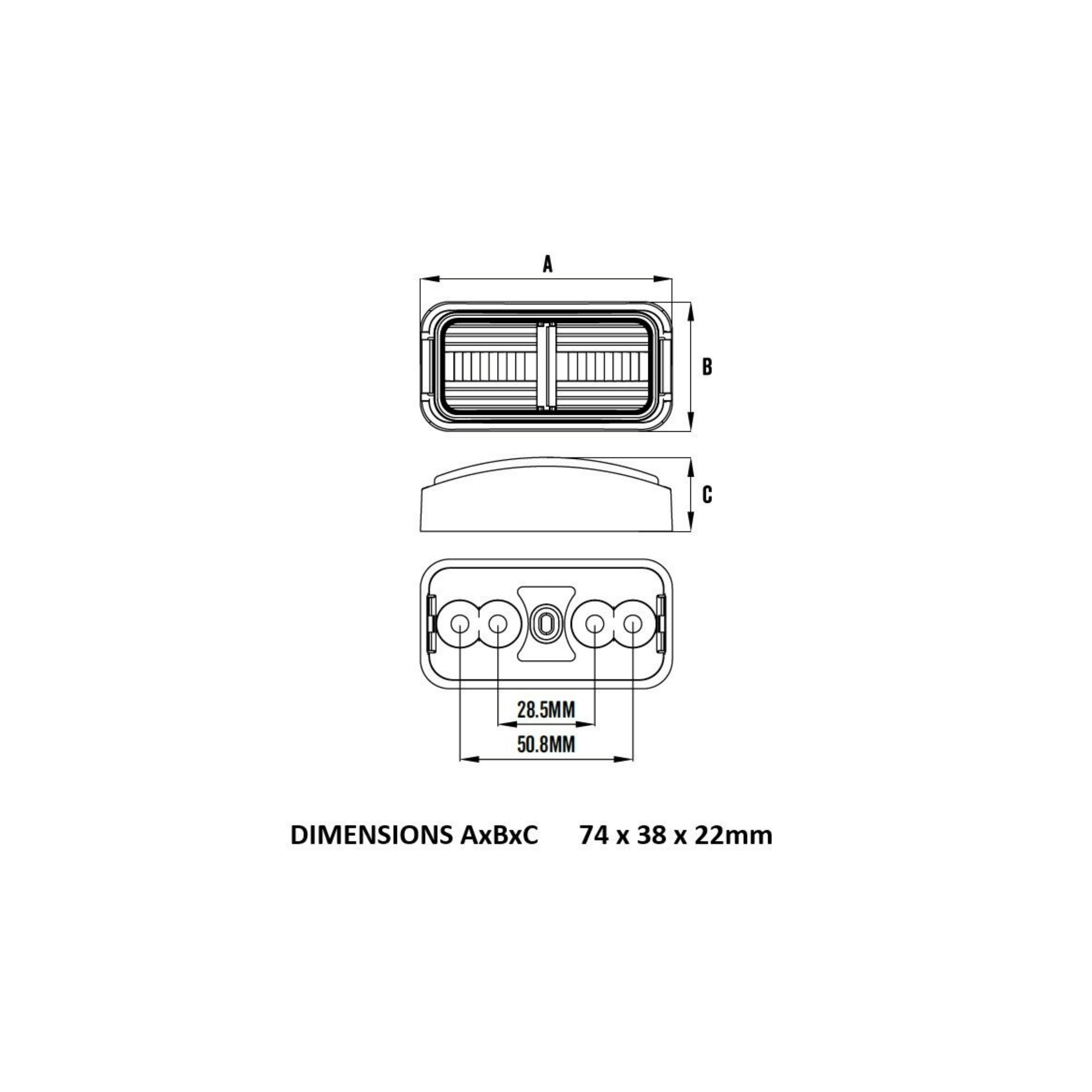

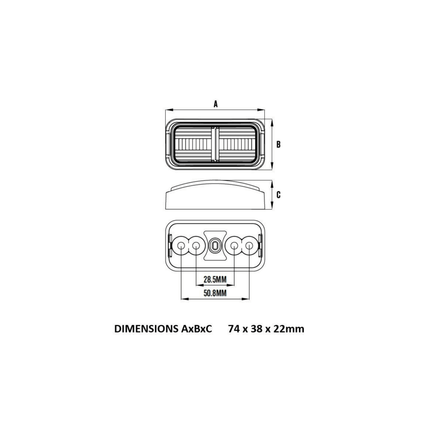

| Dimensions |
74mm x 38mm x 22mm |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| Mounting Hole/Cutout |
28.5mm and 50.8mm |
| Cable Length |
300mm Tinned Copper |
| Wiring |
Earth - White, Marker - Brown |
| IP Rating |
IP67 |
| CTA Approval |
CTA-062088 |
| ADR Approved |
Yes |
| Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR8R is compatible with 10-30V DC trailer and vehicle electrical systems. ADR and CTA approved for on-road use. Confirm mounting cutout dimensions (28.5mm and 50.8mm) before purchase.
Frequently Asked Questions
Is the BR8R ADR approved?
Yes. The BR8R is ADR approved and holds CTA approval CTA-062088 for clearance lamp applications.
Is the BR8R compatible with 24V systems?
Yes. The BR8R operates across 10-30V DC, compatible with both 12V and 24V systems.
What is the difference between the BR8R and BR8A?
The BR8R is a red lens clearance lamp only. The BR8A is an amber lens indicator and clearance lamp combining both functions. Both share the same dimensions, housing, and electrical specifications.
What are the mounting cutout dimensions for the BR8R?
28.5mm and 50.8mm. Confirm against your specific panel before purchase.
What is the lifespan of the BR8R?
100,000 hours.
